SPM - SOUTHERN PULP MACHINERY TFX PULP MOULDER (5 AVAILABLE)

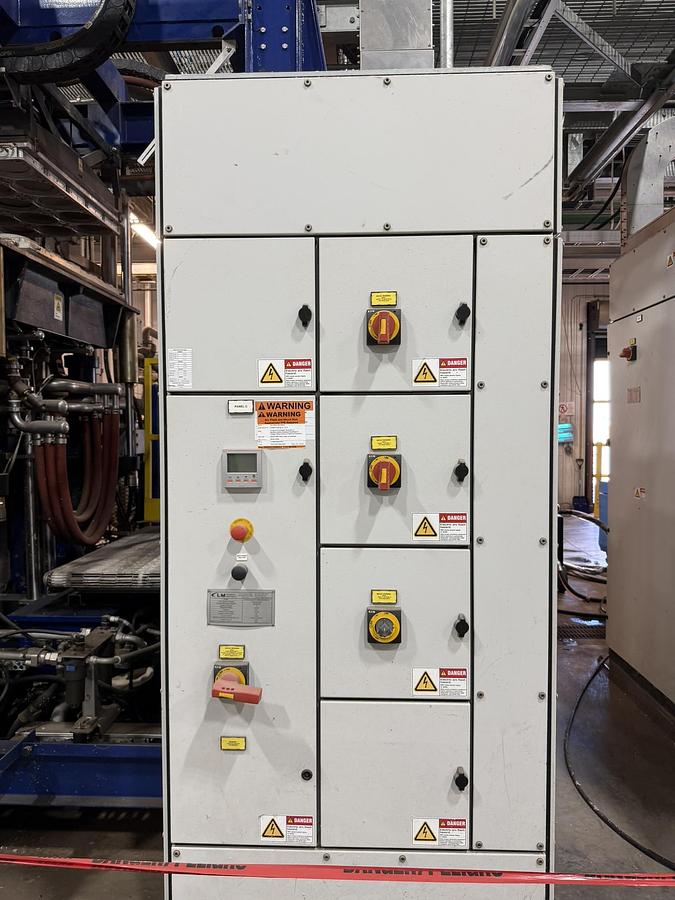

Requirements per Machine Flow Rate (Maximum)– 16,500 liter/hr– 30% formed solid contents – Max Pulp Supply: 23 040 l/h– @ 0.35% consistency Power Supply (Installed Load)– 480V @ 60Hz– 300kW installed– 400A installed– 3 Phase, 3 wire, solidly grounded Hot Water– 45 degrees C– 3000 l/h maximum– 250 l/h steady state average Compressed Air Supply– 7 Bar dry compressed air– 144m³/h (85 CFM) free air Vacuum Supply– Nominal vacuum level : -40 to -60kPa– New pumps typically deliver: -60 to -80kPa– Nominal vacuum flow: 1100acfm Cooling Water Supply (Electrical Panel Coolers, Hydraulic Heat Exchangers)– Heat load 7.4kW– Flow rate: TBD– Inlet temp: 7 to 25 degrees

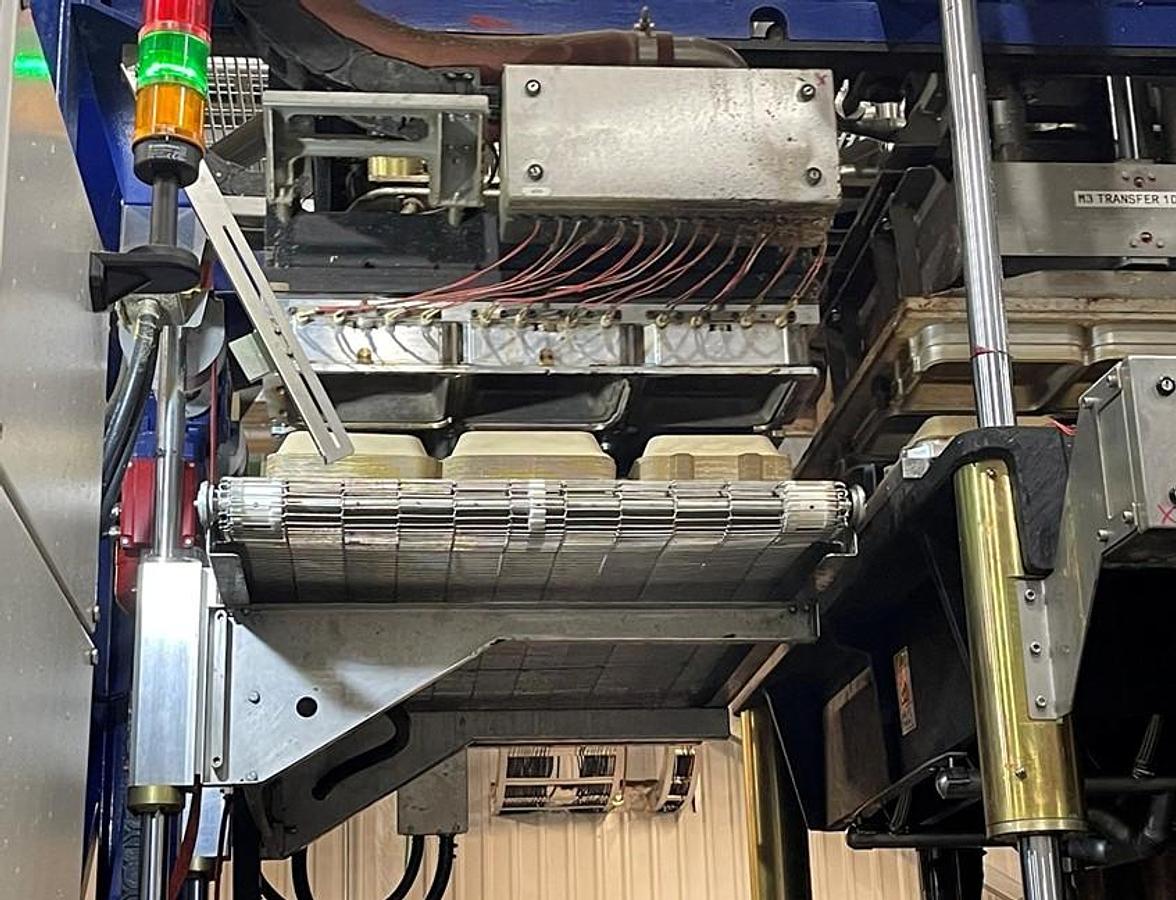

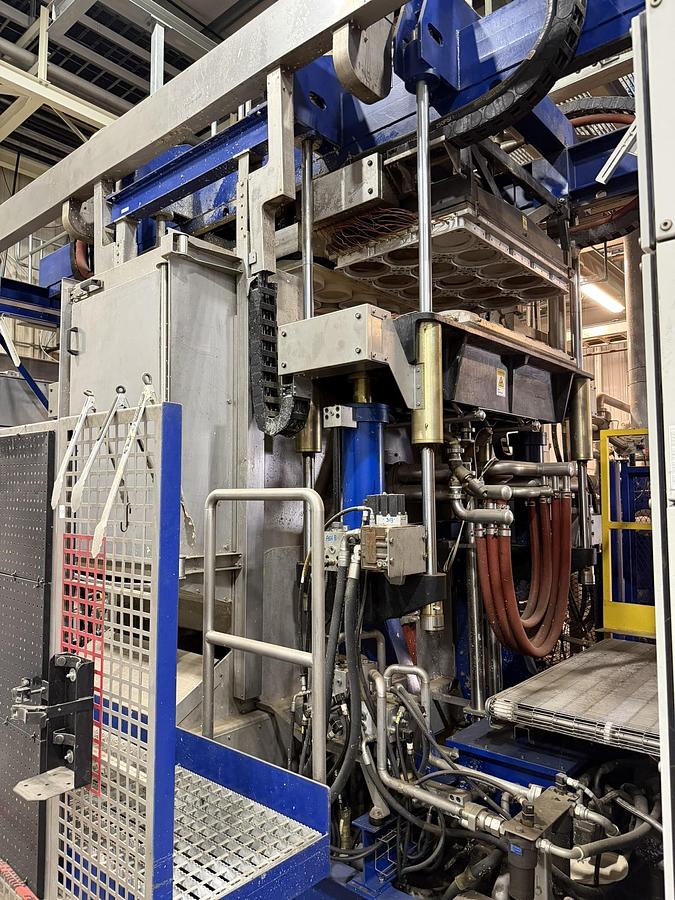

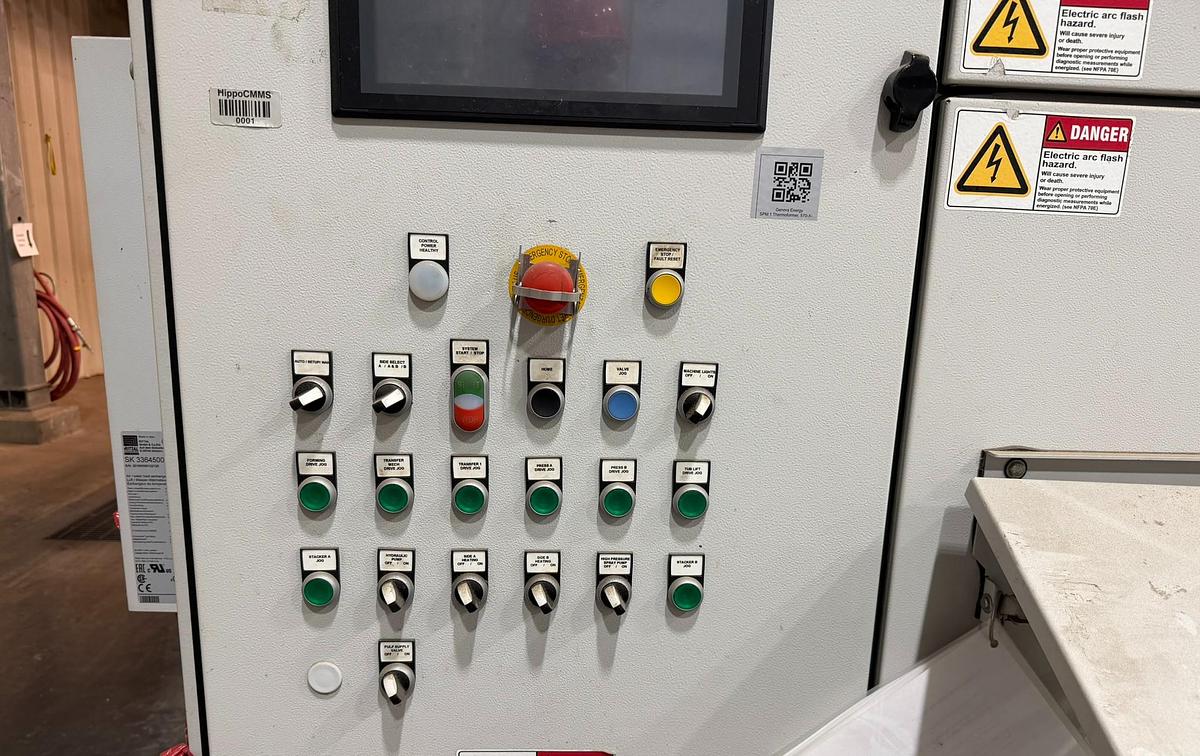

Fully automatic thermoformer with two large rotary forming platens size 1100 x 860 mm with quick mold change capability. Twin drying / pressing platen. Multi products can be manufactured simultanously. Its automated and adjustable stacker allows one operator to control 4 units. Maximum molding height 150 mm. Capable of 85 kg of product per hour. All controls are centralized and accessible via the “Touch screen” at the operator console.
