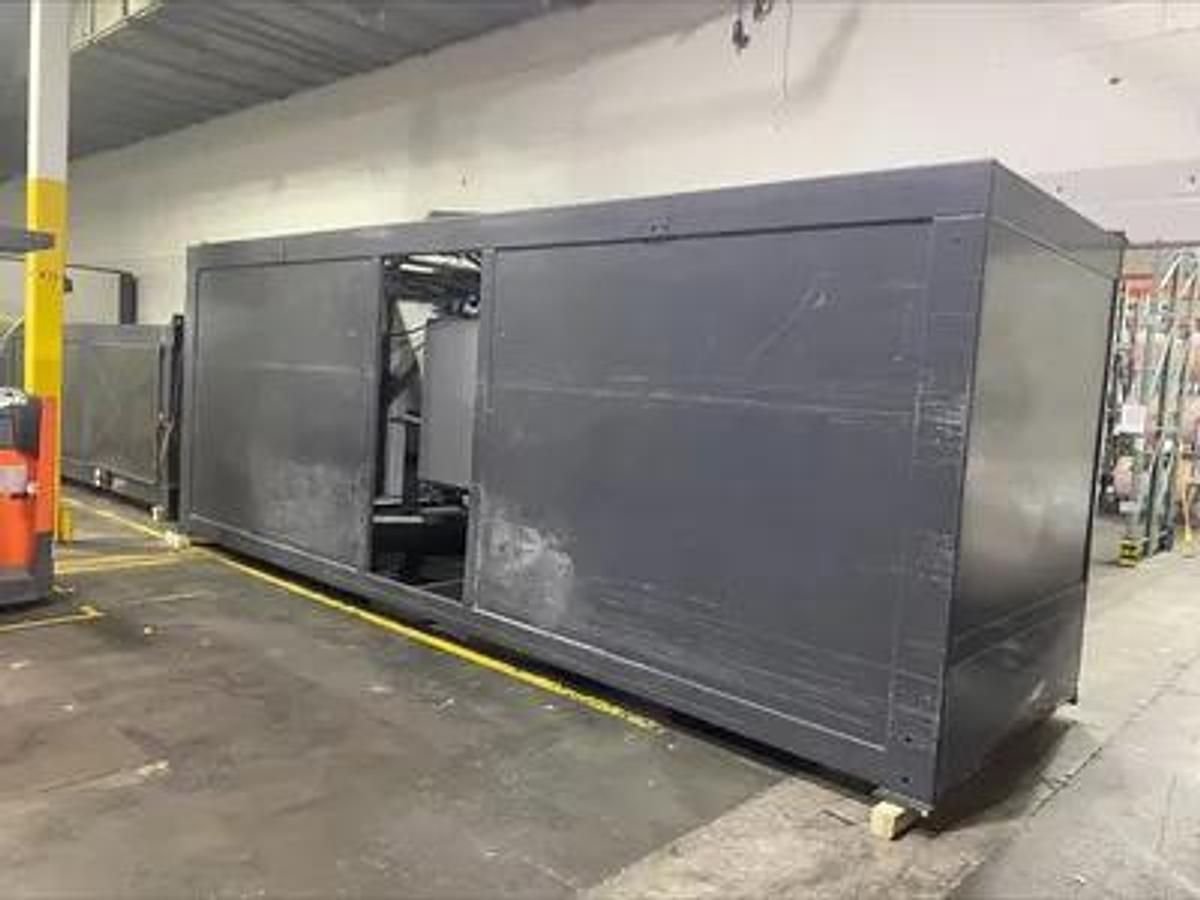

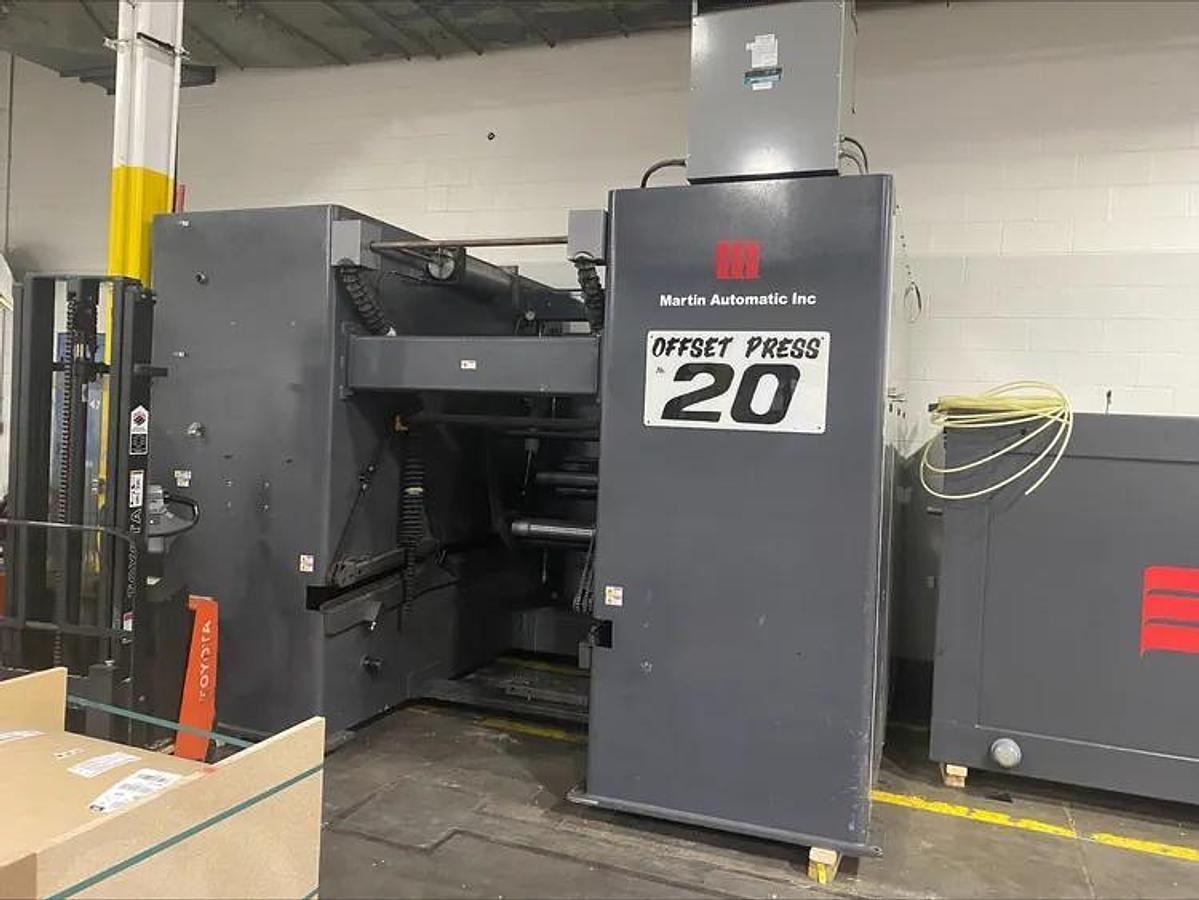

MARTIN AUTOMATIC AUTOMATIC TRANSFER REWINDER MODEL RMAP 13-40-50 MANUFACTURED 2008

The Martin RMAP Automatic Transfer Rewind is a robust, high-performance system tailored for industrial applications requiring precision and efficiency. Rated for speeds up to 1200 FPM, it accommodates materials up to 40” in width and a maximum roll diameter of 50". With advanced splicing, tension control, and web handling technologies, this system is designed for seamless operation, consistent performance, and user-friendly handling.

Specifications:

Maximum Transfer Speed: Up to 1,200 FPM

Maximum Web Width: Up to 40 IN

Maximum Roll Diameter: Up to 50 IN

Rewinder Chucks: Supports max web width of 34 IN

Two chuck sizes: 6” and 12”

Internal Rollers: Measure 42 IN in width

Features:

Automatic splice initiation and web break detection

Pneumatic tension adjustment for on-the-run control

Actuated knife cut-off for precision slitting

Low-inertia idler rollers and permanently lubricated bearings

Heavy-duty welded steel framework for long-term durability

Manual or automatic roll change with PLC integration

Optional Features:

Integrated turn bar or bay window for right-angle installation

Core shaft handling cart or "bionic arm" for easy roll management

Automatic tension reduction based on press signals

Integrated slitting system and automatic web guide

Engineered for reliability and performance, this RMAP model delivers exceptional value for a wide range of industrial applications. Contact us today for more details or to schedule an inspection!
