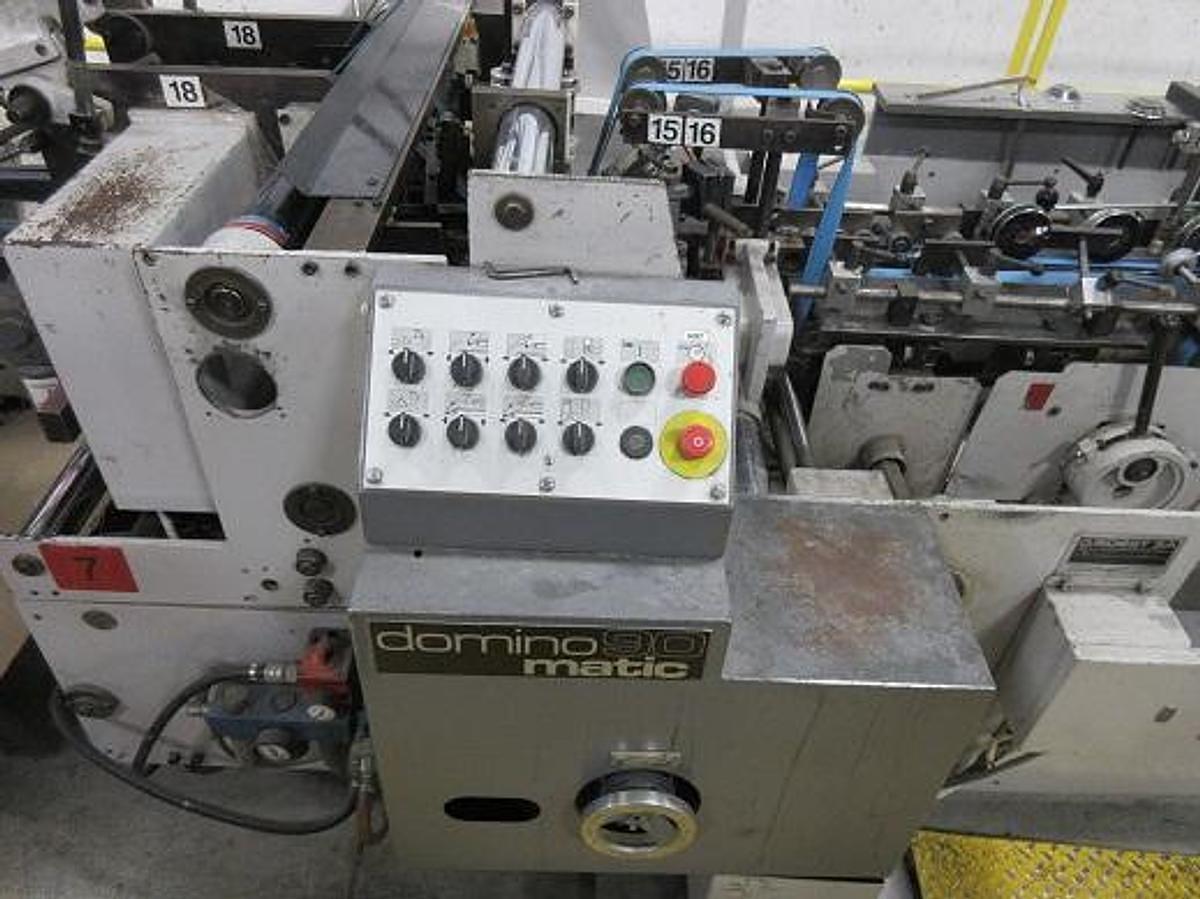

BOBST DOMINO 90 MATIC FOLDER GLUER

1989 BOBST DOMINO 90 matic Folder Gluer

Max. blank width : 900 mm (35 3/8”)

Min. blank width : 56 mm (2 1/5”) *Equipped with minimum folding device

Max. blank length : 800 mm (31 ½”)

Min. blank length : 60 mm (2 3/8”)

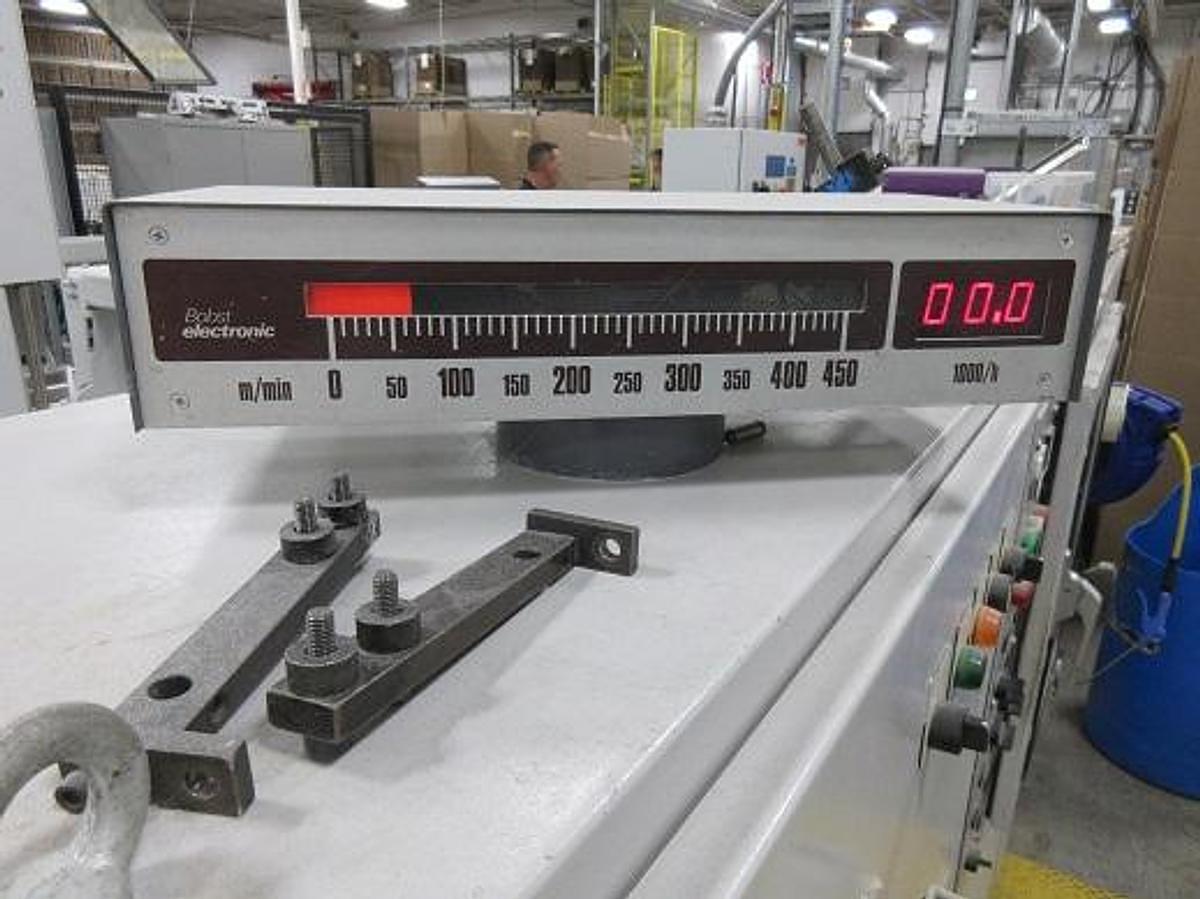

Operation speed from 20 – 450 m/Min.

Cardboard stock : up to 700 g/m2

Corrugated material : E and B flute

Machine voltage : 600 V / 3 ph / 30 Amps

Equipped for straight-line and crash lock-bottom cartons.

Equipment details :

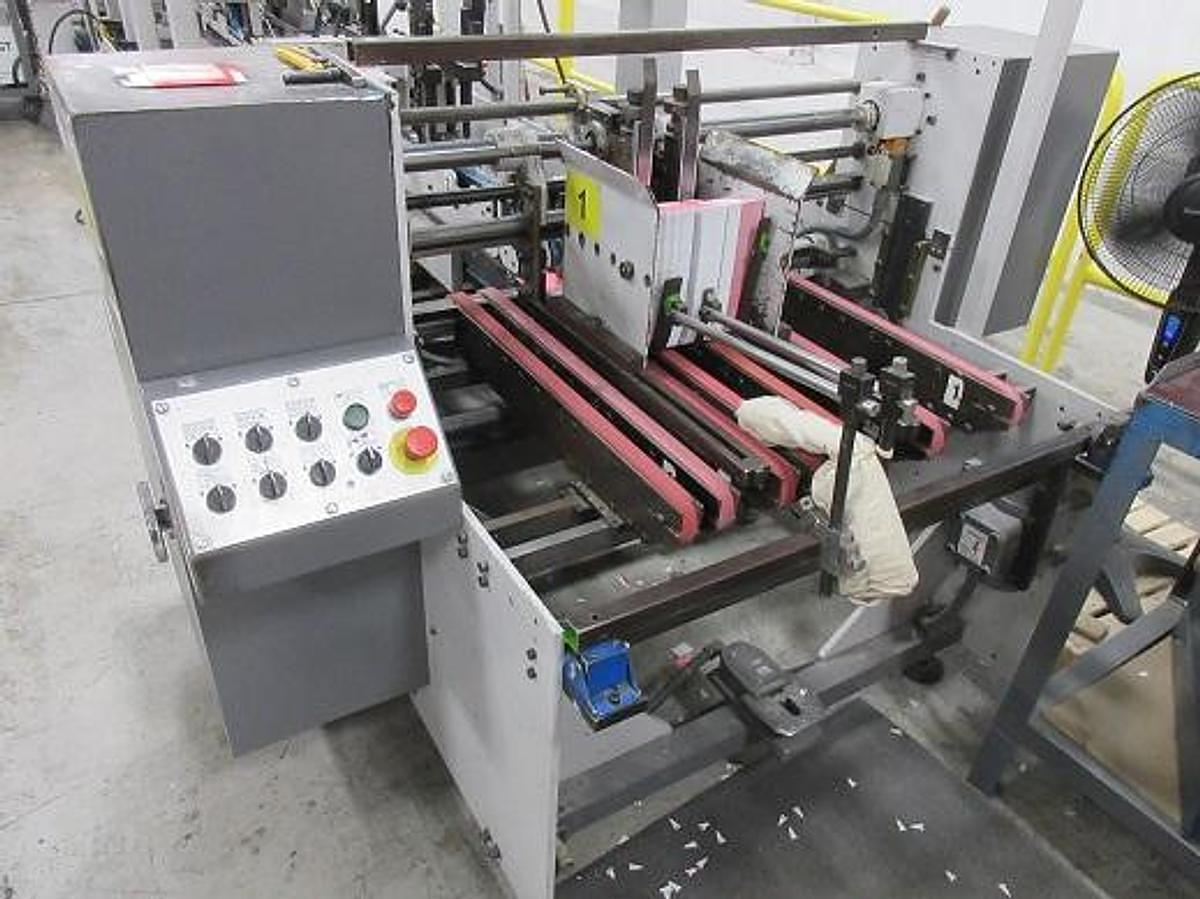

Feeder with pile vibrator

Set of 7 infeed belts

Two (2) main gauges

Pre-breaker carriers left and right

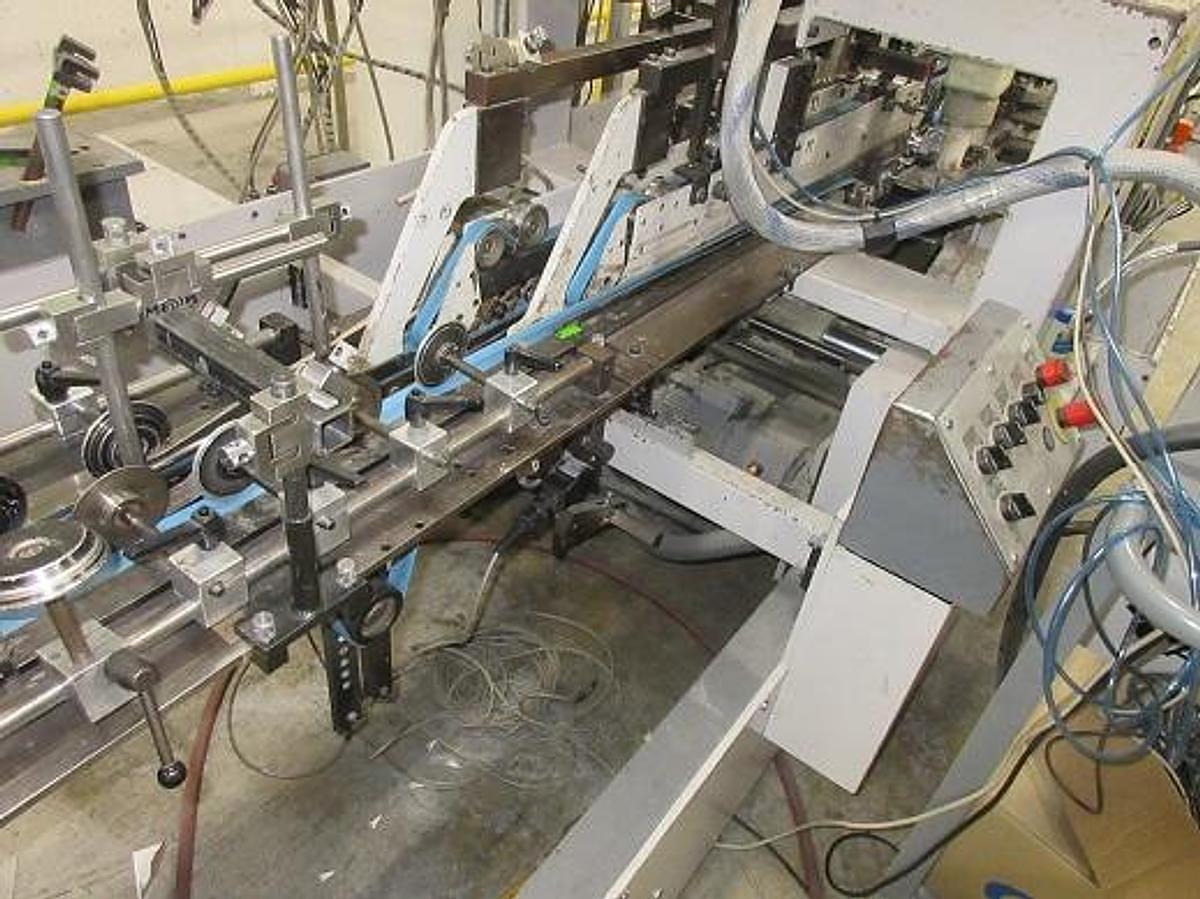

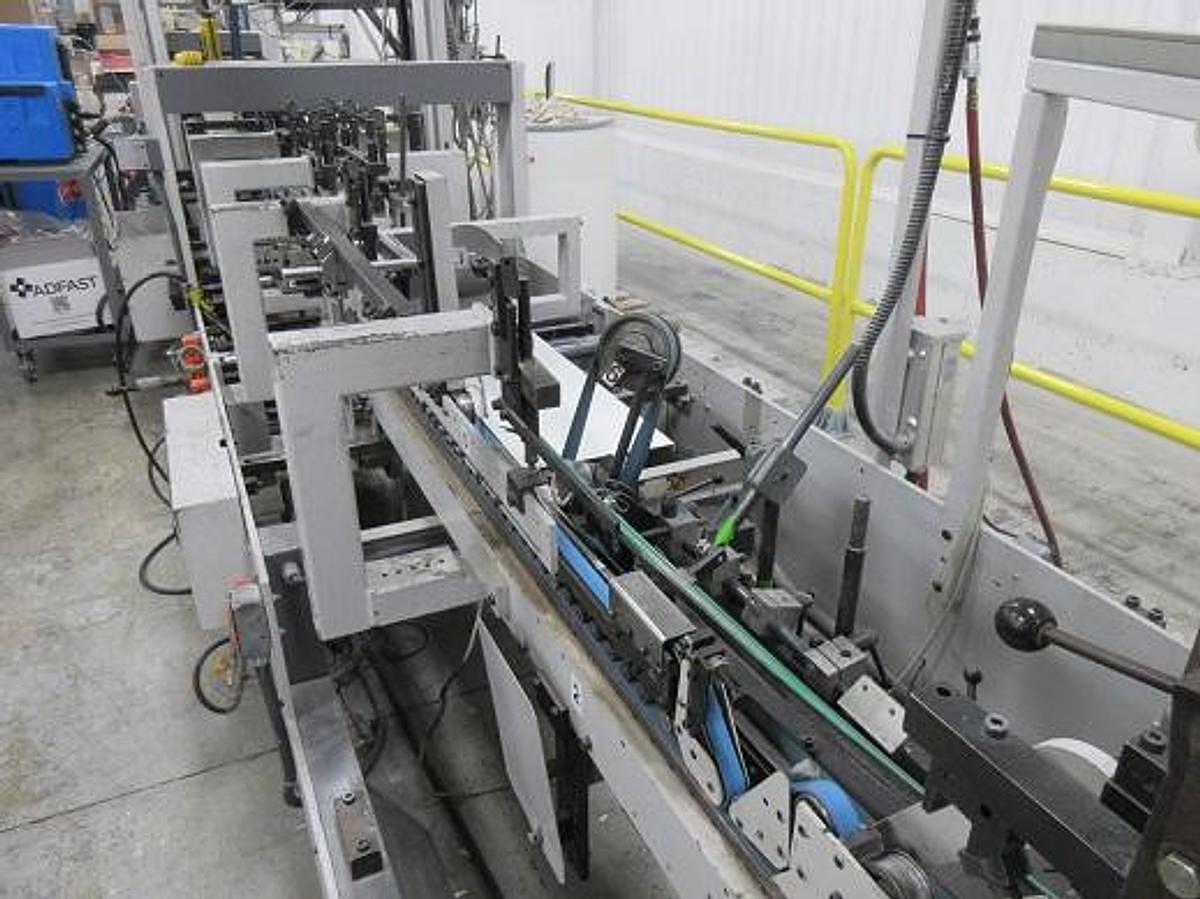

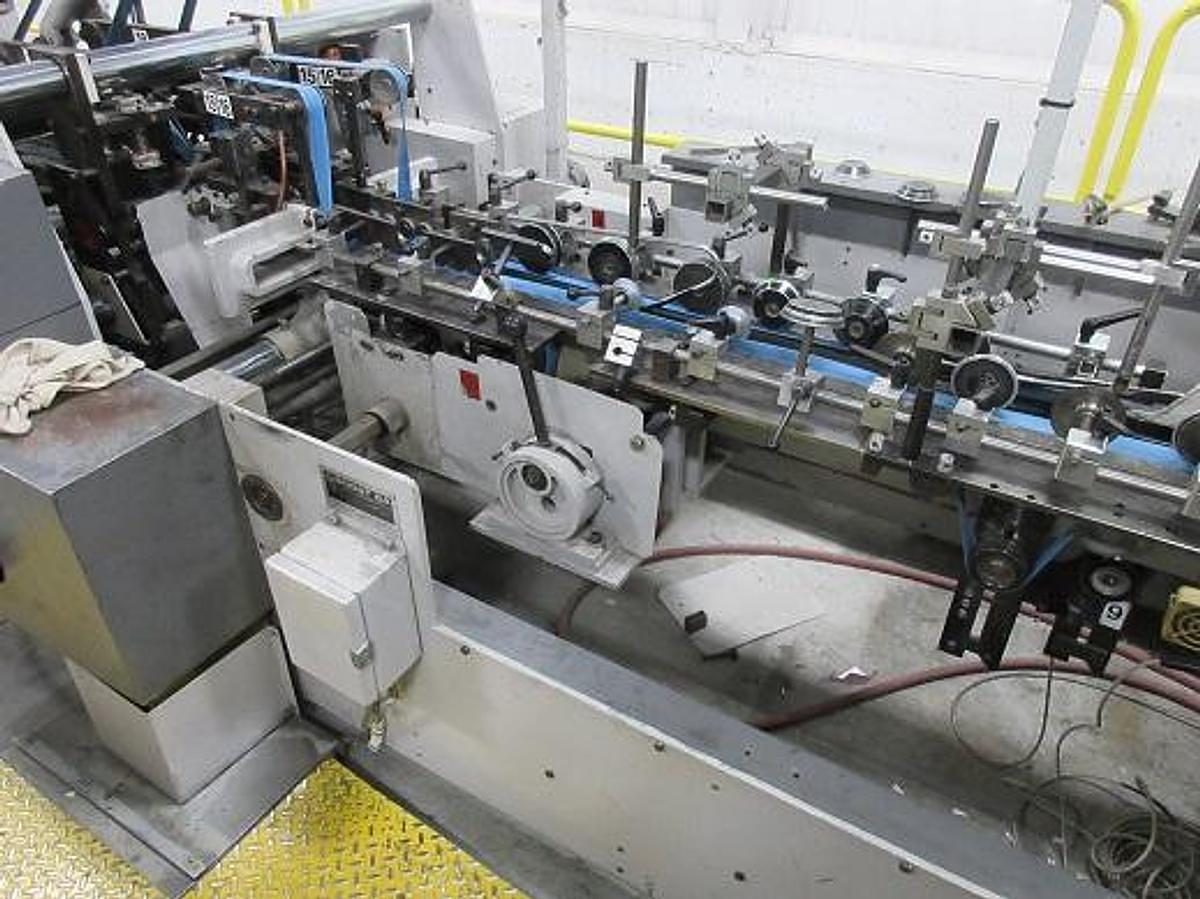

Folding section carriers left and right

Lower left-hand glue unit

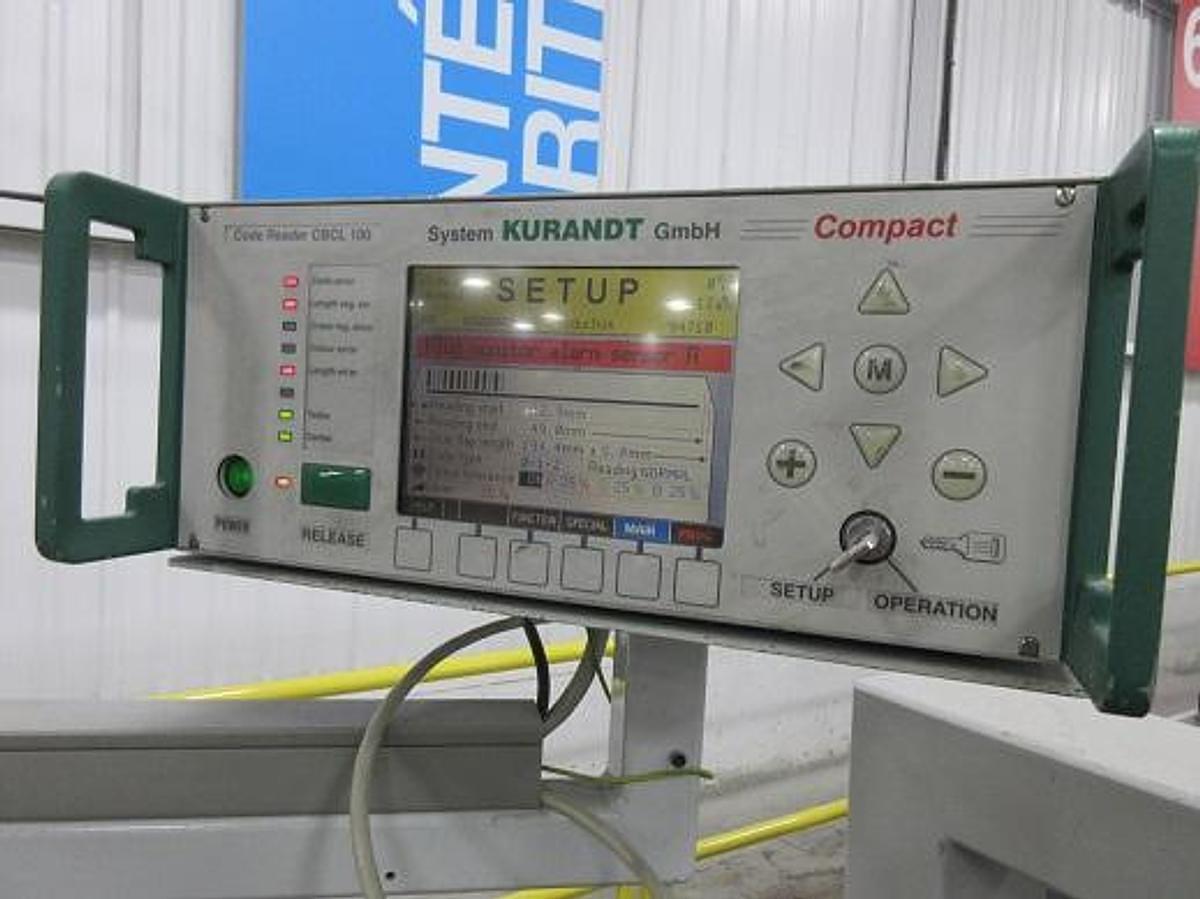

Kurandt CBCL100 color code reader

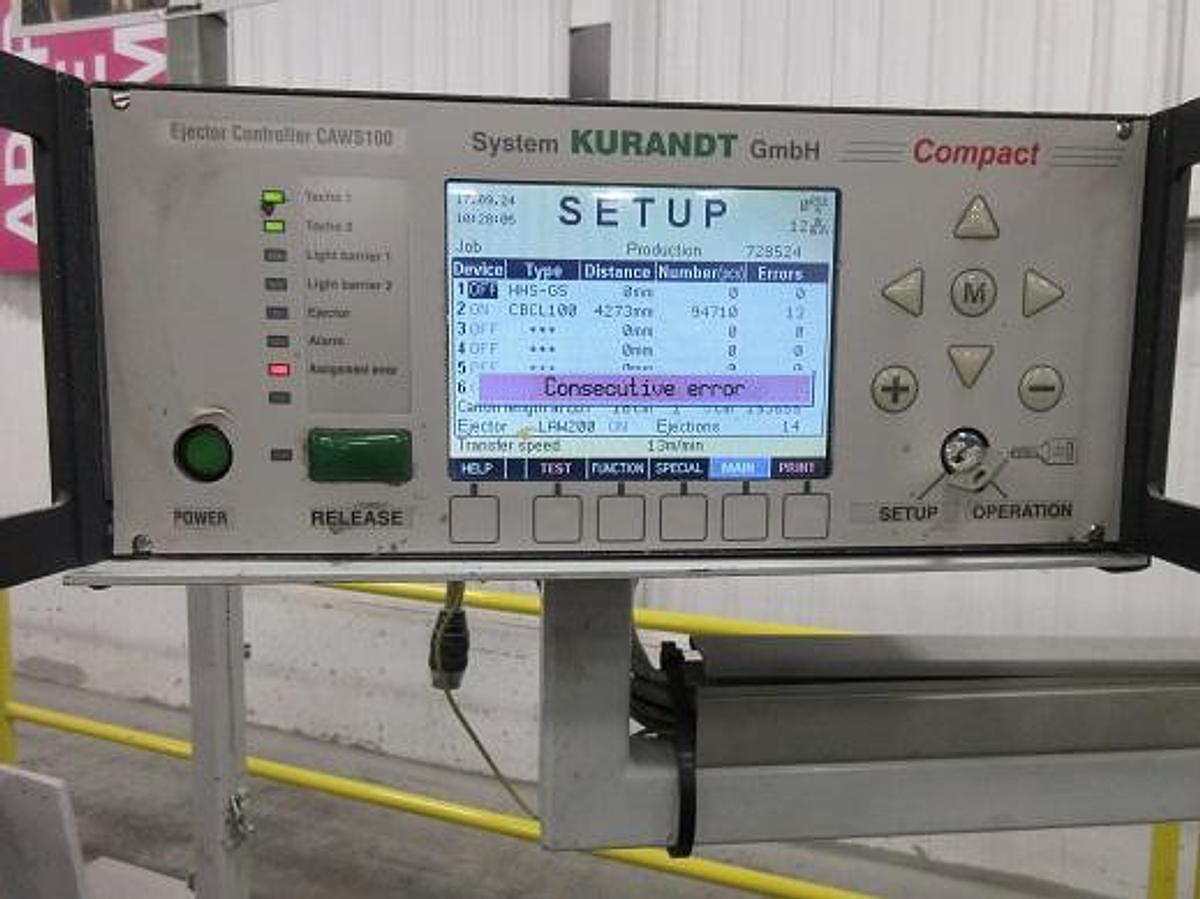

Kurandt CAWS100 ejector controller

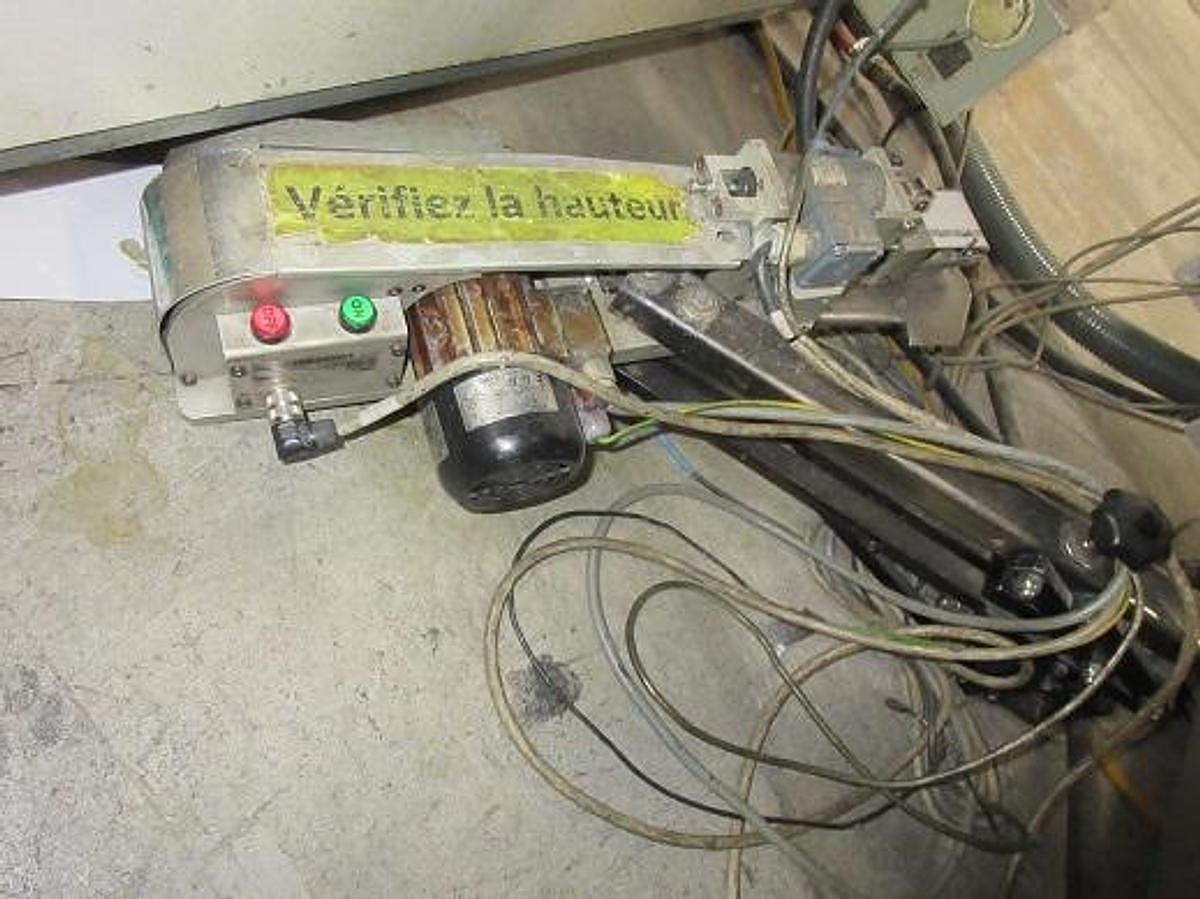

Kurandt linear ejector

Transfer section

Box counter and pneumatic kicker

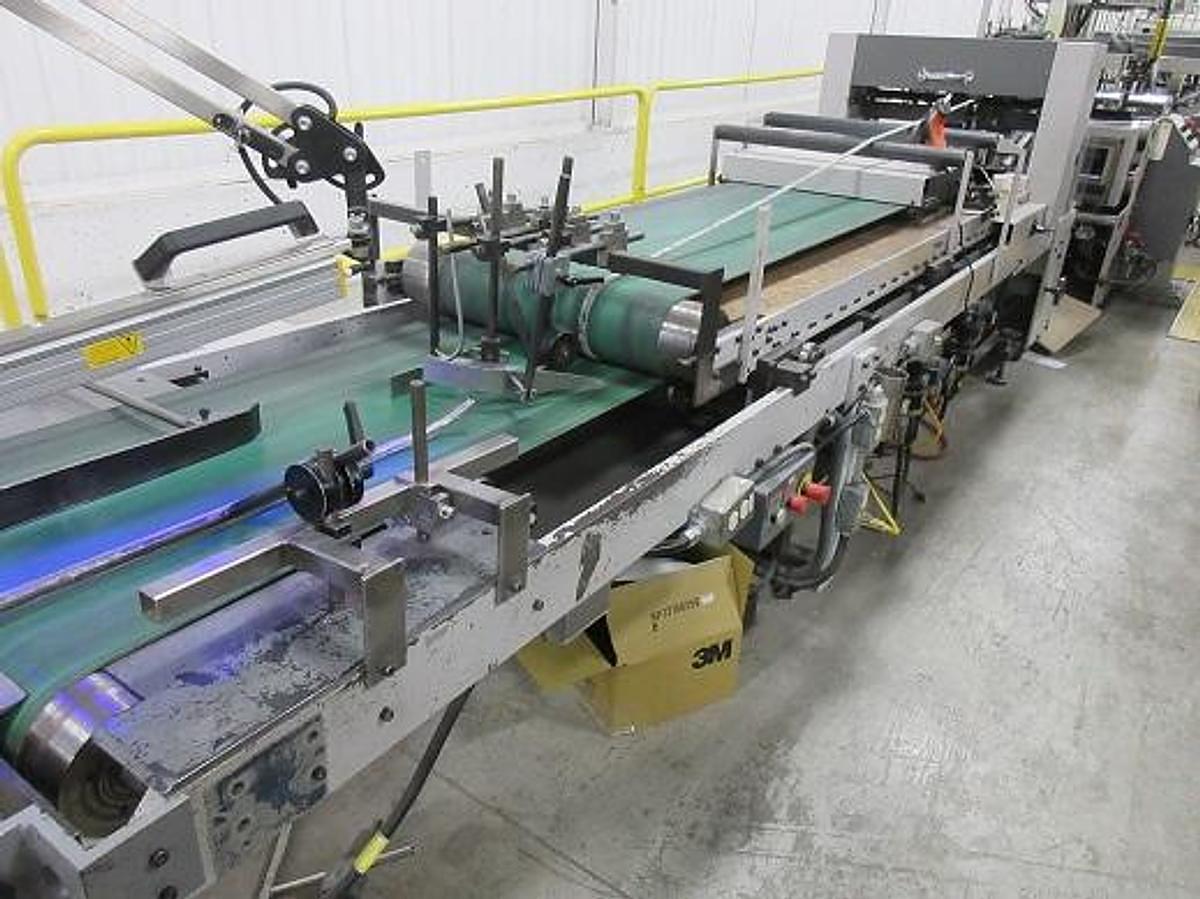

Delivery apron

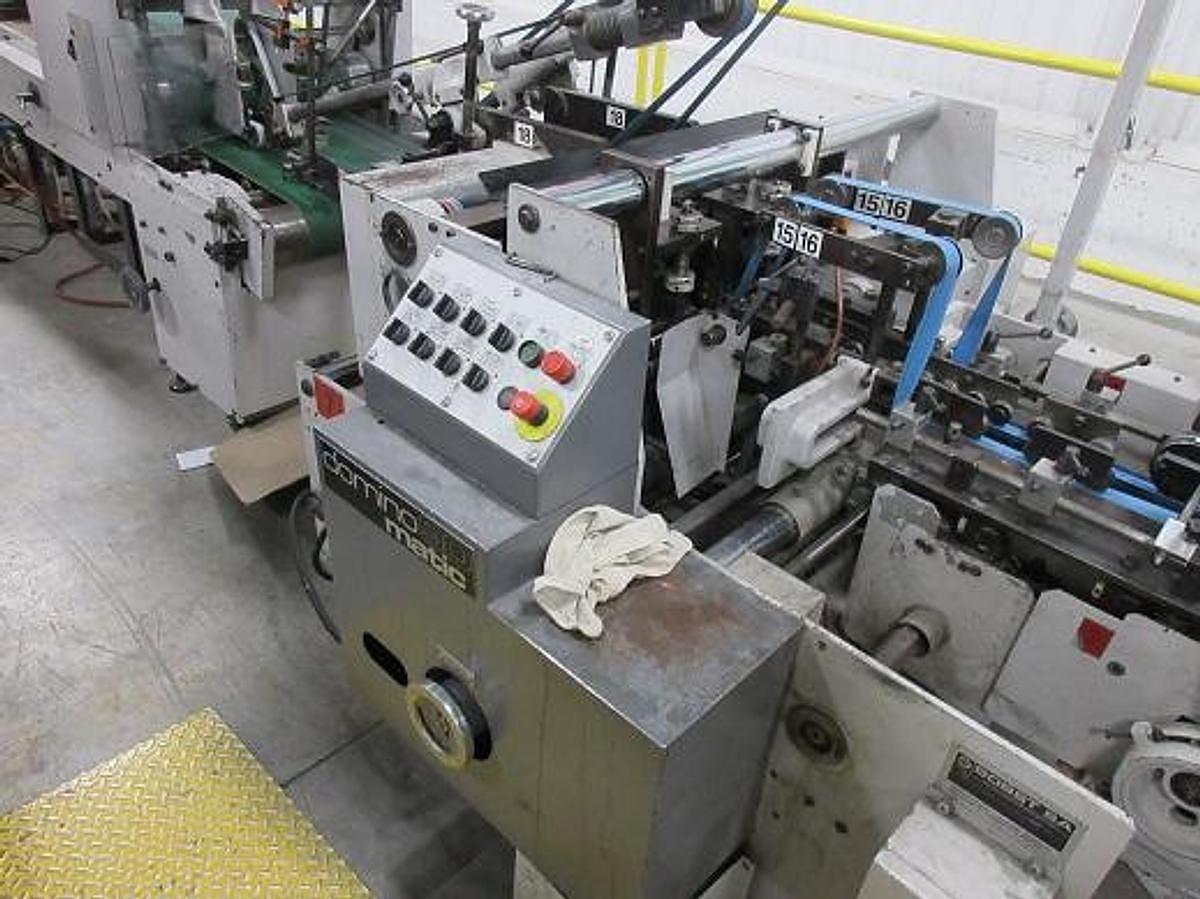

Operator remote control

Manual transport carriers with counters

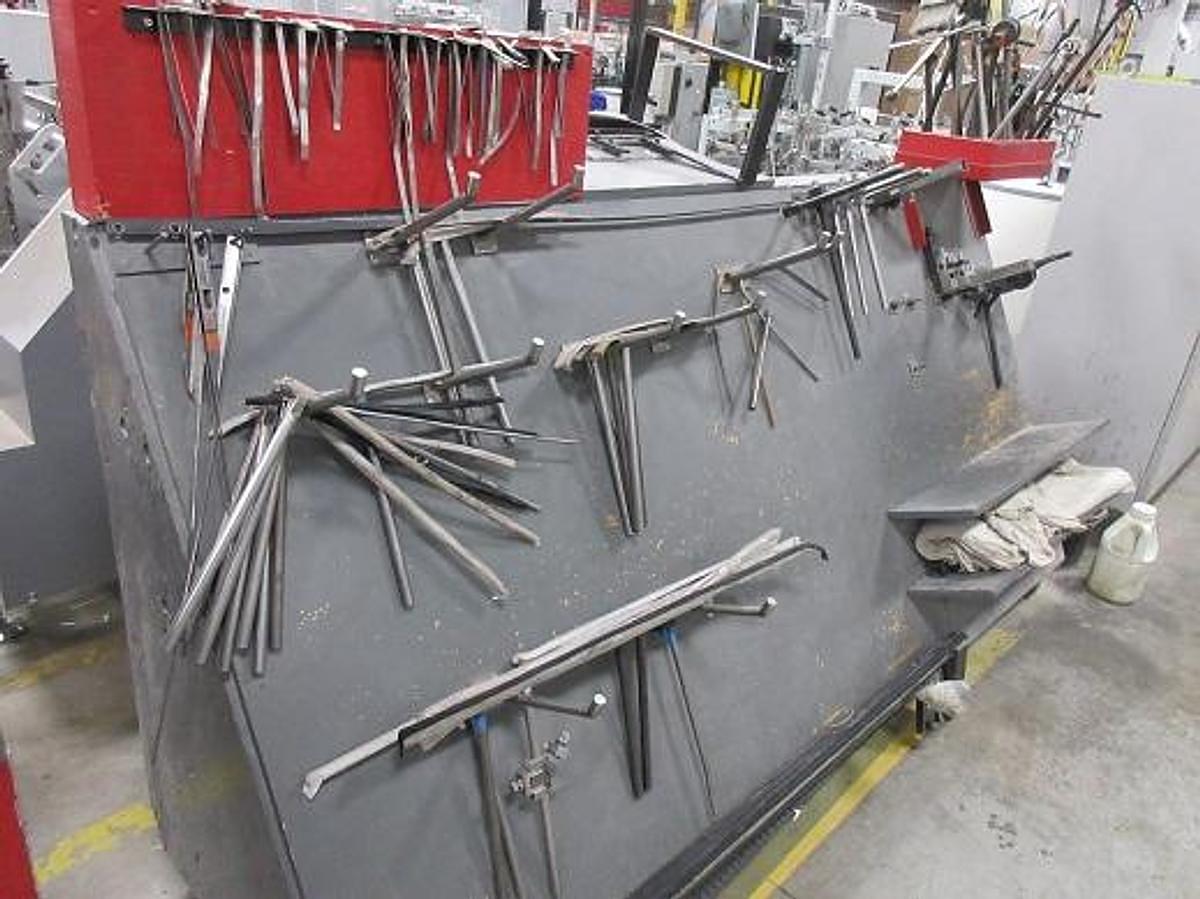

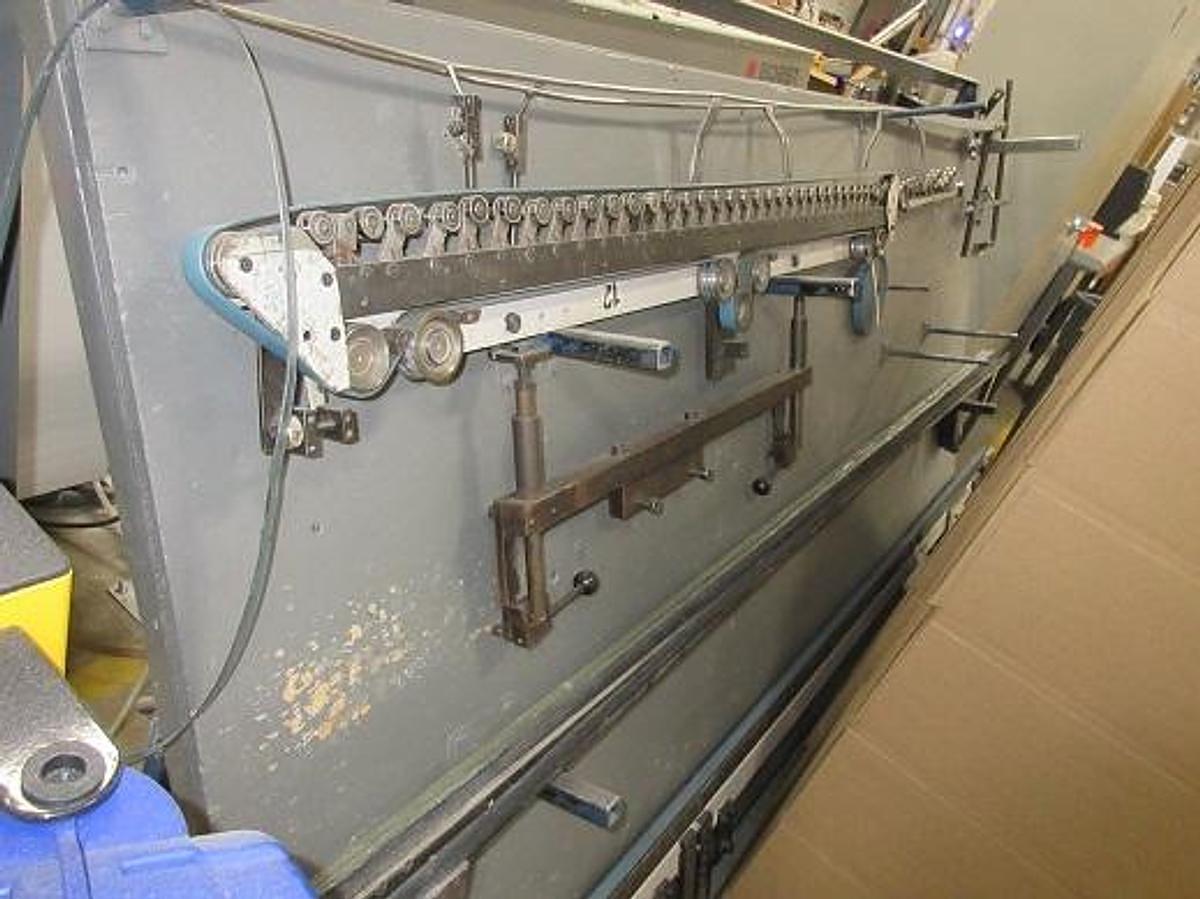

All machine tooling and extra parts

All Bobst parts books and manuals

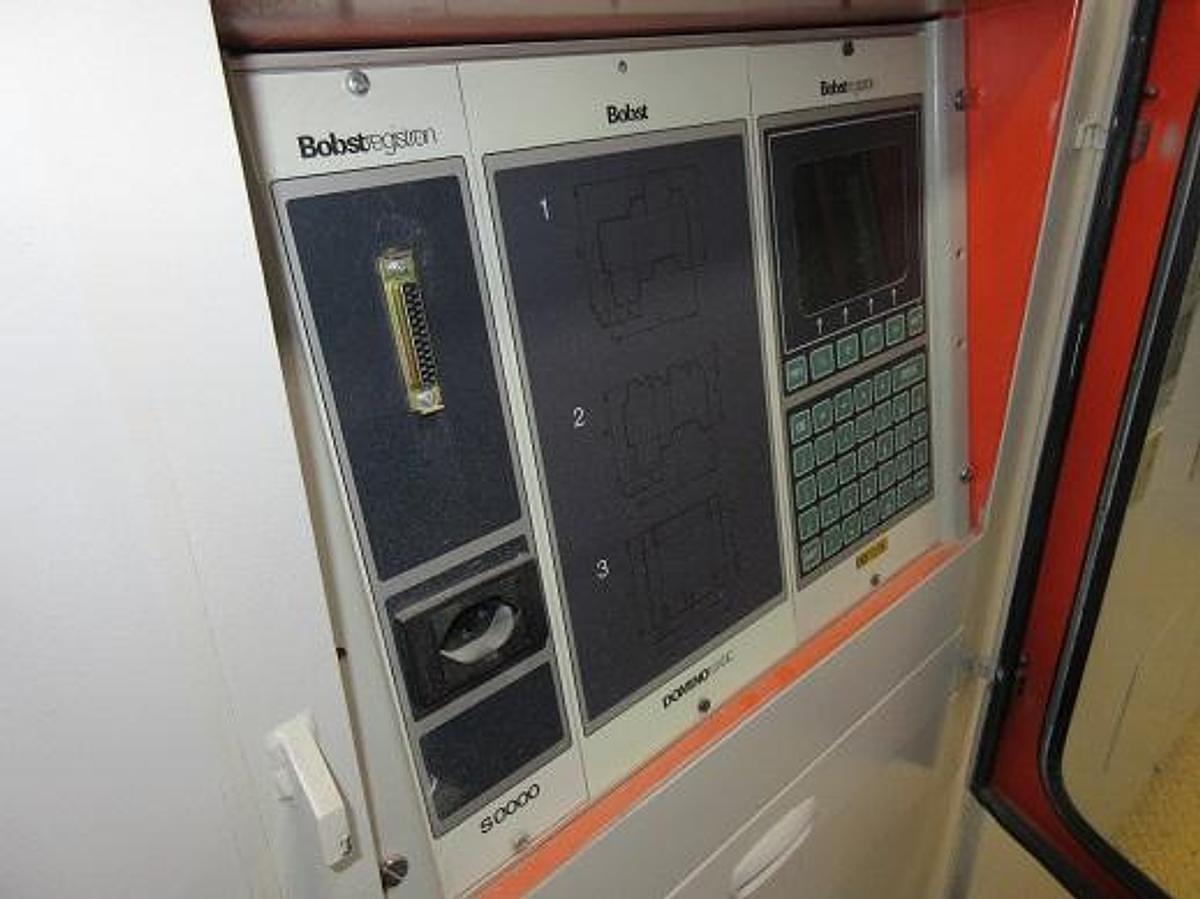

Note : The Bobst Matic electronic job programming does not function.
