20MM STEER LAB CAST FILM EXTRUSION LINE
No longer available
20MM STEER LAB CAST FILM EXTRUSION LINE
Description
107960

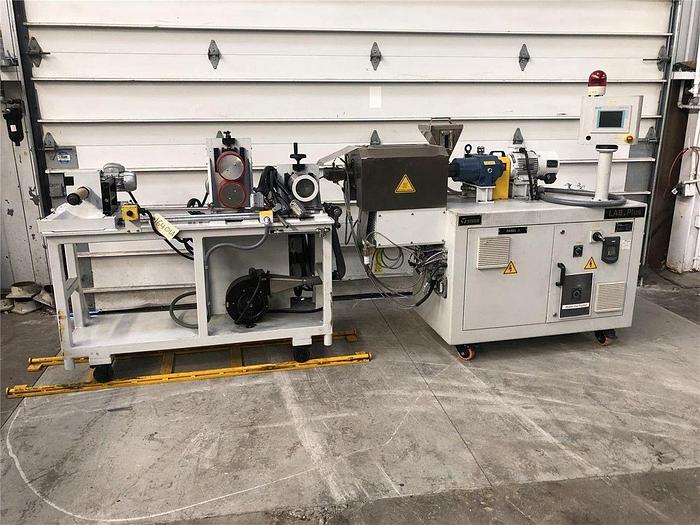

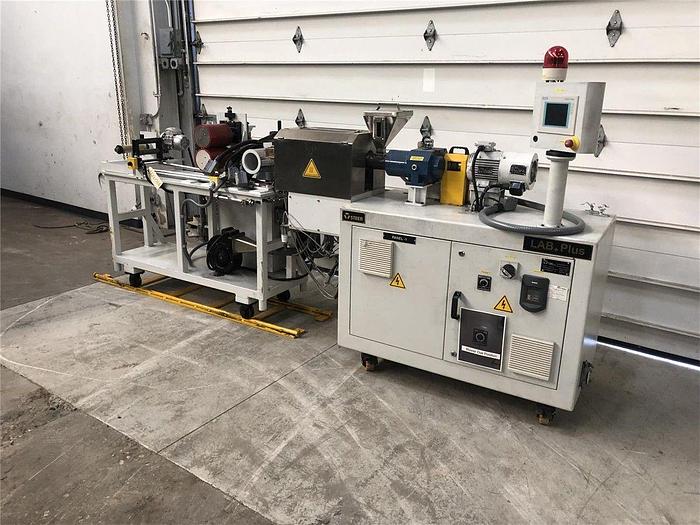

One (1) Used 20MM Steer Lab Cast Film Extrusion Line

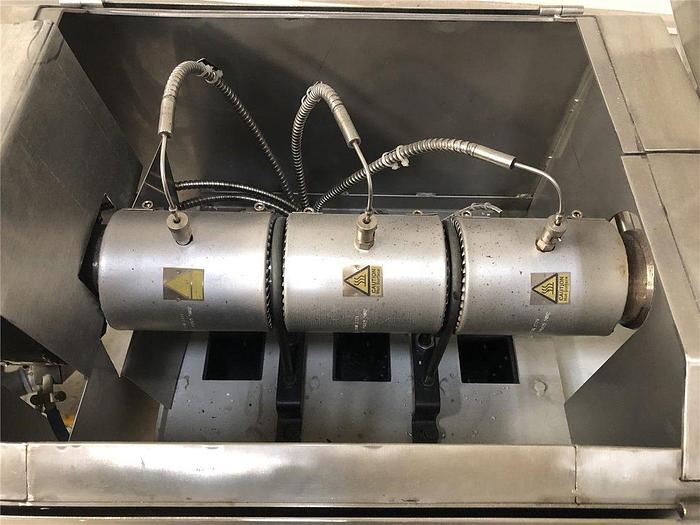

20MM Diameter, 26 L/D Ratio, 3 Barrel Zones, 150 RPM Screw Speed, 9.5:1

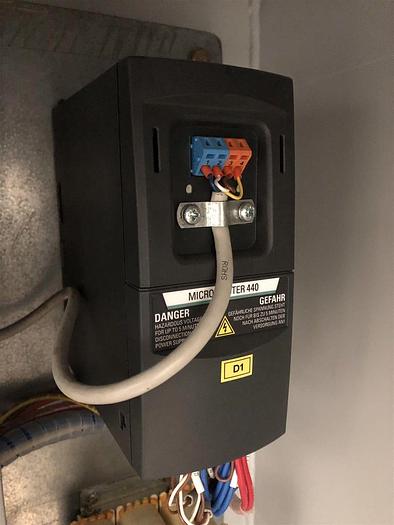

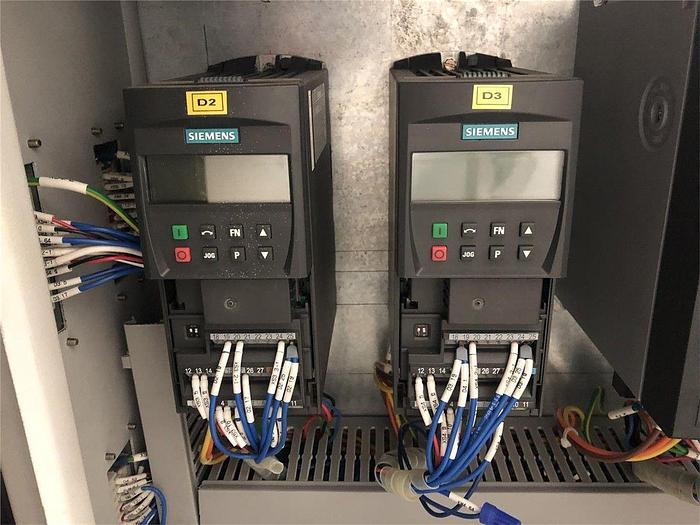

Gearbox Ratio, 1.5KW(2HP) Siemens AC Motor With Siemens Micromaster 440

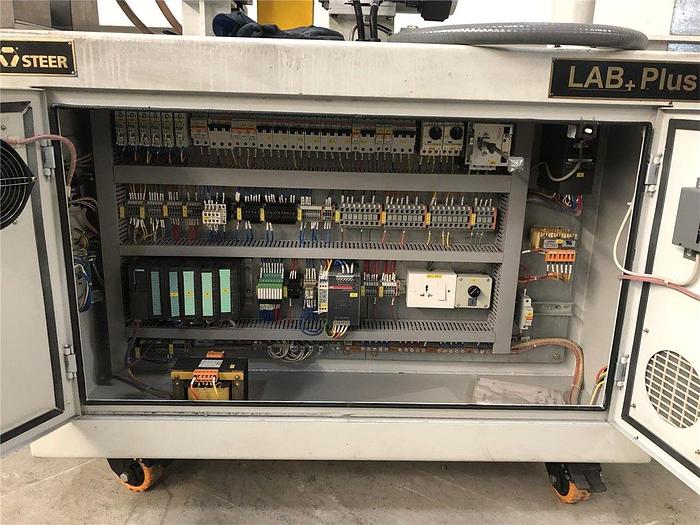

Drive, Siemens Touch Screen Controls, Stainless Steel Hopper.

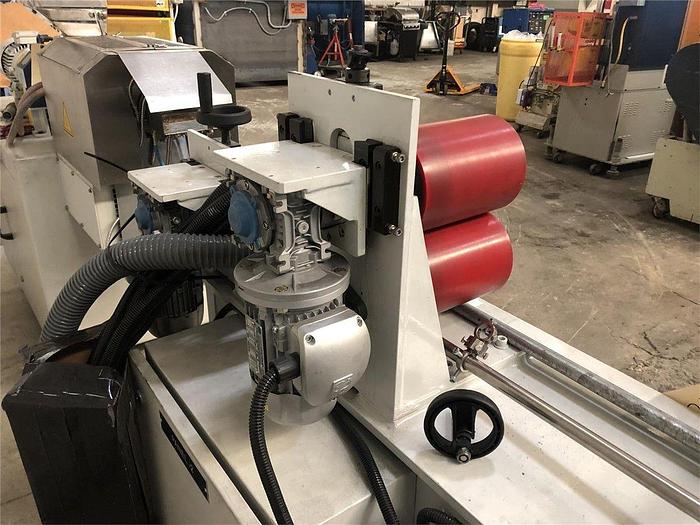

8" Wide X 6" Diameter Casting Roll Driven By .18KW (.25HP) Motor Through Right
Angle Gearbox, 8" Wide X 6" Diameter Rubber Pull Rolls Driven By .18KW (.25HP)
Motor Through Right Angle Gearbox, 8" Wide Winder Driven By .18KW (.25HP)
Motor Through Right Angle Gearbox.
480/3/60, 20 AMPS
New In 2013
Approximate Dimensions:
Extruder: 72" L x 32" W x 72" H
Cast Stack: 60" L x 30" W x 56" H
Specifications
| Manufacturer | STEER |
| Model | LAB CAST FILM EXTRUSION LINE |
| Year | 2013 |
| Condition | Used |
| Stock Number | 107960 |
| 20mm diameter, 26 l/d ratio, 3 barrel zones, 150 rpm screw speed, 9.5 | 1 |
| Extruder | 72" L x 32" W x 72" H |
| Cast stack | 60" L x 30" W x 56" H |
