65" WIDE BW MARQUIP SHEET WIZARD DUAL ROTARY SHEETER

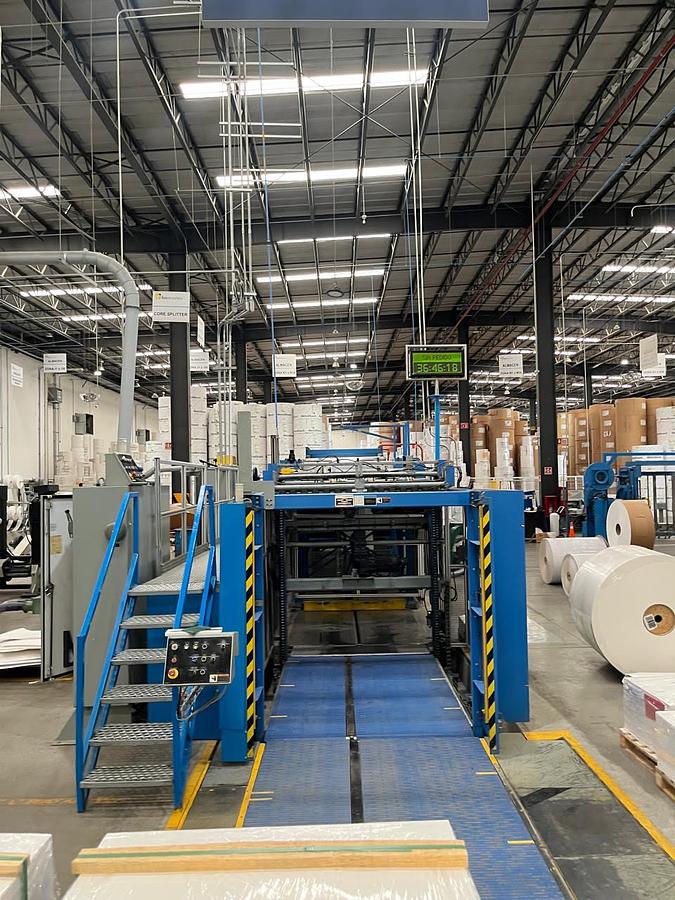

Used 65" Wide BW Marquip Sheet Wizard Dual Rotary Sheeter

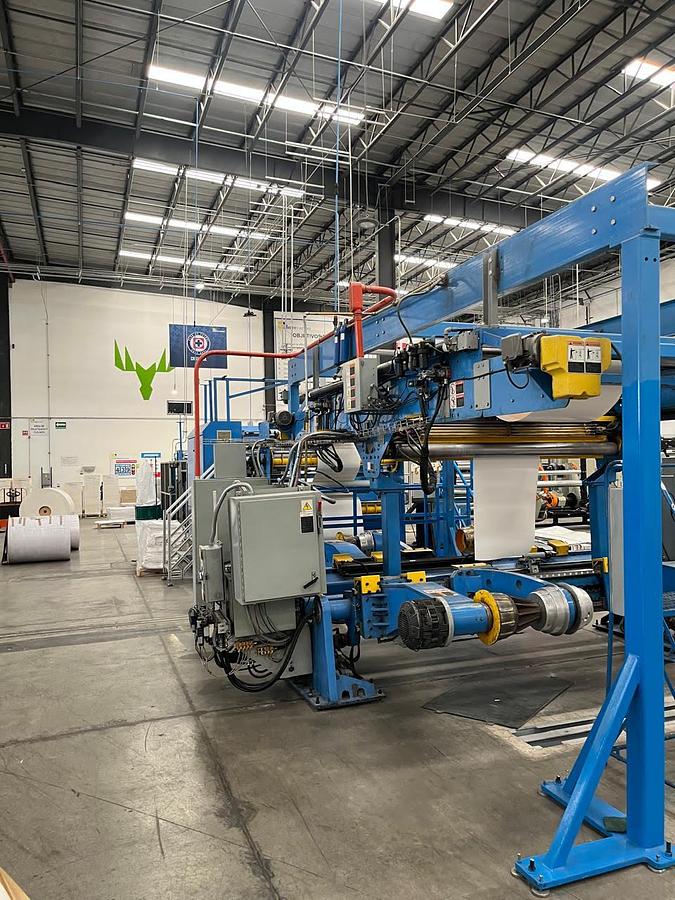

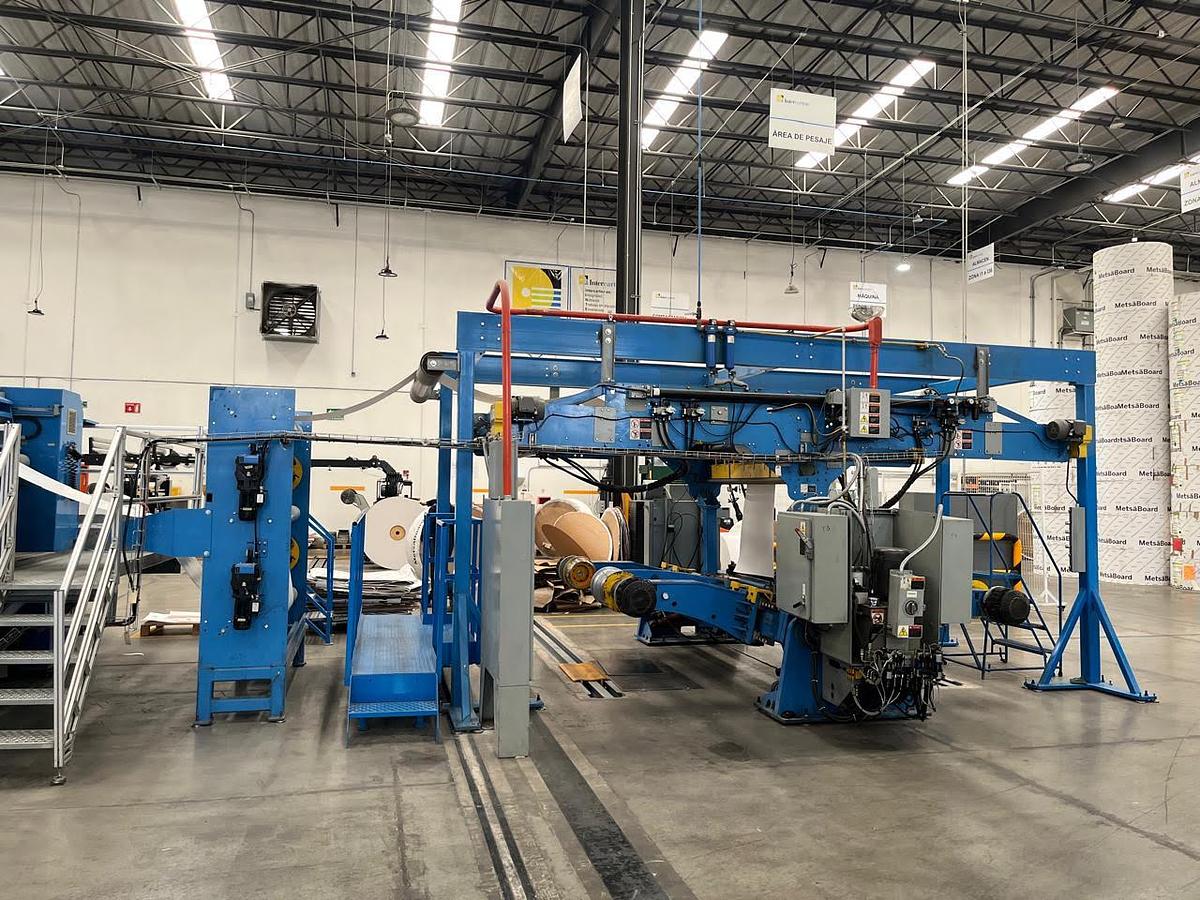

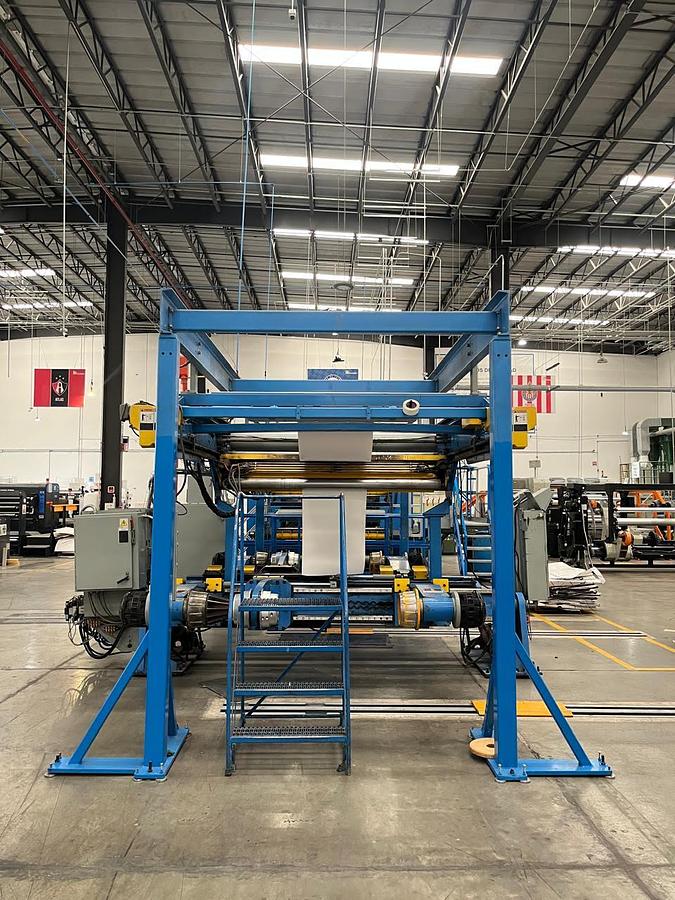

Dual Marquip-III roll-stands: 73" wide & 72" diameter, with load-cell closed-loop tension control per web.

Max weight 7500 lbs per roll

Roll aligner

Three bar progressive decurl

Sheet length range: 16-65"

Dual-motor 100L steel knife cylinders with helical blades — upgraded from the 50L base for a much better sheet-length-vs-line-speed envelope.

Heavy-duty 458 mm (18 in) pull rolls at 2,310 N (520 lb) pulling force — roughly 2× standard, so it reliably handles heavier caliper FC/SBS (16–28 pt) without slip

Vacuum-assisted overlap delivery + accumulation conveyor + semi-auto pallet pusher — the combination that delivers near non-stop pallet change on light-weight grades.

Flat-Plate Wizard Stacker, 5,000 lb lift capacity, 16” to 65" sheet length range, 2-out capable with the side tamper.

Semi automatic pallet pusher

Quality-control stack: capacitance-type mill-roll splice detect, auto reject gate, Simco dual-side web cleaner ahead of the knife, three-bar progressive decurler per web, jam detect with auto-stop.
