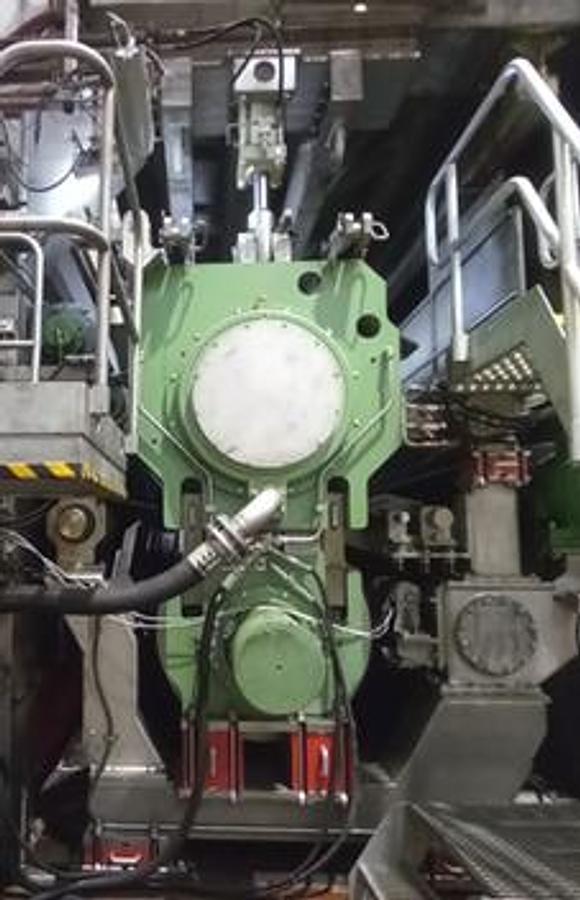

178" WIDE (4.54M) BELLMER SHOE PRESS

Used 178" Wide Shoe Press

Manufacturer: Bellmer (2016)

Design: Stand-alone

Shoe roll position: Bottom

Maximum line load: 800 kN/m

Press belt width: 174" -178" (4,440–4,540 mm)

Maximum design speed: 800 m/min

Drive side (viewed from the headbox towards the reel): Right-hand side

Scope of the existing shoe press system available for purchase:

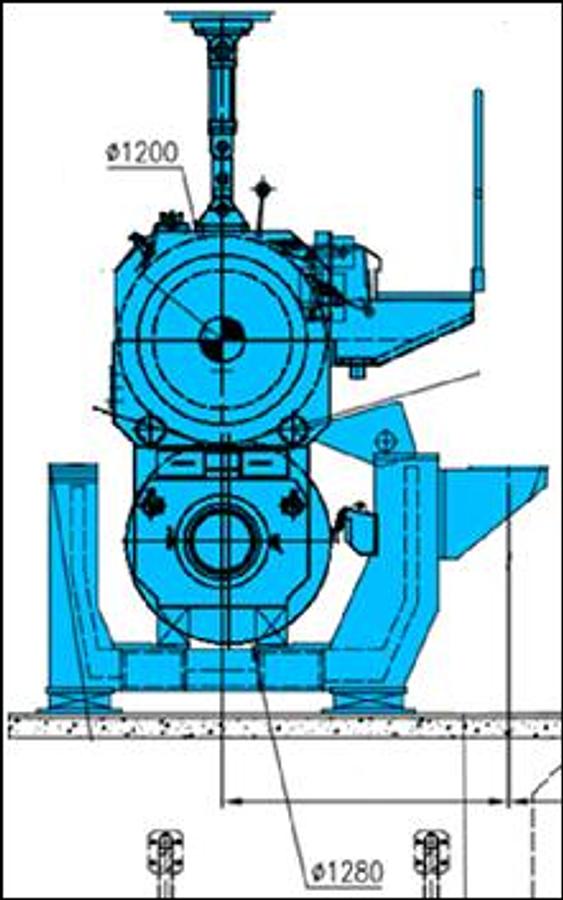

Shoe roll Ø1,280 × 4,890 mm complete with bearing housings (without press belt)

Counter roll Ø1,200 × 4,890 mm complete with bearing housings

Double oscillating doctor for the counter roll

Single oscillating doctor for the shoe roll

Shower system for the double oscillating doctor

Counter roll lifting device

Support frame beneath the shoe roll for installation of the shoe press and guide rolls on rails (stainless steel)

Water collection trays beneath the shoe press (stainless steel)

Cross-machine operating platform with stairs (aluminium)

Tail transfer system from the counter roll

Web stabilizer before the shoe press inlet (including fan)

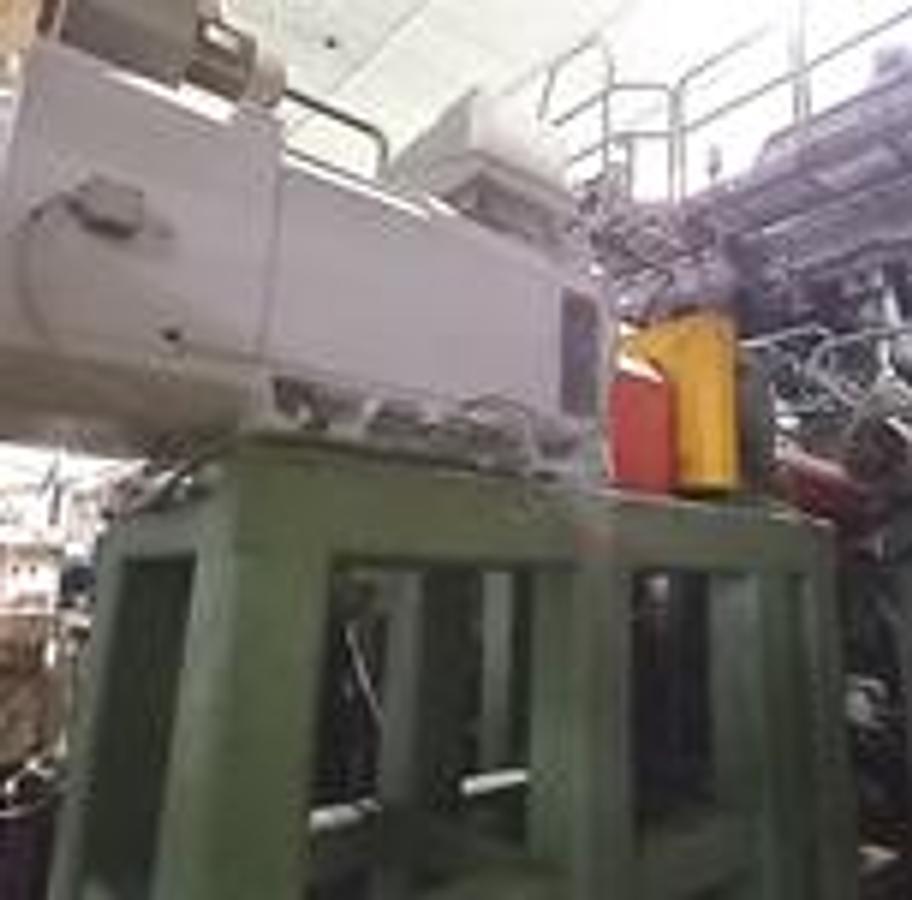

Mechanical drive for the counter roll, including drive stand

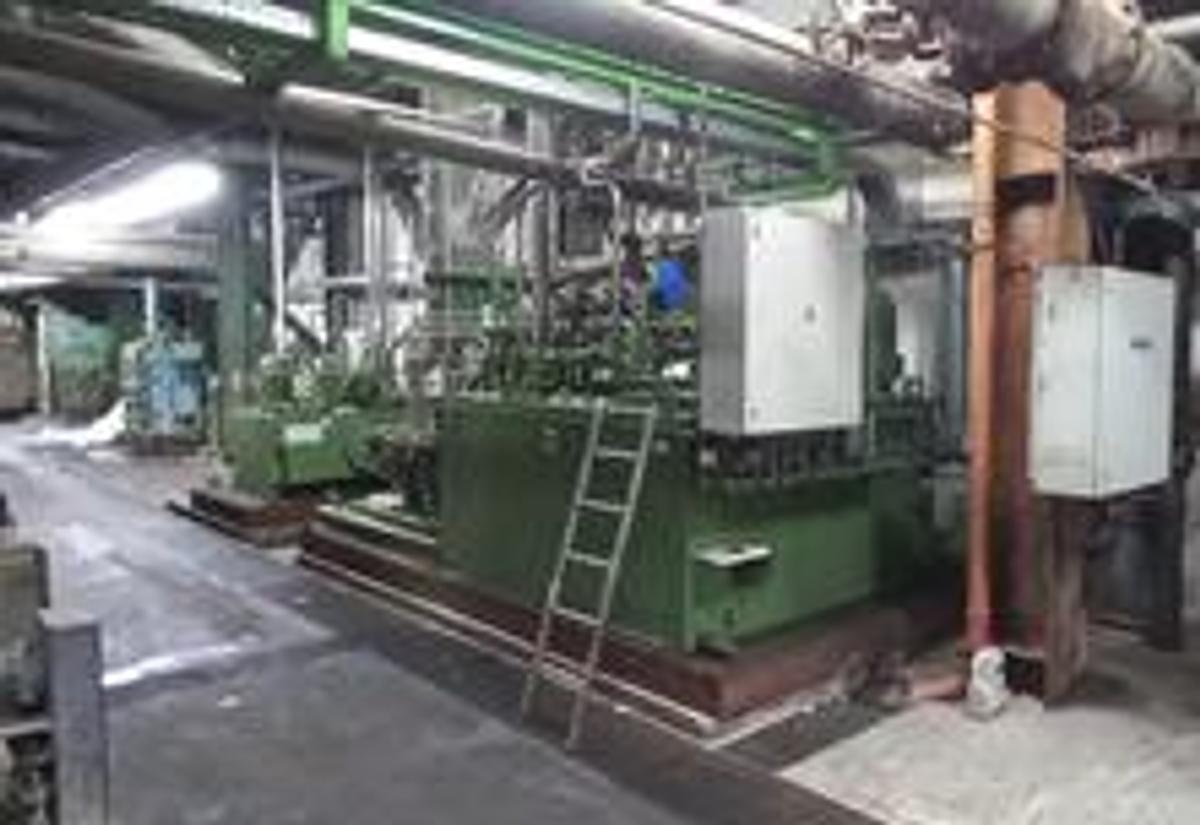

Hydraulic power unit and pneumatic system for the shoe press

Bearing lubrication unit

Hydraulic power unit cooling system

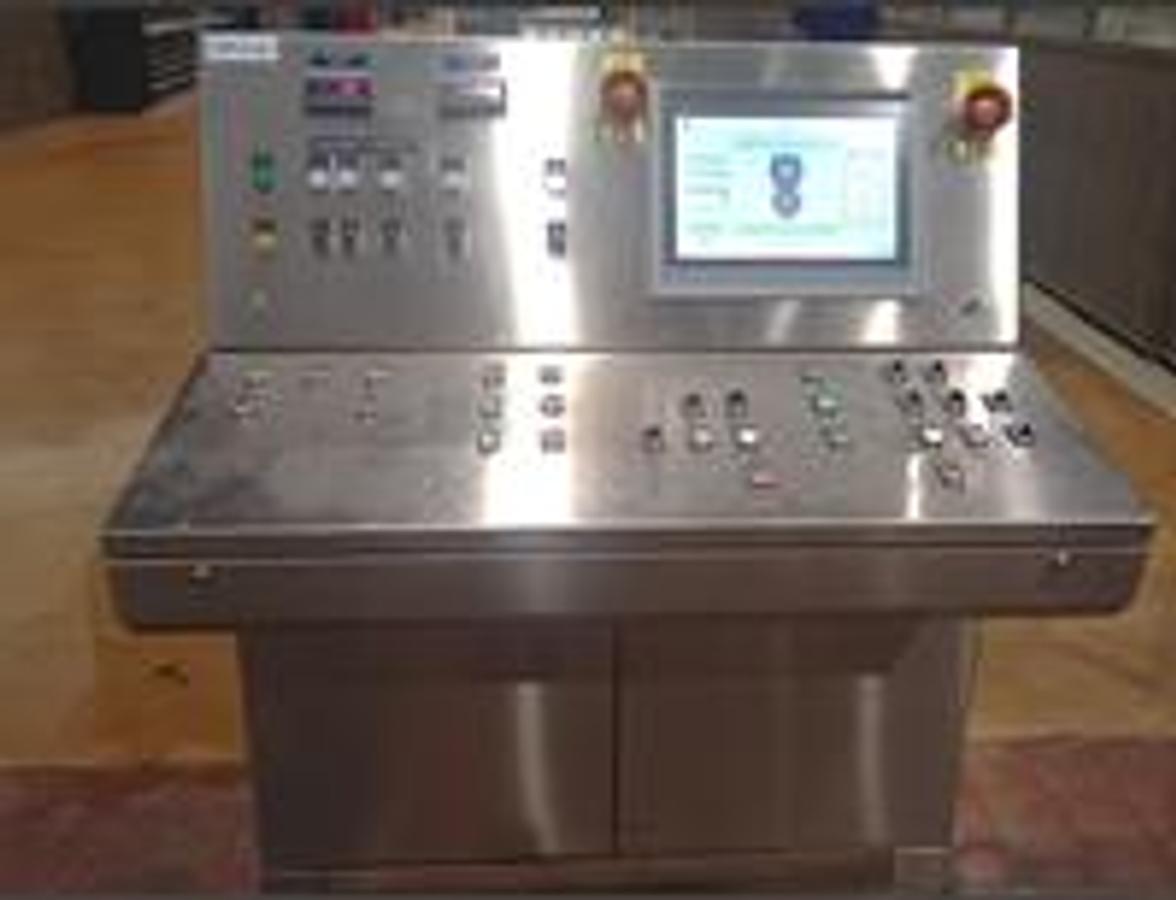

Control system (PLC cabinet including software, operator controls and HMI)

Spare Parts:

Counter roll Ø1,200 × 4,890 mm complete with bearing housings – rubber covered (?)

Counter roll Ø1,200 × 4,890 mm complete with bearing housings – ceramic covered (?)

Spare shoe

Small spare parts, including:

Excluded from the scope of supply:

Press belt handling and installation equipment

Press belts and press felts

Guide rolls, felt guiding and felt conditioning equipment

Electric drive

Foundation rails
