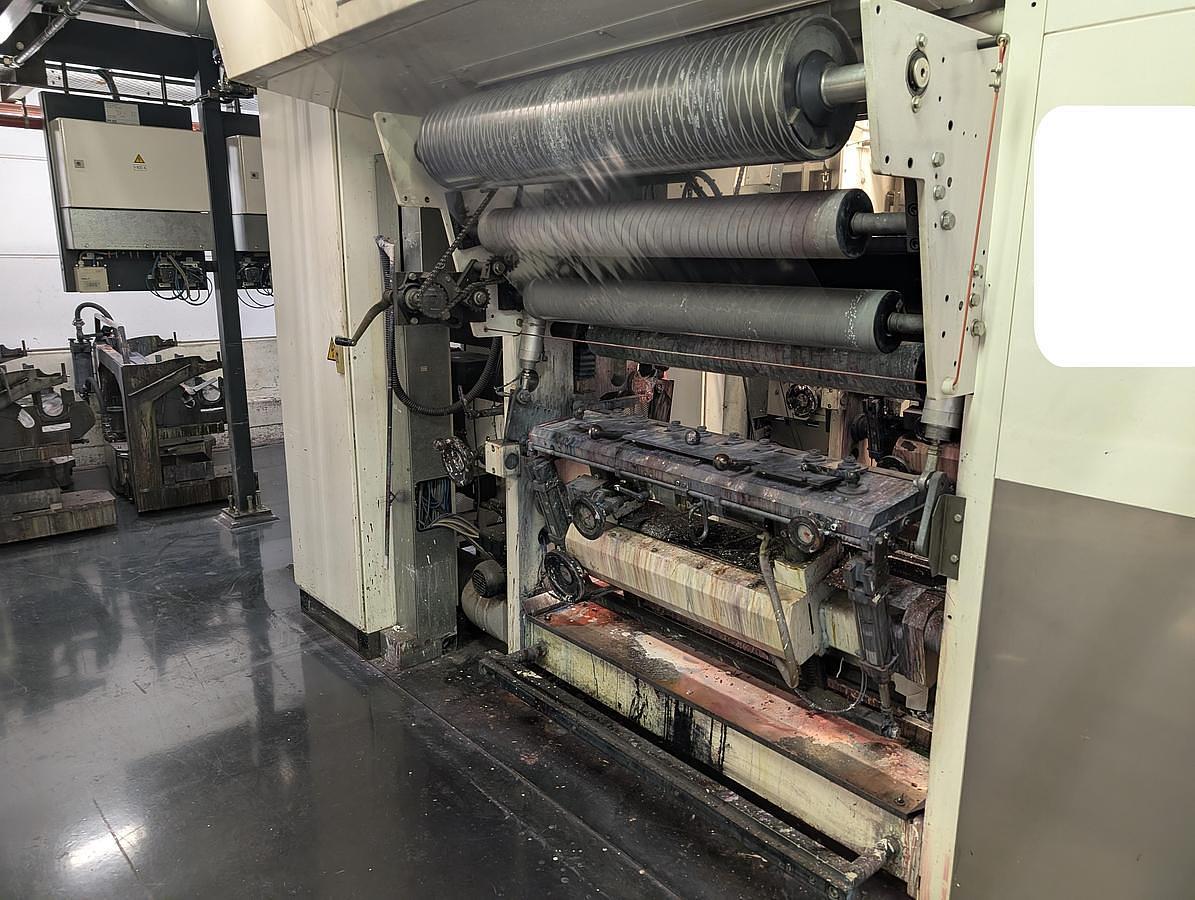

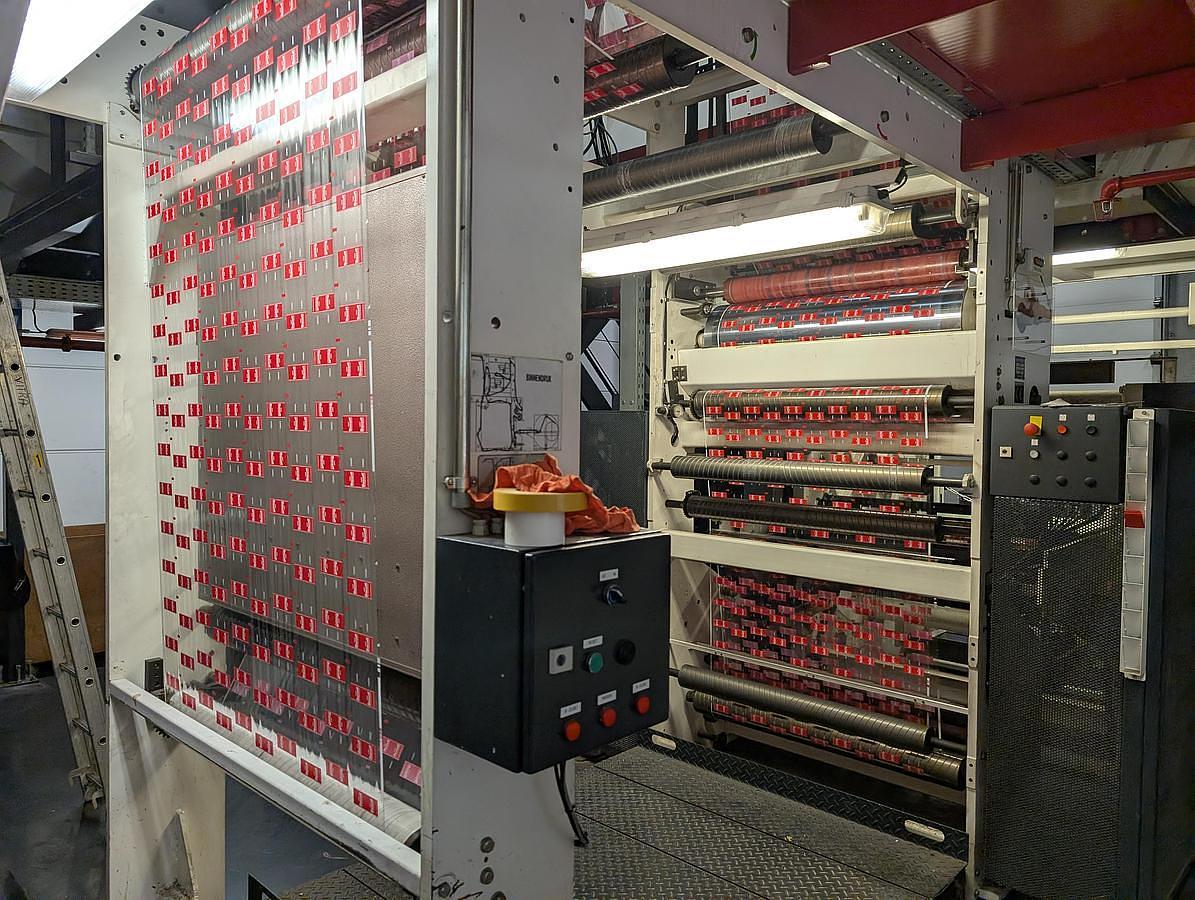

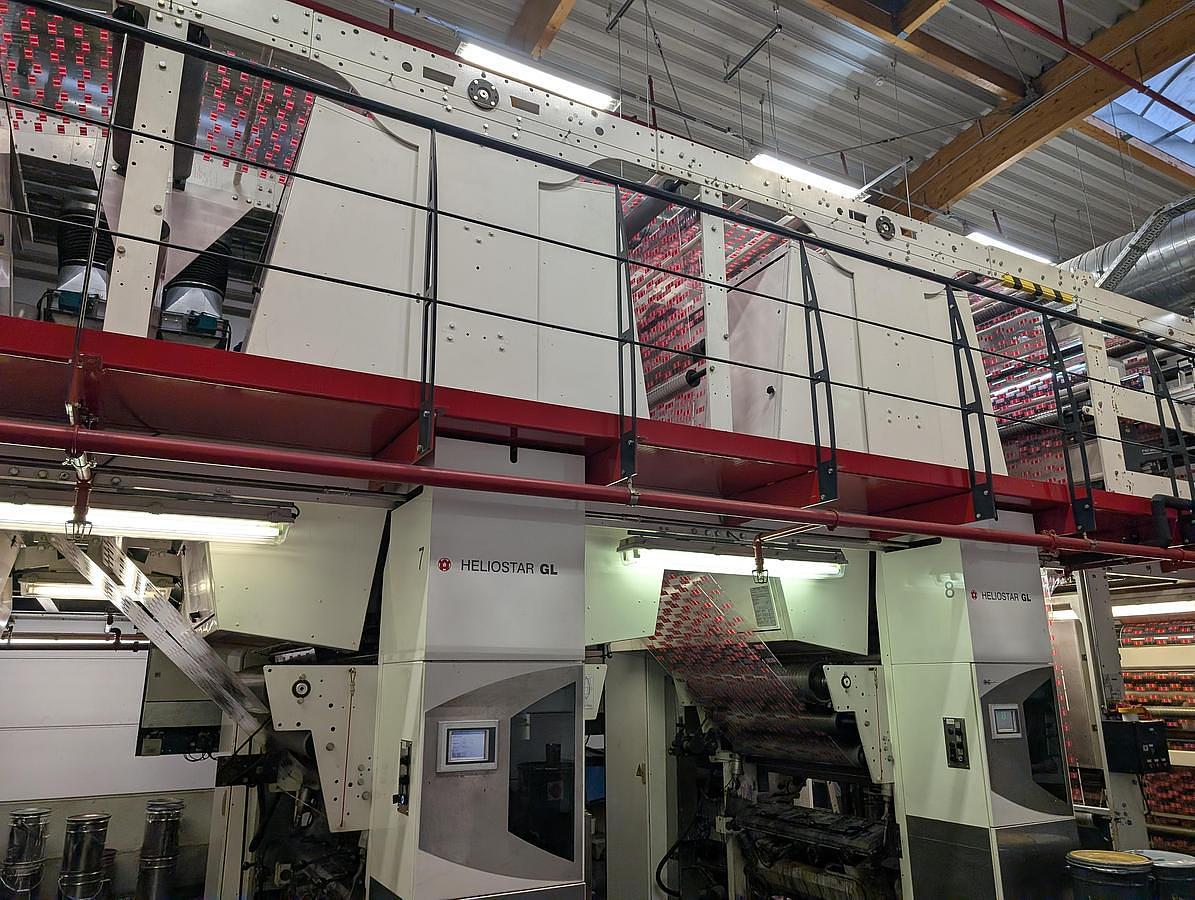

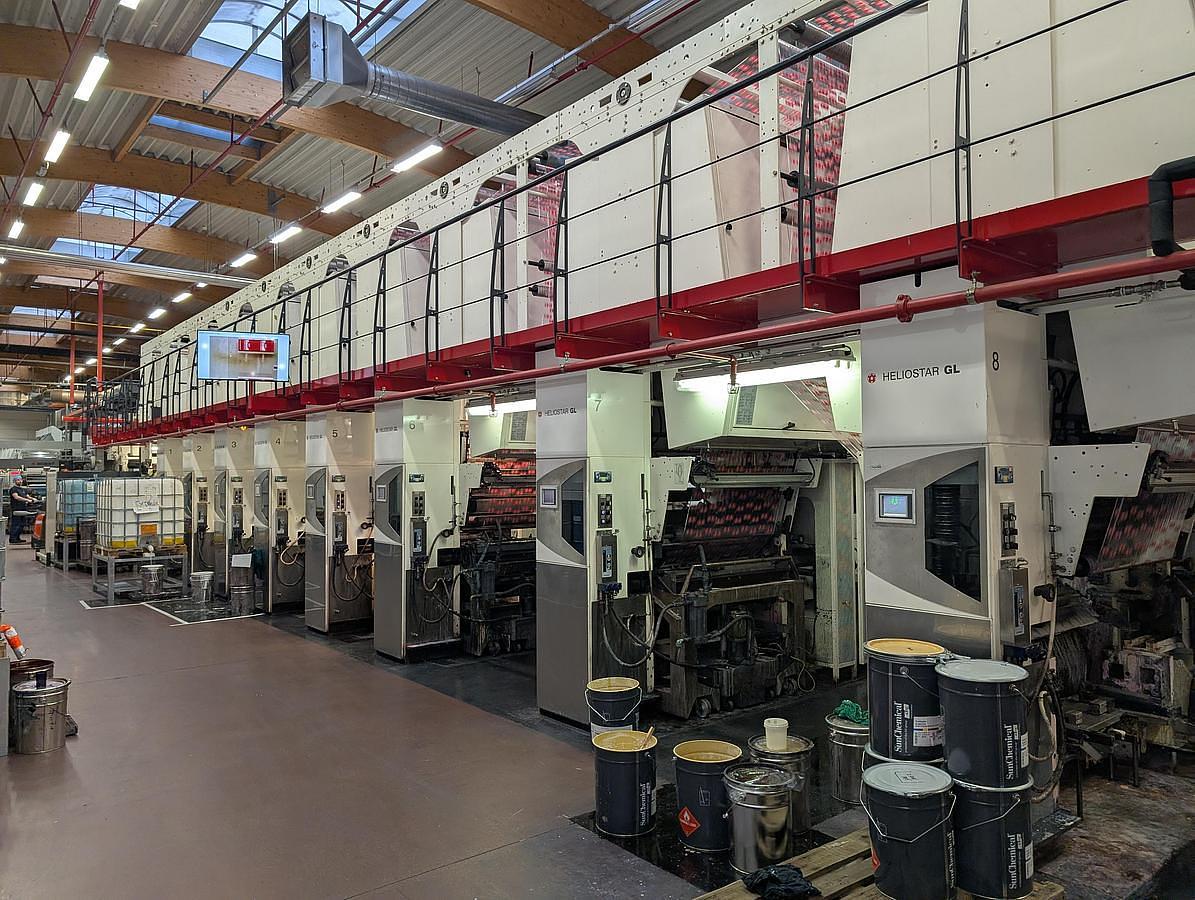

40" WIDE W&H HELIOSTAR 8 COLOR ROTOGRAVURE PRINTING PRESS

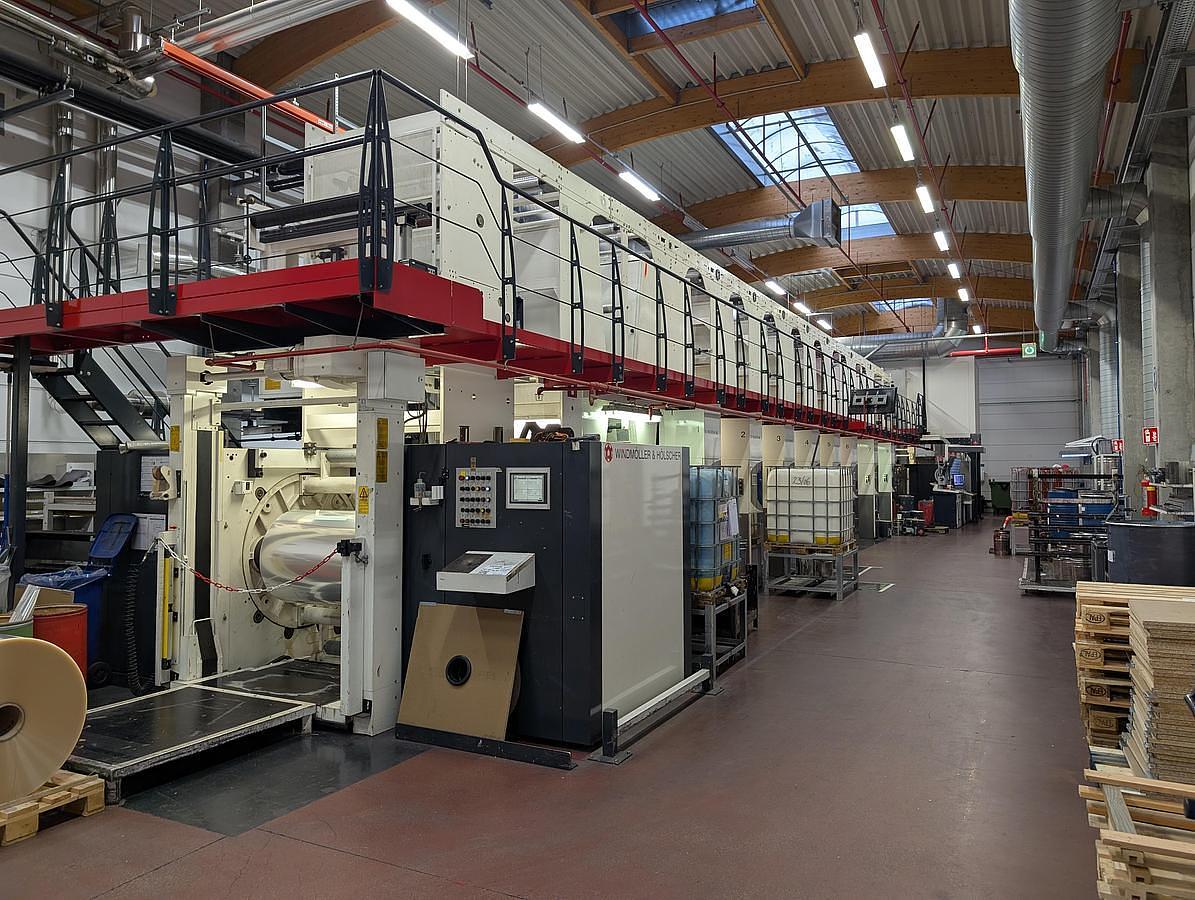

Used 40" Wide W&H Heliostar 8 Color Rotogravure Printing Press

*This Heliostar has had massive investment from the owner (over 250k euro) since 2016 and the mechanical condition is in full working order, the cosmetic condition is also very, very good.

Updates includes...

Regi_star 20 update

IPQ Check pro 100% inspection

Retrofit to upgrade the existing couplings and motors for gravure cylinder drive to the latest version of Heliostar S consisting of:

• parts for replacing the drives for inking rollers
• chucks with adapter
• drives support to the chucks
• chuck sensors gravure cylinder bearings
• replacing parts for the sidelay register
• sidelay register drives -sidelay register guards
• motor for gravure cylinder drive
• mechanical mounting parts
• electrical accessories documentation

TECHNICAL INFORMATION:

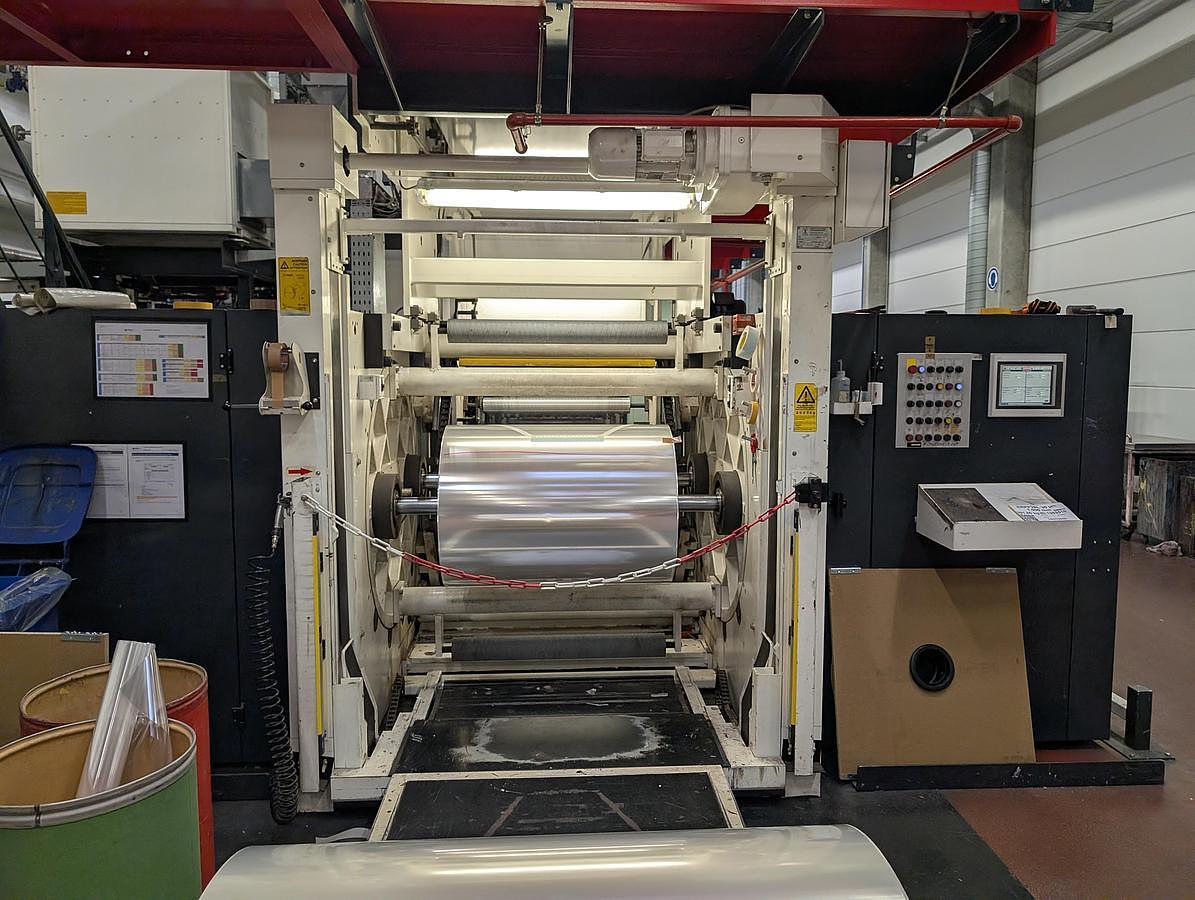

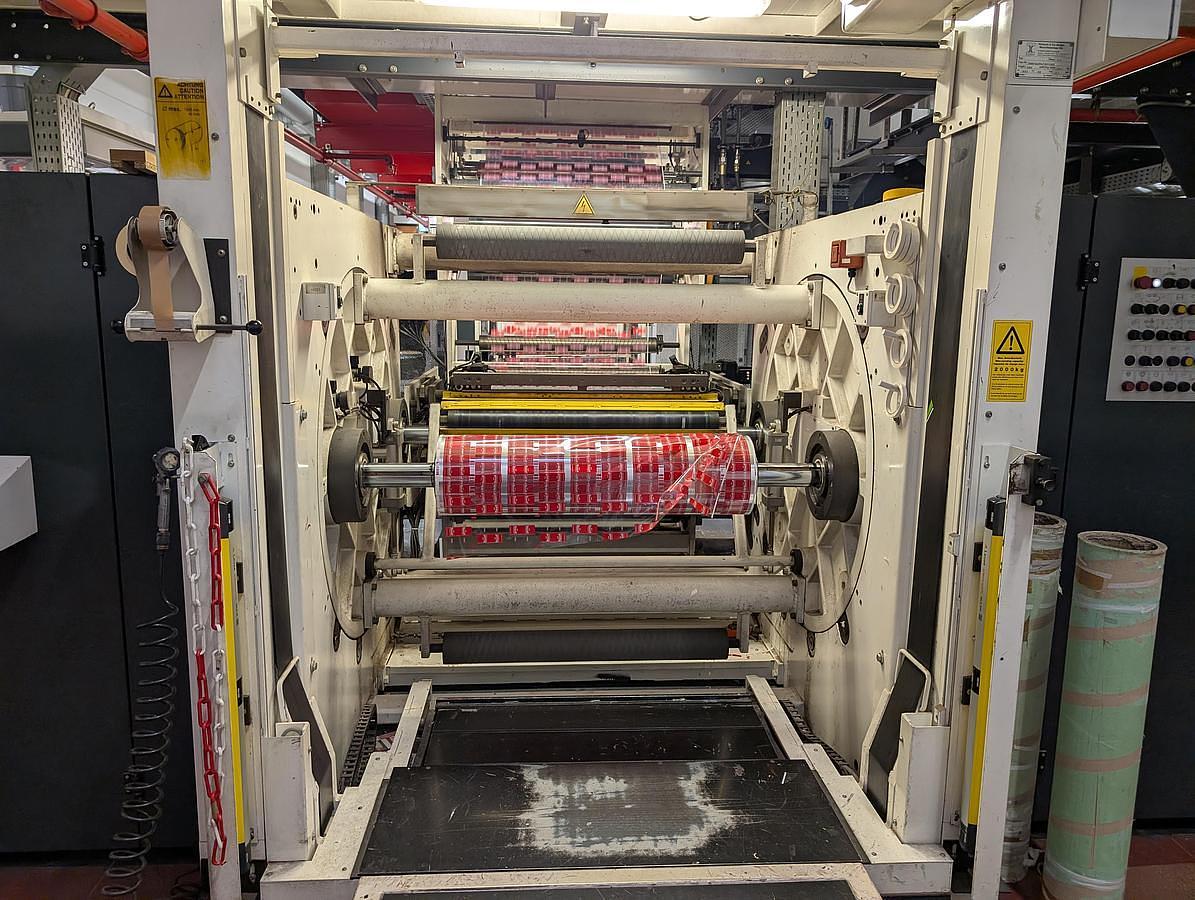

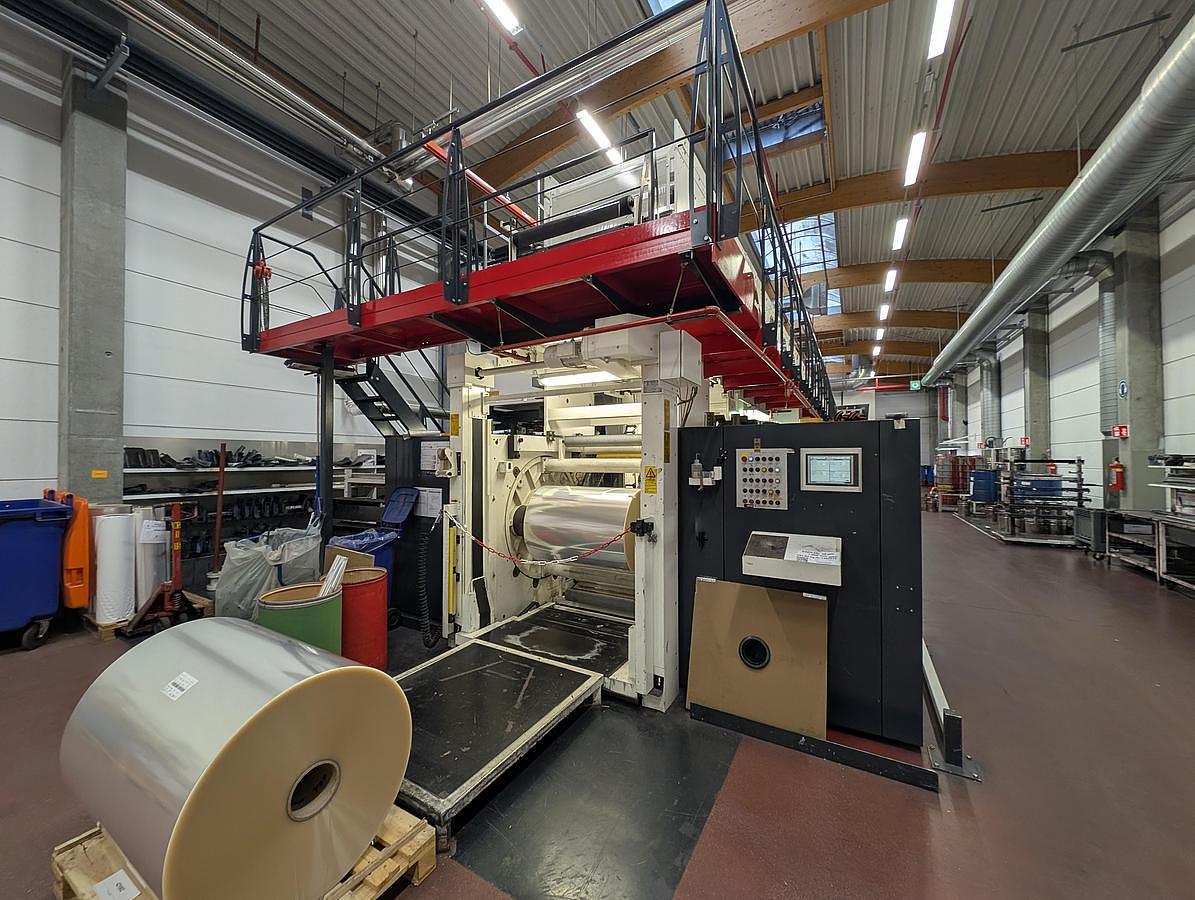

Turret unwind with roll lift & flying splice

Unwind diameter: 39.37" - 1000mm

Max web width: 40" - 1020mm

Max print width: 39.37" - 1000mm

Repeat range: 17.8 - 41.3" - 450mm - 1050mm

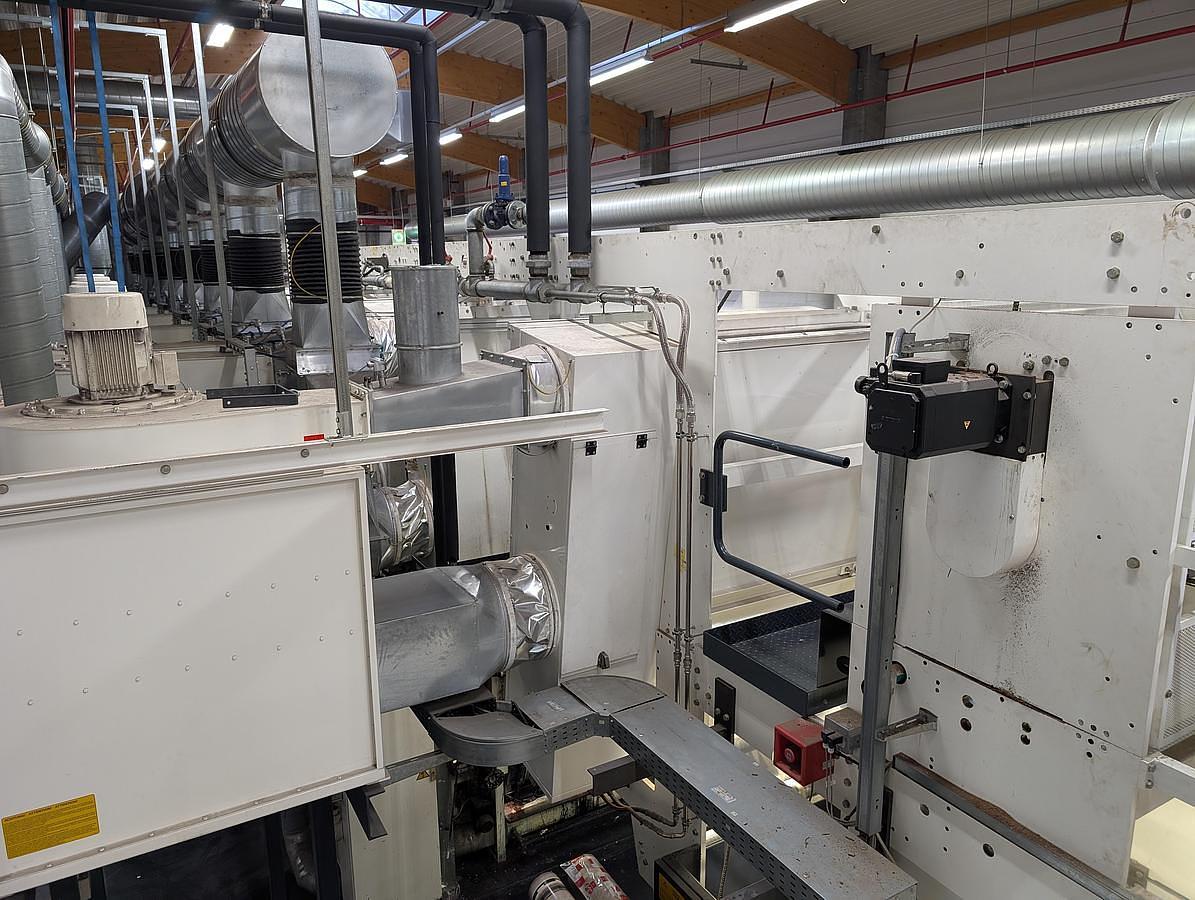

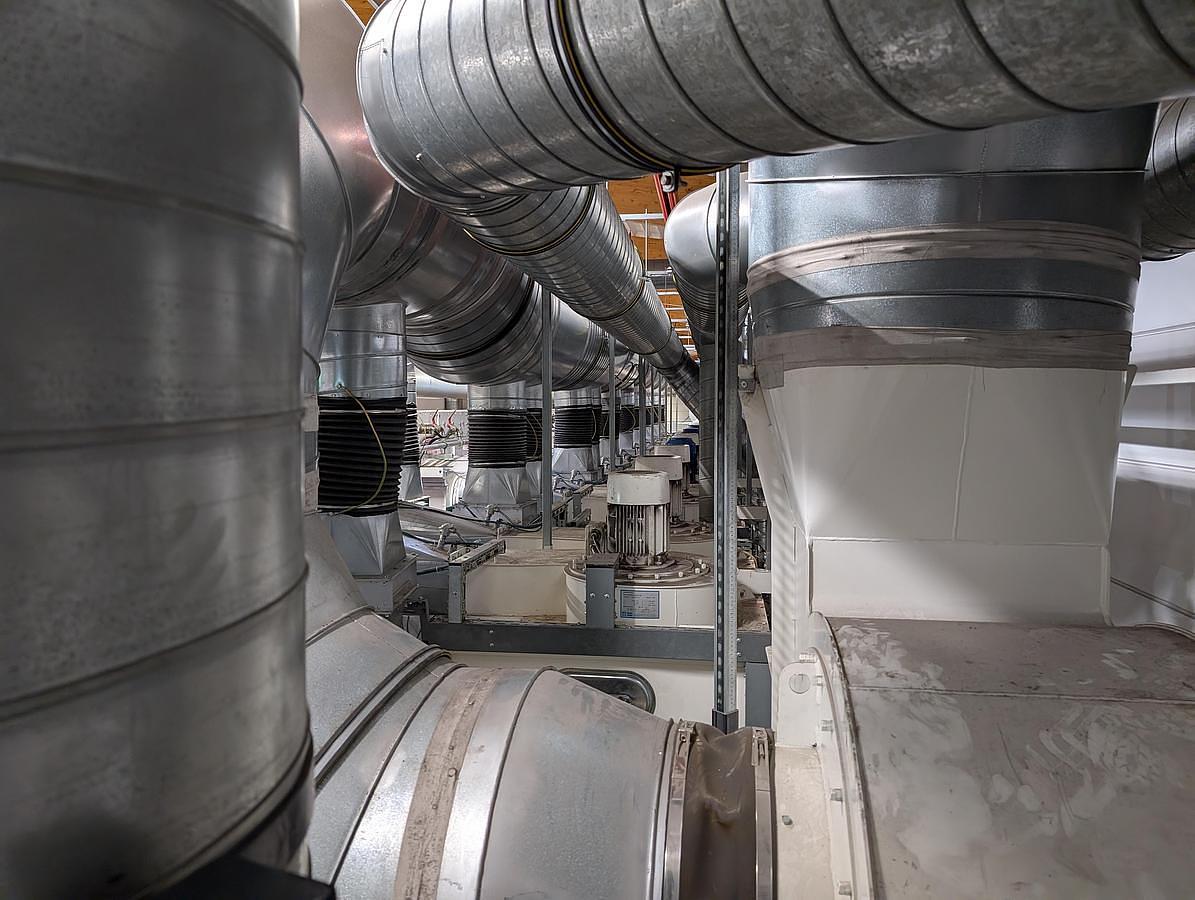

Gas drying

Corona treater

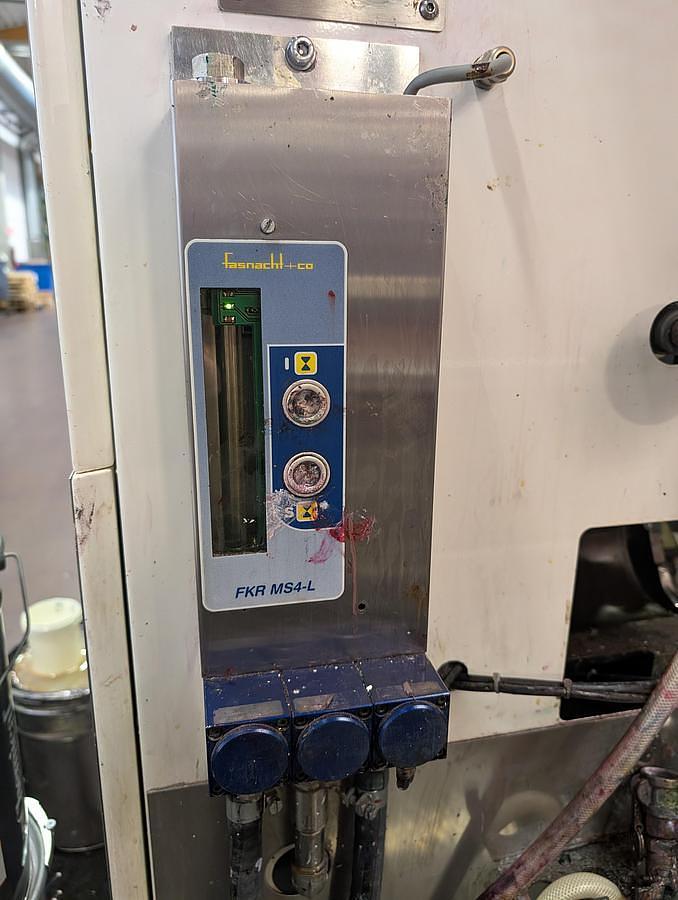

Viscosity system

Edge guide

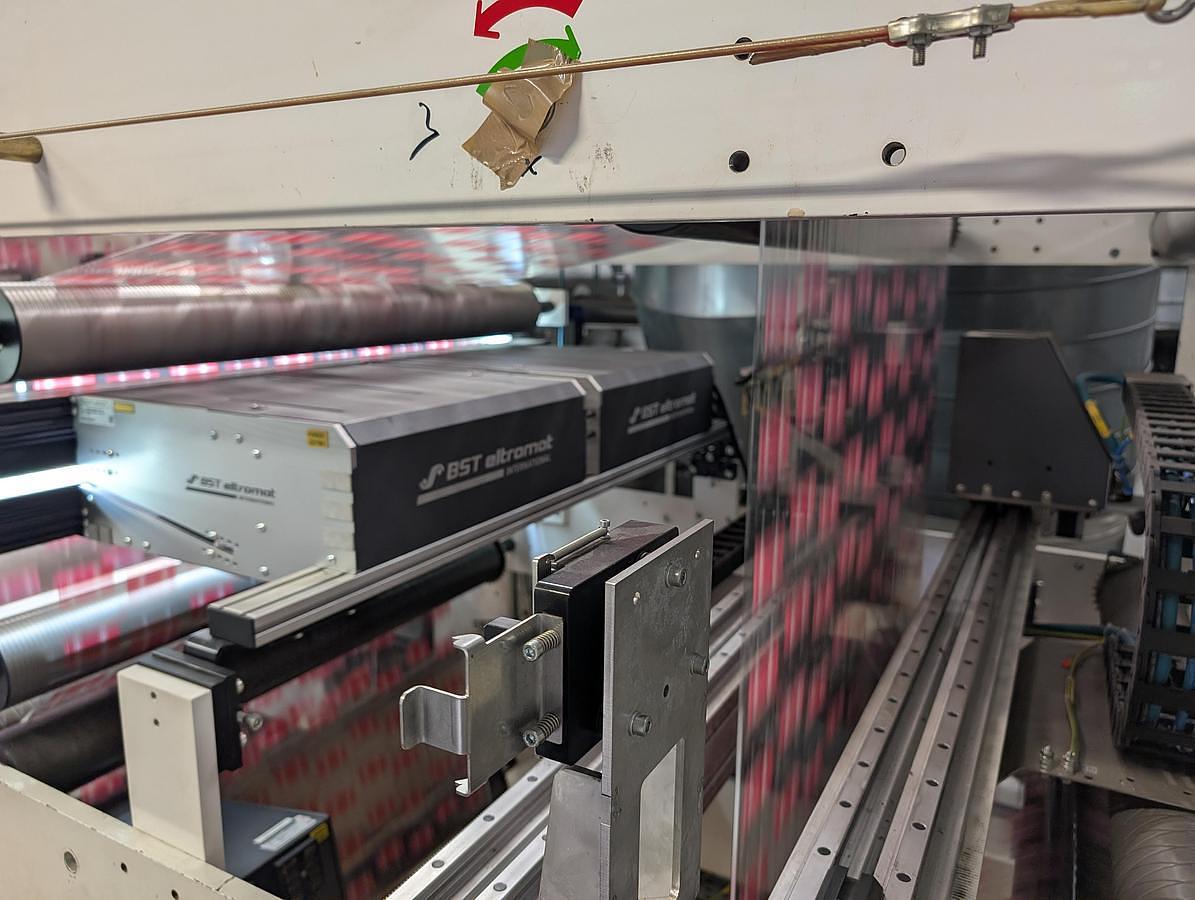

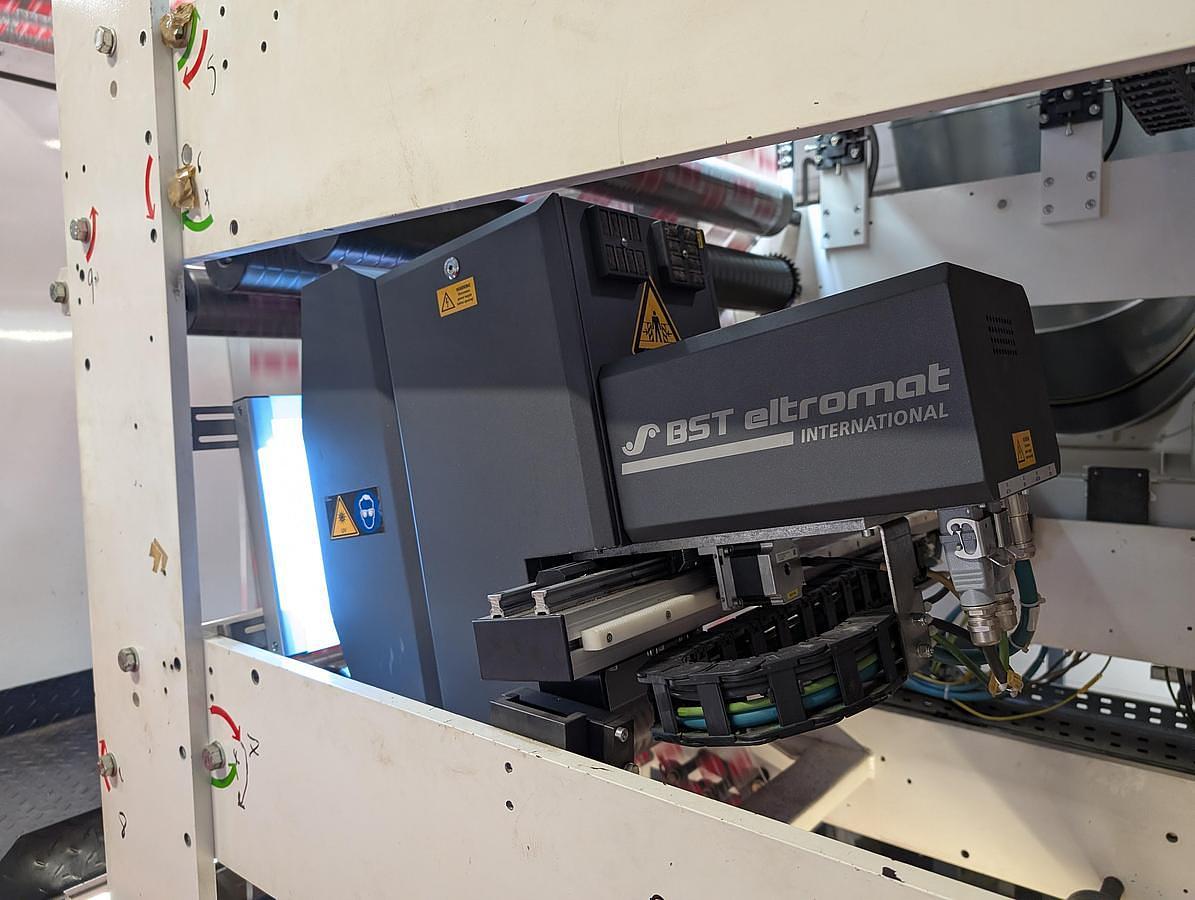

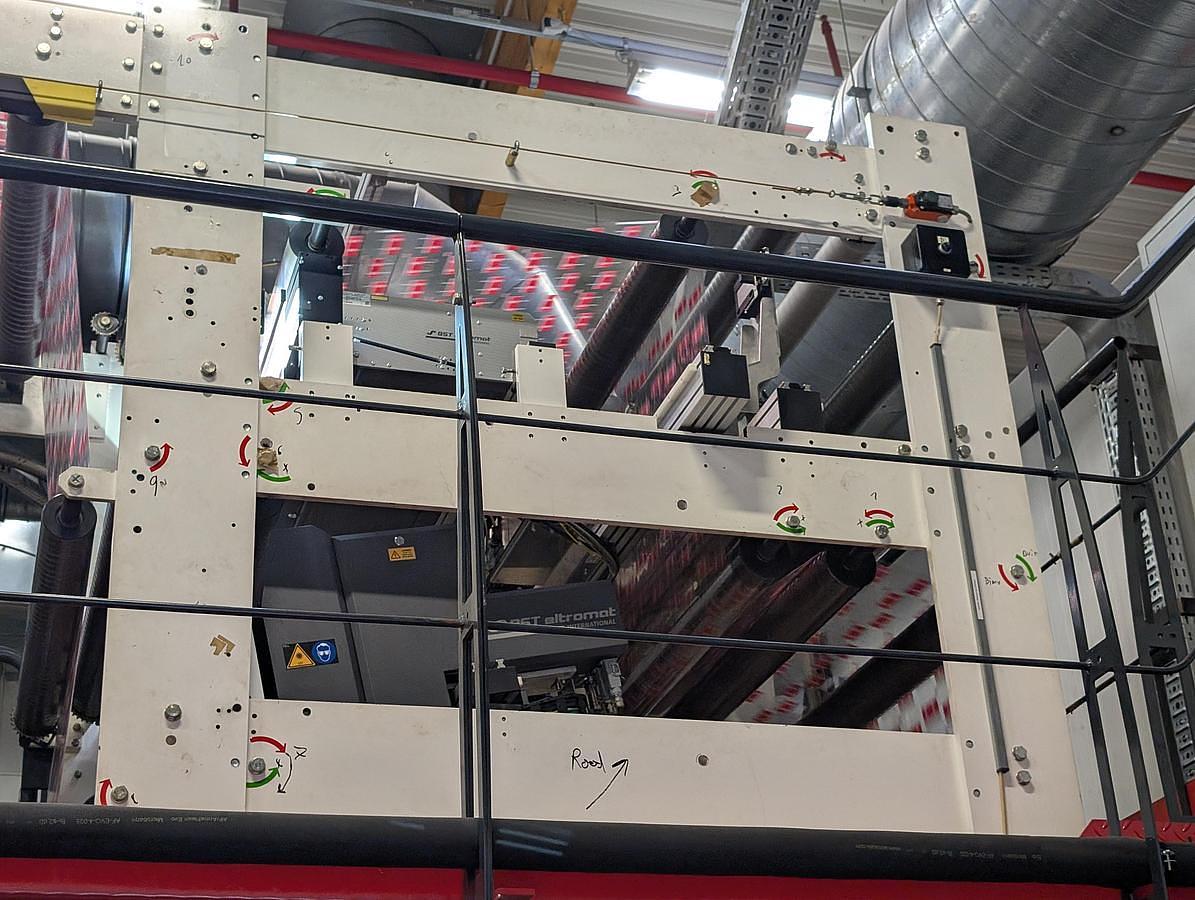

BST Inspection system

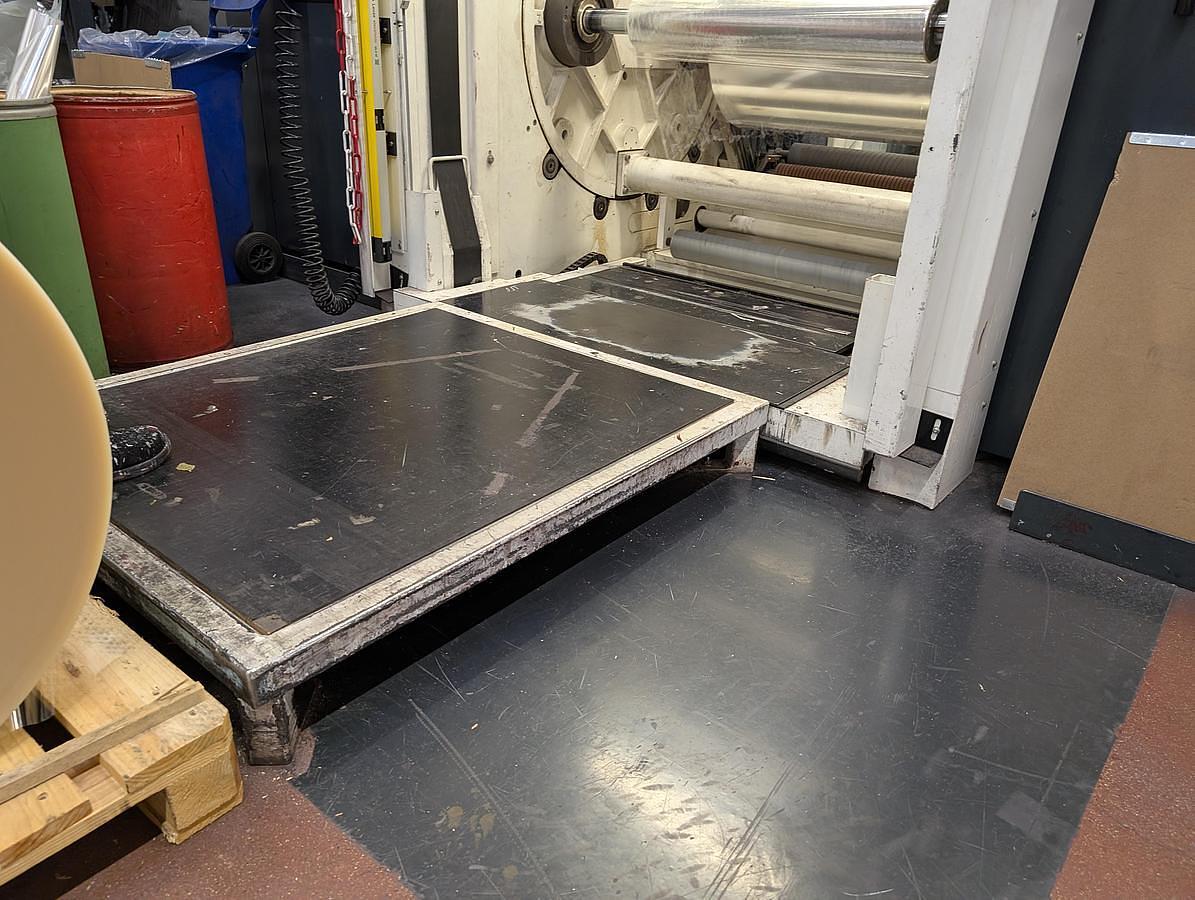

Turret rewind with roll lift & flying splice, 3" & 6" - 76mm & 152mm

Rewind diameter: 39.37" - 1000mm
