SHANKLIN MDL. F-5A AUTOMATIC SIDE SEAL SHRINK WRAPPER SYSTEM

904779

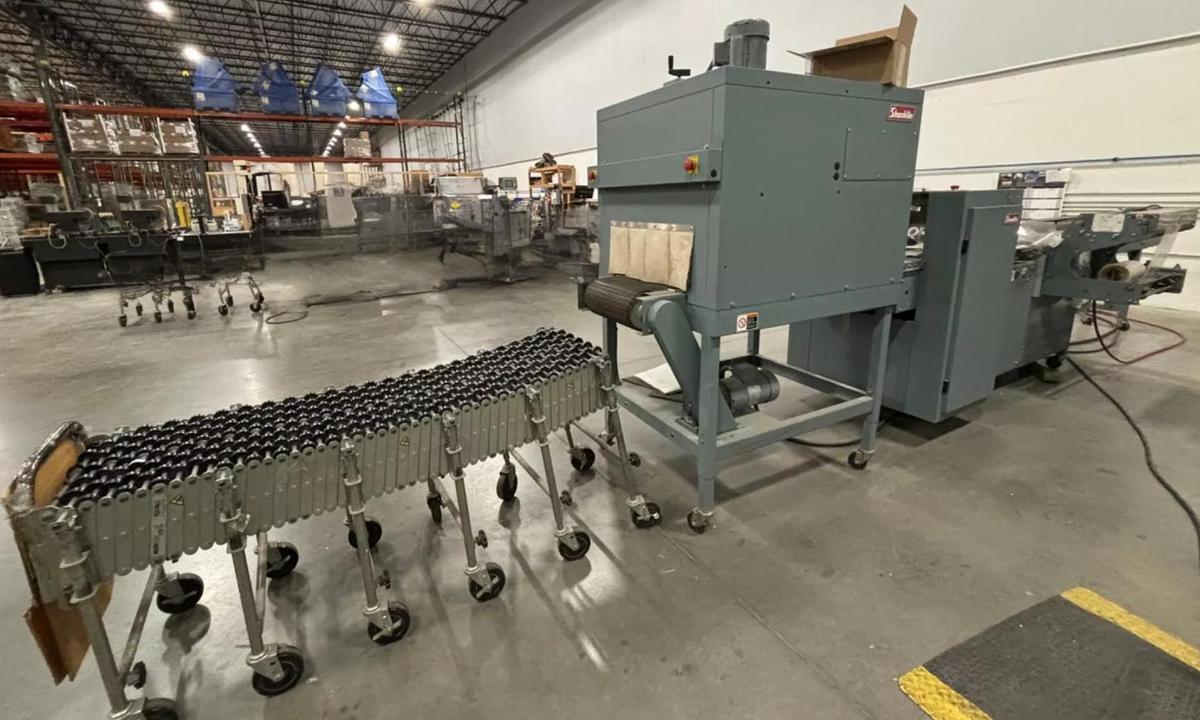

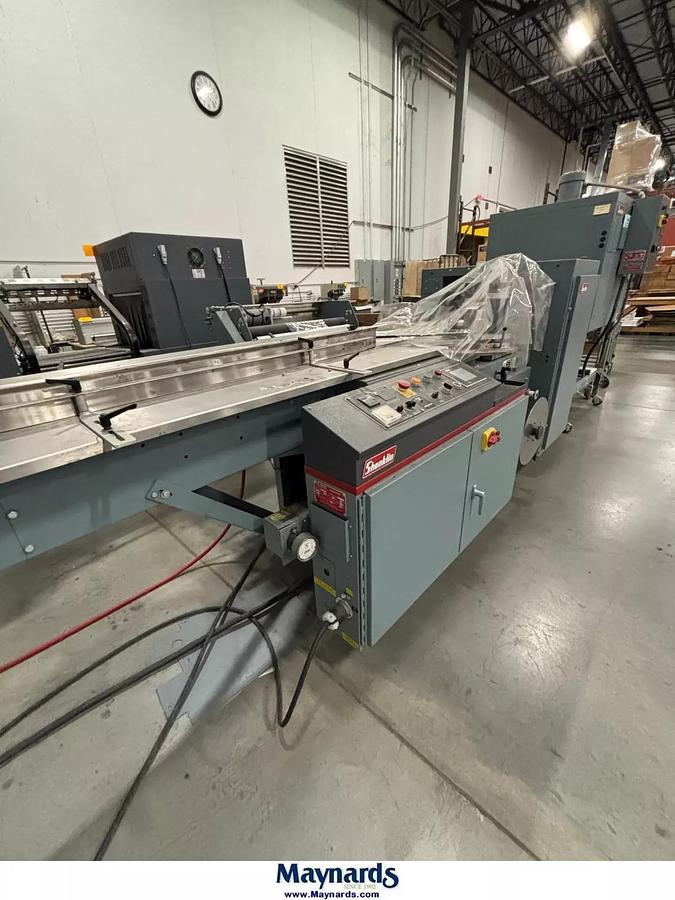

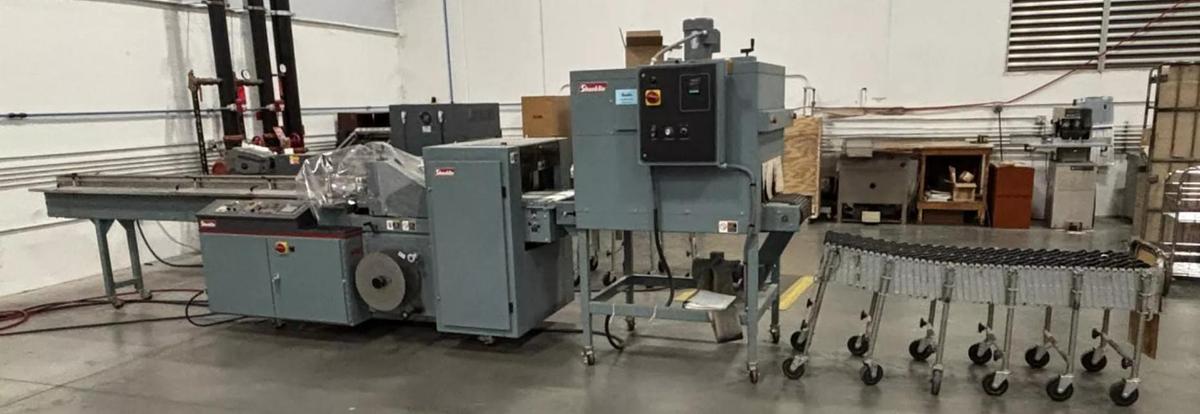

Used Shanklin Mdl. F-5A Automatic side seal shrink

wrapper system.

With 6'long flighted infeed conveyor and a Shanklin

Mdl. T-7XL 18" wide hot shrink tunnel, inverting head, salvage winder,

end seal, film perf. on casters and a 6' long accordion roller

conveyor.

PKG. SIZE RANGE: 3” TO 48” L

½” TO 16” W

1/8” TO 6” H

MAX. FILM SIZE: 22” CF

PRODUCTION SPEEDS: UP TO 75/PPM

POWER: 208V; 1 PH; 20 AMP

AIR REQUIRED: 60 TO 85 PSI

FOOT PRINT: APPROX. 12.5’ L x 4’ W x 72” H

WEIGHT: APPROX. 2300 LBS.

SERIAL # F-053

SHANKLIN T-7XL SHRINK TUNNEL

W/ SS MESH BELT CONVEYOR; VARIABLE DIGITAL

TEMPERATURE CONTROL; VARIABLE BELT SPEED

TUNNEL PASSAGE: 42”L x 22’ W x 8” H

FLOOR SPACE: 5’L x 3’ W

POWER: 240 V; 3 PH

WEIGHT: 1,000 LBS.

SERIAL # T-04241
