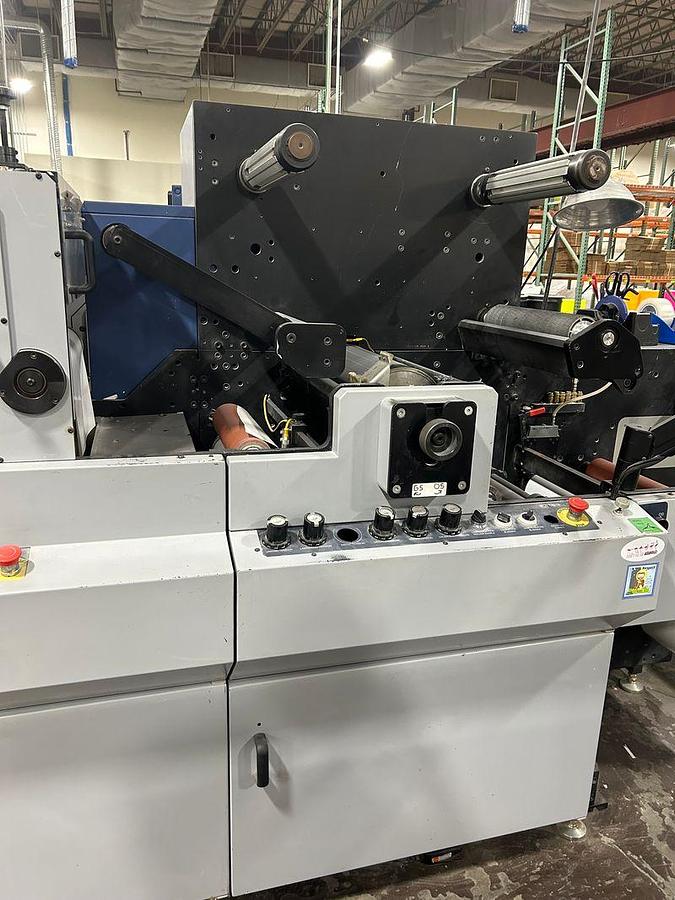

13" GONDERFLEX ROTOWORK R330 FINISHING SYSTEM 2018

13" GONDERFLEX ROTOWORX MODEL R330-AC-24 SEMI-ROTARY FINISHING SYSTEM

MFG 2018

30"(762mm) MAXIMUM UNWIND DIAMETER

3"(76mm) PNEUMATIC UNIWND SHAFT DIAMETER WITH EMPTY ROLL DETECTION

MAGNETIC PARTICLE BRAKE CONTROL

AUTOMATIC TENSION CONTROL

SPLICE TABLE

ULTRASONIC SENSING WEB GUIDE

ROTOWRK R330-AC-24

8-24"(203-609mm) VARIABLE REPEAT

13.0" WEB WIDTH

2.0"

30" DIAMETER (760mm)

24" DIAMETER (610mm)

200 FPM(60MPM) IN SEMI-ROTARY MODE

250FPM (76MPM) IN REWIND/COATING MODE A.C. MOTOR

TOUCH SCREEN

100PSI(7 BAR)

240V 3PH 50 HZ

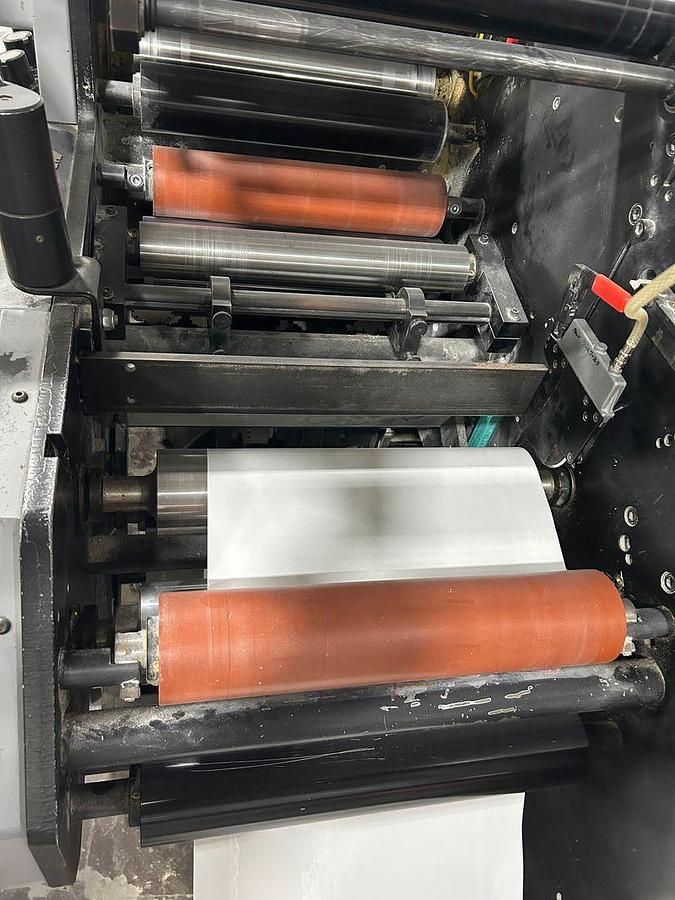

VARIABLE REPEAT FLEXO STATION

SPOT UV VARNISH OR COLD FOILING IN REGISTER WITH PRINTING AS WELL AS FULL COVERAGE UV VARNISH COATING

TENSION CONTROL VIA SERVO DRIVE ISO-TENSIONING TECHNOLOGIES

AUTO TENSION CONTROL WITH SENSOR TO REGISTER ON PRE-PRINTED WEB

GRAVITY FEED CHAMBER DOCTOR BLADE ASSEMBLY WITH SERVO DRIVEN IMPRESSION ROLLER

STANDARD ANILOX ROLL 340 LPI/6.5 BCM/60

INK DRIP PAN

ONE PLATE CYLINDER WITH 8 TO 16 INCH REPEAT

STEPLESS UV CURING SYSTE WITH ELECTRONIC POWER SUPPLY ALSO IR DRYING

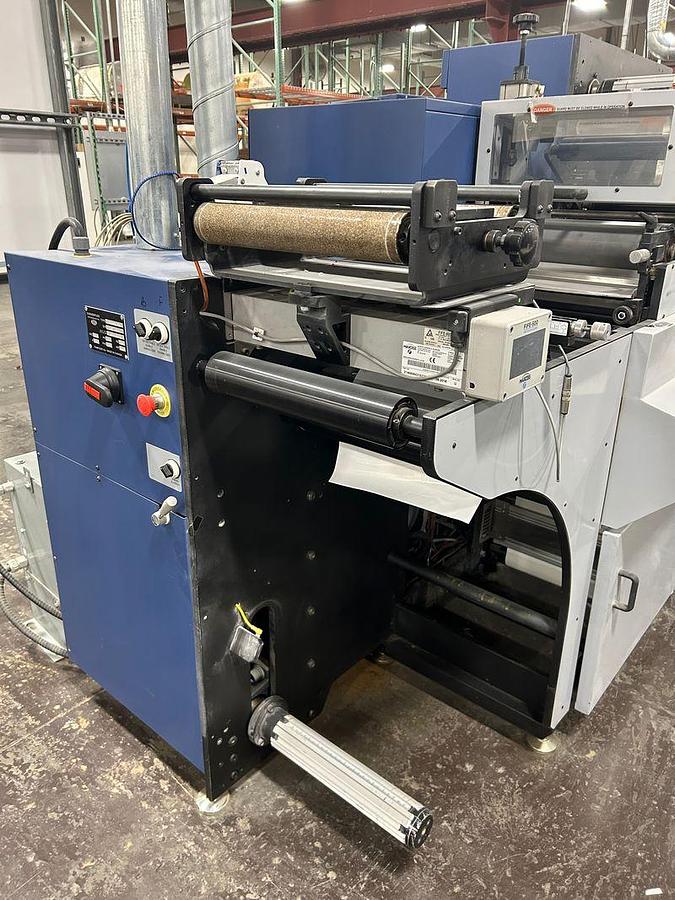

LAMINATION UNWIND MODULE COMPLETE

20"(508mm) DIAMETER ROLL CAPACITY

3"(76mm) SHAFT PNEUMATIC CORE SHAFT

AIR BRAKE

MANUAL PRECISION TENSION CONTROL WITH AIR REGULATOR

ROLL FOLLOWER

SEMI ROTARY DIE CUTTING MODULE STATION

MODULE INDEPENDENT TENSION CONTROL VIA A SERVO DRIVEN ISO TENSIONING TECHNOLOGIES

AUTO REGISTER WITH SENSOR TO REGISTER ON PRE-PRINTED WEB AND DIGITAL CIRCUMFERENTIAL DISTORTION SOFTWARE

NON-REMOVEABLE SERVO DRIVEN 24" MAGNETIC CYLINDER, 0.019" UNDERCUT

VECTOR MOTOR DRIVEN

DUAL REWIND STATION COMPLETE WITH

MODULE INDEPENDENT TENSION CONTROL VIA SERVO DRIVEN ISO TENSIONING TECHNOLOGIES

2 VECTOR DRIVEN REWIND WITH 24" ROLL DIAMETER CAPACITY

3"(76mm) CORE SHAFTS

OPEN-LOOP TENSION CONTROL

USER INTERFACE COMPLETE WITH

SELF EXPLANATORY CENTRALIZE CONTROL VIA TOUCH SCREEN

ACCURATE JOB AND BATCH COUNTER SYSTEM WITH ROLL COUNT STOP FEATURE

JOB MANAGER

ALARM MANAGER

INTEGRATED USER MANUAL

REMOTE SERVICE AND DIAGNOSTIC CAPABILITIES VIA SCURE INTERNET CONNECTION

CRUSH SLITTER UNIT WITH 3 KNIVES

NOT CURRENTLY IN OPERATION.
