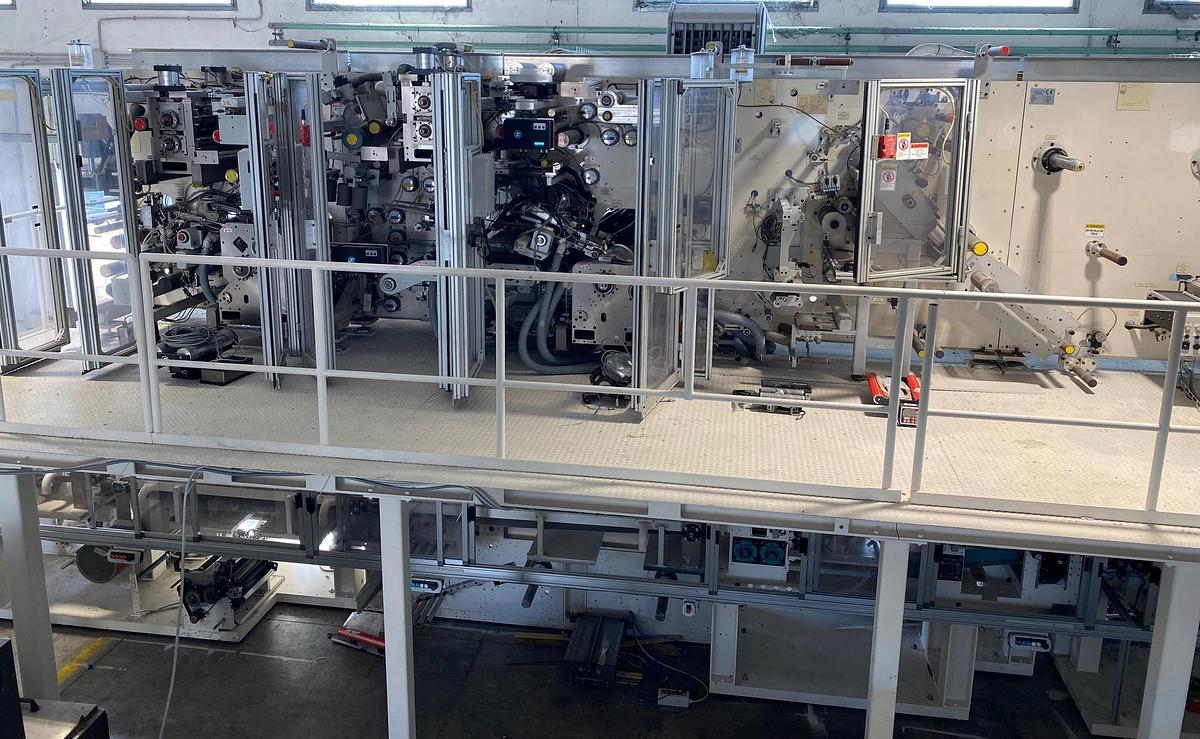

JOA TRADITIONAL BABY DIAPER LINE COMPLETE DRIVE UPGRADE AND REBUILD WITH ABB COMPONENTS IN 2024

JOA TRADITIONAL BABY DIAPER LINE COMPLETELY REBUILT DRIVE SYSTEM WITH ABB COMPONENTS IN 2024

PRODUCES 3 SIZES MEDIUM, MAXI AND JUNIOR

MAXIMUM SPEED OF 400 PPM

CELLULOSE PULP UNWIND

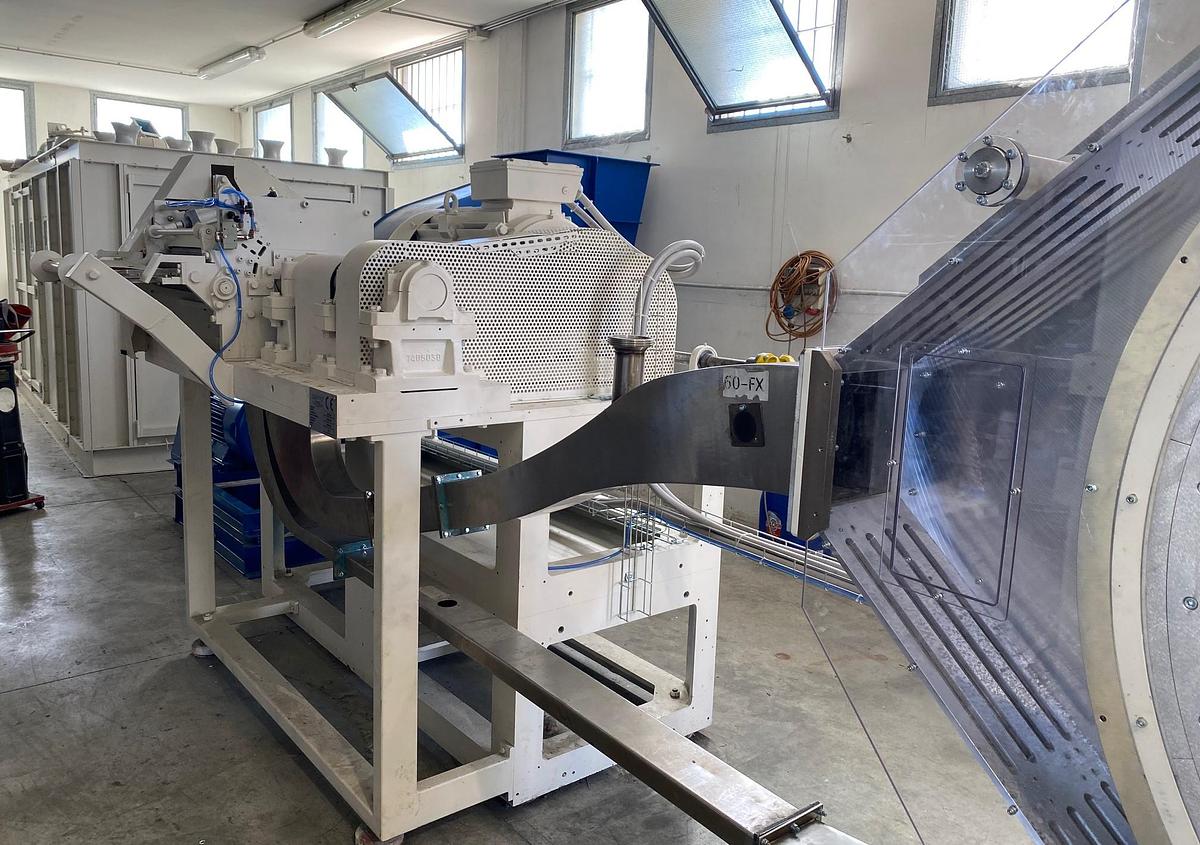

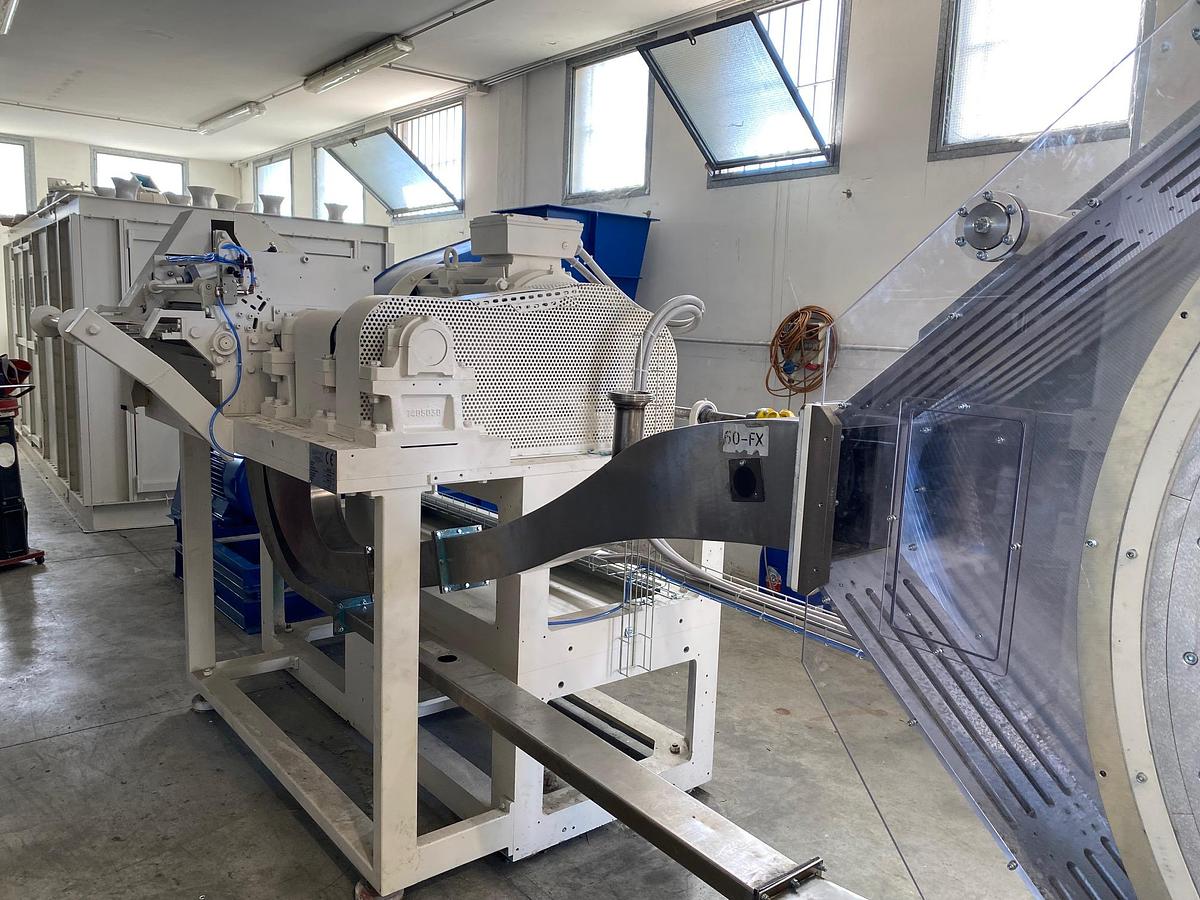

SCREEN-LESS HAMMERMILL WITH SINGLE FEEDING SYSTEM

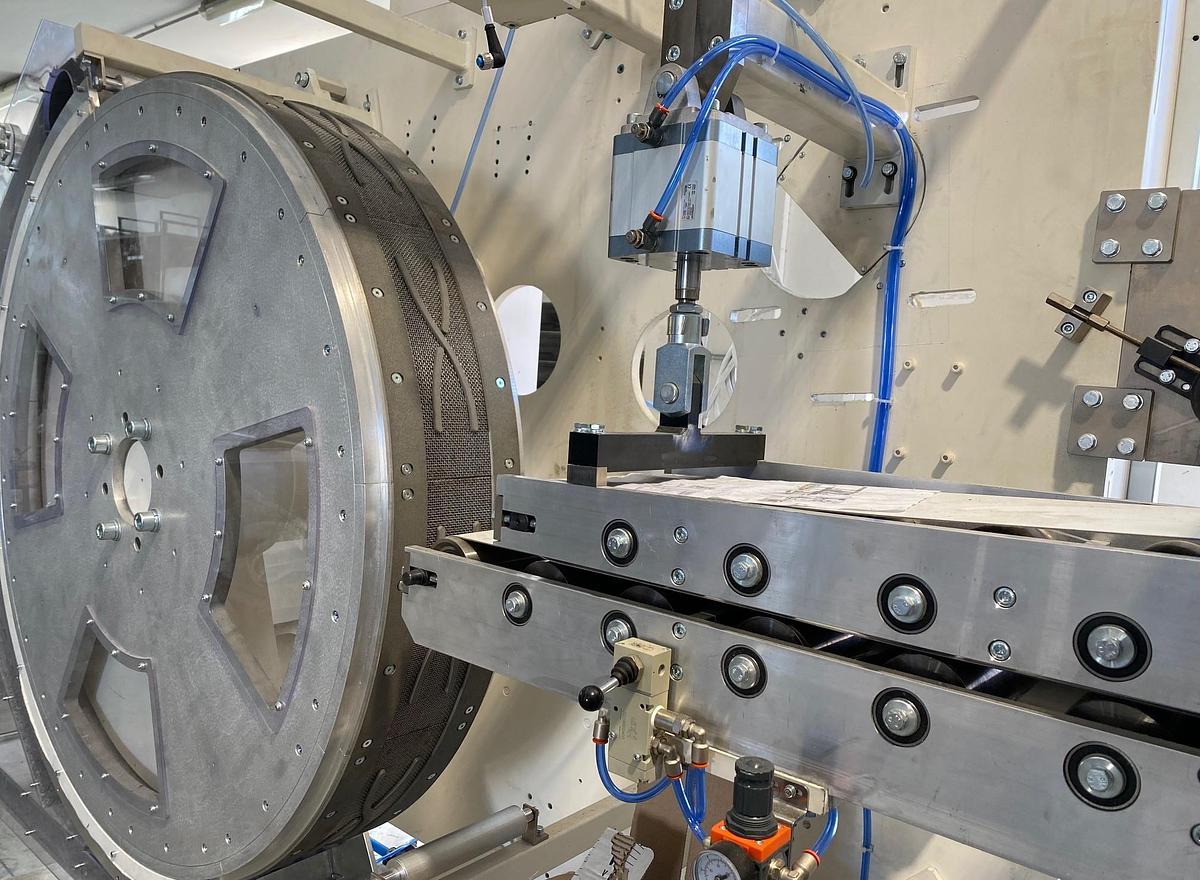

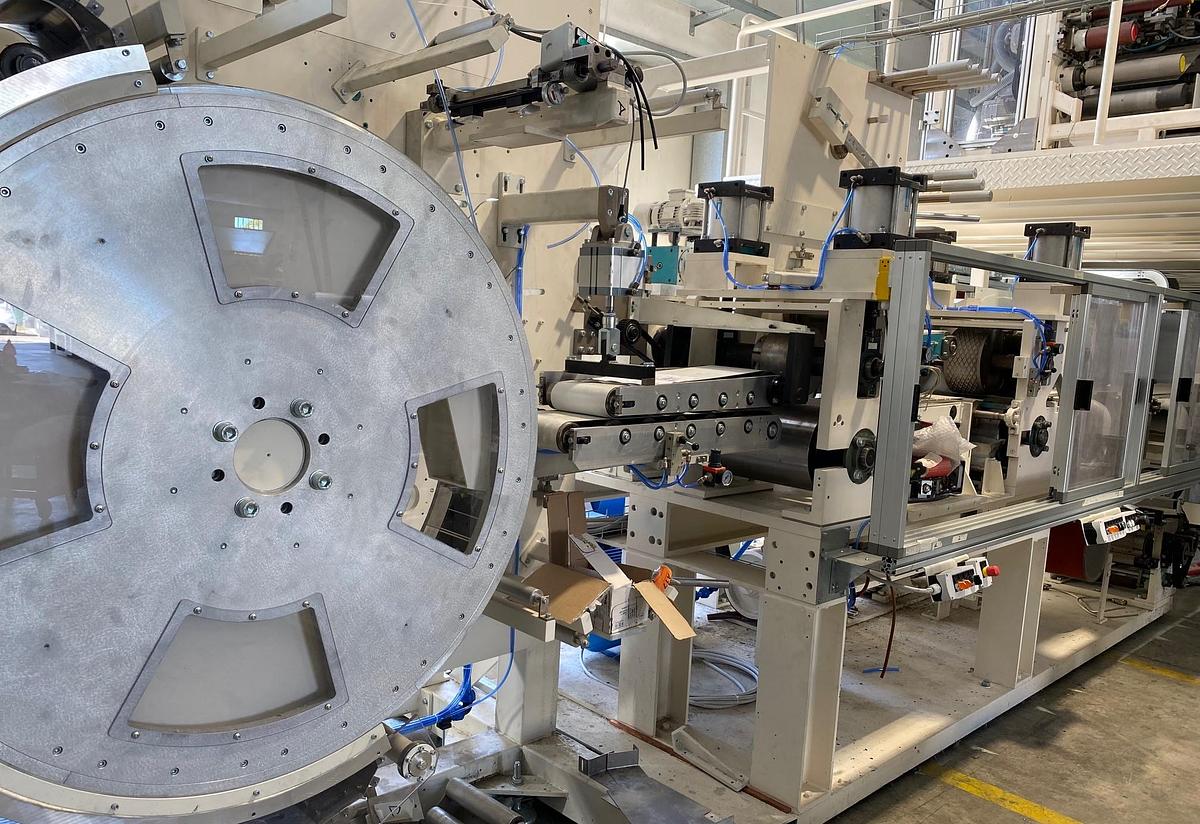

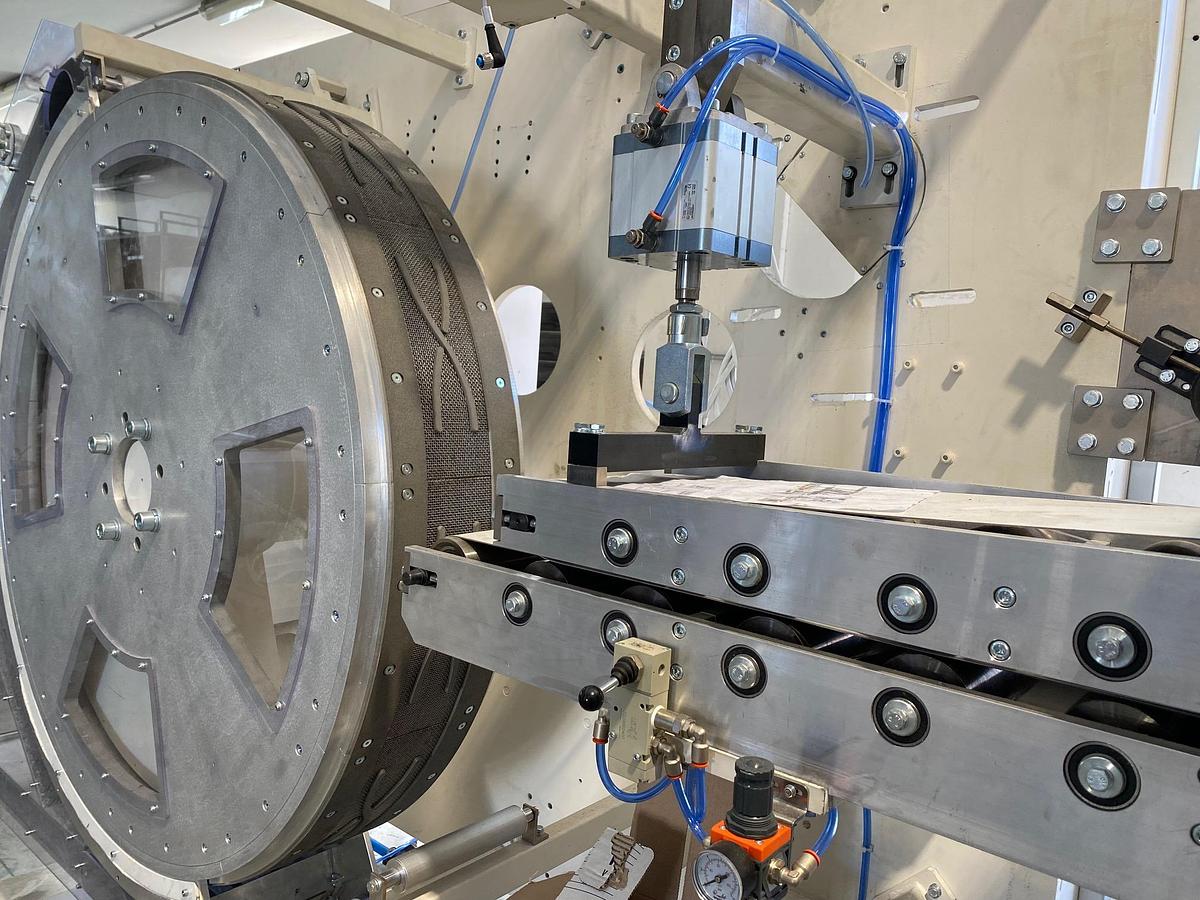

NEW ROTARY DRUM FORMING SECTION WITH FORMING MOULDS INCLUDING CHANNESL

ROLLING BRUSH TO LOEVEL FLUFF PAD

NEW WELDING UNIT FOR CHANNELS

ROTATING TRANSFER UNIT TO TRANSFER PADS FROM THE DRUM FORMER TO THE CONVEYOR BELT

WHEEL WITH MOULDS

COMPLETE SAP (SUPERABSORBENT POLYMER) APPLICATION SYSTEM TO APPLY DIRECTLY TO THE DRUM FORMING

COMPLETE ROTARY FILTER SYSTEM TO TREAT THE VOLUME OF AIR ARRIVING FROM THE PRODUCTION LINE

ALL STRAIGHT AND 90 DEGREE PIPING FOR AIR CONNECTIONS BETWEEN FILTER, MILL AND DRUM FORMING INCLUDED

VACUM SYSTEM

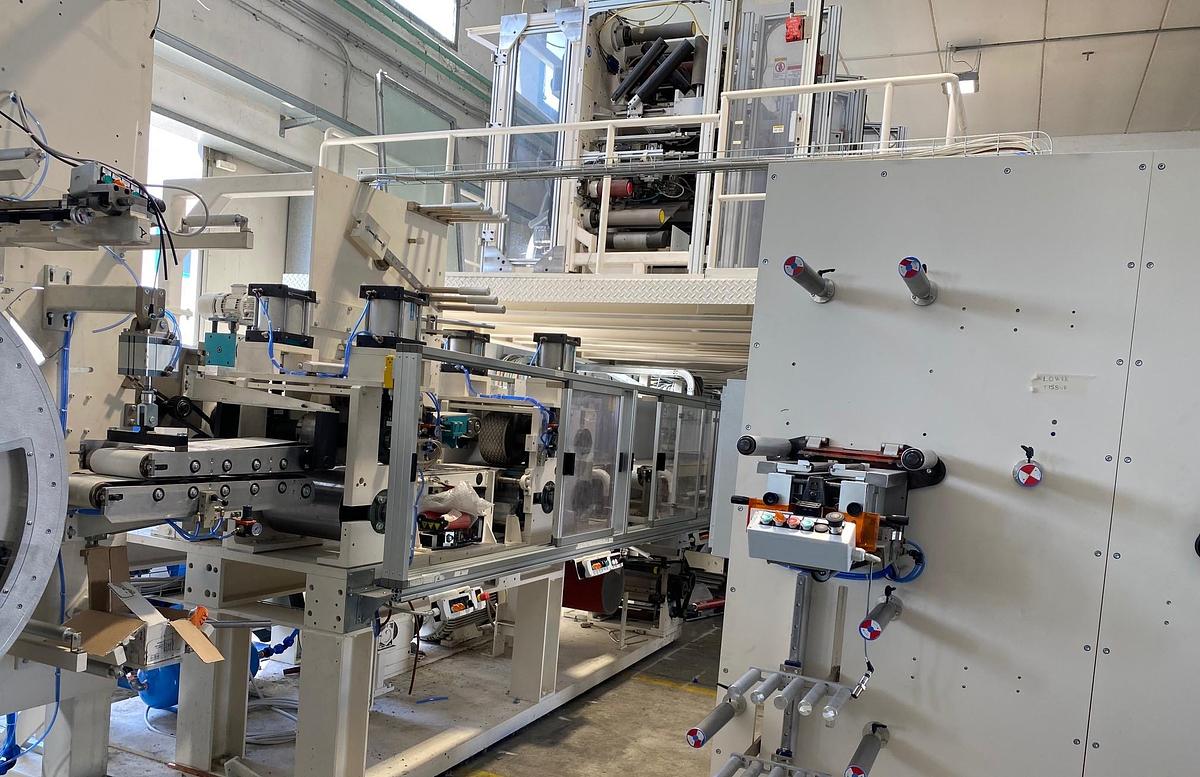

UNWINDS

PULLING UNITS, APPLICATION OF THE IN-LINE FRONTAL TAP, APPLICATION OF THE CUTTING AND OPENING NONWOVEN FOR LEG CUFFS, APPLICATION OF 1 TAPER PER EACH SIDE OF THE BACK EARS, LONGITUDINAL FOLDING, BI-FOLDING, COMPLETE WITH NORDSON HOTMELT SYSTEM (VERSABLUE MODEL FOR THE SIDE PANES), COMPLETE WITH TANKS, TUBES AND GUNS

ELECTRICAL SYSTEM HAS BEEN COMPLTELY REFURBISHED, SUPPLIED WITH MAIN PANEL, MOTORS, FANS, CONTROL BOXES AND DRIVE PANEL FOR THE OPERATOR. ALL DRIVES, BRUSHLESS MOTORS, TOUCH PANEL AND PLC ARE ALLEN BRADLEY MADE AND CONFIGURED IN 2024

MAIN ELECTRICAL PANEL COMPLETE WITH COOLING SYSTEM

CONTROL SYSTE FOR SIDE PANES IS A SIEMENS S7 PLC

ALL NEW PNEUMATIC COMPONENTS FOR THE DISTRIBUTION OF COMPRESSED AIR, COMPLETE WITH PIPES, LUBRICATION, DEHUMIDIFIERS, ELECTRICALLY CONTROLLED VALVES NEW IN 2024

NEW HORIZONTAL STACKER AND AUTOMATAIC PACKAGING OFFERED AS AN OPTION.

THE DIAPER MACHINE PRODUCES A QUALITY DIAPER WITH FLUFF CORE WITH CHANNELS AND SAP. NONWOVEN TOPSHEET WITH POLY BREATHABLE BACKSHEET. AN ACQUISTION LAYER. FRONTAL TAPE THAT IS GLUED IN -LINE. ELASTIC LEGS AND ELASTIC LEG CUFFS. ELASTIC BACK EARS WITH MECHANICAL TAPES. FRONT EARS.
