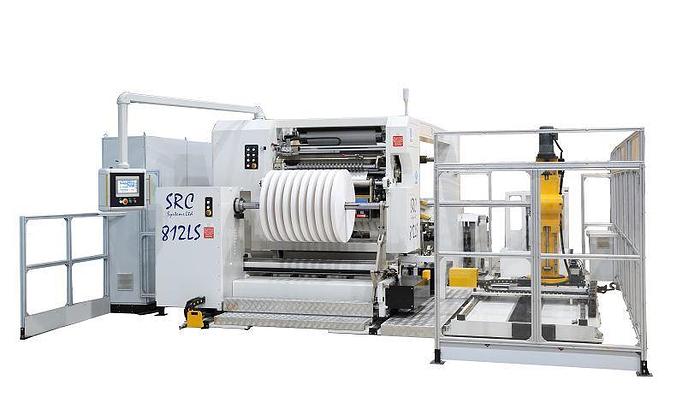

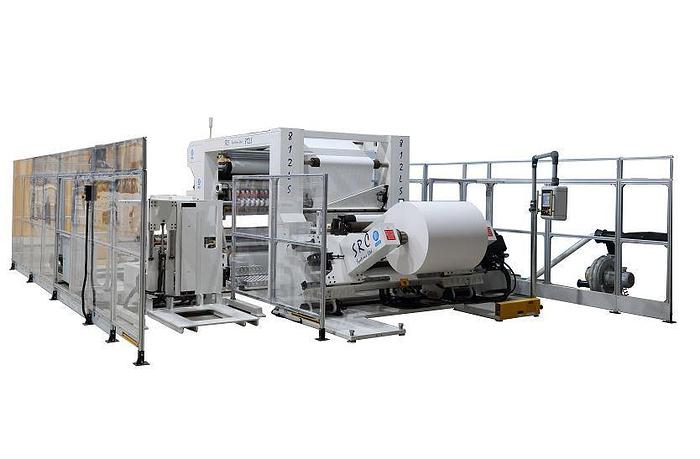

66" SRC SYSTEMS LTD. MODEL 812LS SLITTER REWINDER 50" REWIND DIAMETERS

66" SRC SYSTEMS LTD. MODEL 812LS SLITTER REWINDER 50" REWIND DIAMETERS

Contact us for price

orCall +1 215-664-6016

Description

200233 One (1) New SRC Systems, Ltd. Model 812LS-SM Duplex Slitter Rewinder Purpose built for surgical mask or similar material Max working width: 66" (Material dependent) Max unwind diameter: 50" Max unwind weight capacity: 3500 lbs Unwind chucks 3" and 6" BST Ekr500 edge guide 50 - 500 Newton tension range Speed: 2000 feet per minute Max rewind diameter: 50" Max weight per rewind shaft: 550 lbs Laser core positioning Female knife positioning system Roll offloading system included in price: The off loading system has an automatic roll push off. The unload tree with a single arm receives the finished rolls, one shaft at a time, then moves and slides down a trolley and transfers the rolls to an up-ender. A pallet can be placed in the up-ender so when the material is stood up, it is on a pallet ready to be removed from the machine. Lead time appx 24-28 weeks SRC has over 25 years experience. Est. 1994 in Ipswich, U.K. SRC Systems, Ltd. machines come with remote support & a 12-month parts warranty. Pricing includes shipping charges to most destinations.

Specifications

ManufacturerSRC SYSTEMS LTD.
Model812LS-SM
ConditionUsed
Stock Number200233
Working width2000mm
Wire width2400mm
Wire length (upper/ under)9800mm/ 9800mm
Inlet/ outlet consistency3-10% / 30-40% depending on used material.
Width66.0 in
Rewind diameter50.0 in
Max working width66" (Material dependent)
Max unwind diameter50"
Max unwind weight capacity3500 lbs
Speed2000 feet per minute
Max rewind diameter50"
Max weight per rewind shaft550 lbs
