28" WIDE MARK ANDY VERSAMAX 10 COLOR FLEXO PRESS MFG 2016 - UV & GAS DRYING

Used 28" Wide Mark Andy VersaMax Flexo Press

Equipped with both UV and hot air dryer on all print units

Mark Andy VersaMax flexo press Model Year 2016 – started up in 2017

Material capability specifications, .5 mil (1/2 mil or 12 microns) to 18pt substrates

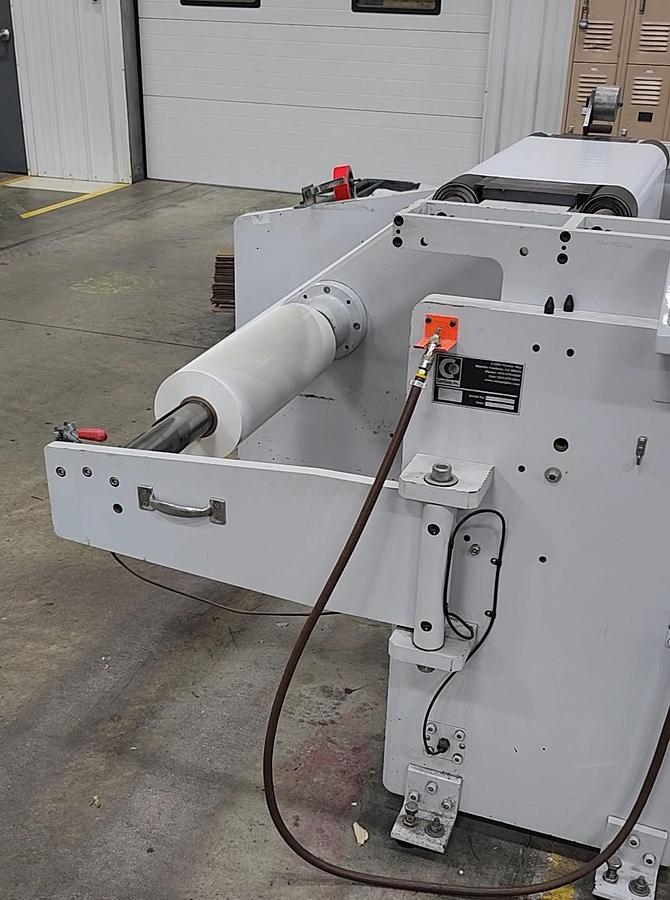

Single spindle 40” max. roll size unwind unit

Accessory Module with mounting for single side Vetaphone corona treater

Infeed Unit, with Meech Web Cleaner

Control System: full servo transport with automatic pre-register and running registration

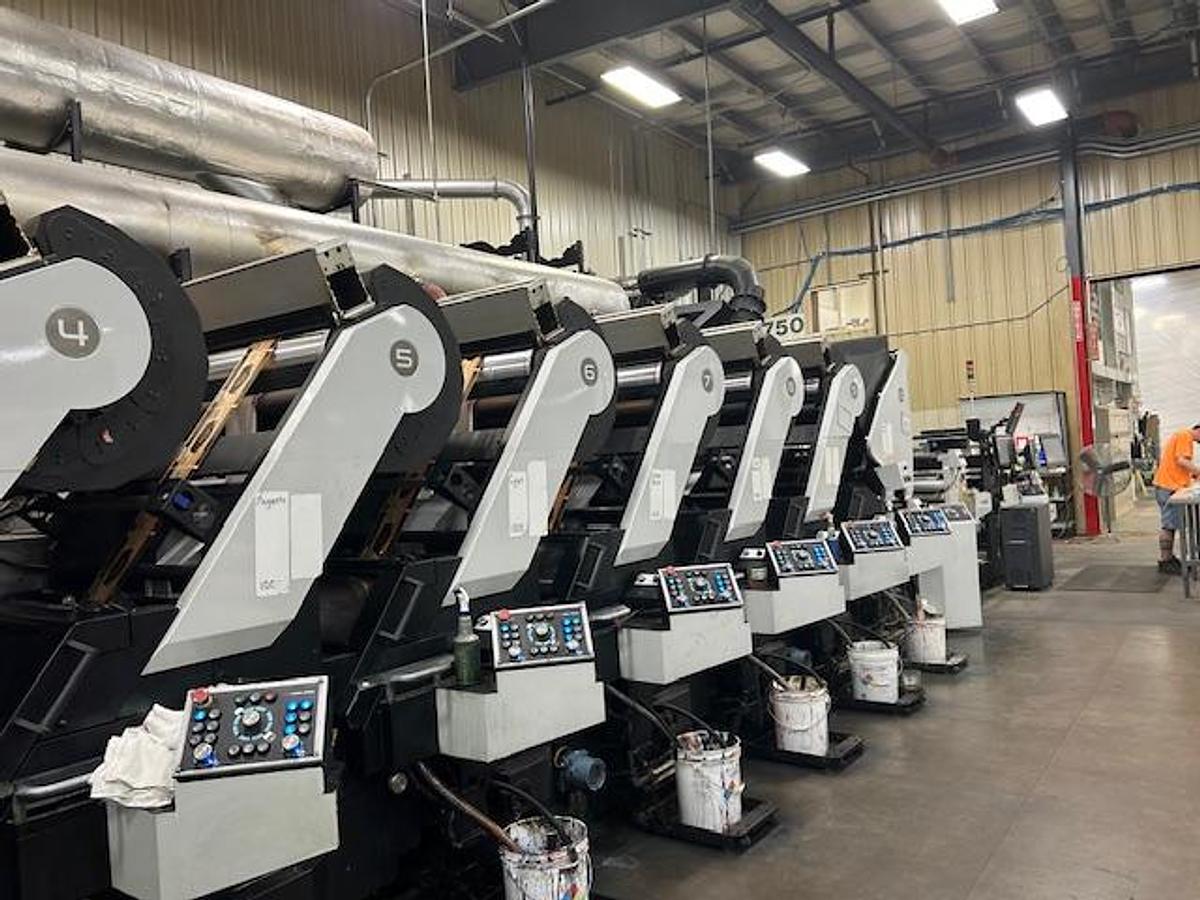

Qty. 10 VersaMax flexo print units w/chill rolls with direct servo-driven plate mandrel, servo impressions rolls, and servo anilox rolls. UV and hot air drying on all 10 print units.

Print repeat range: minimum 10” to maximin 32” inches

First print unit equipped for reverse side printing possible w/o turning the web.

Two GEW UV cassettes are positioned after the first print station for accepting curing cassettes

Print stations each equipped with a GEW UV Curing unit

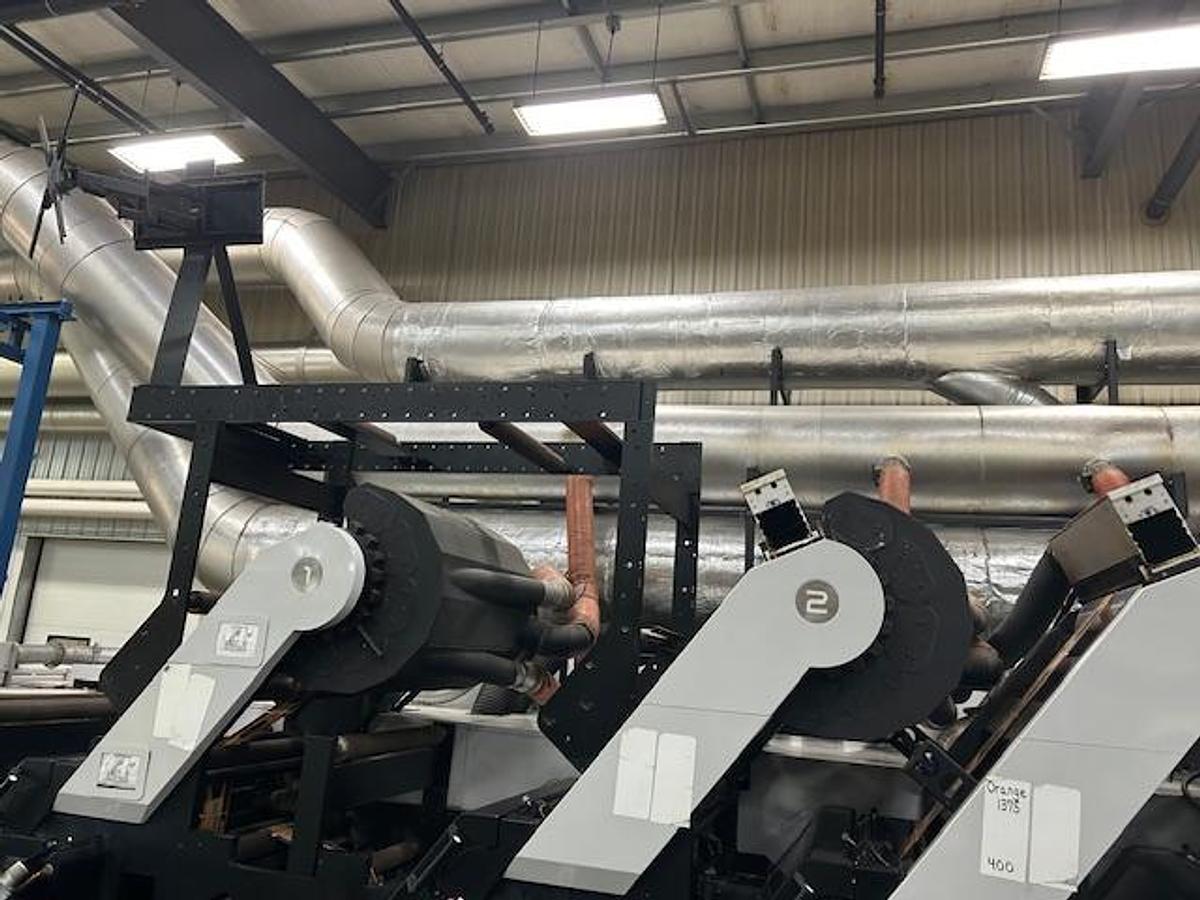

Print stations each equipped with a Mark Andy gas fired hot air dryer unit for water based or solvent inks.

Press is solvent safe when running in the solvent use mode.

10th print unit set up for inline lamination using either hot air drying or UV curing w/twin UV mounting units. Extended hot air dryer for peak aqueous lamination performance

Single spindle 40” lamination unwind unit

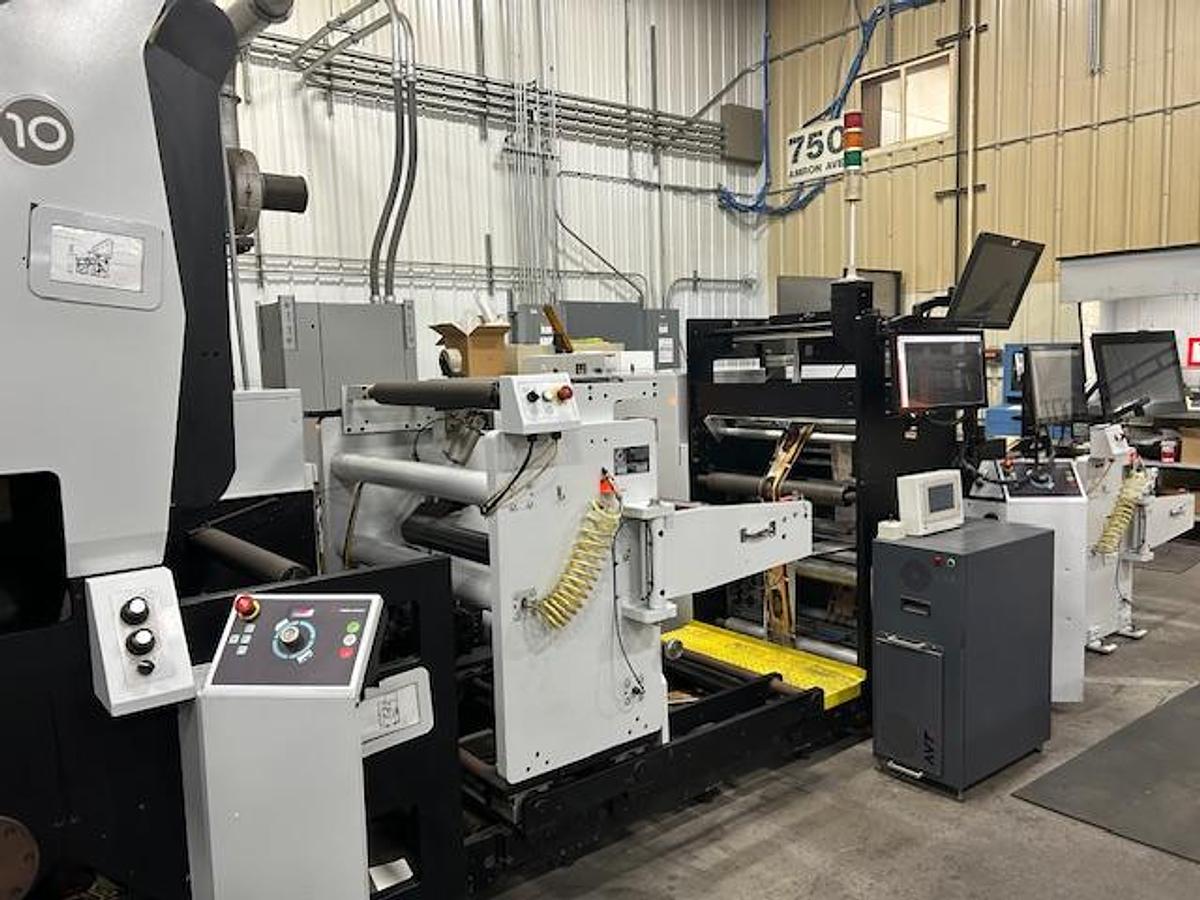

Web viewing with AVT inspections system

Chiller system comes with the press – located outside the user’s facility

Gas fired burner and blower package is designed to be mounter outside of user’s facility

All tooling comes with the press, print sleeves, anilox rolls, spare parts, press + parts manuals.

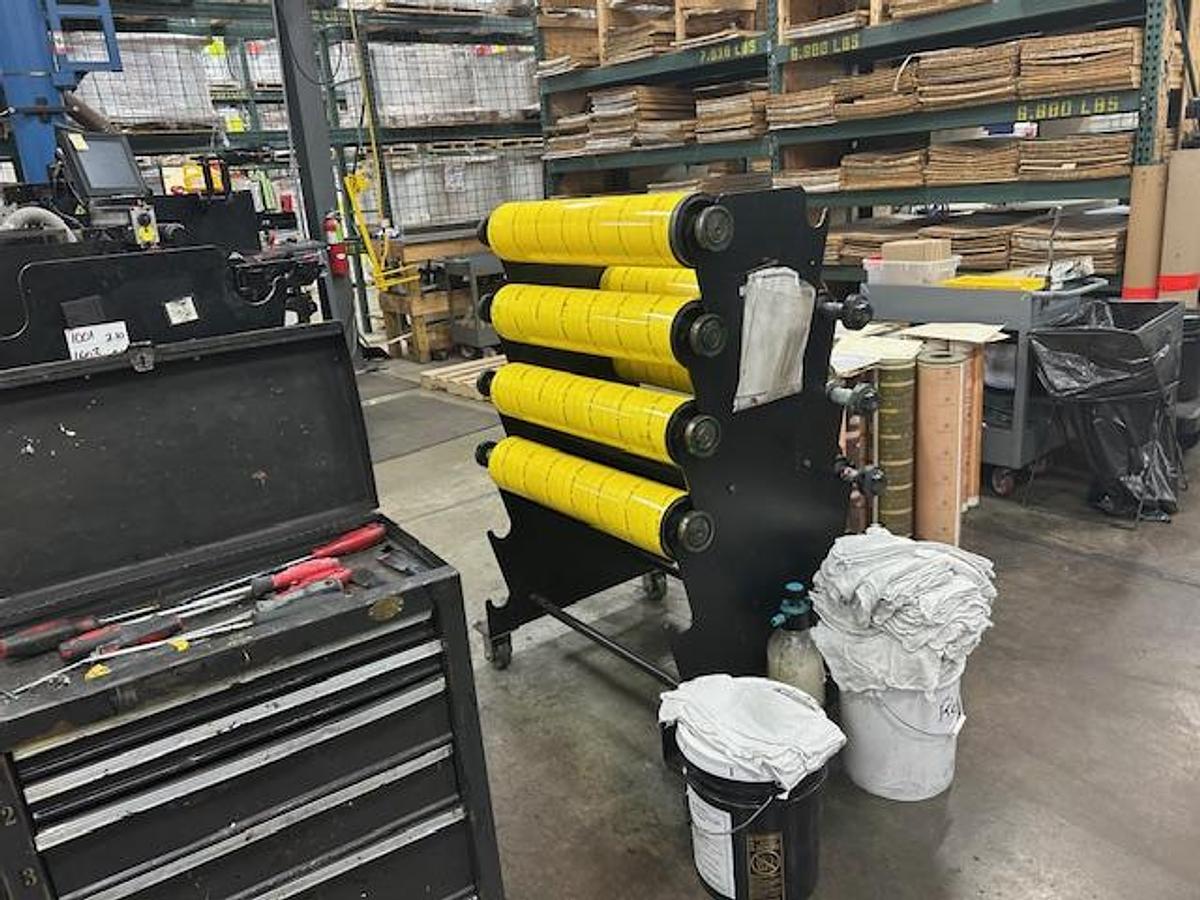

Anilox rolls= 20 pcs.

List of print cylinders available upon request

The machine is under power and can be seen running

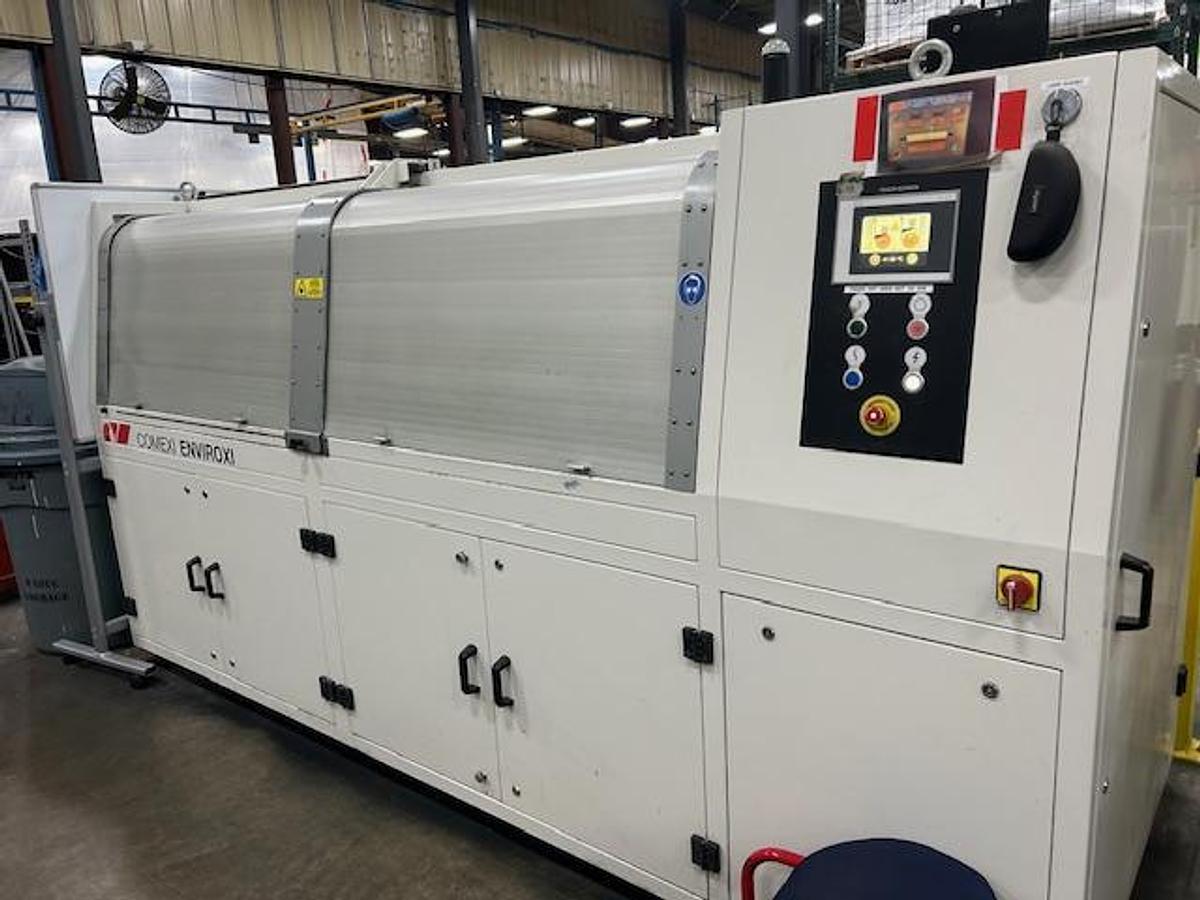

The anilox cleaner shown in the photos and plate mounter will be sold separately.
