54" WIDE GLOUCESTER CO-EXTRUSION SHEET LINE - POLYPROPYLENE SHEET - APPX 1200 LBS / HR

Used 54" Wide Battenfeld Gloucester Co-Extrusion Sheet Extrusion Line, previously used for approximately 1200 lbs. per hour polypropylene sheet.

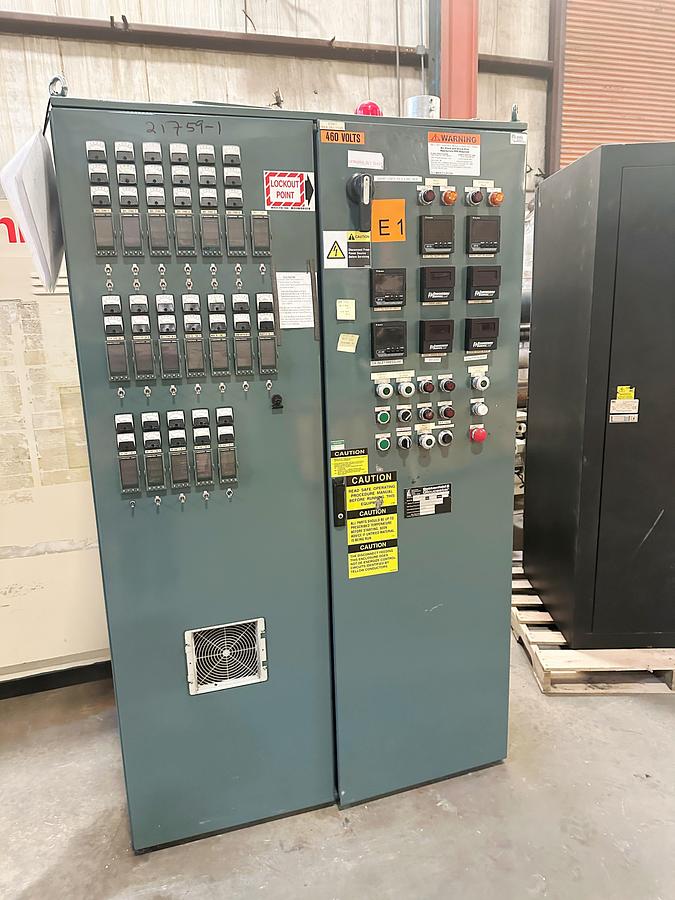

2006 Gloucester Engineering sheet line, ideal for extrusion and sheet production. Features a 6" vented extruder, control cabinet, and 3.5" co-extruder. Includes screen changers, NDC Gauge, die block, Slant stack, winders, and more

Line consists of the following:

(3) Acrison volumetric feeders without controls

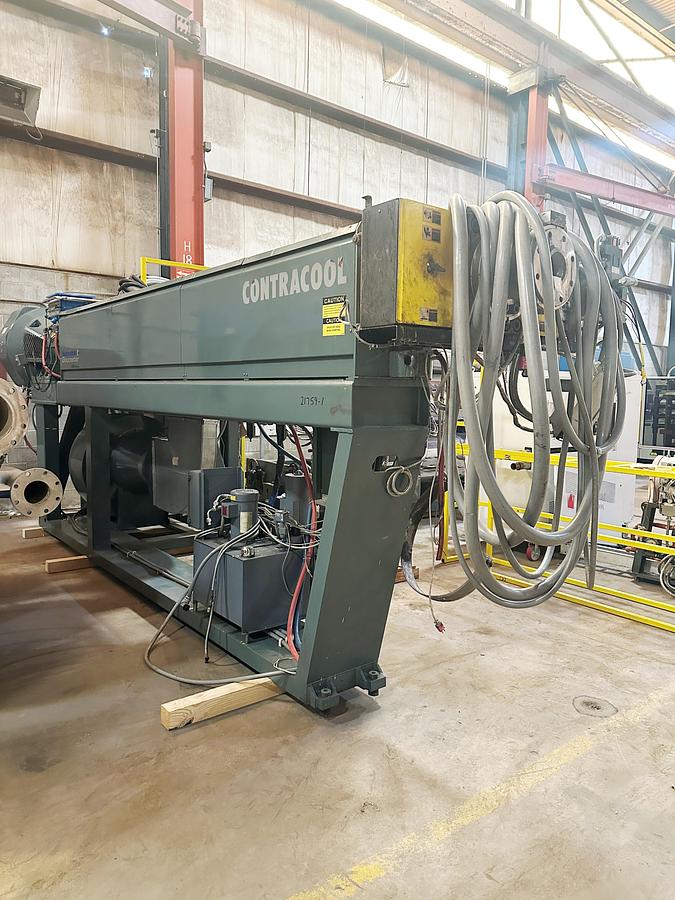

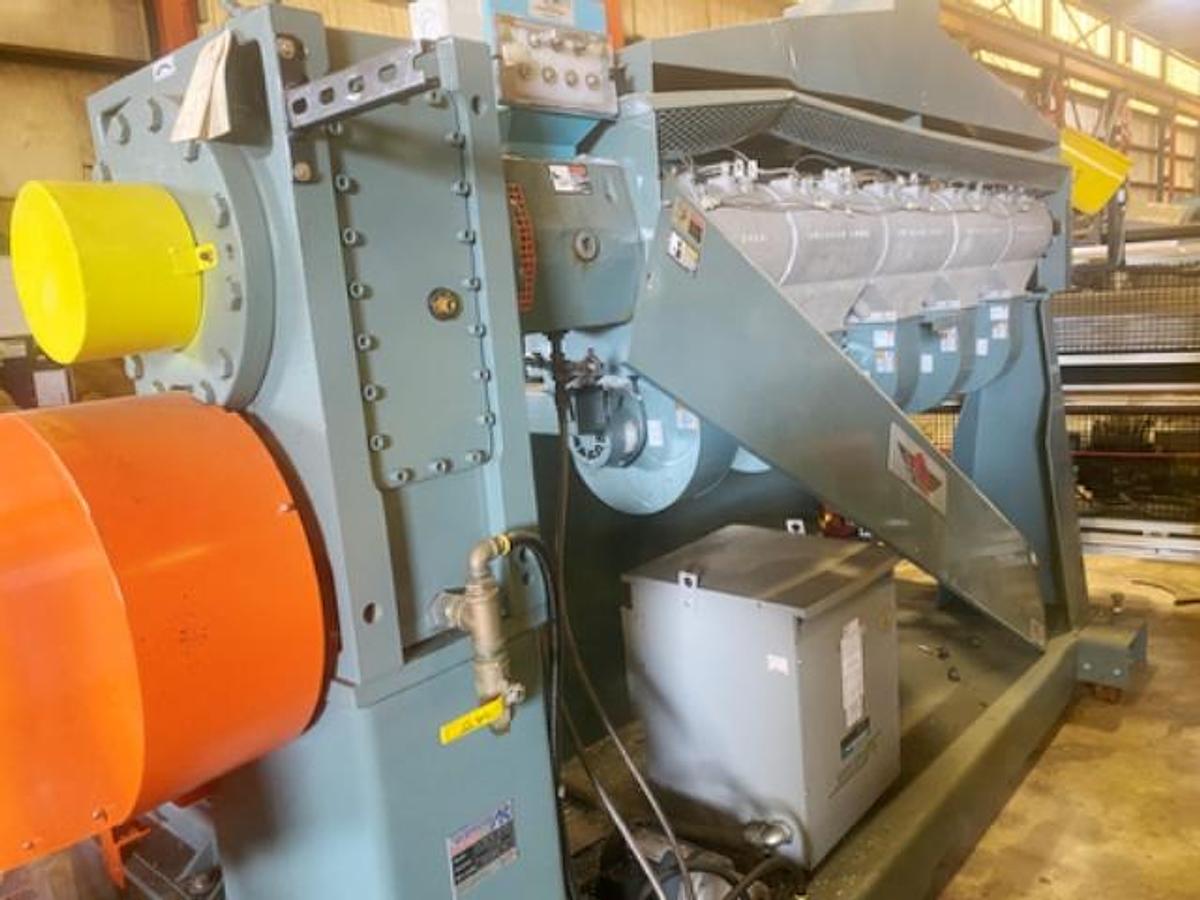

6" Battenfeld Gloucester 30/1 L/D extruder driven by 500 hp AC motor with Yaskawa VFD control. New 2006. Extruder is equipped with 77" centerline height, 460 volt AC input, Contra Cool design including blower, 7" x 12" feed throat dimension with standard hopper and air actuated slide gate, and 16.07/1 gearbox ratio. Barrel is vented and plugged

6" Xaloy slide plate screen changer with hydraulic pump

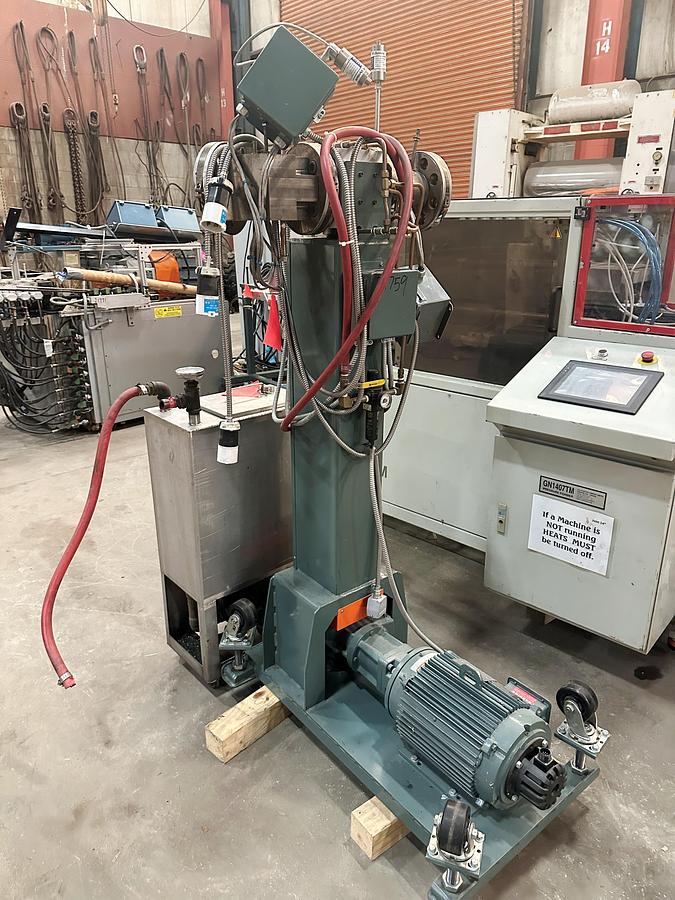

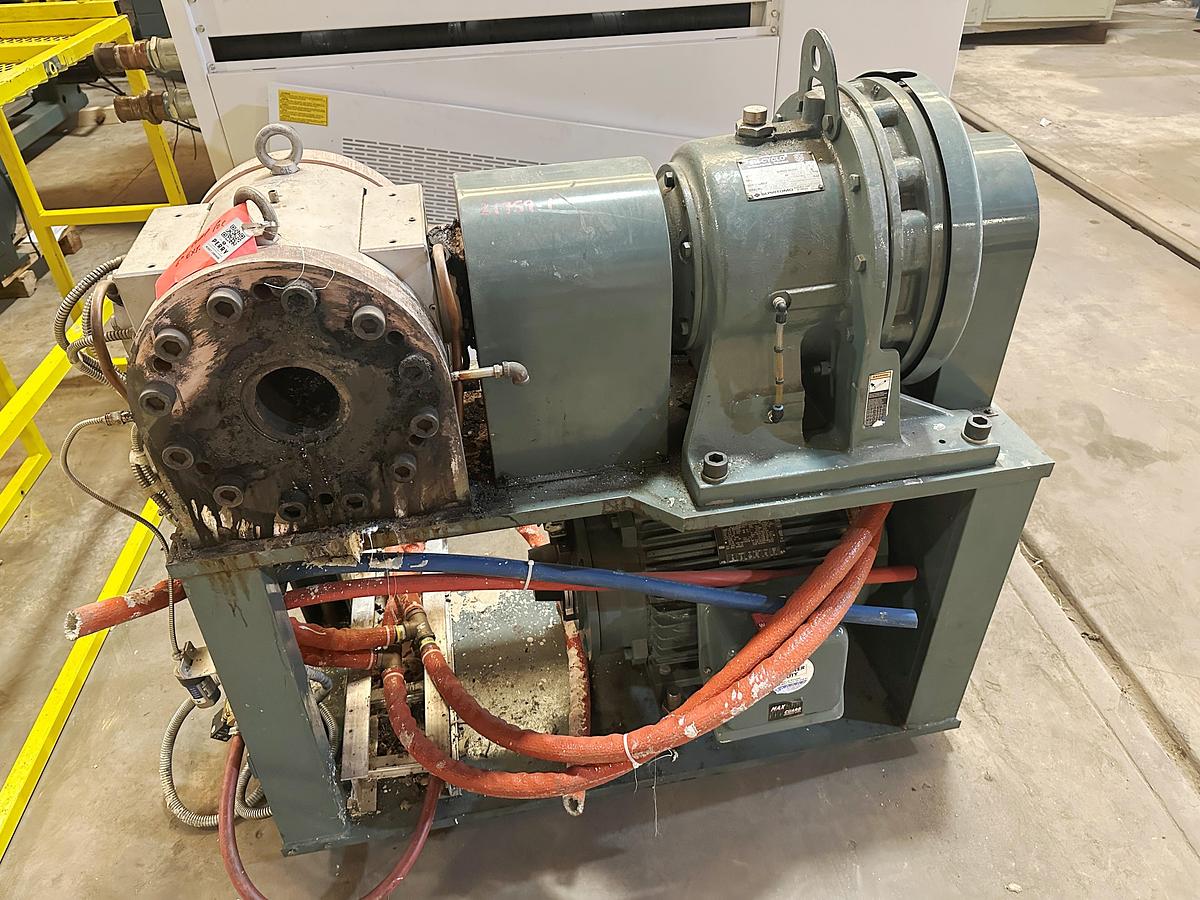

30 hp LCI ES 90/90 melt pump with drive Includes spare 30HP motor.

EDI 3-layer Ultraflow Feedblock, ABA design

54" EDI Model H75 flex lip die with .000-.075 gap. Serial #09-28716.

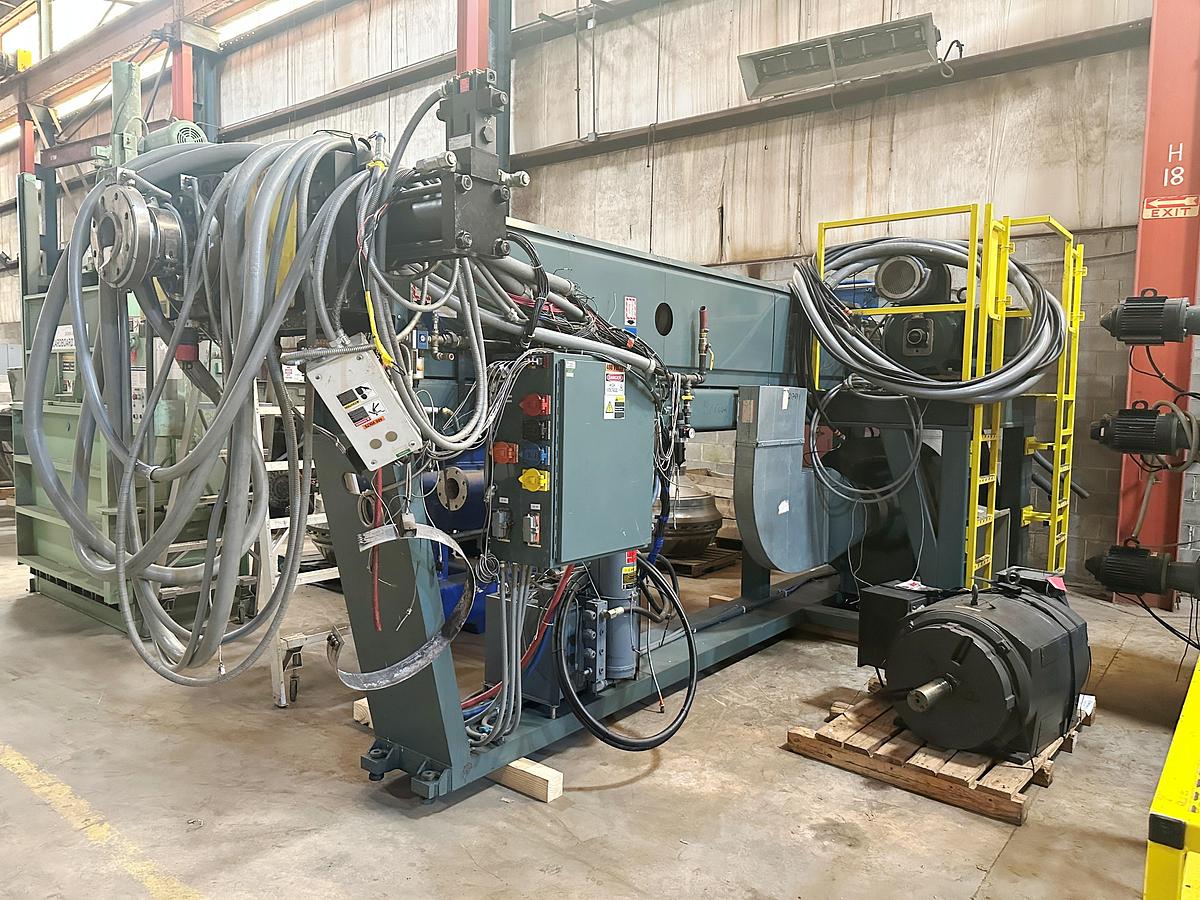

3.5" American Kuhne 30/1 L/D co-extruder, new 2011. Has electrically heated air cooled barrel, 100 hp AC motor 460 volt AC input with Yaskawa VFD motor control and Koellmann 17.2/1 gearbox ratio. Extruder is mounted with 70" centerline height, includes Xaloy screen changer and melt pump. Barrel is vented and plugged

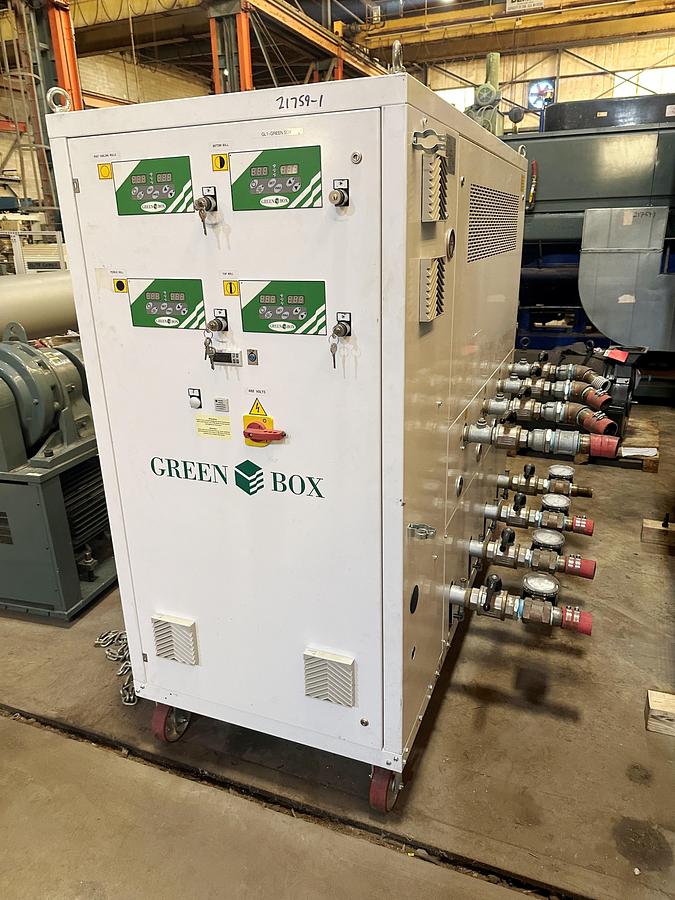

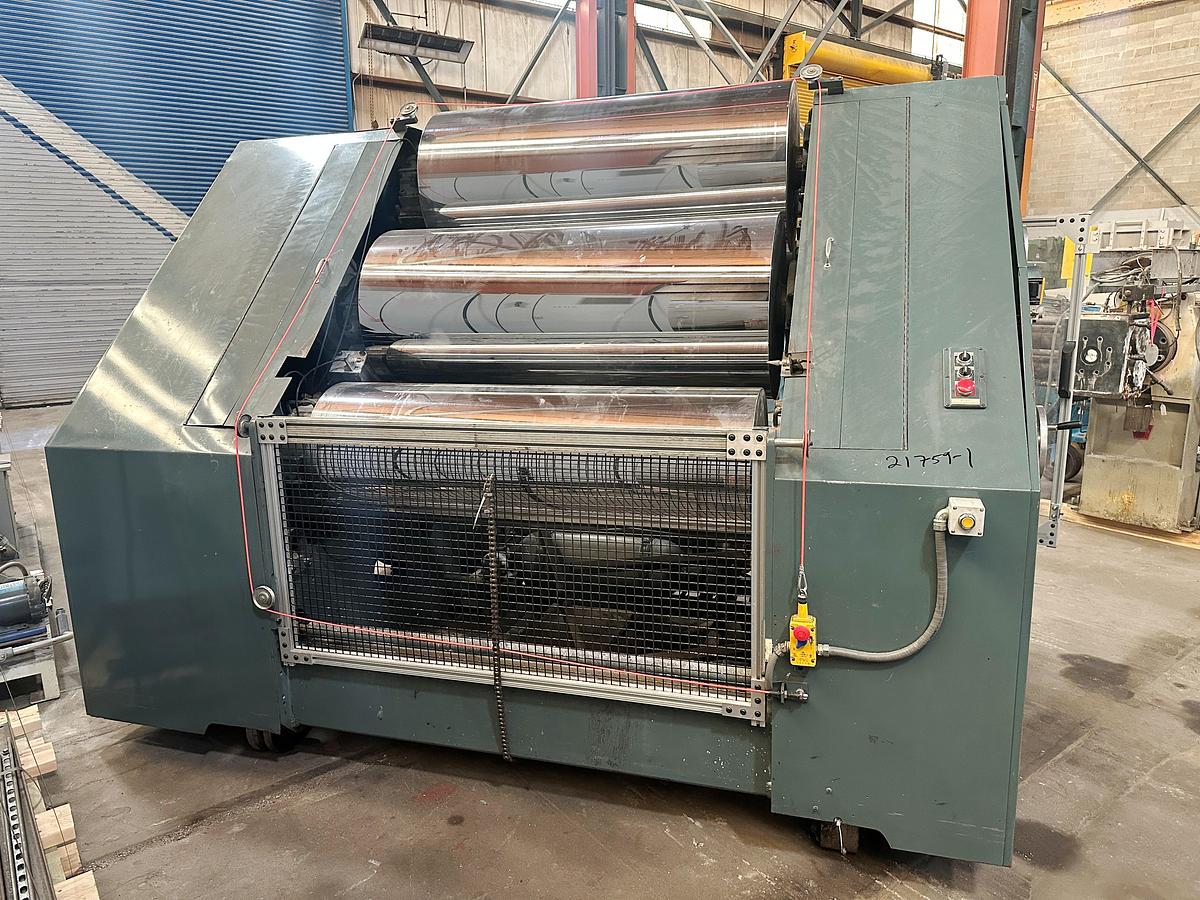

Downstream of the line includes a 56" x 18" x 24" inclined chill roll stack with polished chrome rolls, hydraulically loaded and includes individual roll drives. Includes 4-zone "Green Box" pumping package for primary roll cooling and secondary roll cooling. New 2016. Has a spare 24" OD matte finish roll for center position on stack.

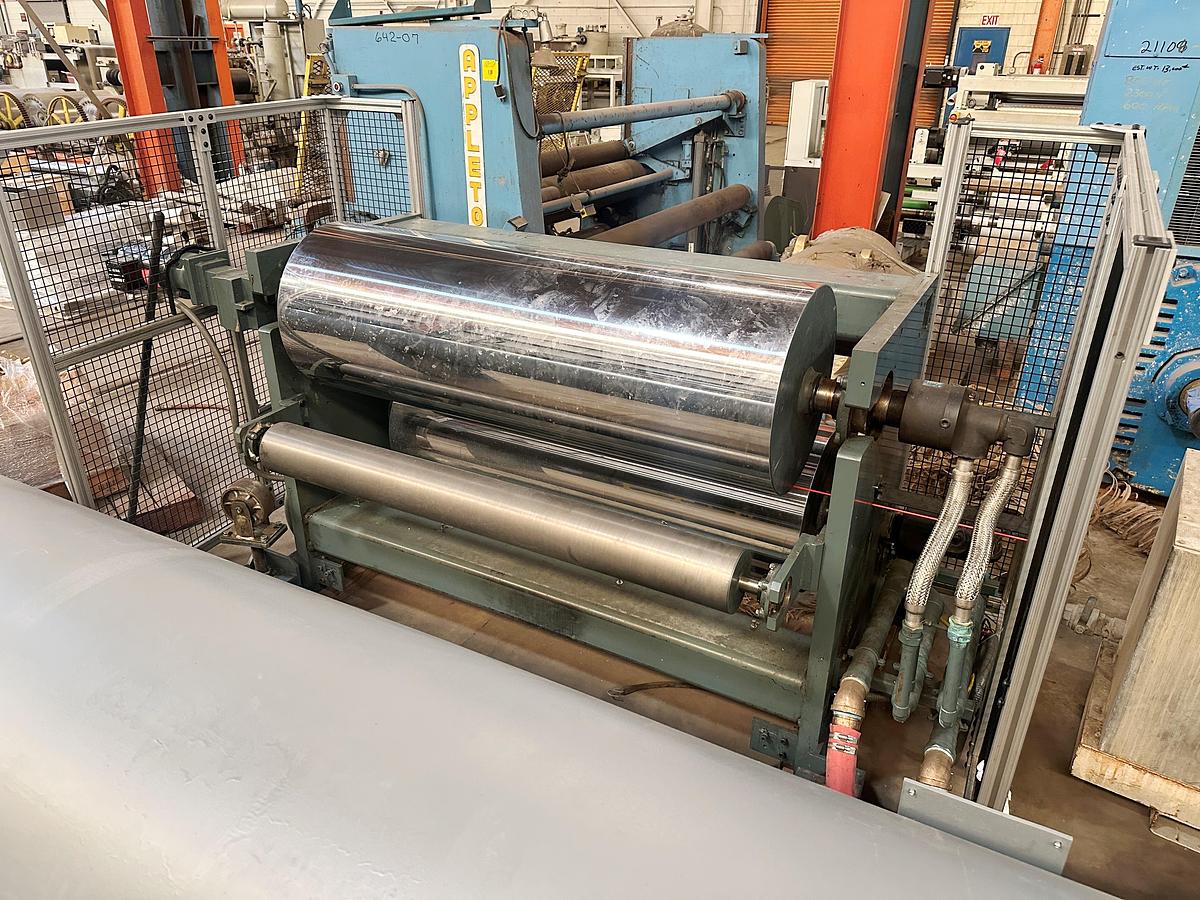

Secondary roll package consists of 57" wide x 20" O.D. S-Wrap Battenfeld Gloucester cooling rolls mounted downstream from the primary rolls.

NDC gauge (without source) with controls and razor blades slitting station.

Pull roll assembly

Cooling conveyor

Dual position hydraulic driven jumbo winders with portable roll carts (10).

Previously installed in research site as operated on 22-25 mil PP sheet. 2500 lbs per hour design capacity. Reportedly able to run PET, HIPS and PS as well.
