12,000 GALLON AMMONIA TANK

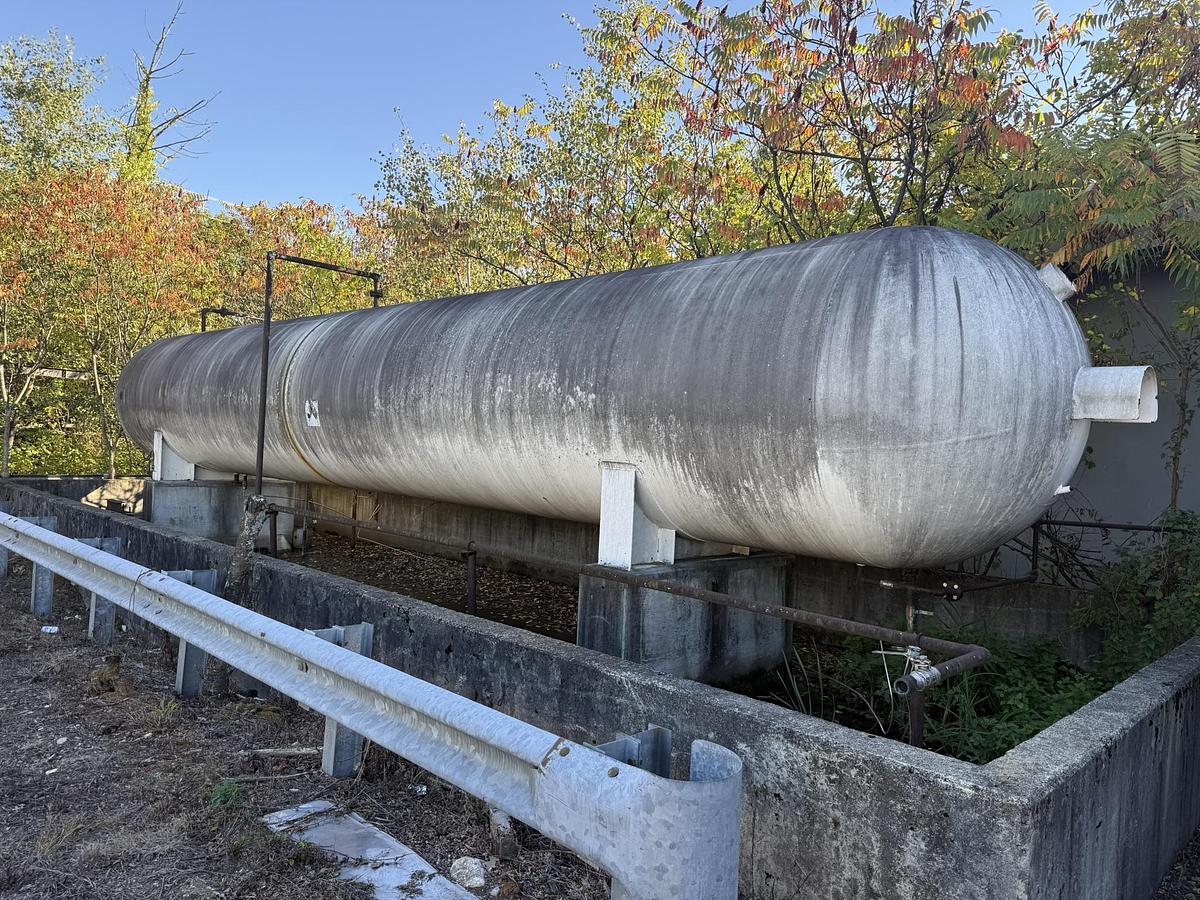

12,000 Gallon ASME Anhydrous Ammonia Tank 150 PSI Horizontal Vessel

Type: Horizontal ASME Pressure Vessel

Service: Anhydrous Ammonia (NH₃)

Capacity: 12,000 Gallons

Maximum Allowable Working Pressure: 150 PSI

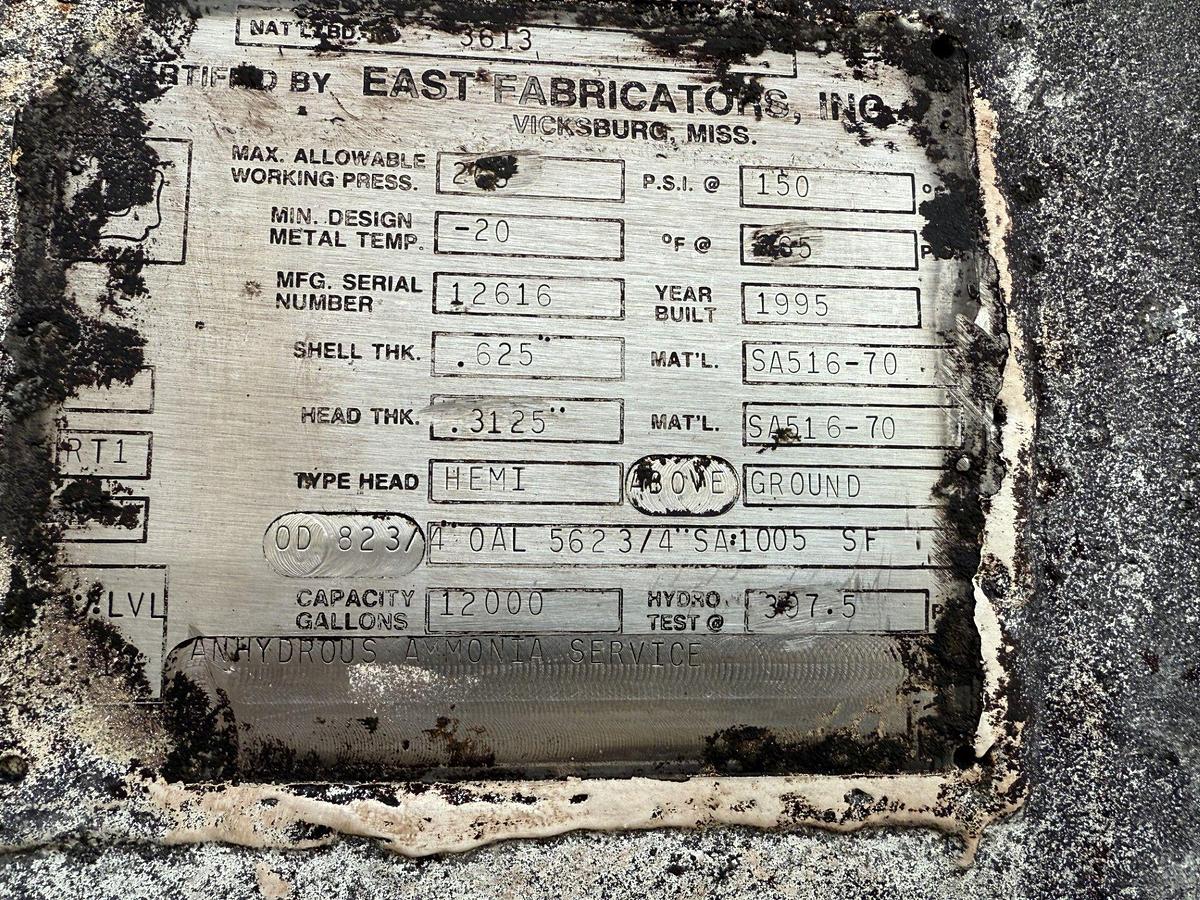

Manufacturer: East Fabricators, Inc. (Vicksburg, Mississippi)

Year Built: 1995

ASME Code: National Board Registered

ASME / National Board No.: 3513

Manufacturer Serial No.: 12616

Shell Thickness: 0.625"

Head Thickness: 0.3125"

Head Type: Hemispherical

Material: SA-516-70 (Shell & Heads)

Minimum Design Metal Temperature: -20°F

Hydrostatic Test Pressure: 307.5 PSI

Outside Diameter: Approx. 82-3/8"

Overall Length: Approx. 56'-2¾"

Original Service: Anhydrous Ammonia
