84" OPENING BOLZONI AURAMO PAPER ROLL CLAMP MFG. 2017
No longer available
84" OPENING BOLZONI AURAMO PAPER ROLL CLAMP MFG. 2017
Description
903566.001

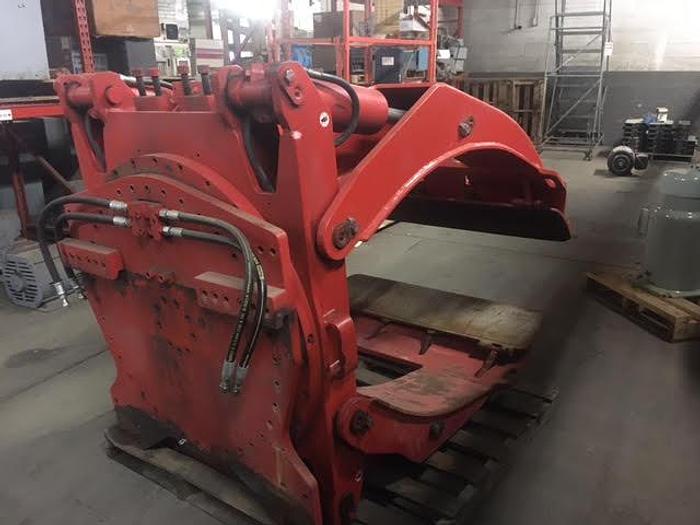

One (1) used Bolzoni Auramo 84" paper roll clamp.
CAPACITY 9,000# @ 42" LC
ROTATION 180 DEGREES
ROLL RANGE: 22"-84"
PADS: (2) 43.3"SOLID CAST
ROLL ARMS: POSITIONED SHORT & NON-SPLIT LONG
MOUNTING CLASS: IV
MINIMUM CARRIAGE WIDTH: 40"
WEIGHT: 3,400lbs.
EFFECTIVE THICKNESS (LL):9.3"
HCG: 14.2"
VCG: 18.5"
JIC HYDRAULICS/#8
LEFT CONNECTION: ROTATE
RIGHT CONNECTION: CLAMP
OPERATING PRESSURE: 2,610 PSI
2017 Make
Specifications
| Manufacturer | BOLZONI |
| Model | RA-450NLE-X |
| Year | 2017 |
| Condition | Used |
| Serial Number | 39797104 |
| Stock Number | 903566.001 |
| Weight | 3,400lbs. |
| Roll range | 22"-84" |
| Clamp diameter | 60.0 in |
| Pads | (2) 43.3"SOLID CAST |
| Roll arms | POSITIONED SHORT & NON-SPLIT LONG |
| Width | 72 |
| Mounting class | IV |
| Minimum carriage width | 40" |
| Effective thickness (ll) | 9.3" |
| Rewind diameter | 60.0 in |
| Hcg | 14.2" |
| Vcg | 18.5" |
| Left connection | ROTATE |
| Right connection | CLAMP |
| Operating pressure | 2,610 PSI |
