84" BOLZONI AURAMO PAPER ROLL CLAMP MFG. 2017
No longer available
84" BOLZONI AURAMO PAPER ROLL CLAMP MFG. 2017
Description
903566

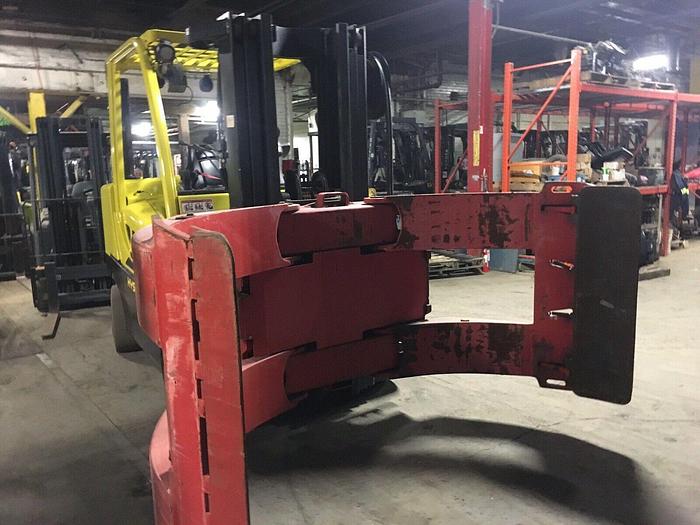

One (1) used Bolzoni Auramo 84" paperroll clamp.
CAPACITY 9,000# @ 42" LC
ROTATION 180 DEGREES
ROLL RANGE: 22"-84"
PADS: (2) 43.3"SOLID CAST
ROLL ARMS: POSITIONED SHORT & NON-SPLIT LONG
MOUNTING CLASS: IV
MINIMUM CARRIAGE WIDTH: 40"
WEIGHT: 3,400lbs.
EFFECTIVE THICKNESS (LL):9.3"
HCG: 14.2"
VCG: 18.5"
JIC HYDRAULICS/#8
LEFT CONNECTION: ROTATE
RIGHT CONNECTION: CLAMP
OPERATING PRESSURE: 2,610 PSI
2017 Make
Specifications
| Manufacturer | BOLZONI |
| Model | RA-450NLE-X |
| Year | 2017 |
| Condition | Used |
| Serial Number | 39797102 |
| Stock Number | 903566 |
| Weight | 3,400lbs. |
| Roll range | 22"-84" |
| Width | 15 |
| Clamp diameter | 60.0 in |
| Pads | (2) 43.3"SOLID CAST |
| Roll arms | POSITIONED SHORT & NON-SPLIT LONG |
| Mounting class | IV |
| Minimum carriage width | 40" |
| Effective thickness (ll) | 9.3" |
| Hcg | 14.2" |
| Vcg | 18.5" |
| Left connection | ROTATE |
| Right connection | CLAMP |
| Operating pressure | 2,610 PSI |
