FKC MODEL SHX-400X2500l Screw Press S/S MFG. 2015
No longer available
FKC MODEL SHX-400X2500l Screw Press S/S MFG. 2015
Description
903560
One (1) used FKC Screw Press Model SHX-400x2500Lscrew press.
Material: 100% primary tissue mill sludge
Ash content: 4-6% or higher in the cake
Fiber content: 25% or higher (%TS >150 mesh)
Capacity: 3 - 4 BDST/D (24 hrs.)
Inlet consistency: 0.75 – 1.0% or higher
Outlet consistency: 35% or higher with polymer and steam use
Materials of construction: SS-304 wetted parts, and base, Other CS

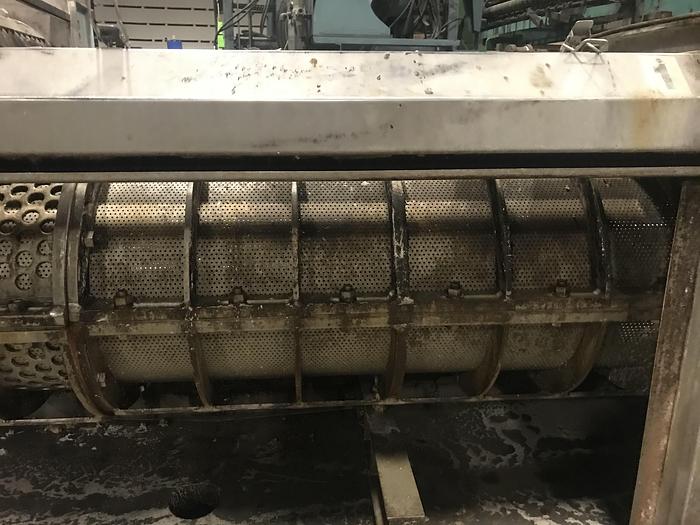

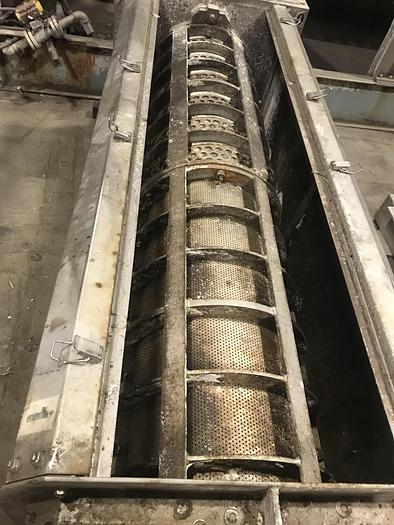

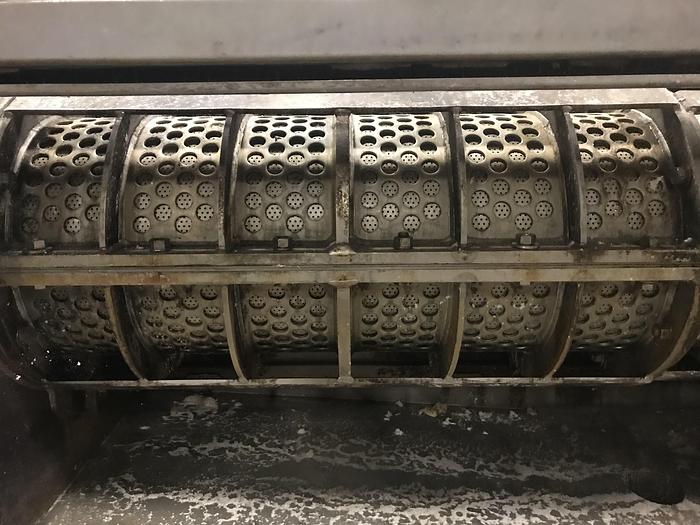

Screens: Perforated SS-304
Screw: Steam heat-able, ASME not required
Speed reducer: Sumitomo Cyclo reducer
Final drive: Roller chain for the inlet end (see attached drawing)

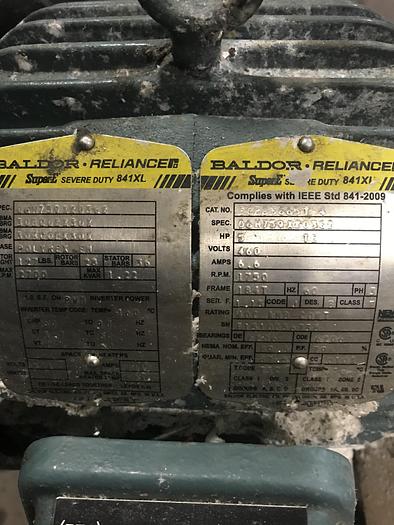

Motor: 5 HP, 1800 rpm, 184T frame
Suitable for variable speed operation w/ PWM constant torque inverter motor
Unit has been well maintained and available due to complete mill closure.
Specifications
Manufacturer | FKC |
Model | SHX-400X2500L |
Year | 2015 |
Condition | Used |
Stock Number | 903560 |
Width | 30 |
Material | 100% primary tissue mill sludge |
Ash content | 4-6% or higher in the cake |
Fiber content | 25% or higher (%TS >150 mesh) |
Rewind diameter | 53.0 in |
Capacity | 3 - 4 BDST/D (24 hrs.) |
Clamp diameter | 60.0 in |
Inlet consistency | 0.75 – 1.0% or higher |
Outlet consistency | 35% or higher with polymer and steam use |
Materials of construction | SS-304 wetted parts, and base, Other CS |
Screens | Perforated SS-304 |
Screw | Steam heat-able, ASME not required |
Motor requirements | 5 HP, 1800 rpm, 184T frame |
Speed reducer | Sumitomo Cyclo reducer |
Final drive | Roller chain for the inlet end (see attached drawing) |
Motor | 5 HP, 1800 rpm, 184T frame |
