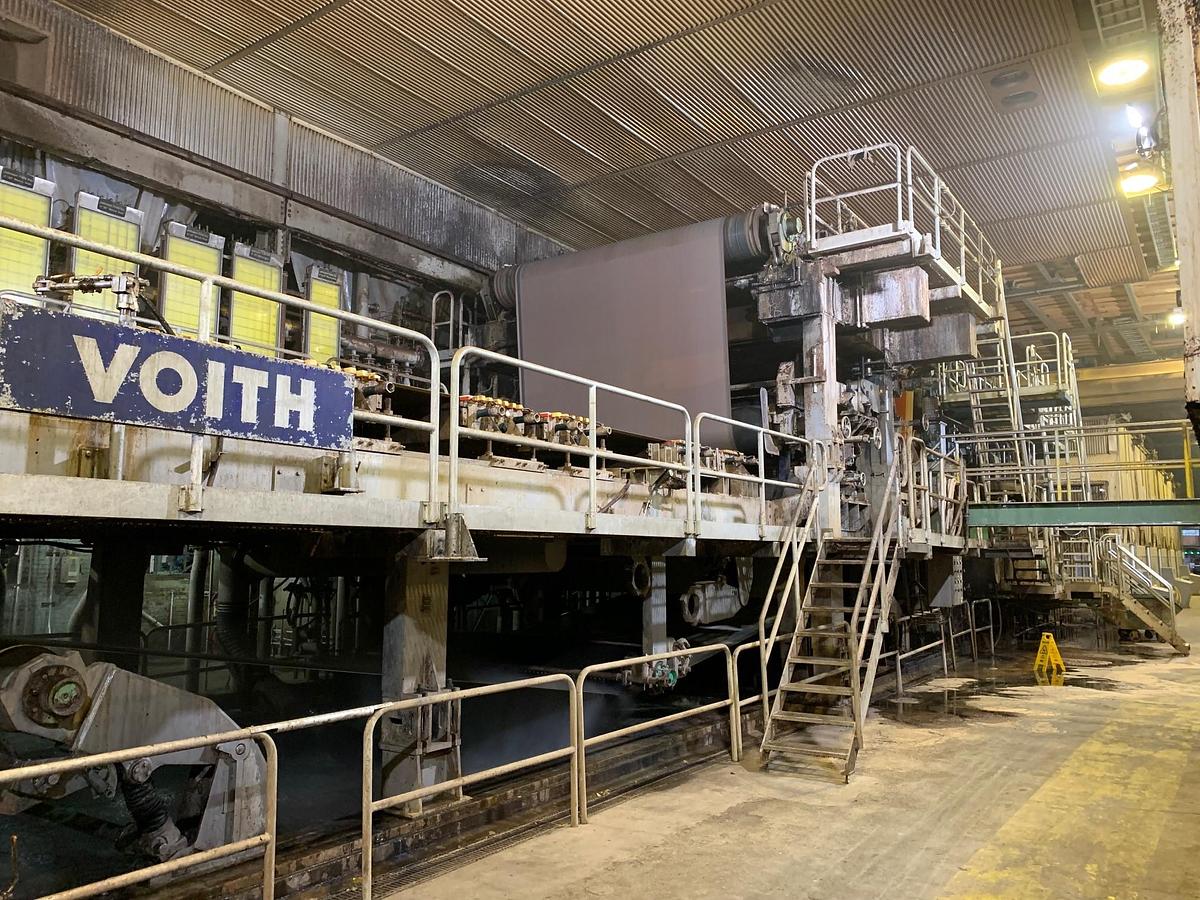

110" (2.8M) VOITH FOURDRINIER PAPER MACHINE (2002) – LINERBOARD / TUBE & CORE – 72" DIAMETER DRYERS – DUAL SHOE PRESS (LBM)

110" (2.8M) Voith Fourdrinier Paper Machine – 2002 (LBM)

Complete ABB AC drive upgrade installed 2019

Trim Width: 110" (2.8 m)

Application: Linerboard, Medium, Tube & Core Stock

Left Hand Machine (From Headbox to Winder Motors On Left)

General Specifications

Manufacture Year: 2002

Basis Weight Range: 200–600 g/m²

Linerboard Range: 33# to 70# (per 1,000 sq ft)

Tube & Core Stock: 17 pt to 30 pt

Wire Width: 134"

Design Speed: 2,000 FPM (610 m/min)

Operating Speed: 1,500 FPM

Daily Production: Reported 375–420 TPD

Drive System: Fully updated to allow future 2,000 FPM capability (some motors/gearboxes may need replacement)

Wet End & Forming Section

Headbox: Hydraulic with DuoFormer D top dewatering

Fourdrinier Table: Voith 960" from breast roll centerline to couch roll

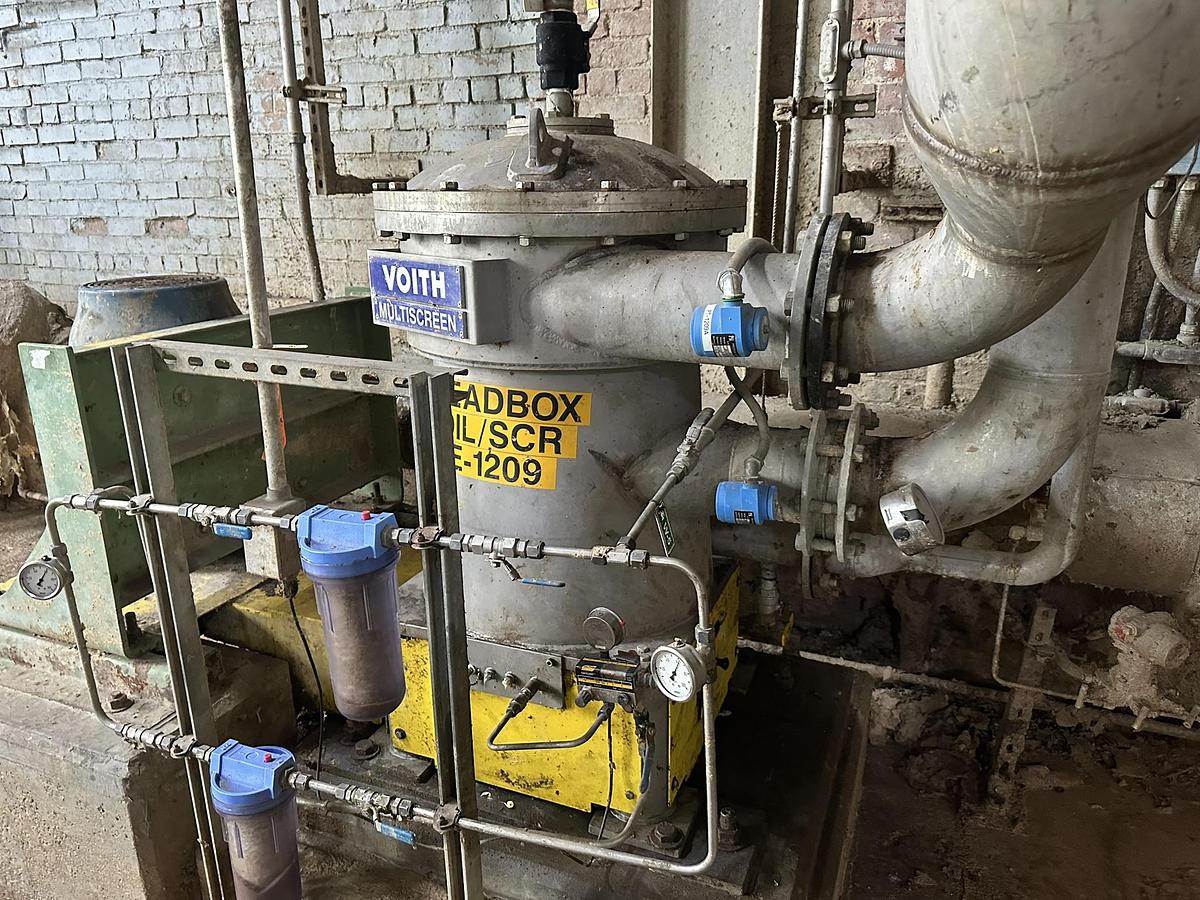

Approach Flow System:

Voith 08 screen

(2) Voith Model 0403 screens

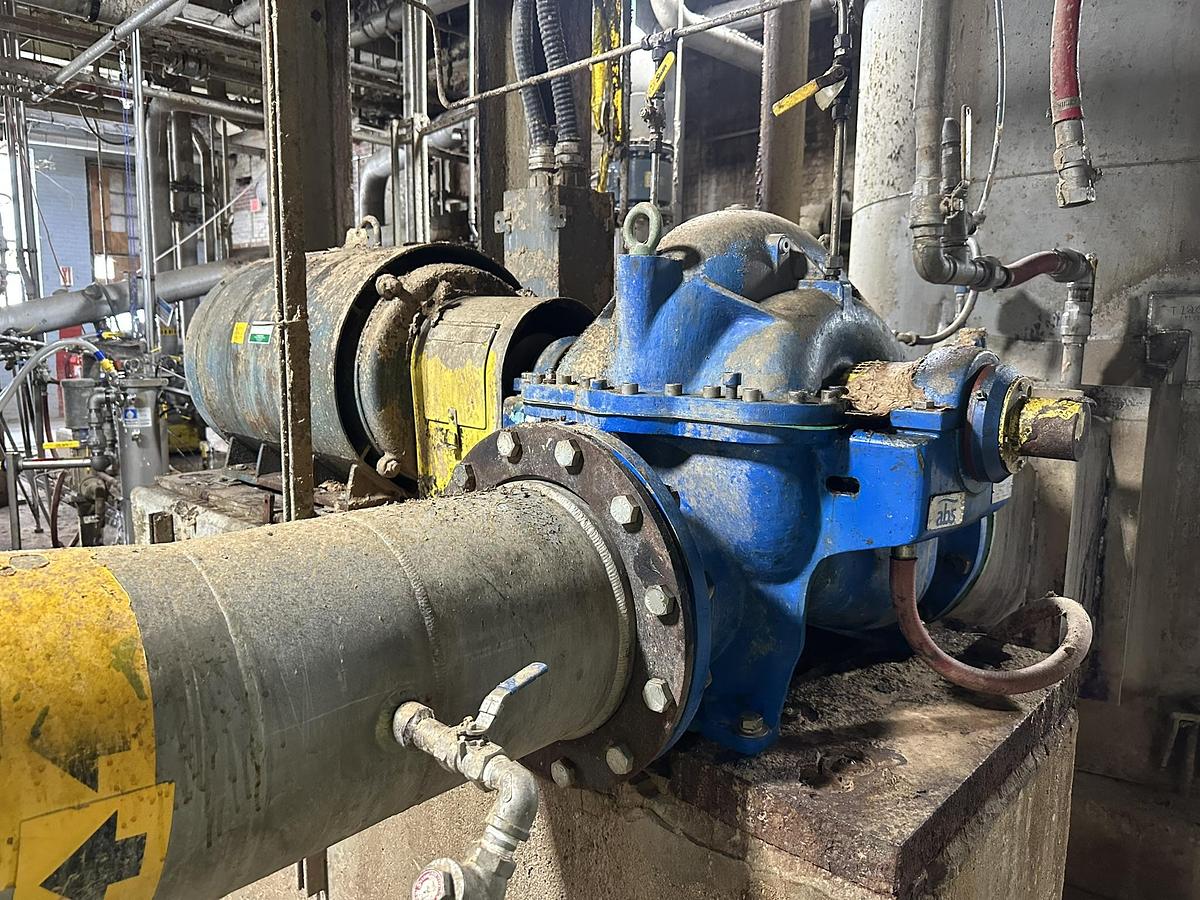

Fan Pump: Sulzer SS ZPP 10

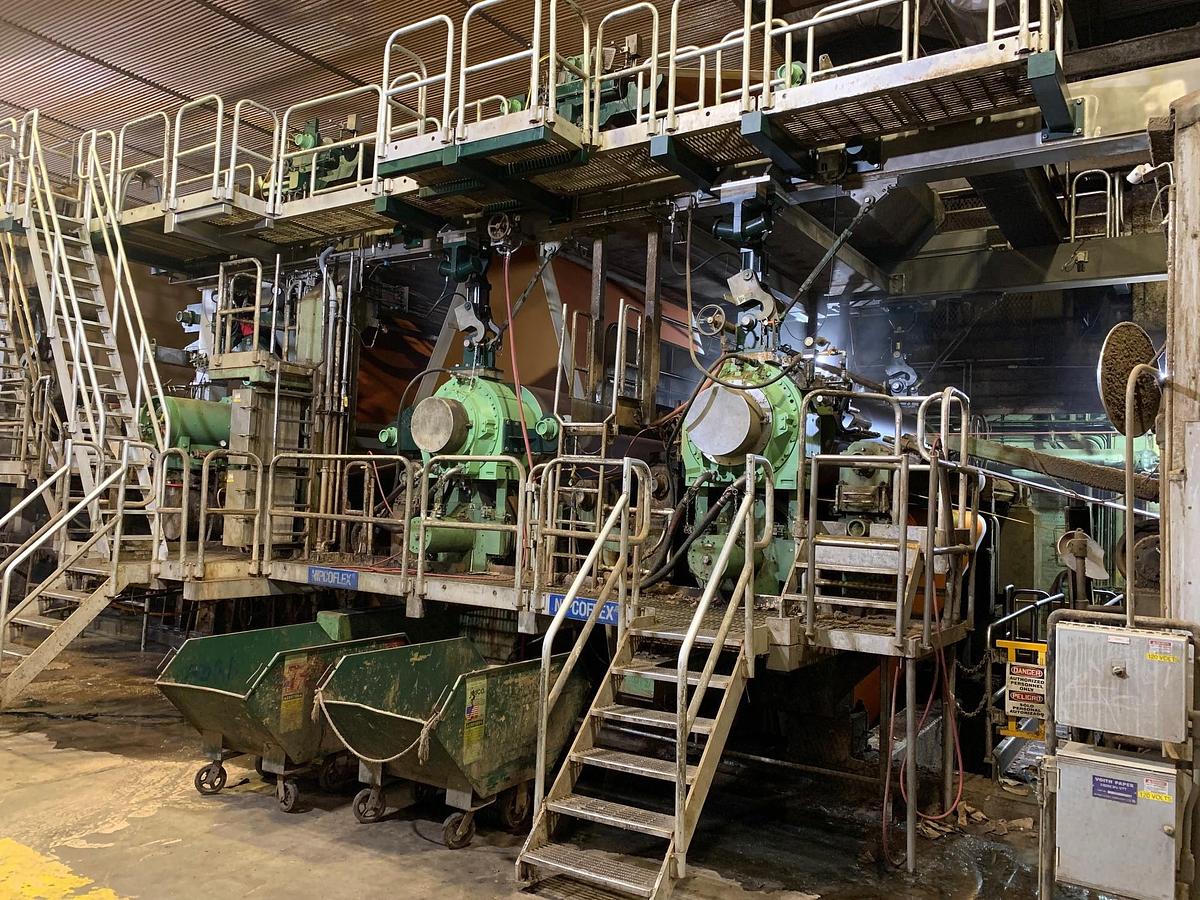

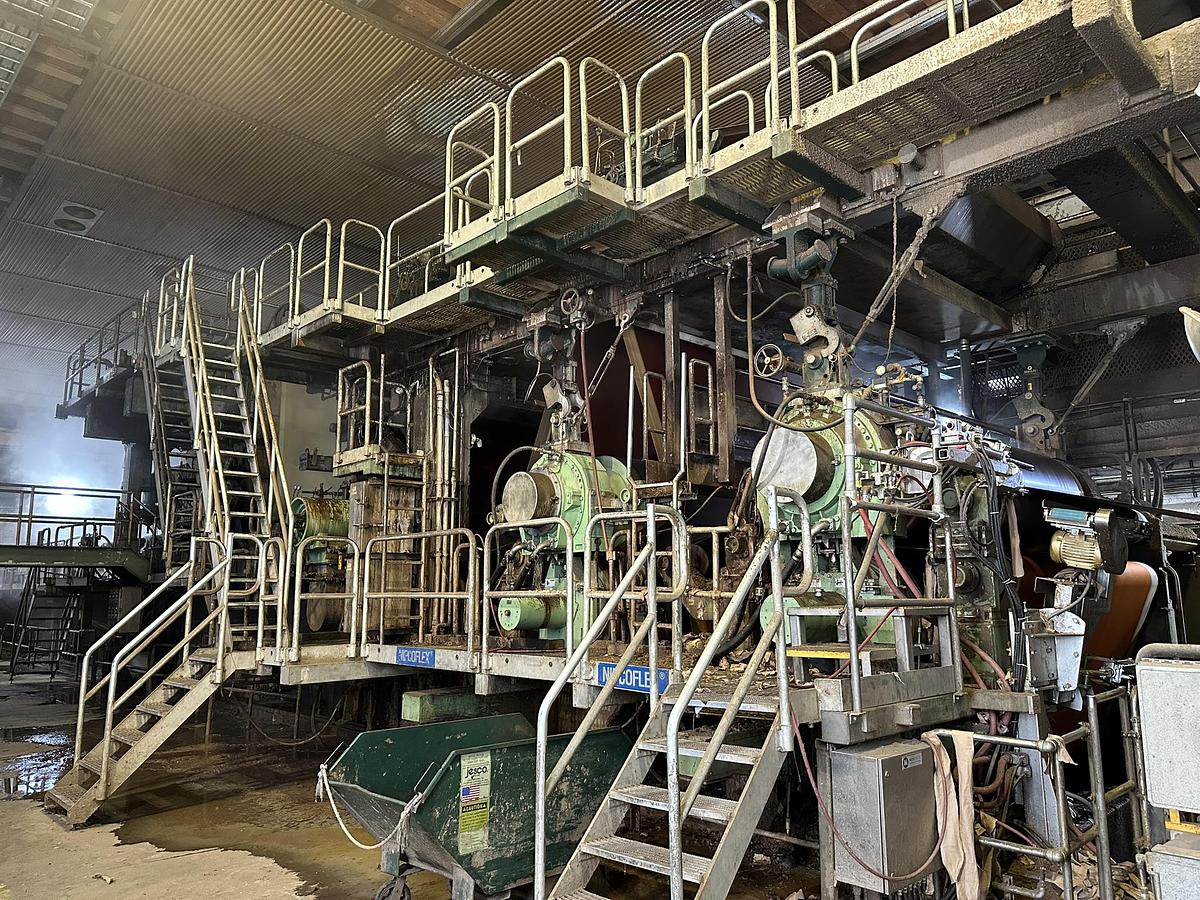

Press Section

Configuration: Dual shoe press

1st Press: Double felted

2nd Press: Single felted

Press Load: 5,200 PLI each

Upgrades:

Entire press frames replaced with stainless steel in 2022

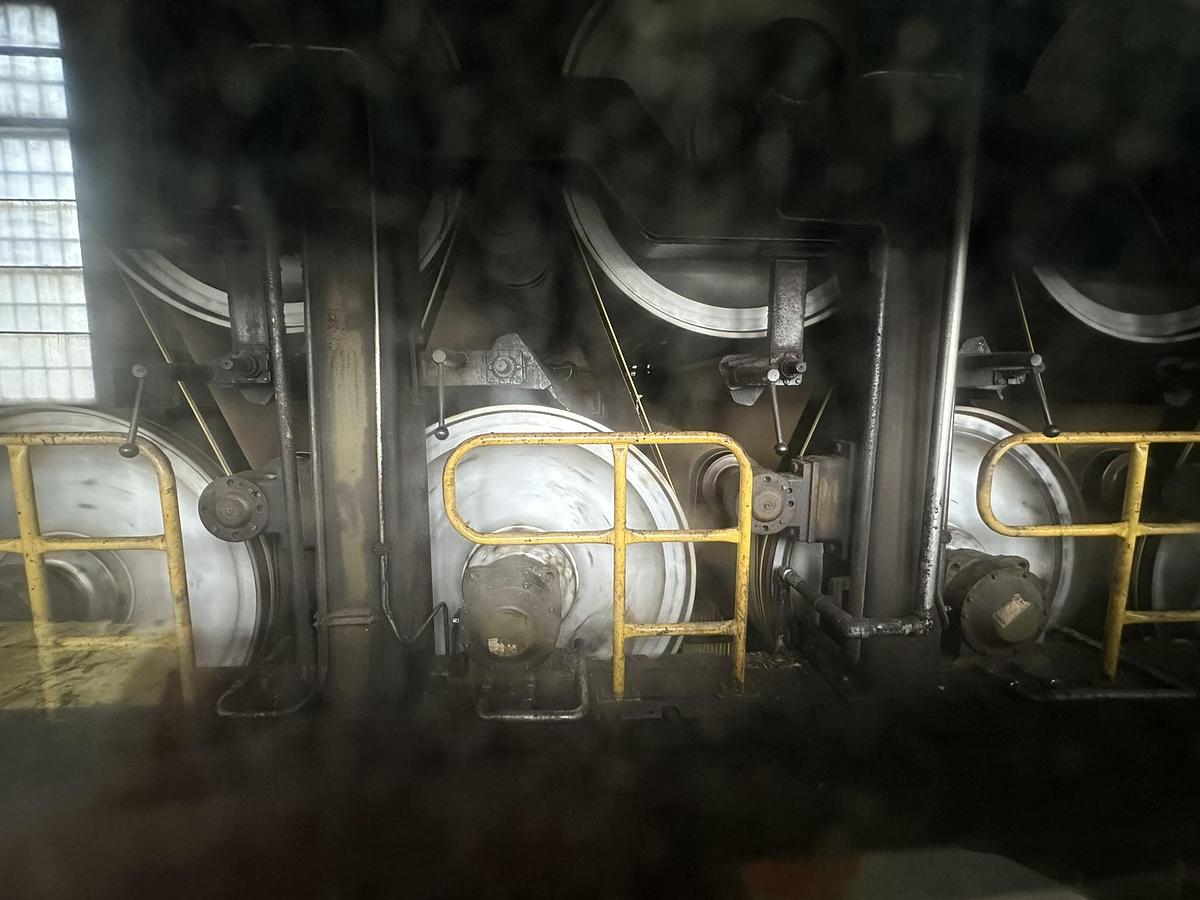

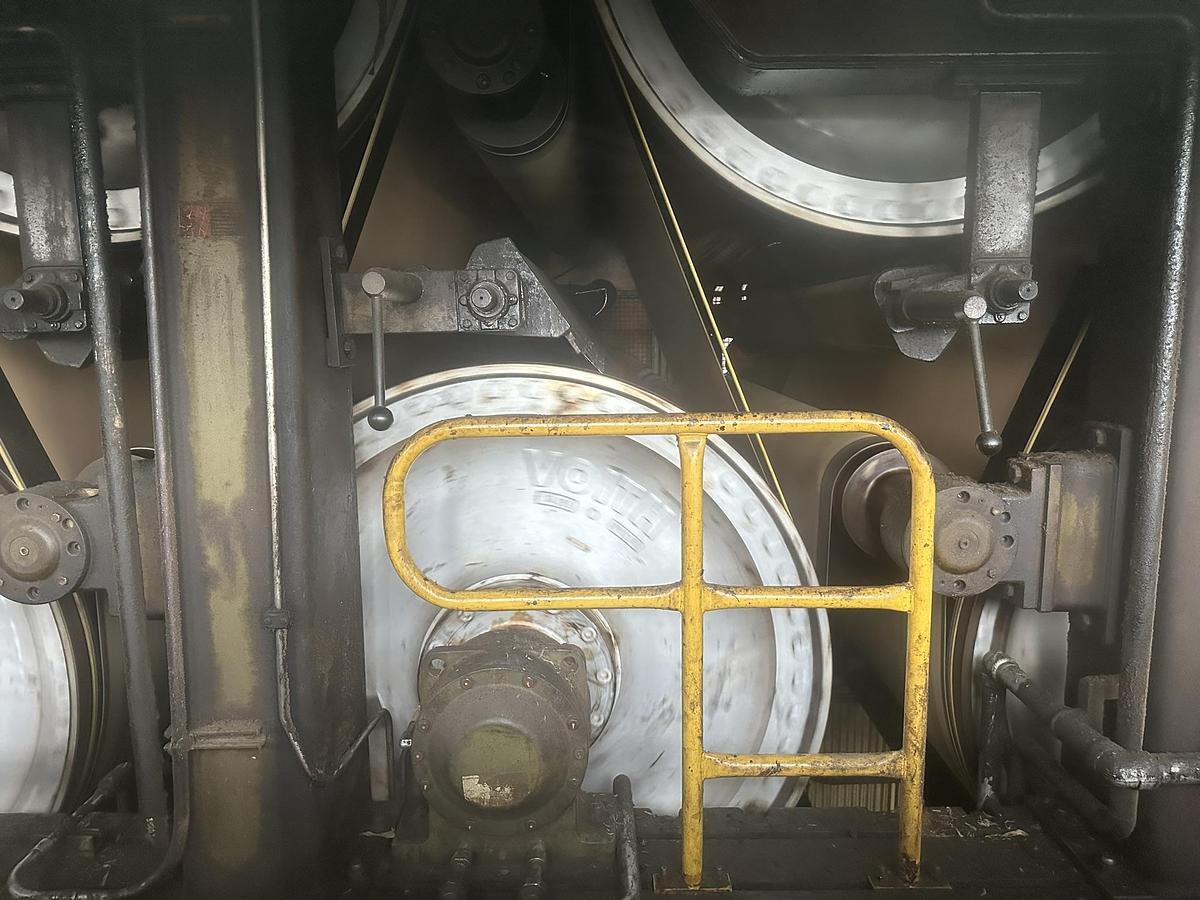

Dryer Section

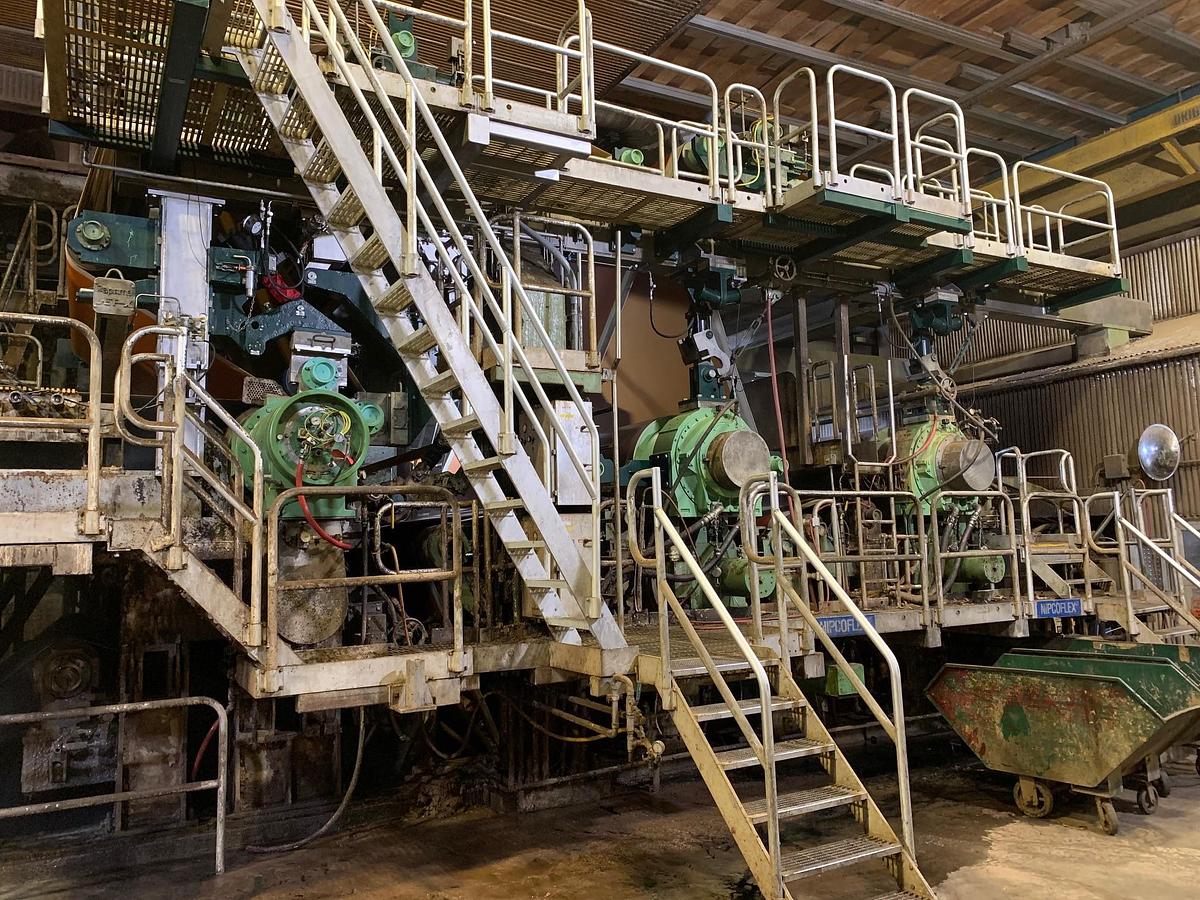

Total Dryers: 34

Dryer Size: 72" diameter, 150 PSI

Configuration: 3 sections

Felts: Top and bottom

Calender Section

Rebuild Year: 2011

Features:

Controlled crown roll

Swimming roll

Reel & Winder Systems

Reel Section

Horizontal track reel

Voith JUD turn-up system installed 2020

Mantech auto tail threading system (2022) from last press to reel

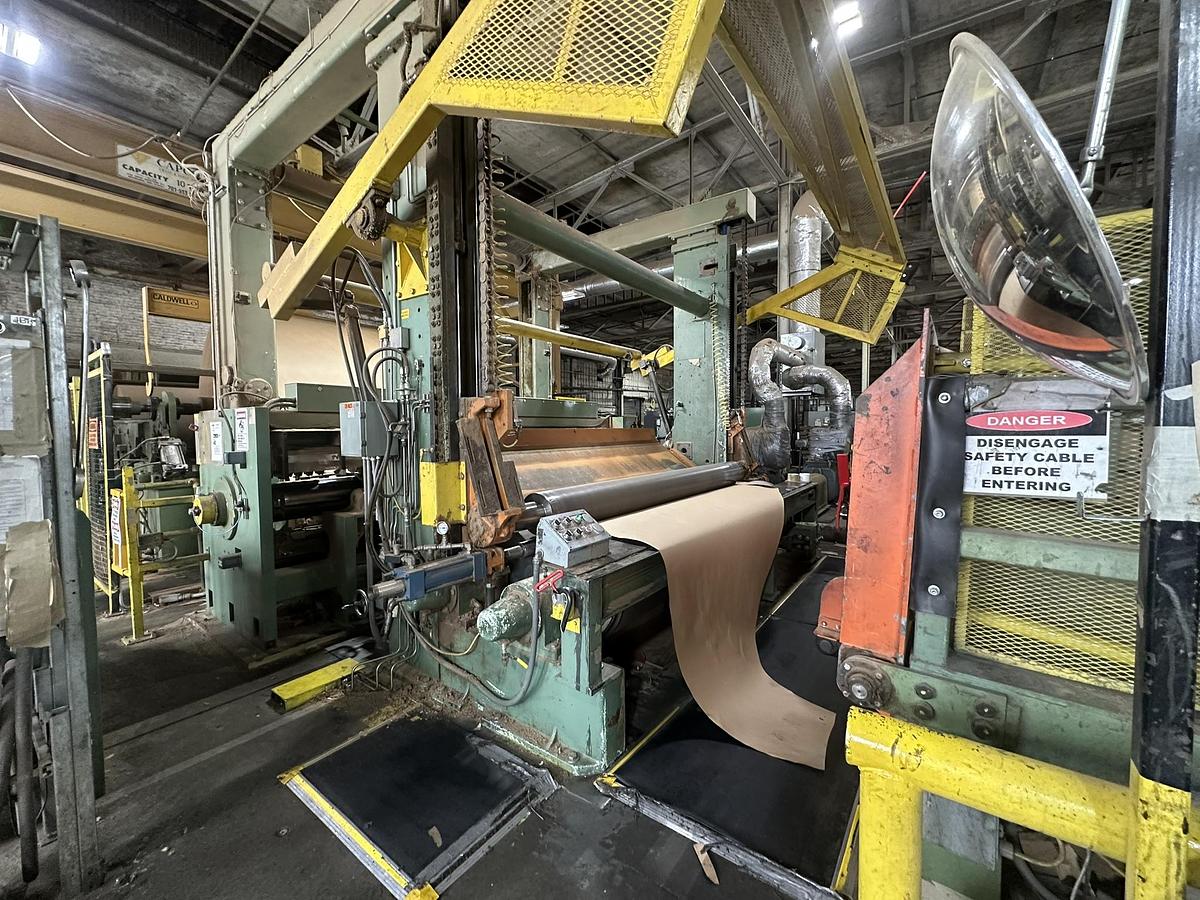

Rewinder

Beloit M-24 two-drum slitter rewinder

Shaftless 60" rewind

Updated Dienes automatic knife positioning (2013)

Siemens DC winder drives installed 2013

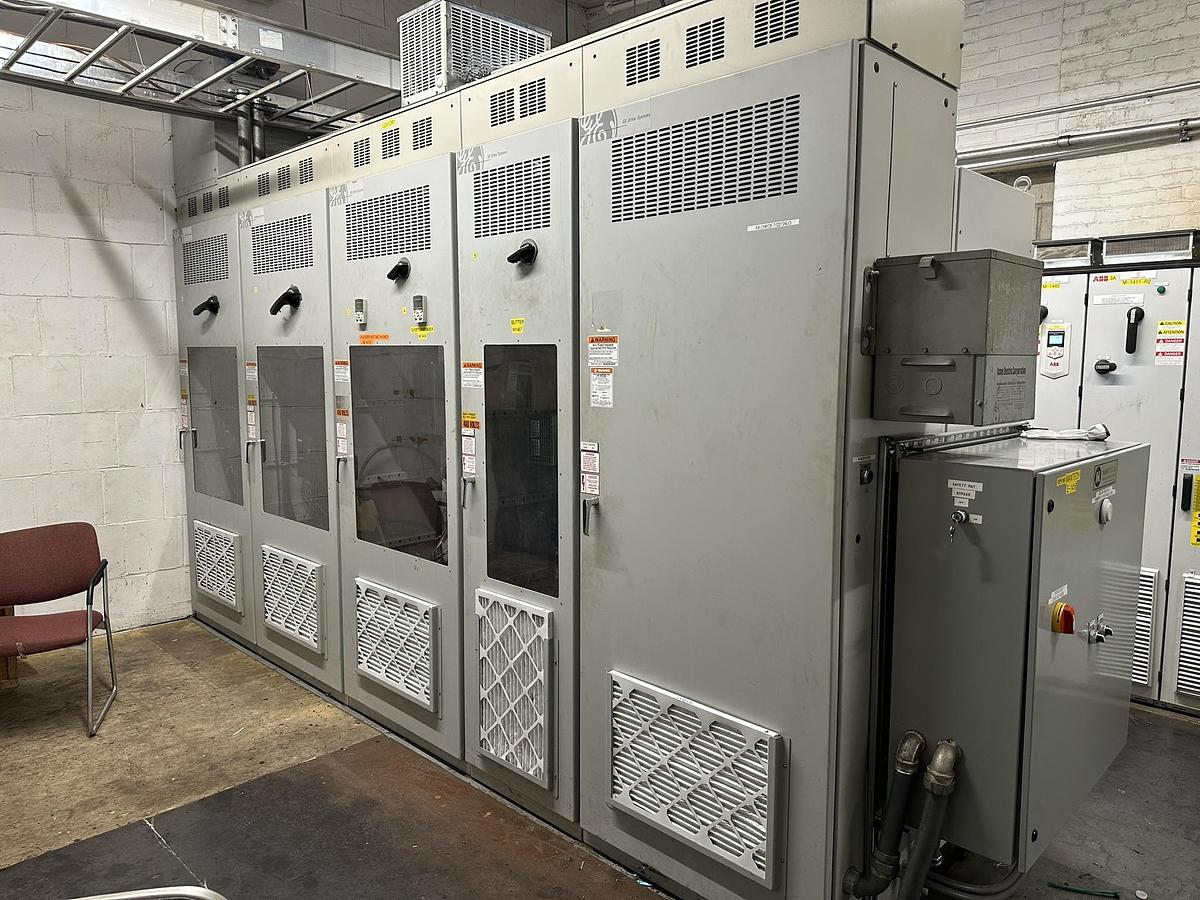

Drive & Control Systems

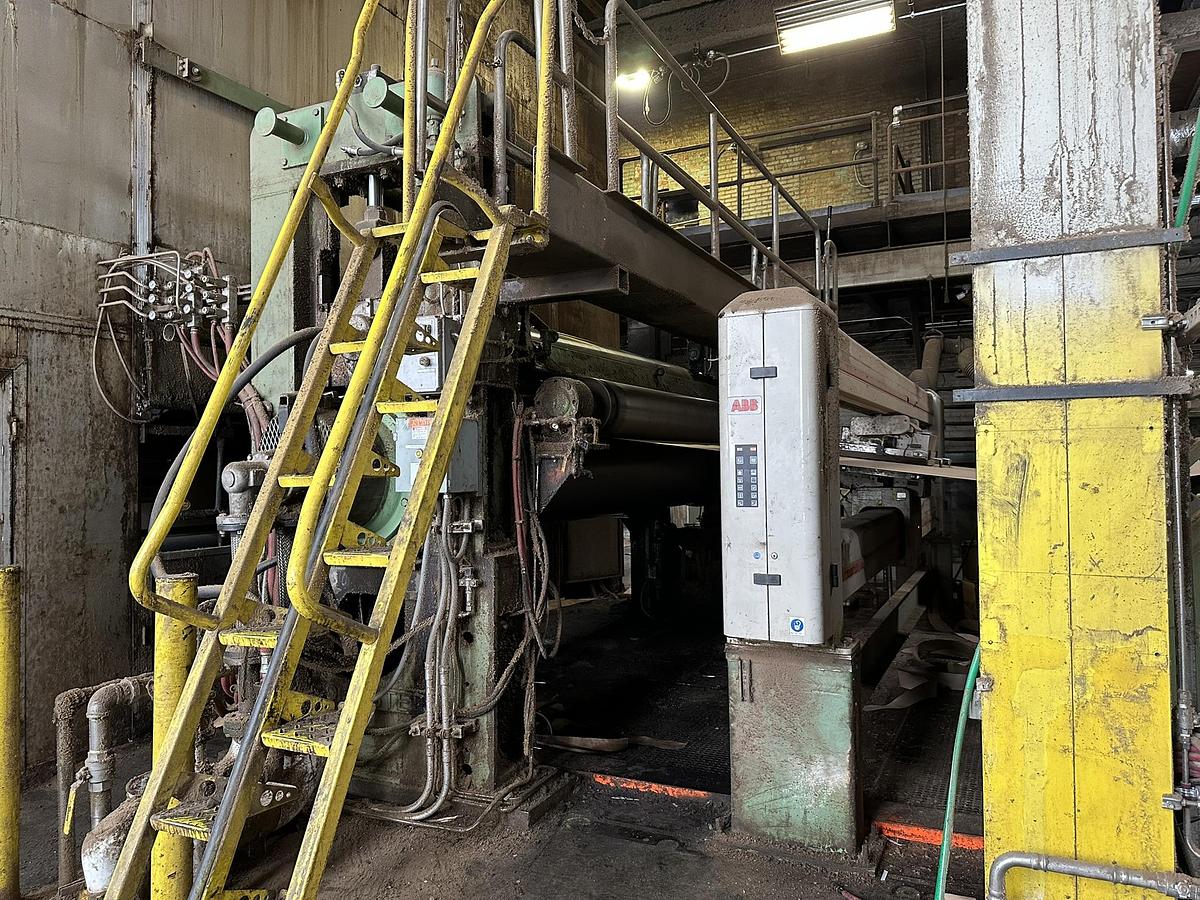

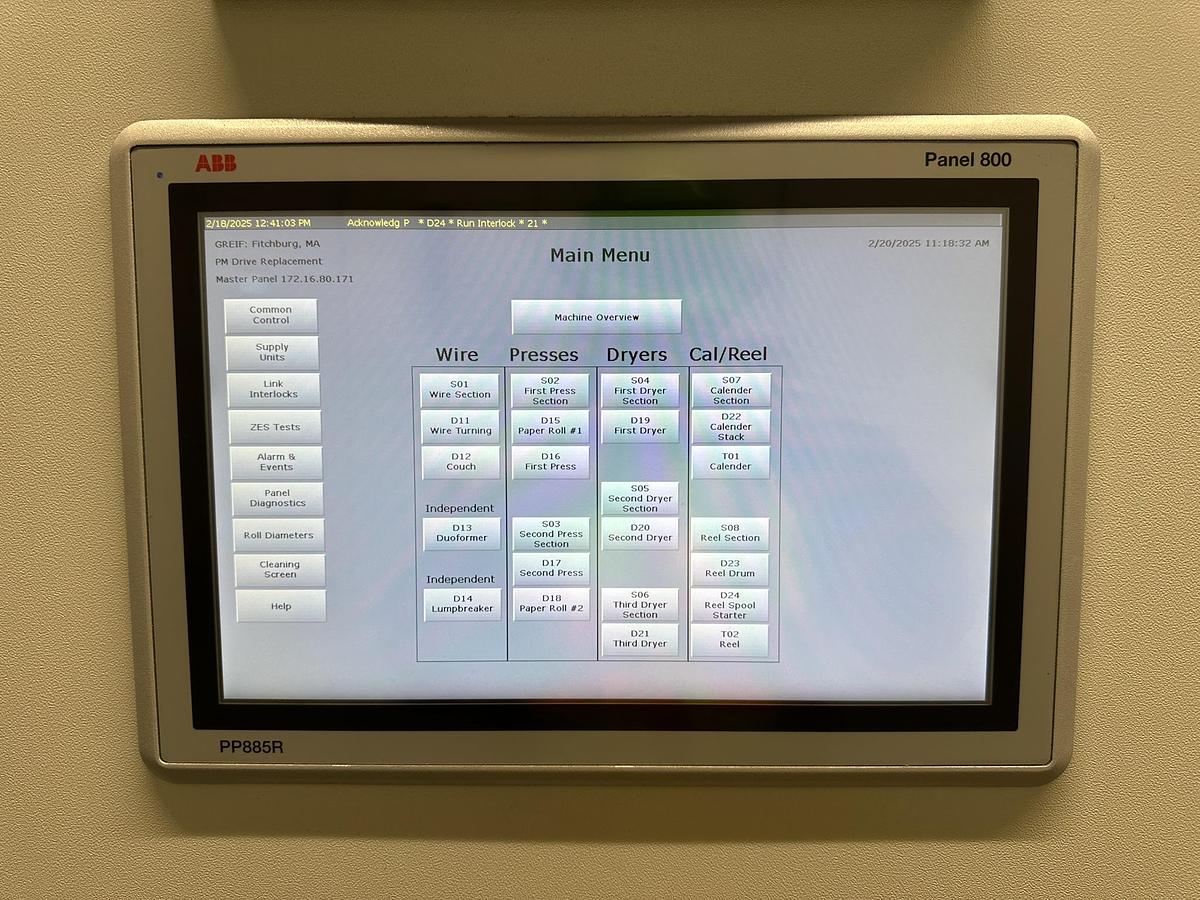

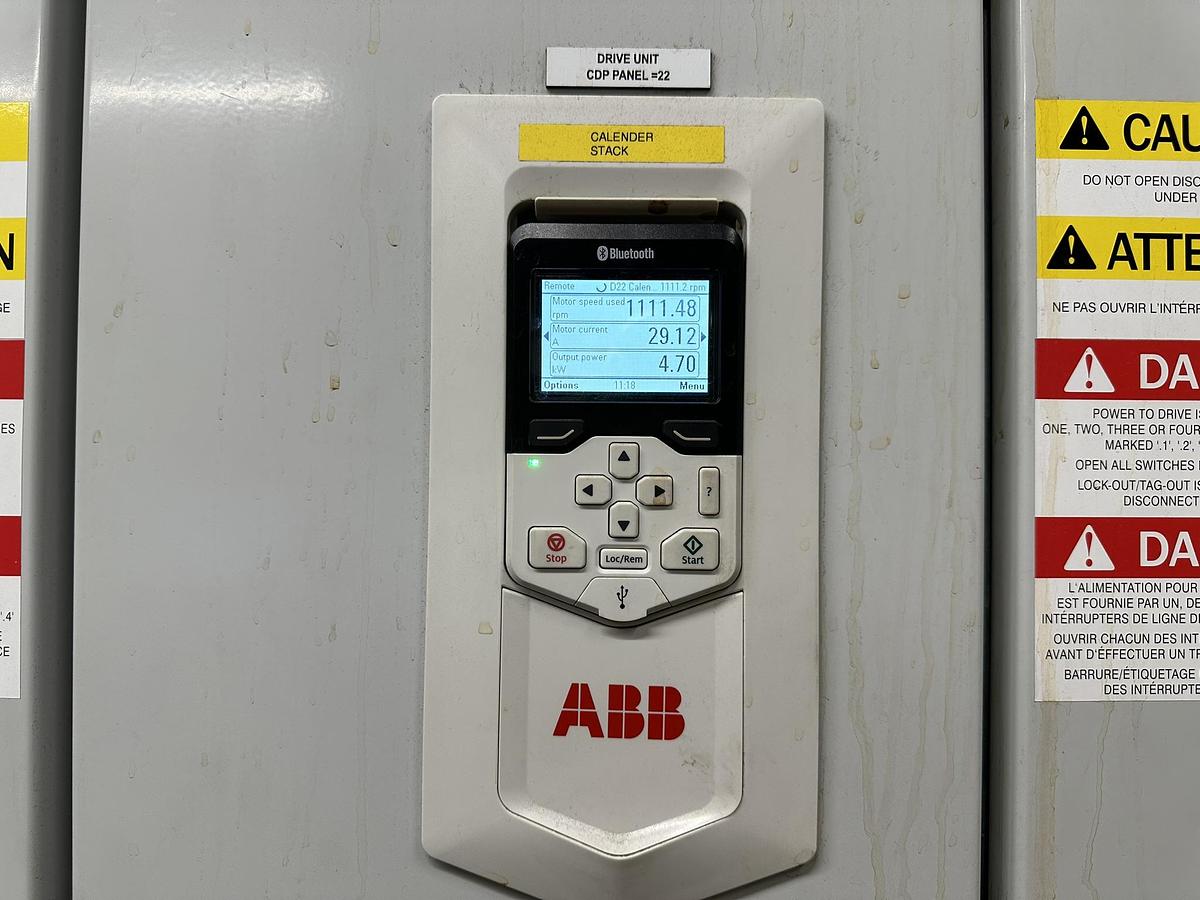

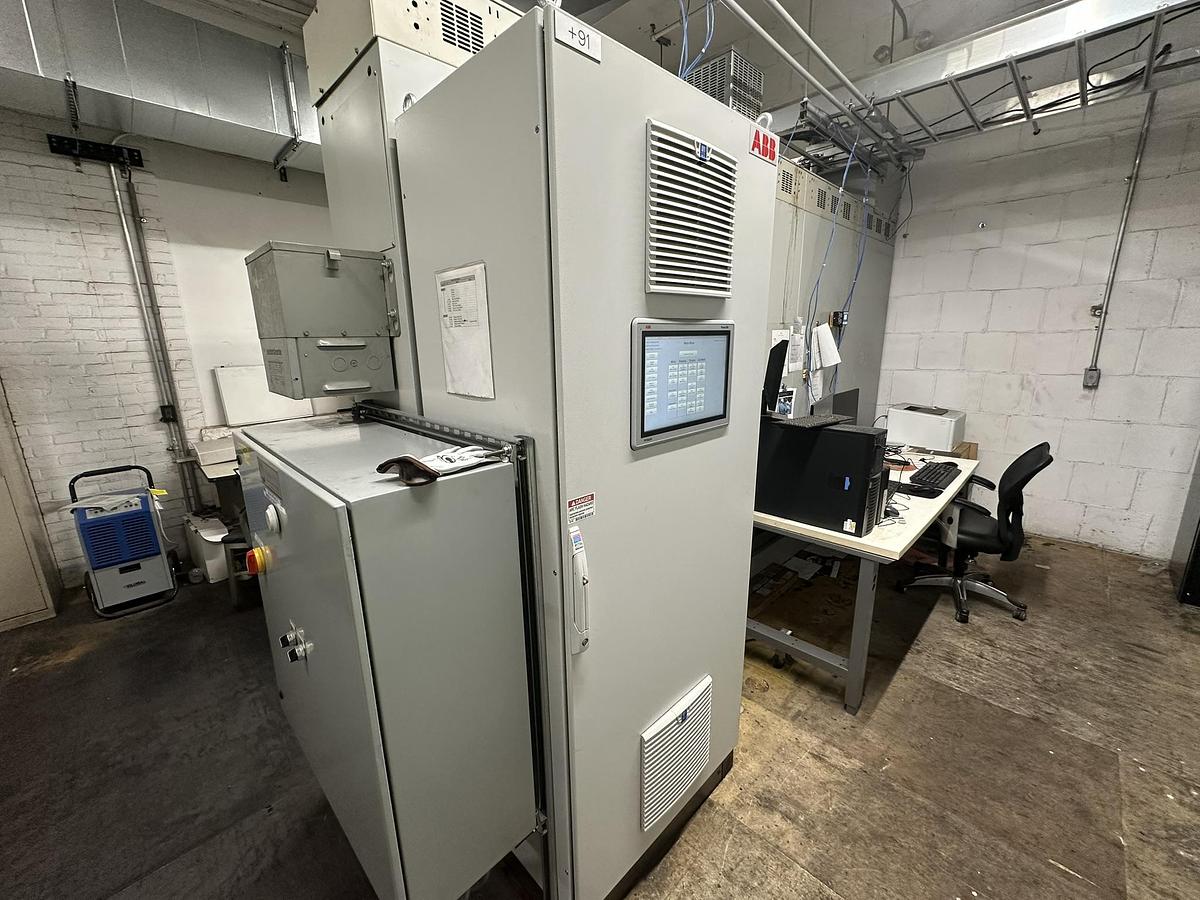

Complete ABB AC machine drives installed 2019

Vacuum System

Nash 904S2 series pumps

Nash M2 series pumps

Included Spare Parts

Major rolls

Suction boxes & table elements

Main bearings

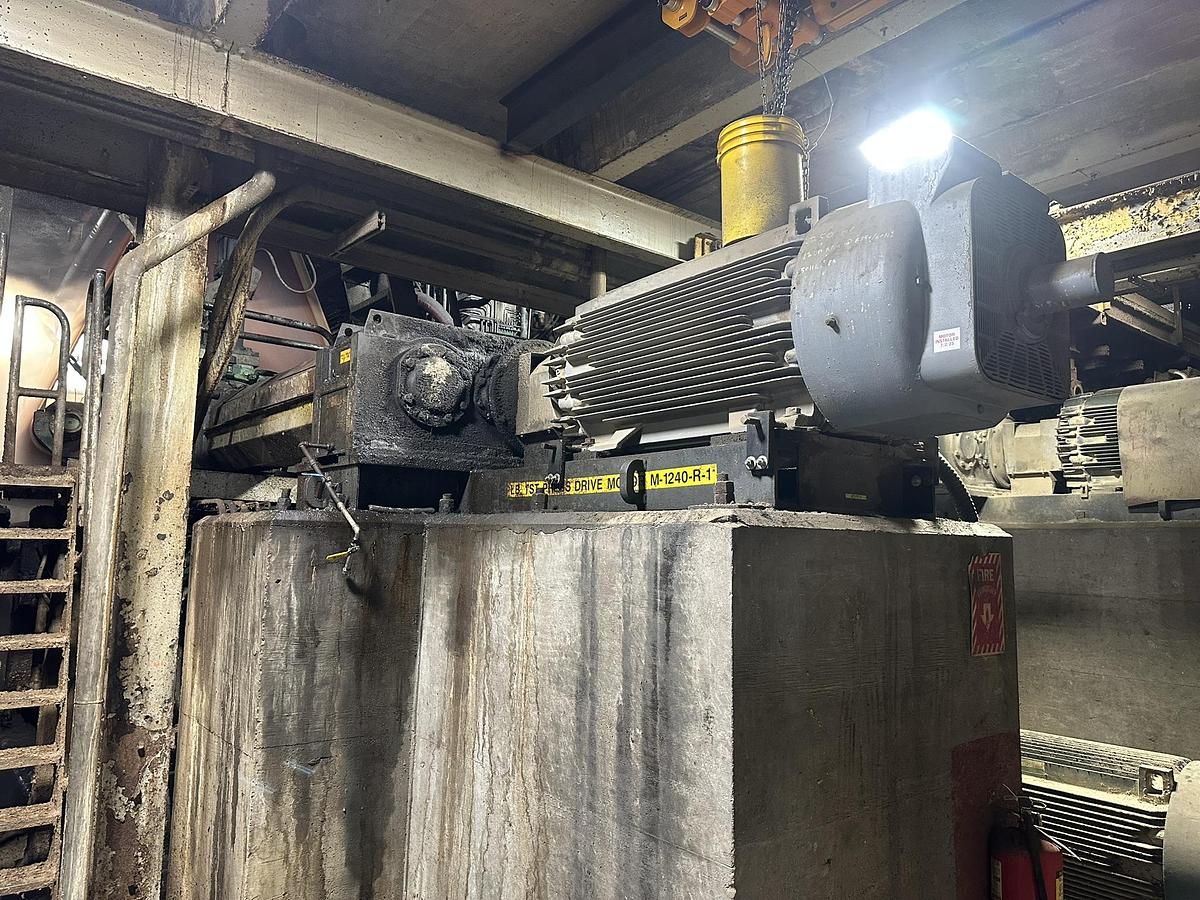

Drive shafts & drive motors

Gearboxes

Fan pump assembly

Additional spare rolls, felts, clothing, and parts

Additional Machine Available (For Parts)

A second, identical machine is on site, including:

Air-pad headbox

Fourdrinier table

Dual shoe presses

(40) dryer cans

Status: Plant closed May 2025 due to corporate consolidation

Documentation: Complete documentation available on site

Additional Asset: Identical second machine available for parts
