110" (2.8M) VOITH FOURDRINIER PAPER MACHINE (LBM) MFG 2001 LINERBOARD / TUBE & CORE – TANDEM NIPCOFLEX SHOE PRESSES - 72"(1.8M) DIAMETER DRYERS

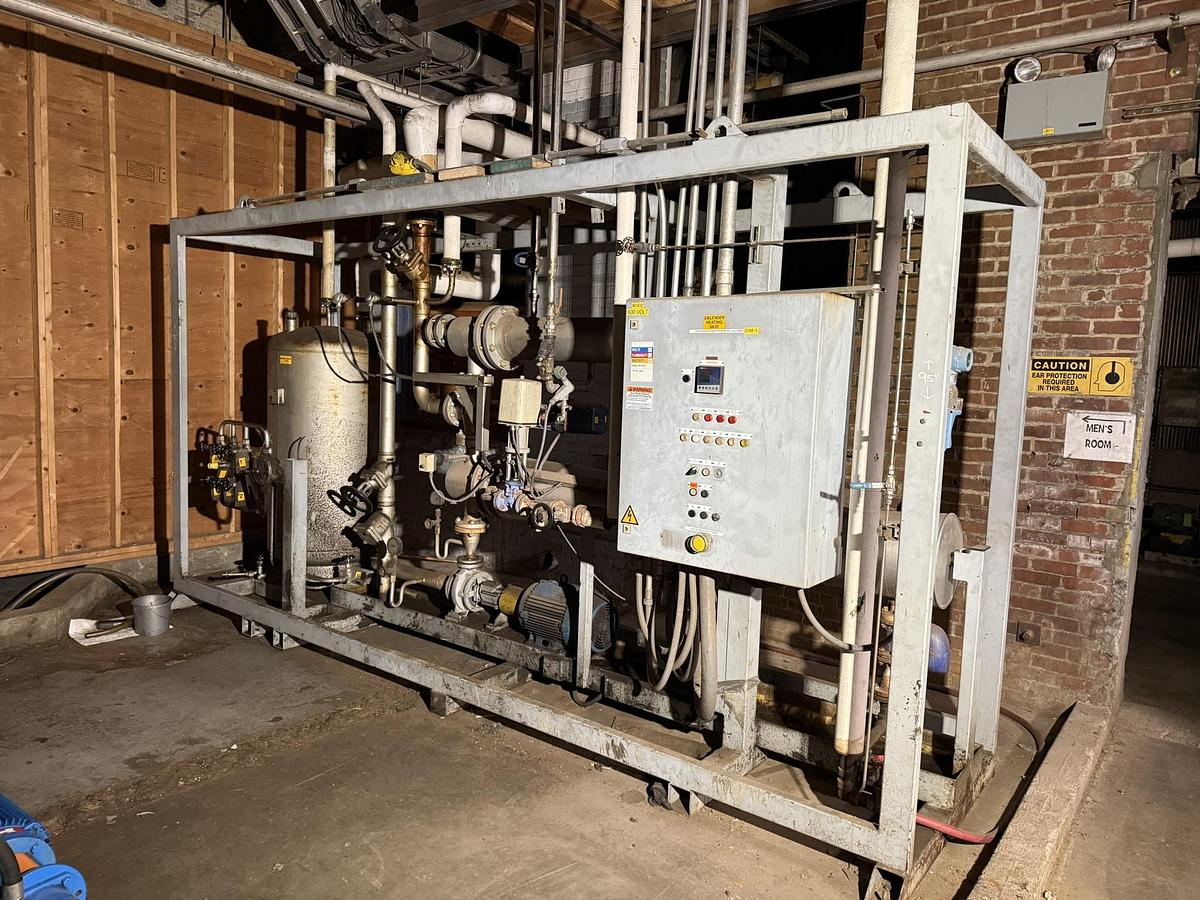

110" (2.8M) Voith Fourdrinier Paper Machine – 2002 (LBM)

Trim Width: 110" (2.8M)

Application: Linerboard, Medium, Tube & Core Stock

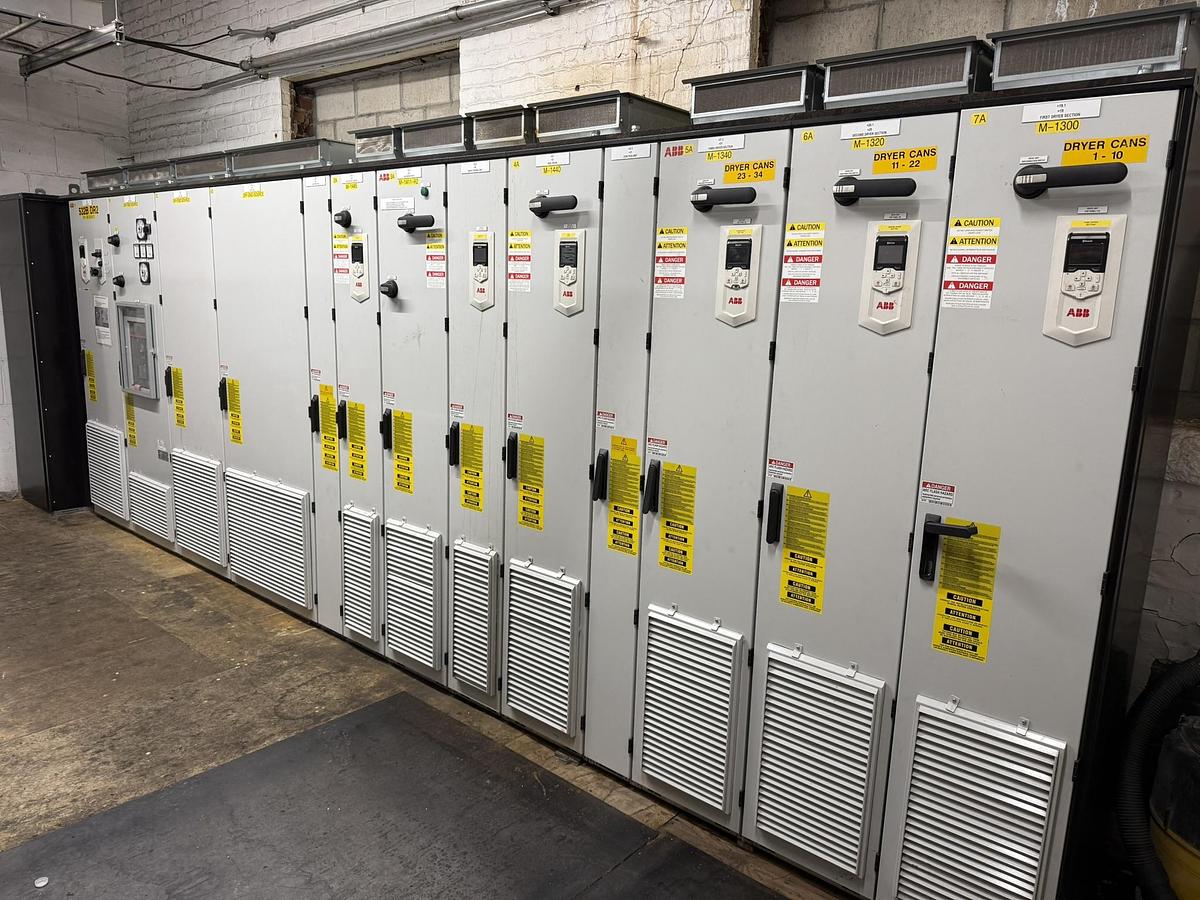

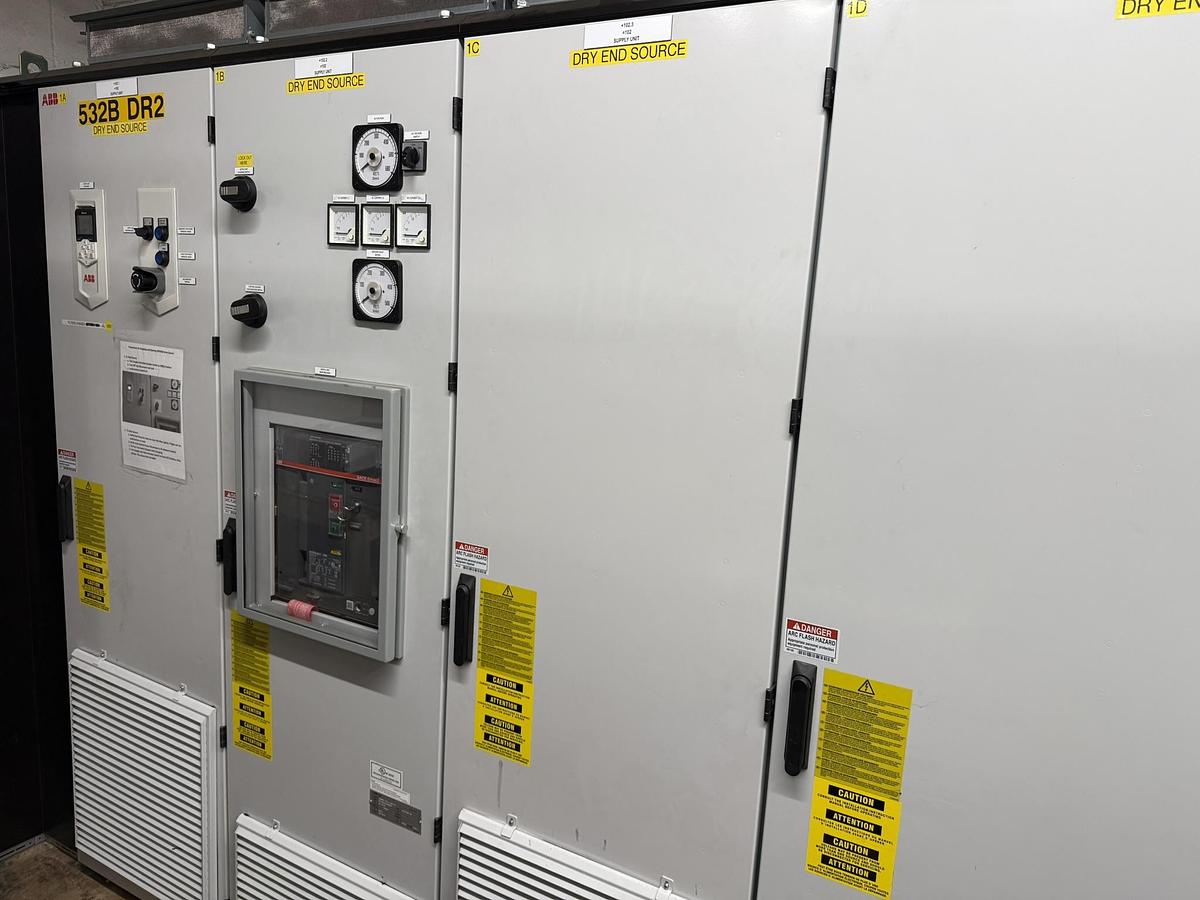

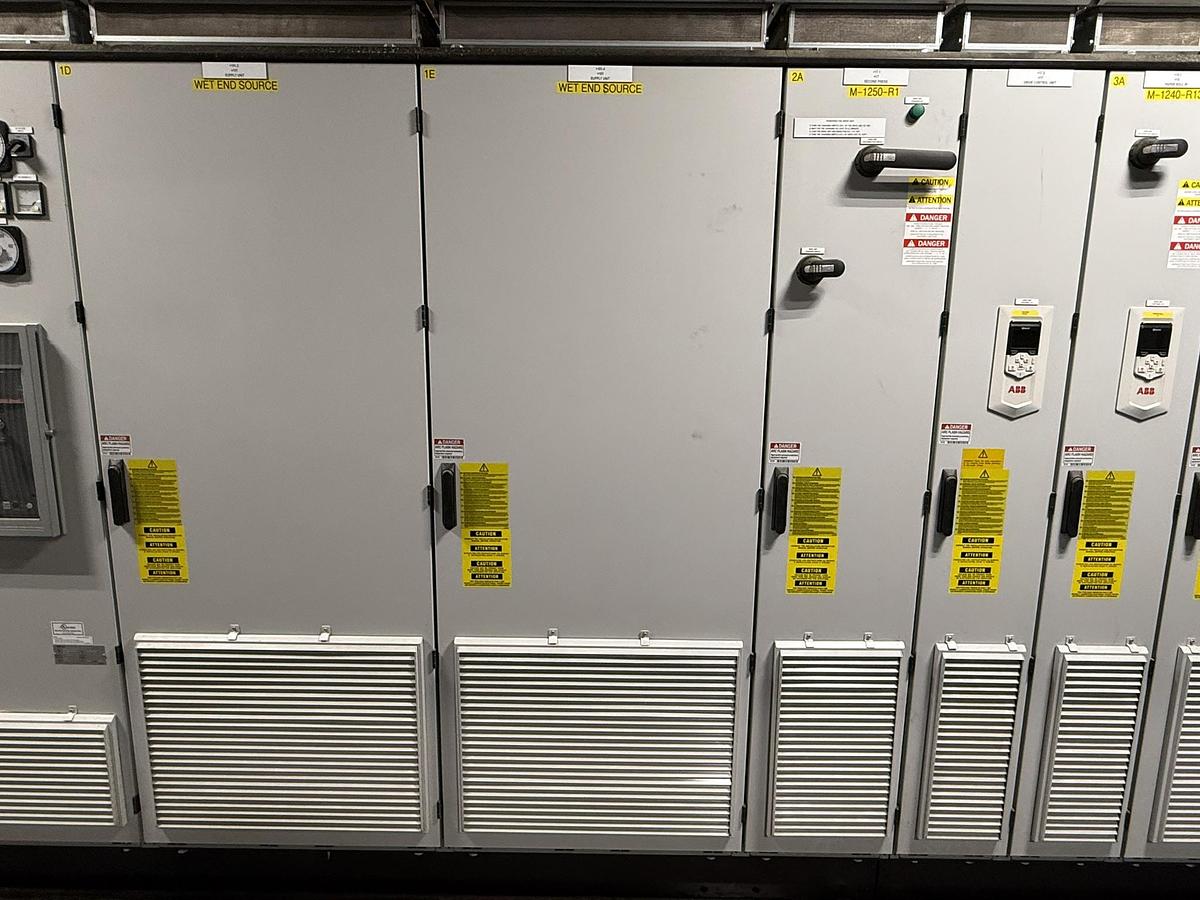

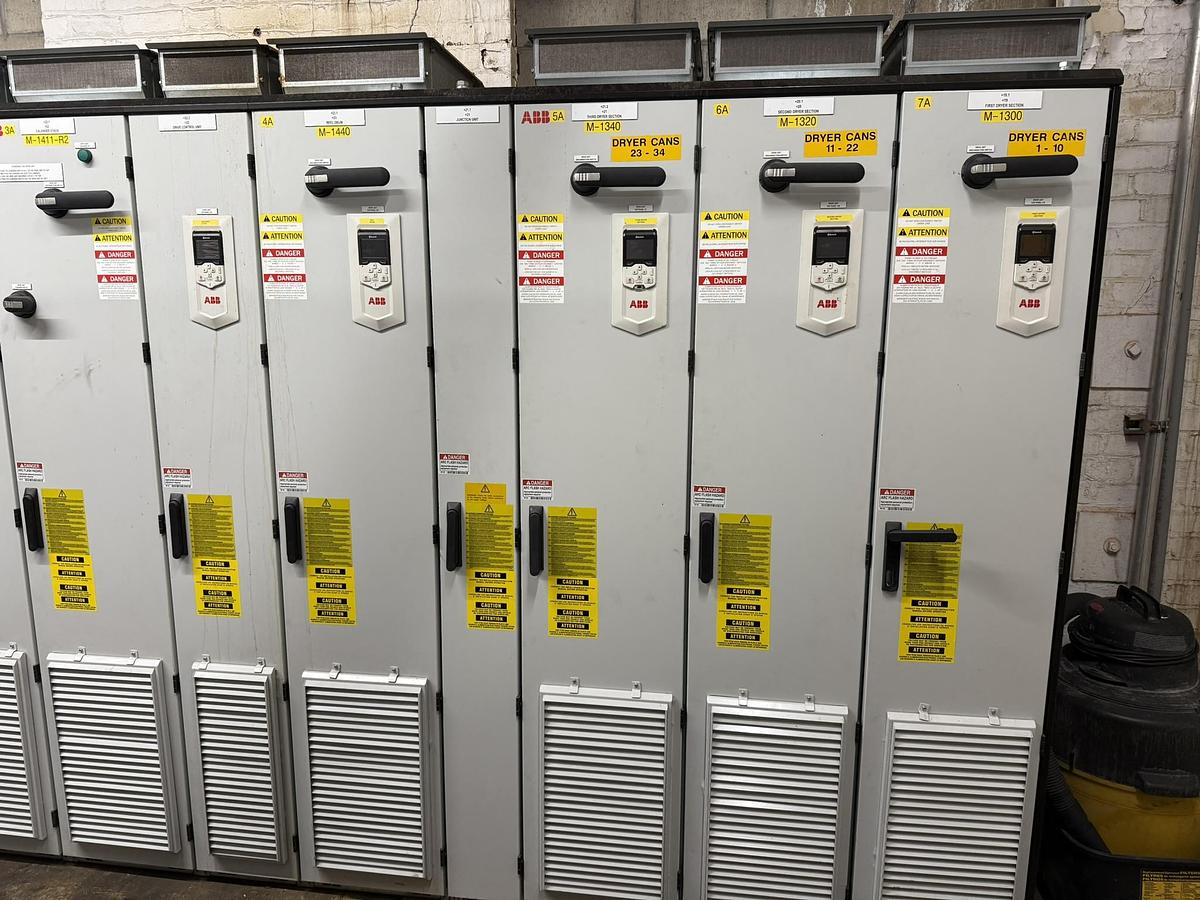

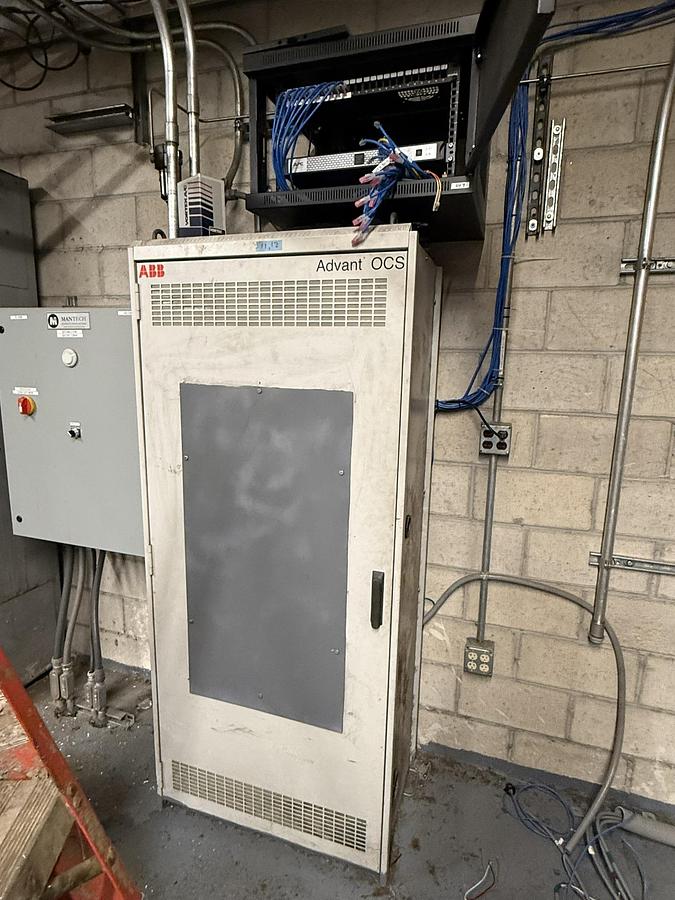

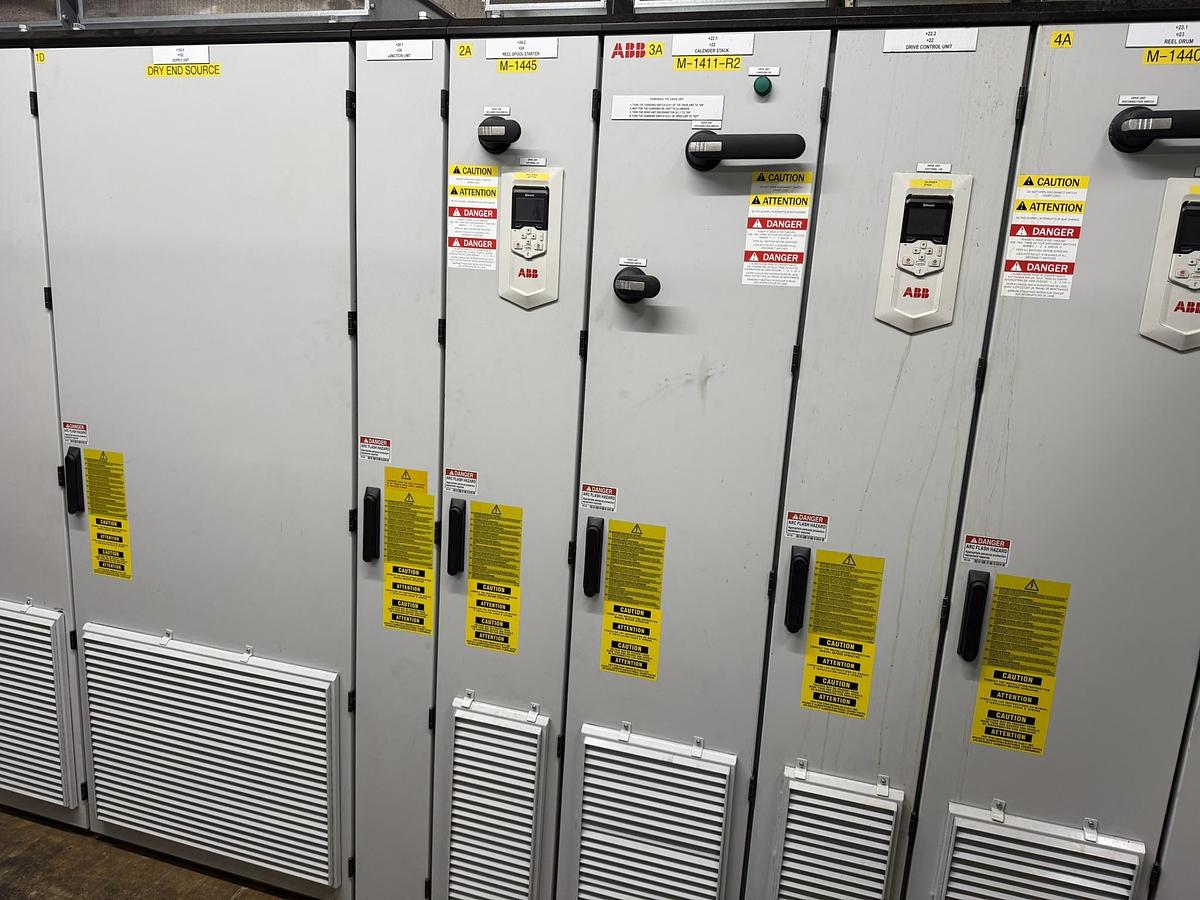

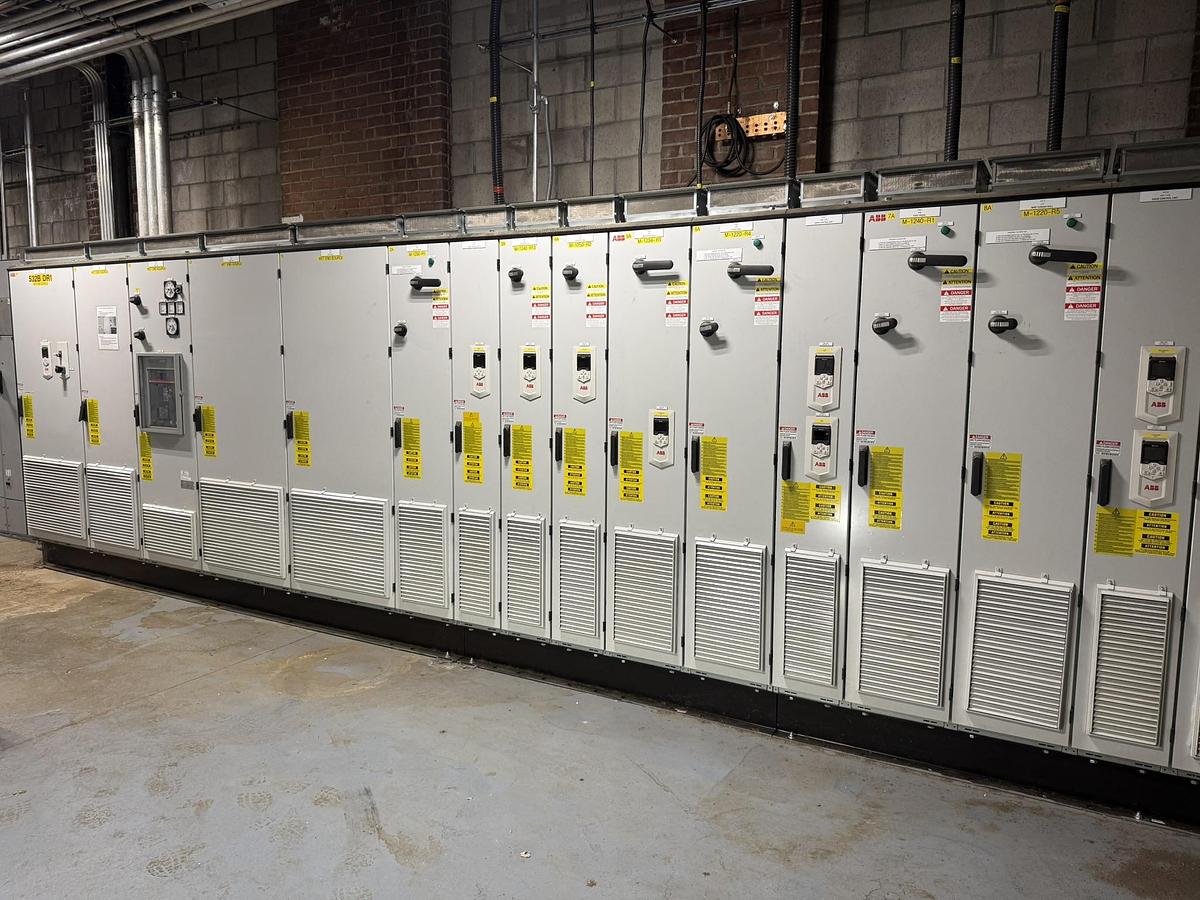

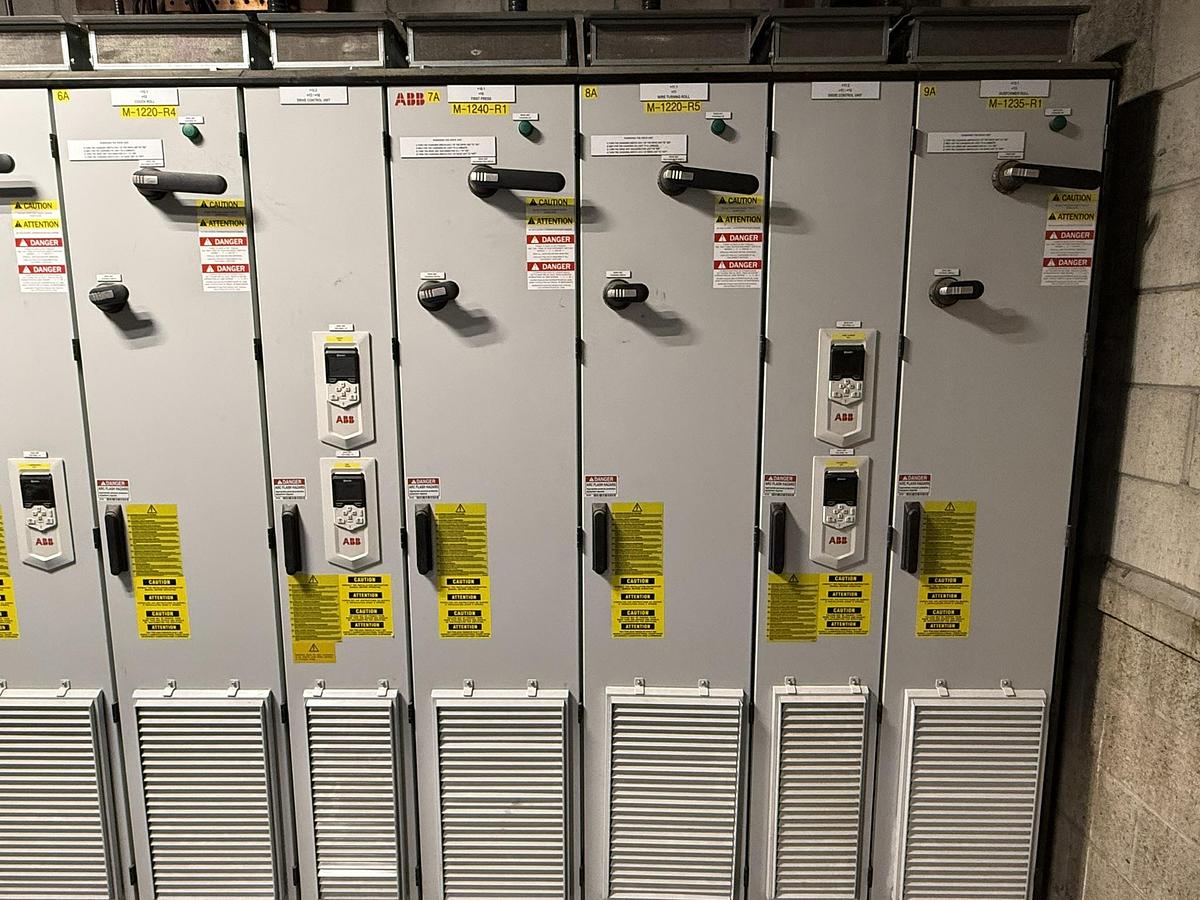

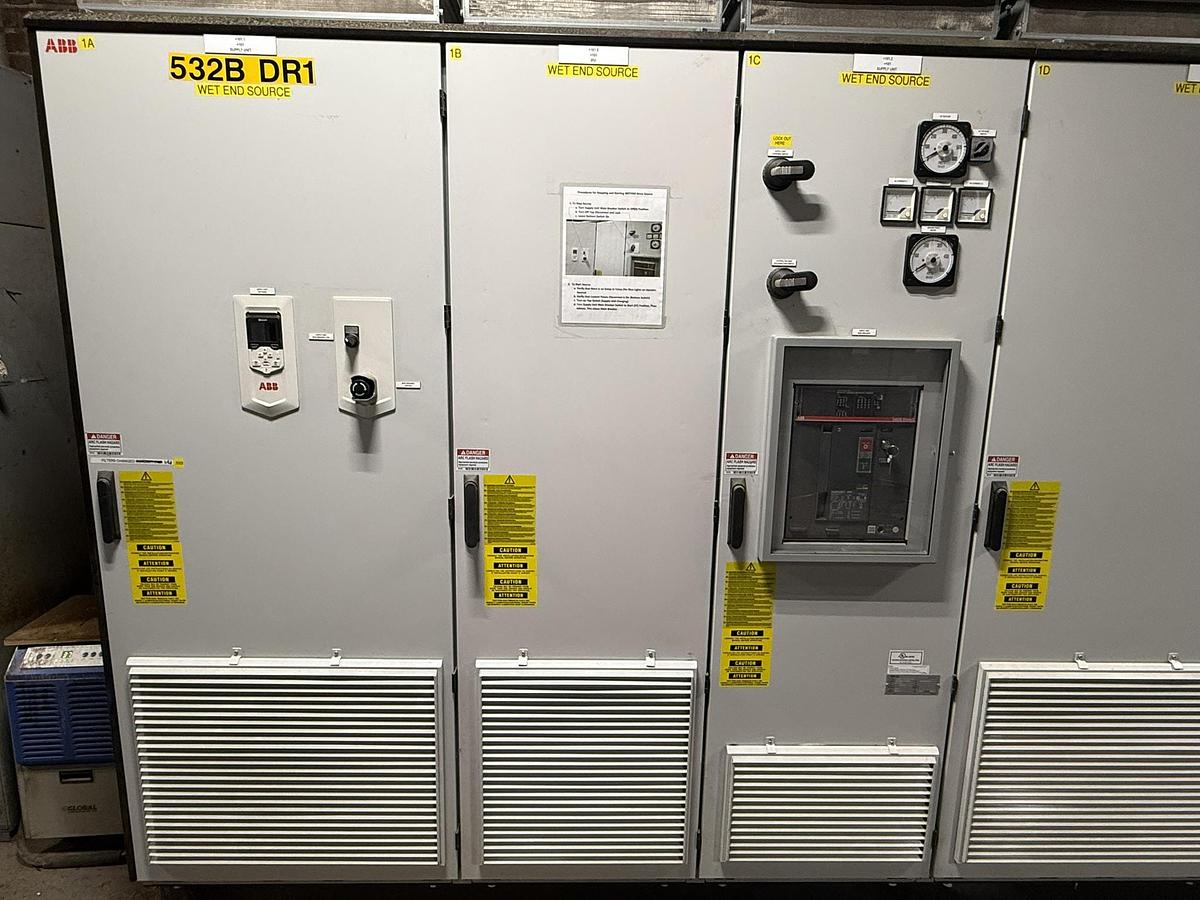

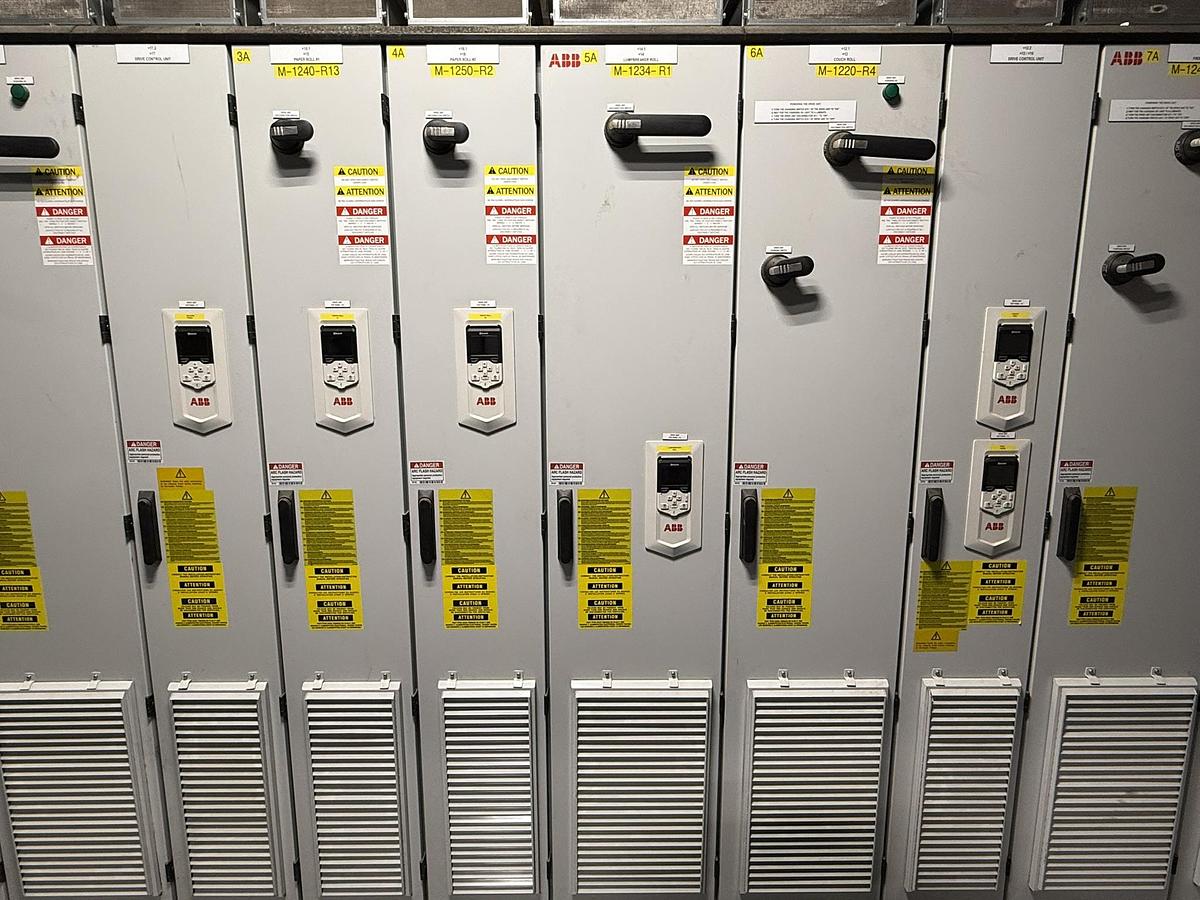

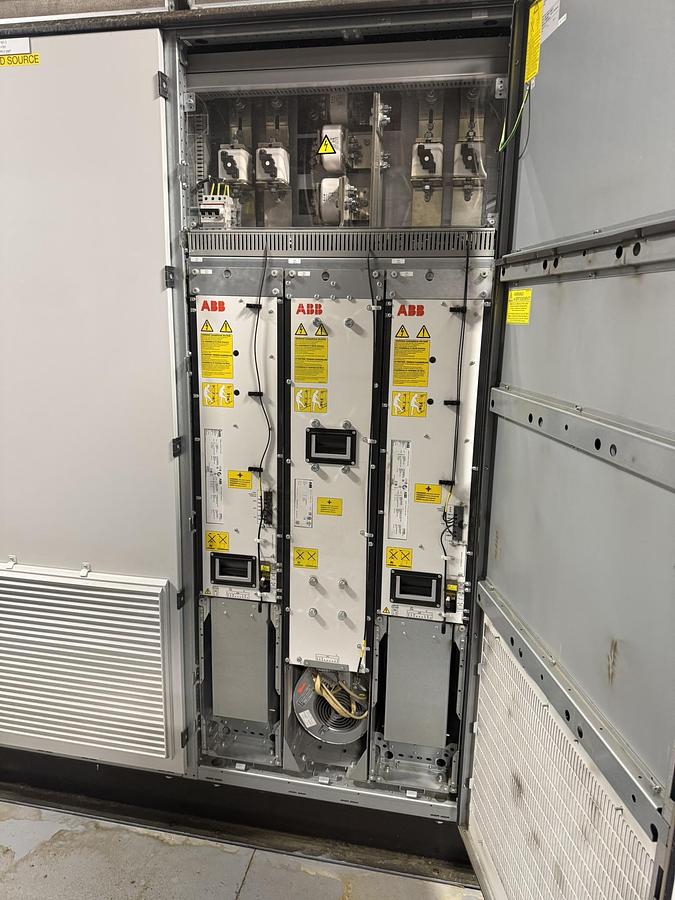

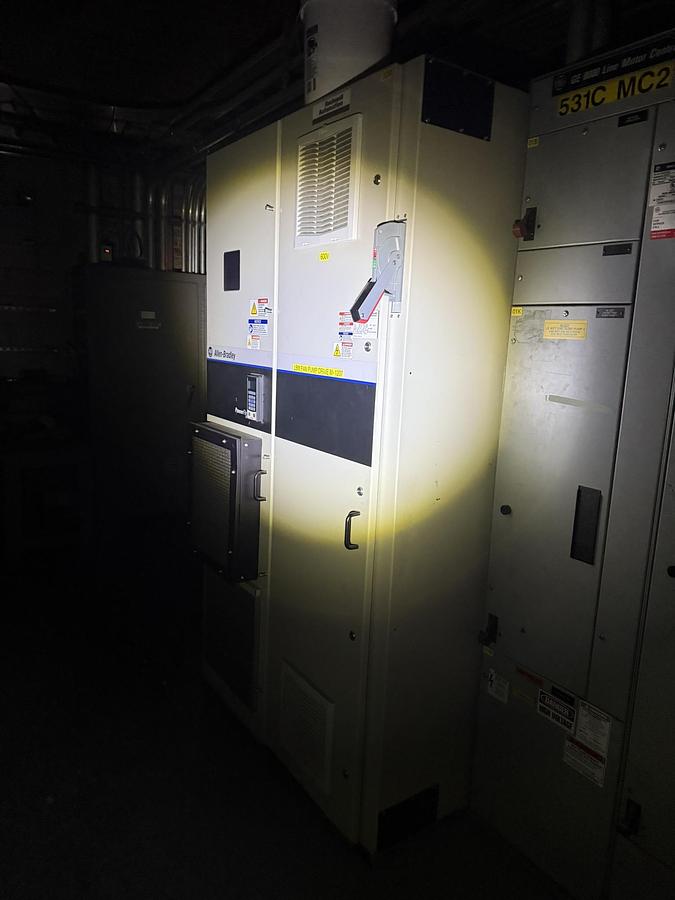

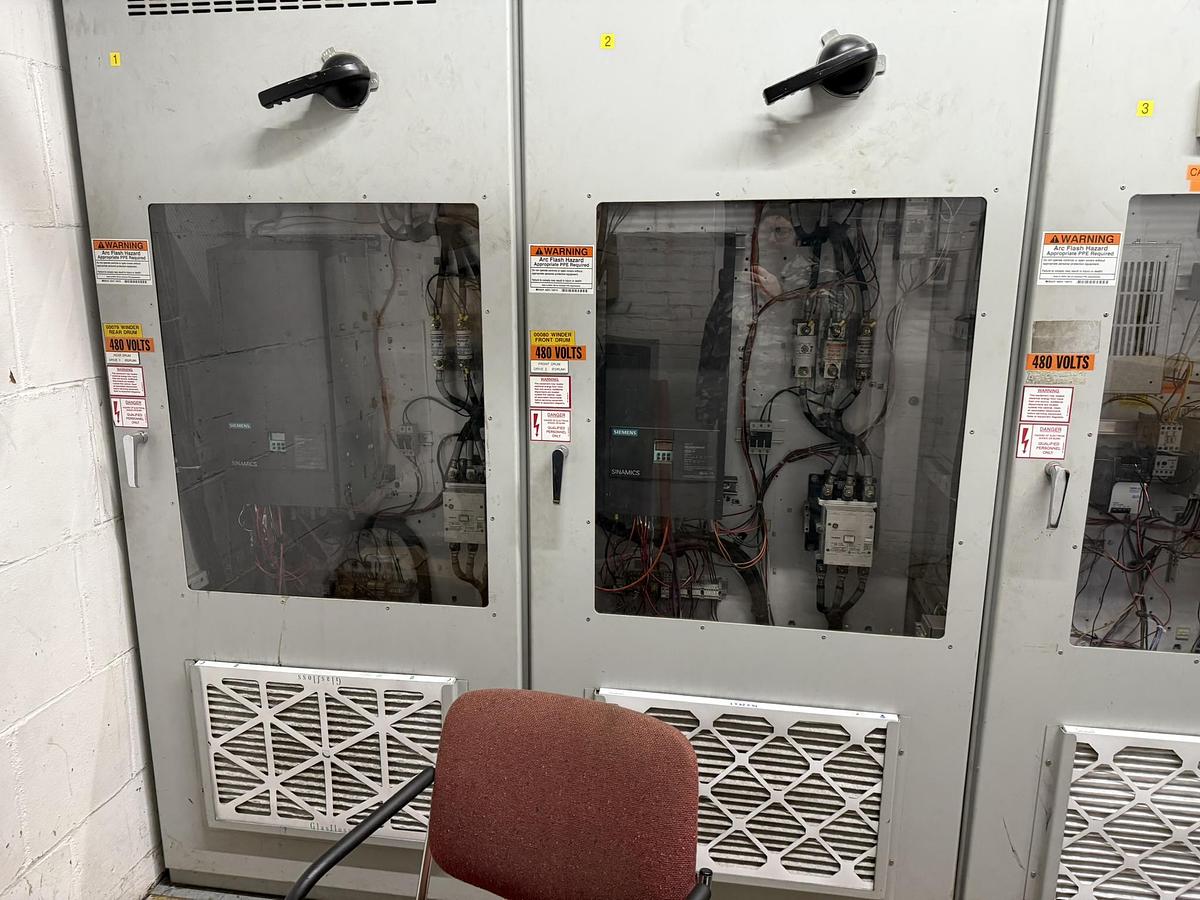

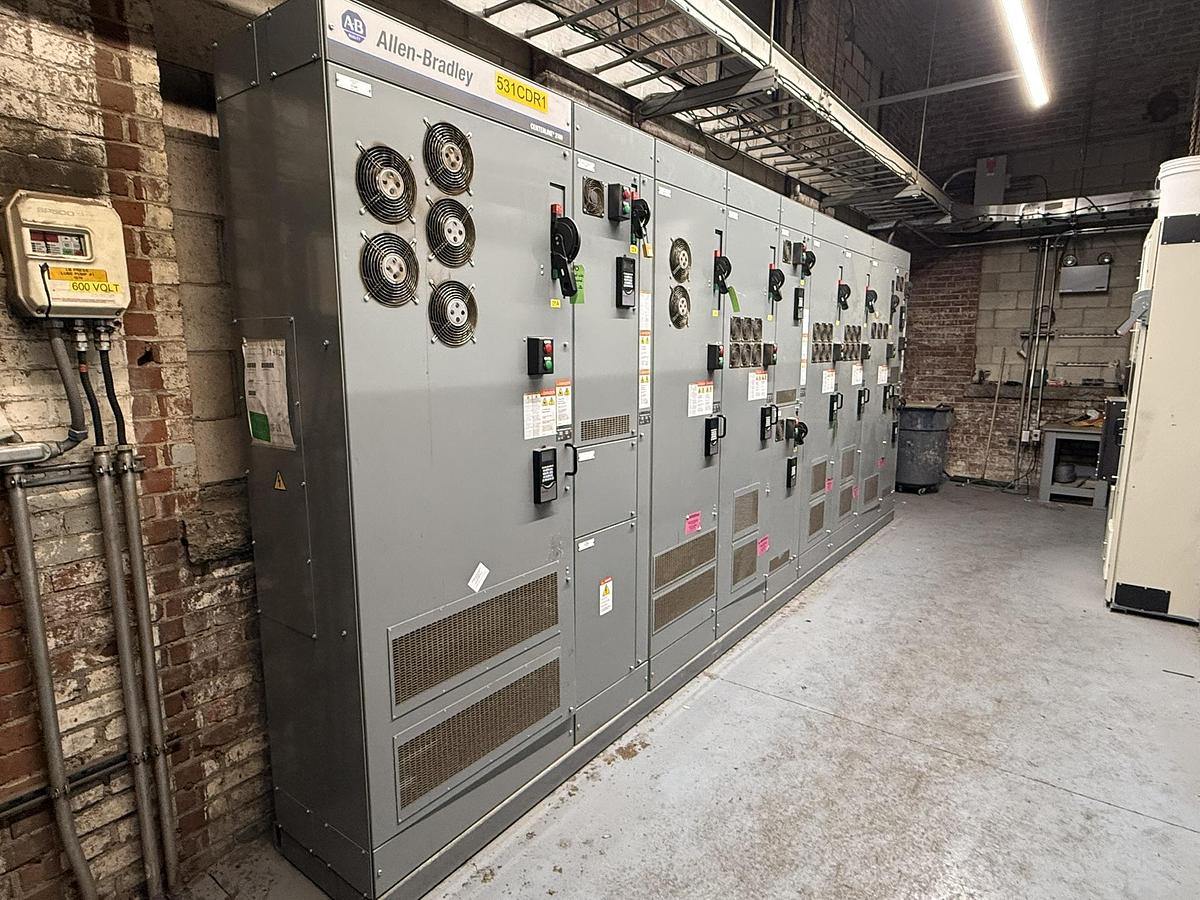

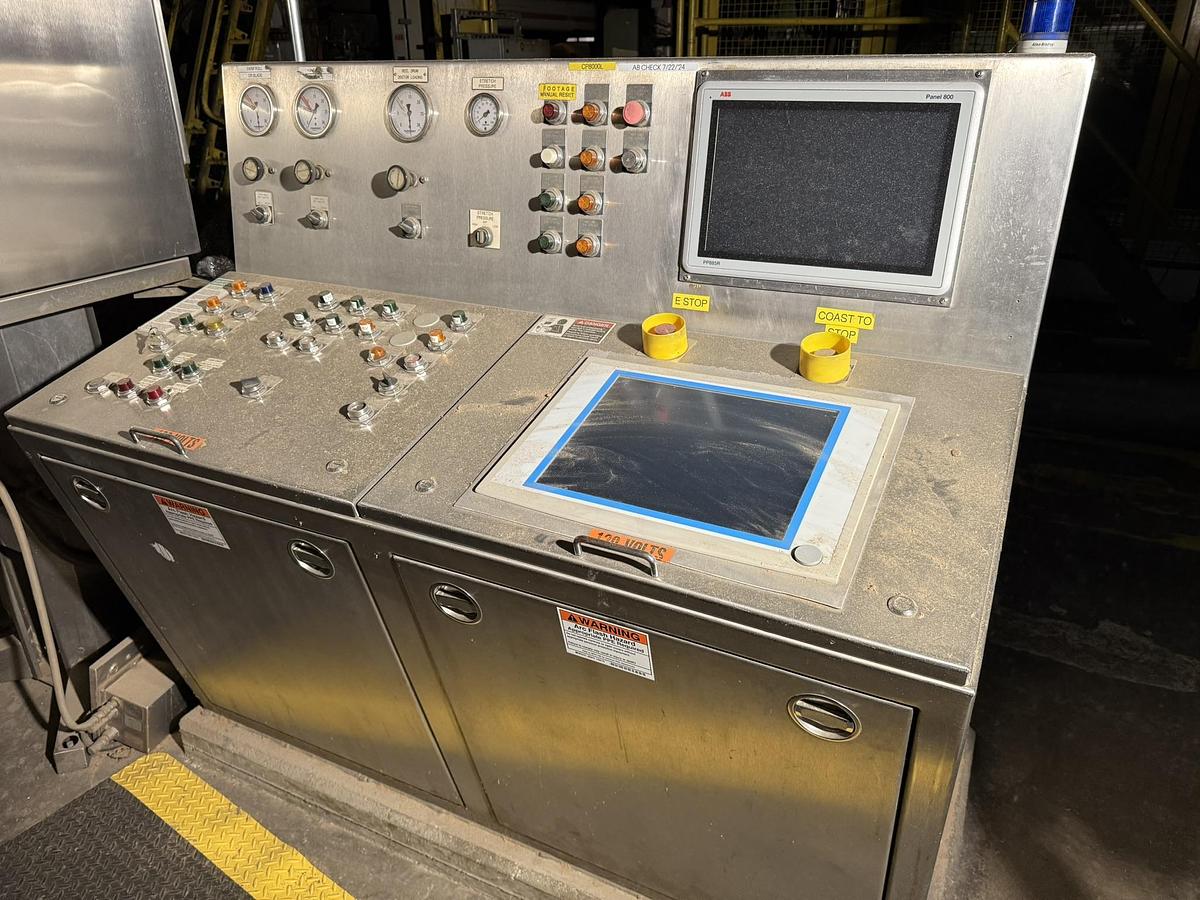

Complete ABB AC drive upgrade installed 2019

Left Hand Machine (From Headbox to Winder Motors on left)

General Specifications

Manufacture Year: 2002

Basis Weight Range: 200–600 g/m²

Linerboard Range: 33# to 70# (per 1,000 sq ft)

Tube & Core Stock: 17 pt to 30 pt

Wire Width: 134"

Design Speed: 2,000 FPM (610 m/min)

Operating Speed: 1,500 FPM

Daily Production: Reported 375–420 TPD

Drive System: Fully updated to allow future 2,000 FPM capability (some motors/gearboxes may need replacement)

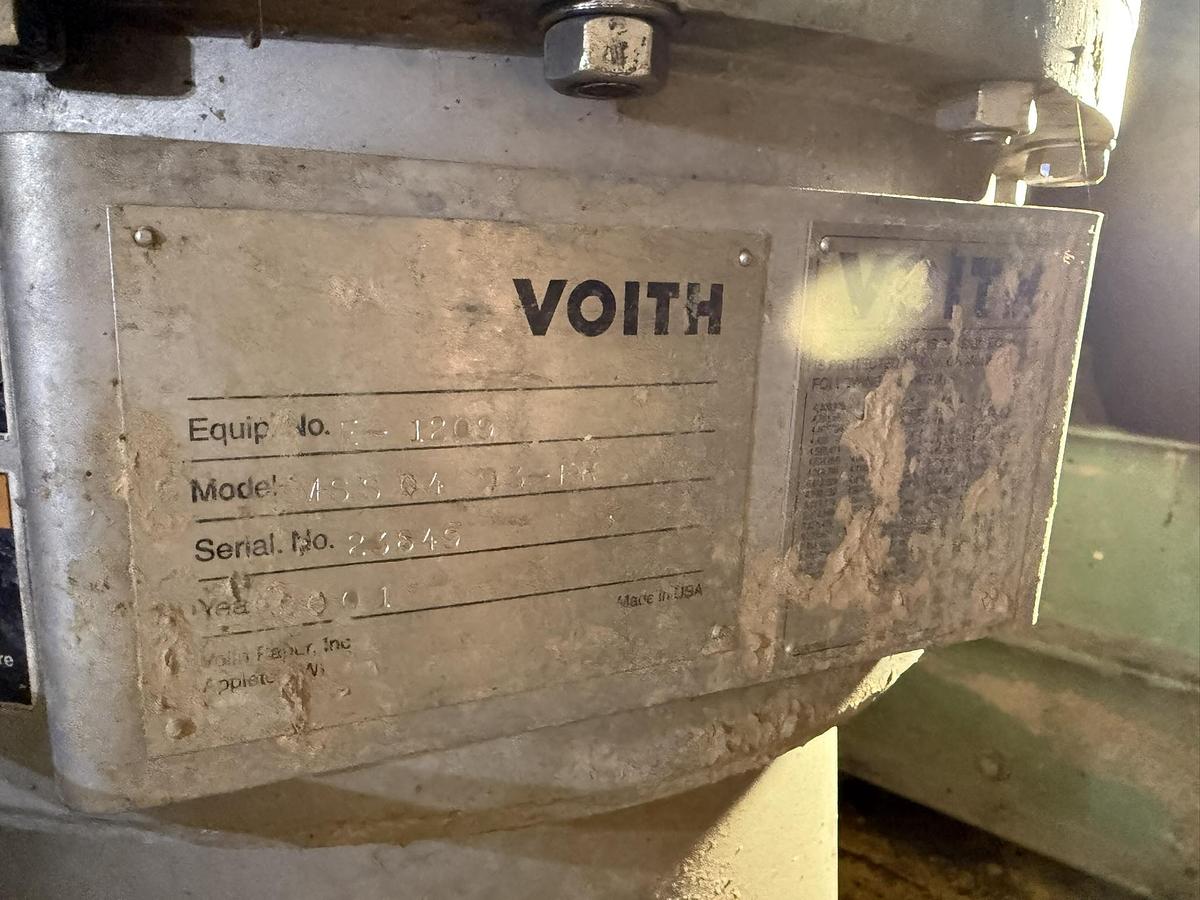

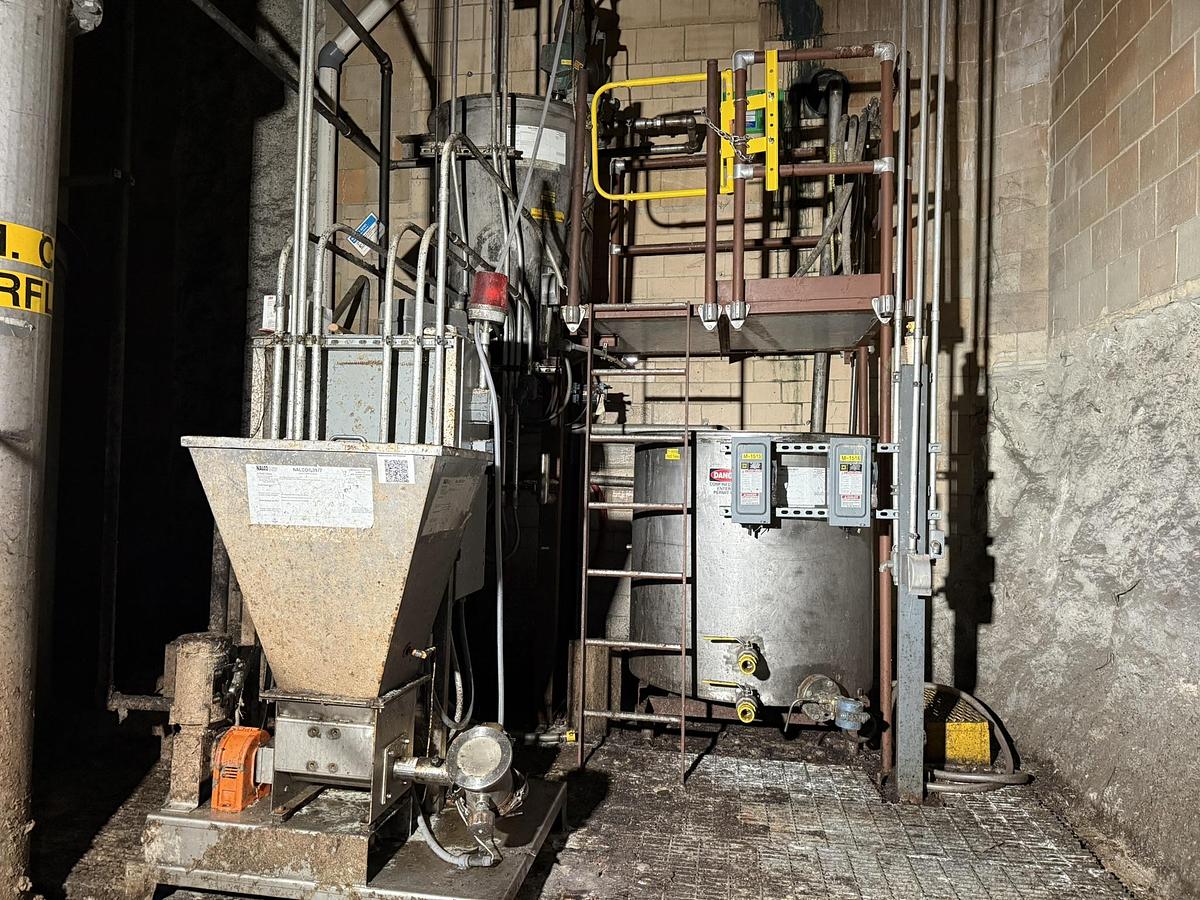

Approach Flow System:

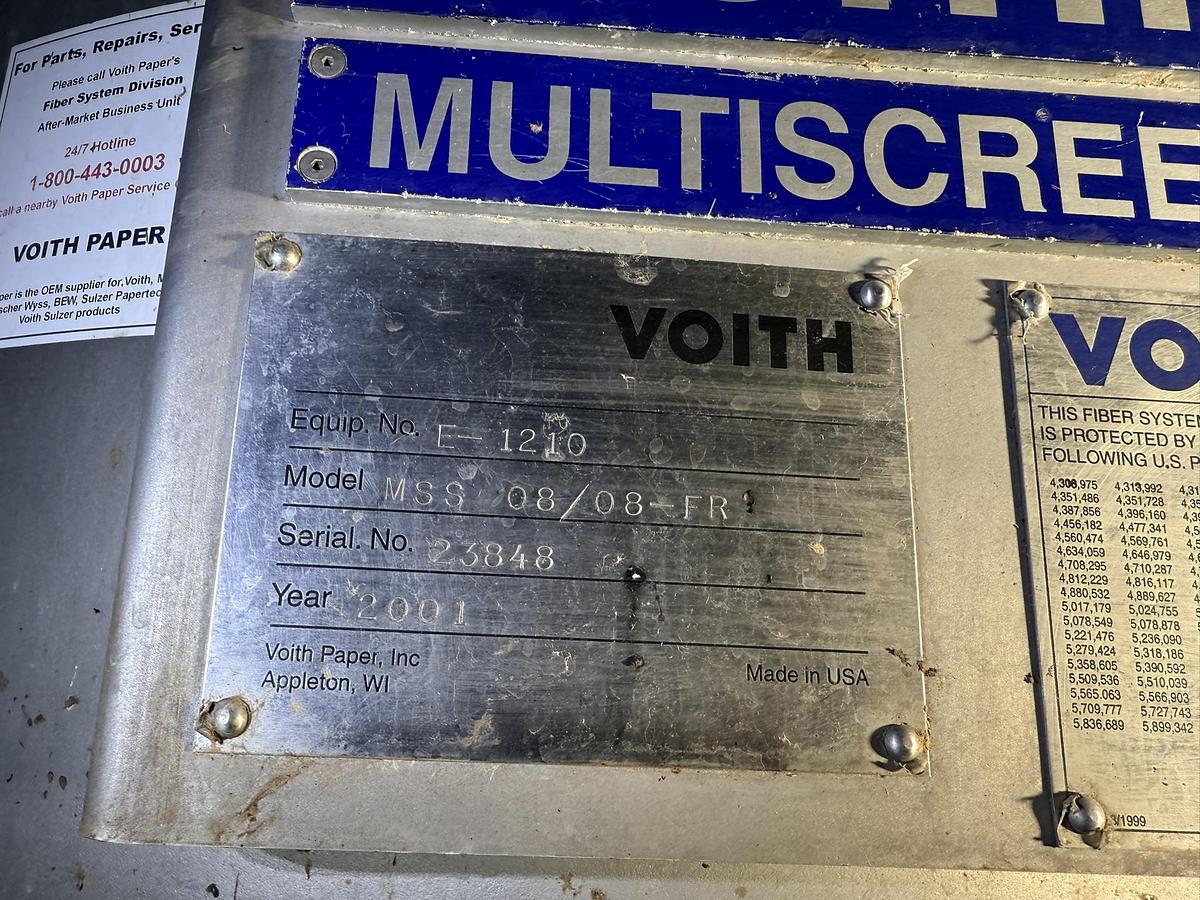

Voith 08 screen

(2) Voith Model 0403 screens

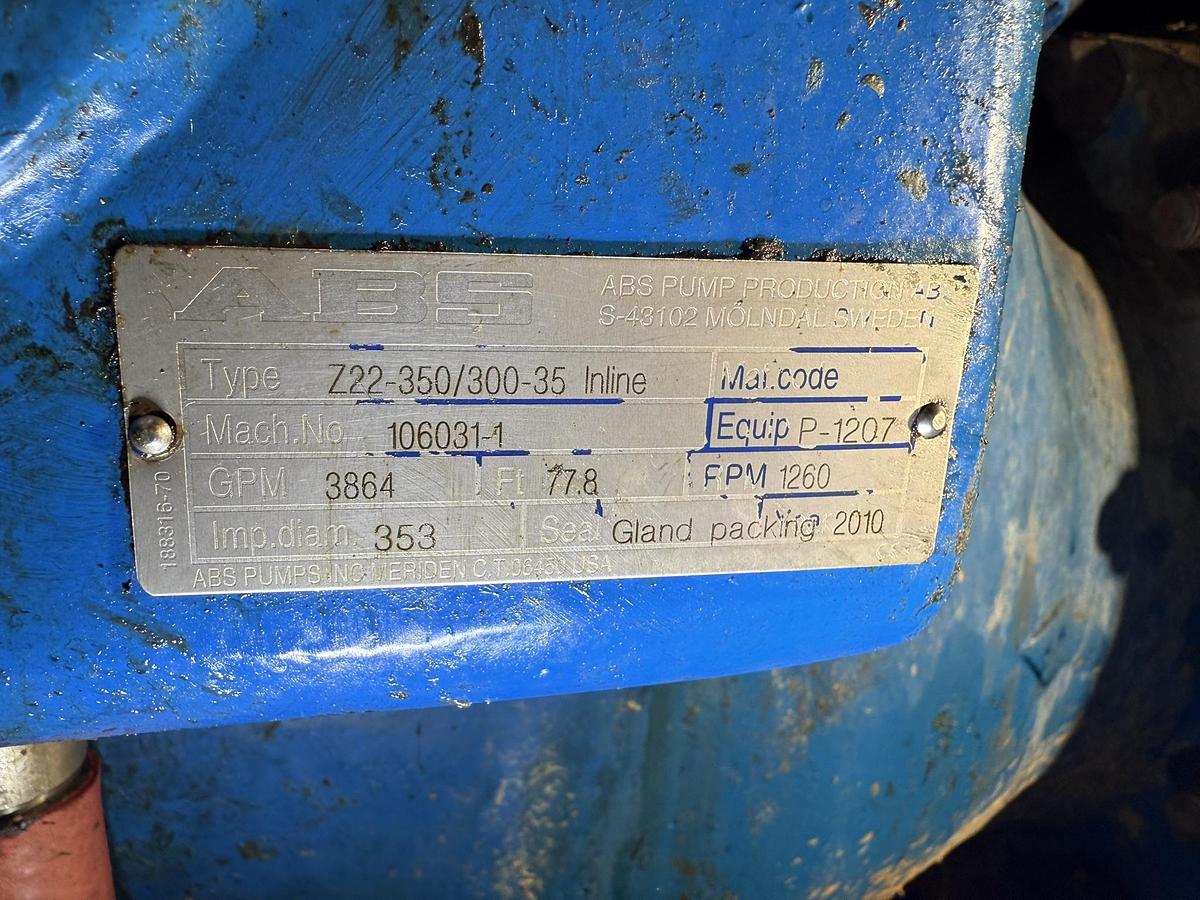

Fan Pump: Sulzer SS ZPP 10

Wet End & Forming Section

Headbox: Voith Hydraulic with DuoFormer D top dewatering unit

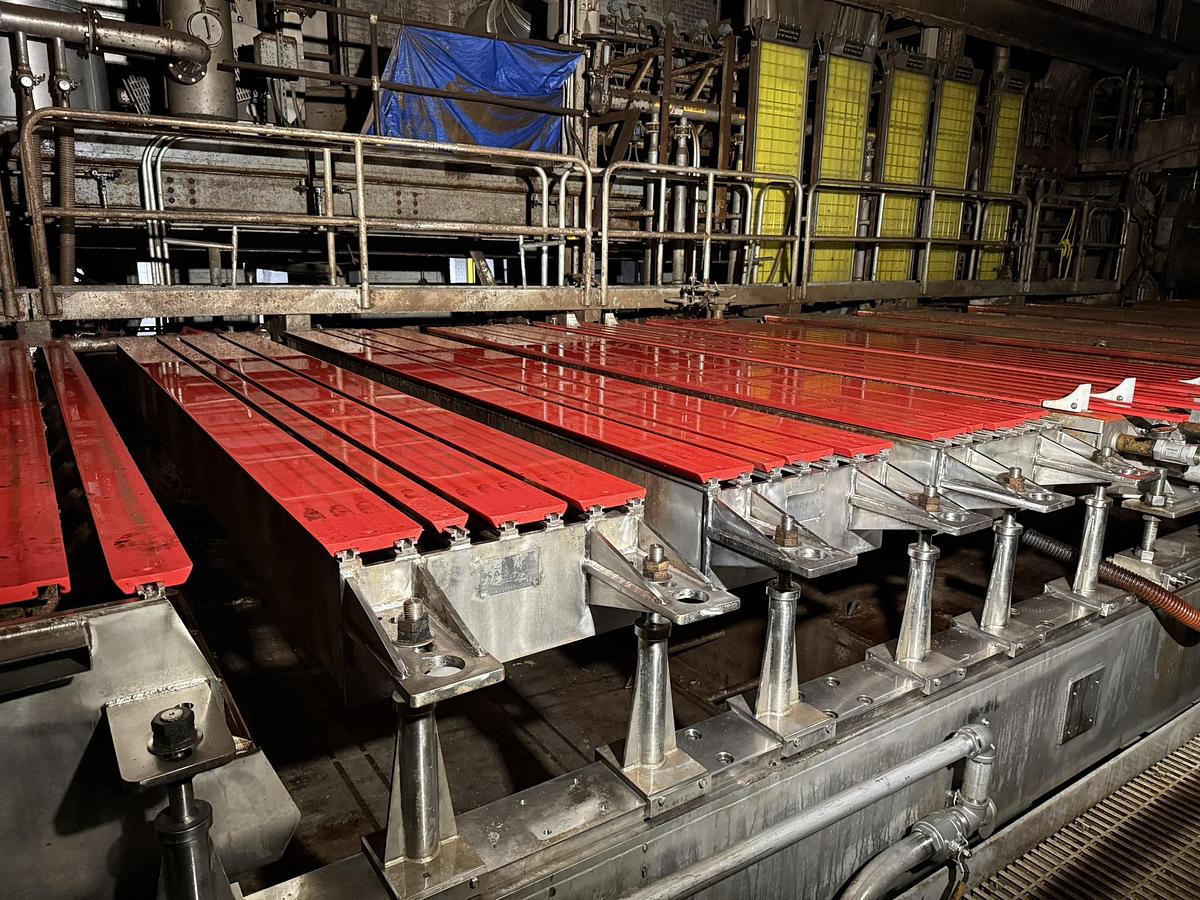

Fourdrinier Table: Voith 960" from breast roll centerline to couch roll

Voith table has been rebuilt to Vacuum boxes

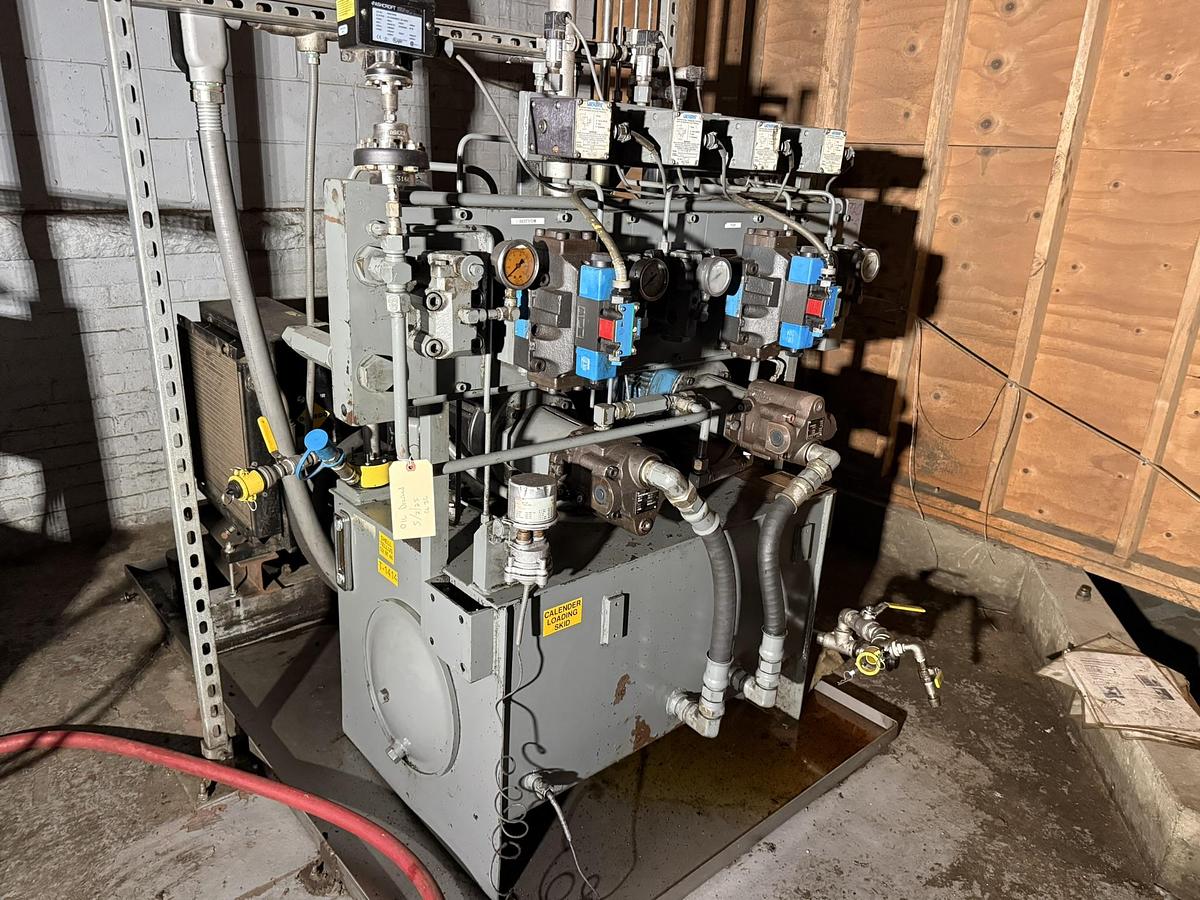

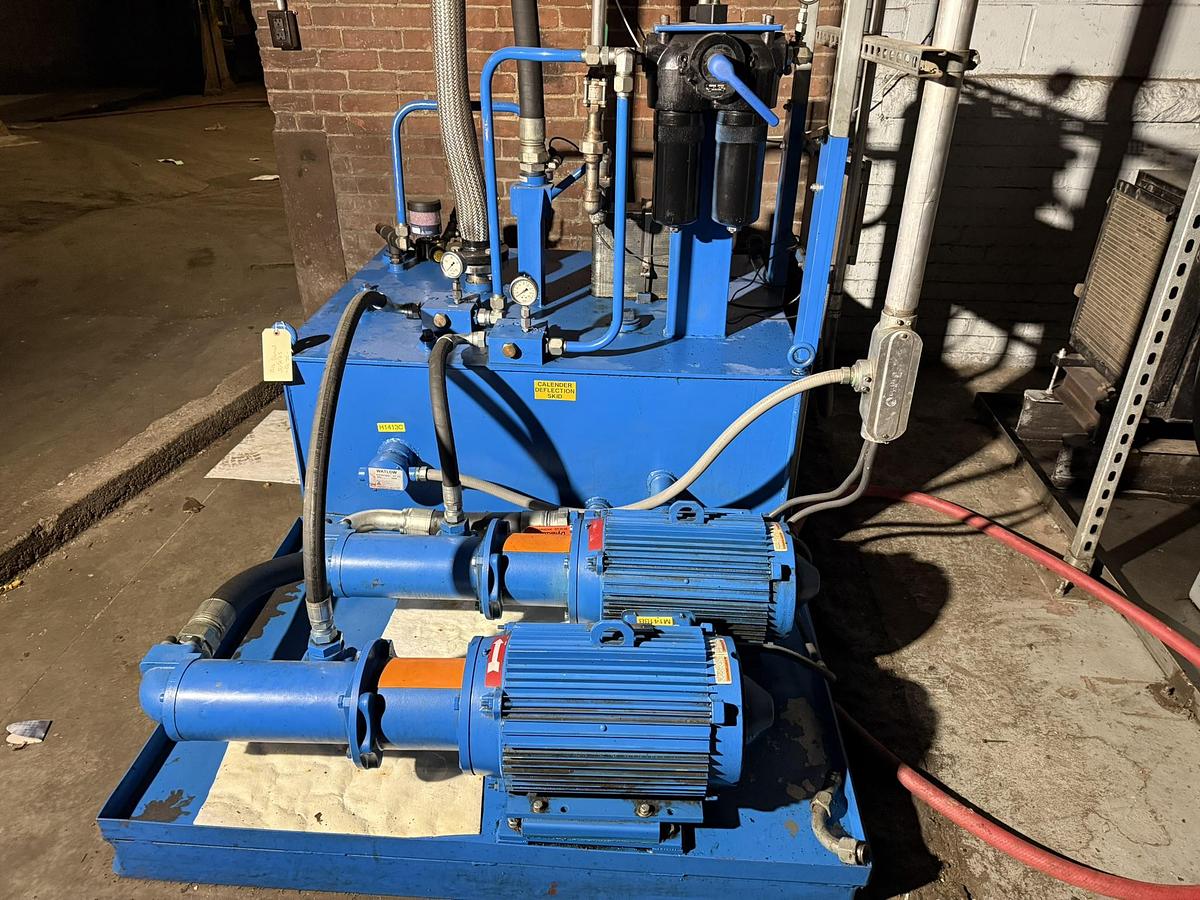

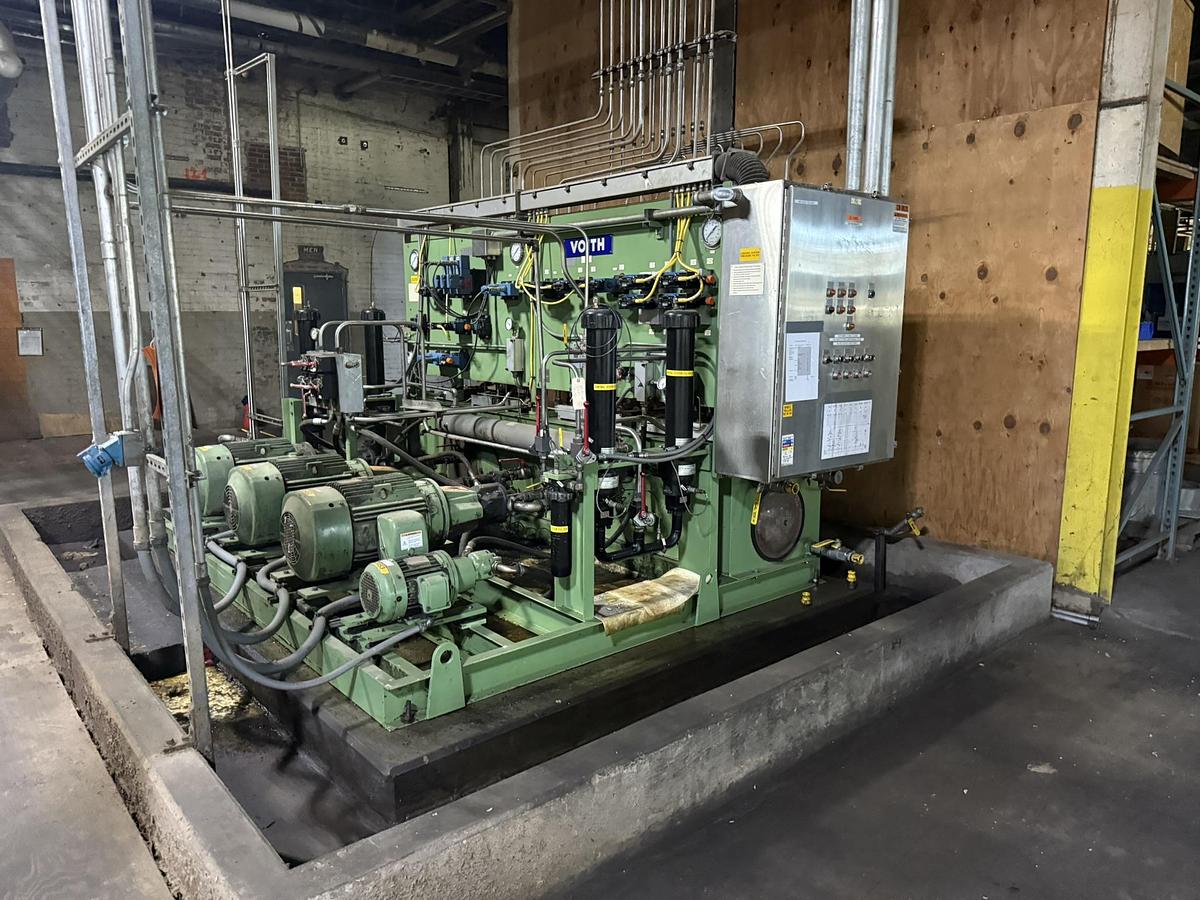

Voith Tandem NipcoFlex Shoe Press:

1st Press: Double felted

2nd Press: Single felted

Press Load: 5,200 PLI each

Entire press frames replaced with stainless steel in 2022

Spare smoothing roll and blind drilled roll

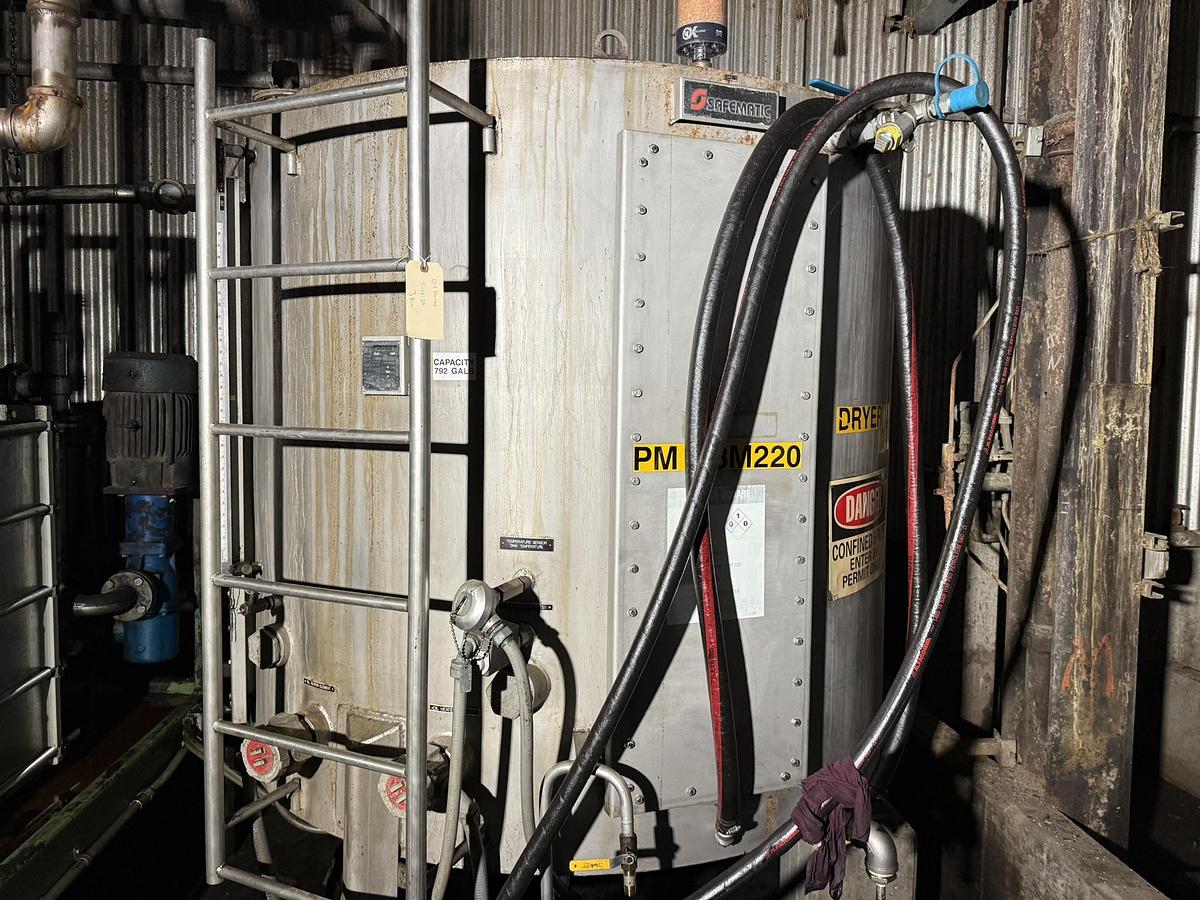

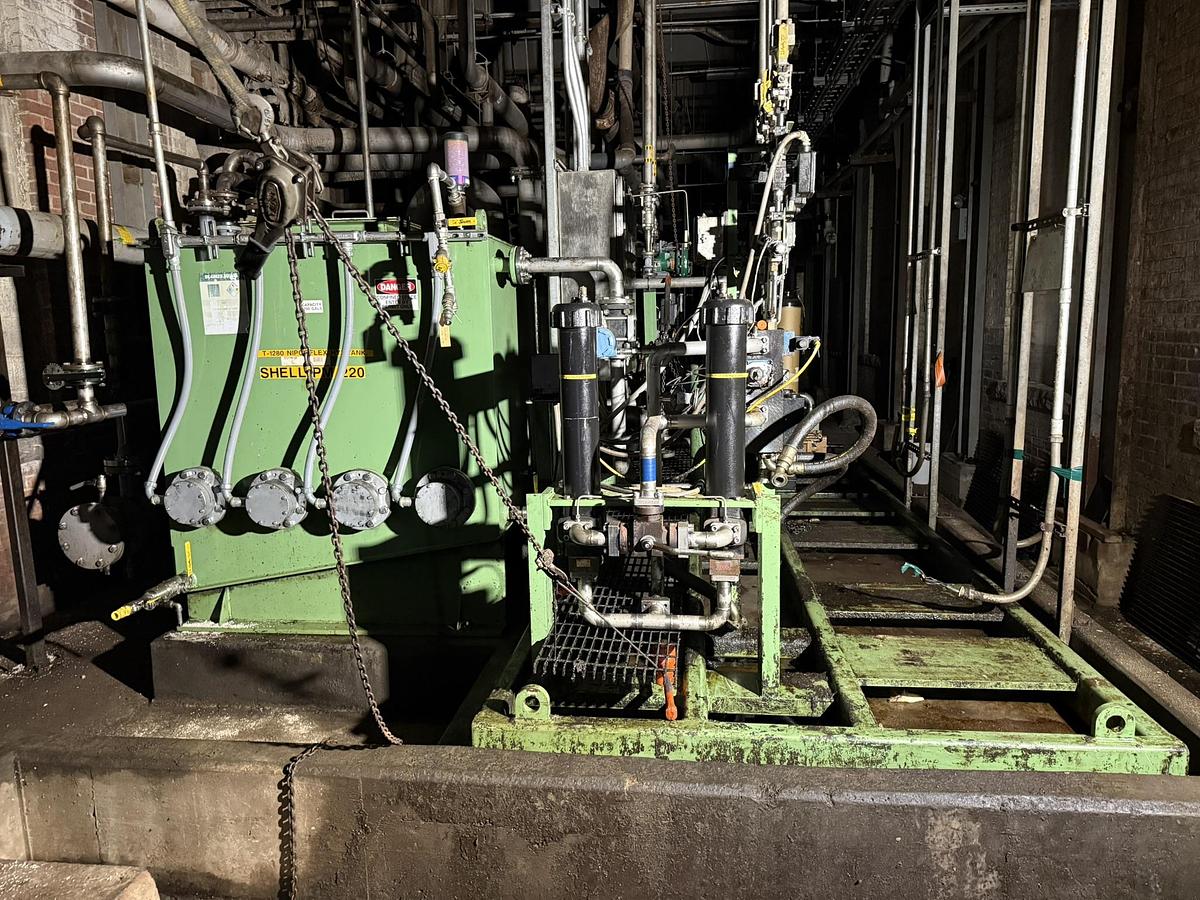

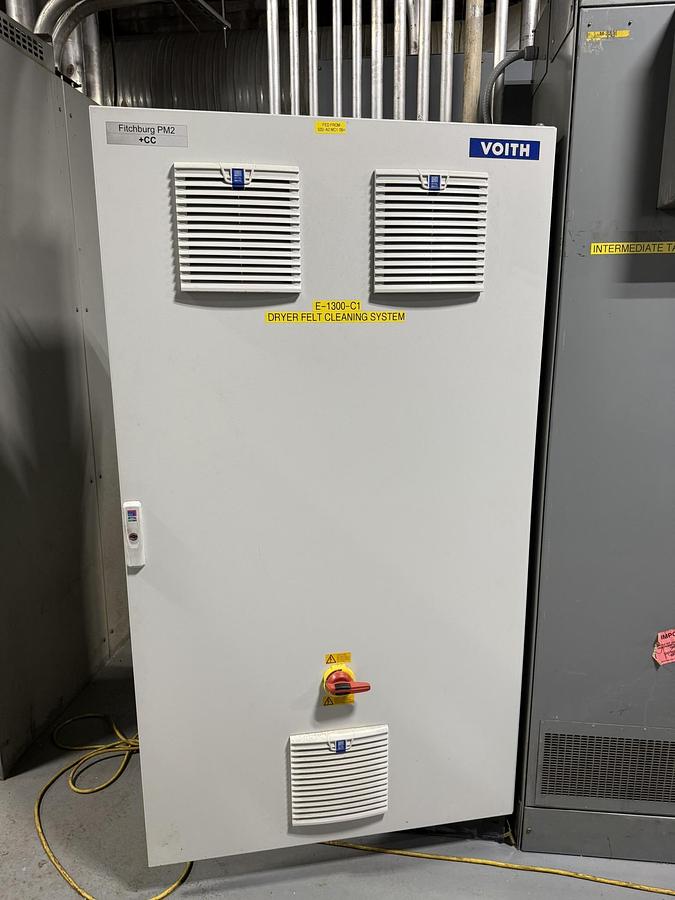

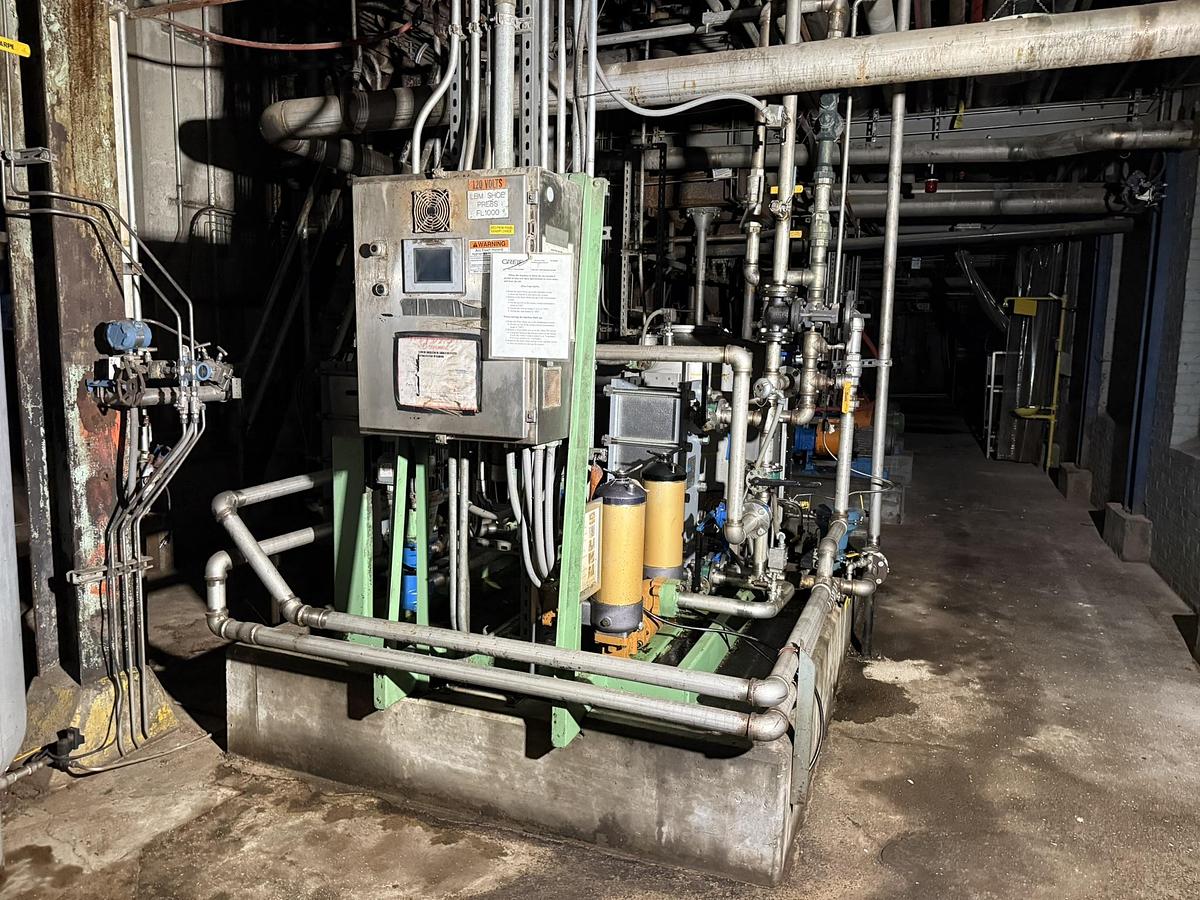

Dryer Section

Total Dryers: 34

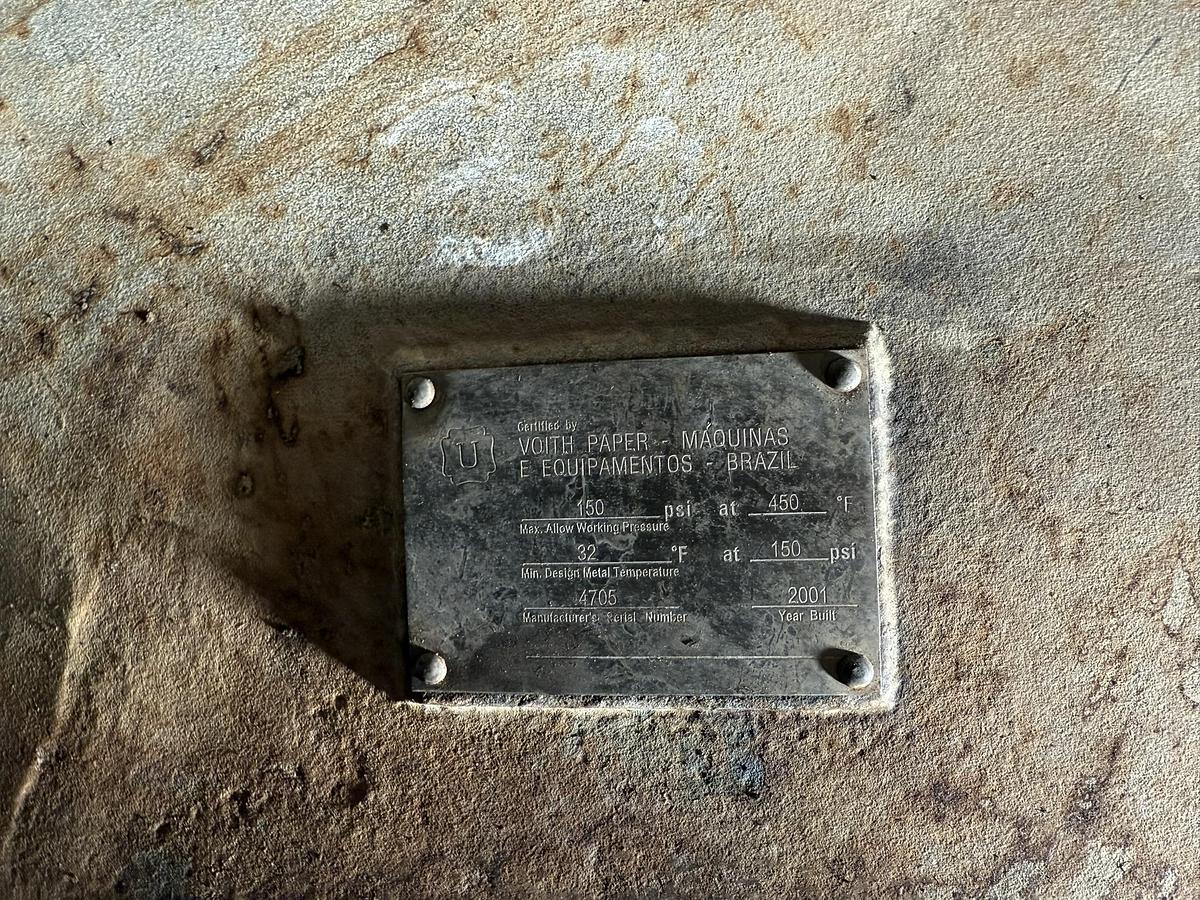

Dryer Size: 72" (1.8M) diameter, 150 PSI at 450°F

Configuration: 3 sections

Felts: Top and bottom

All ropes on dryers

Pocket ventilation on all dryers

Calendar Section

Rebuild Year: 2011

1000 PLI

Controlled crown roll

Swimming roll

Reel & Winder Systems

Reel Section

Horizontal track reel

Voith JUD turn-up system installed 2020

Mantech auto tail threading system (2022) from last press to reel

Rewinder

Beloit M-24 two-drum slitter rewinder

Shaftless 60" rewind. Rated 4500 FPM

Updated Dienes automatic knife positioning (2013)

Siemens DC winder Drives and Control system installed 2013

Vacuum System

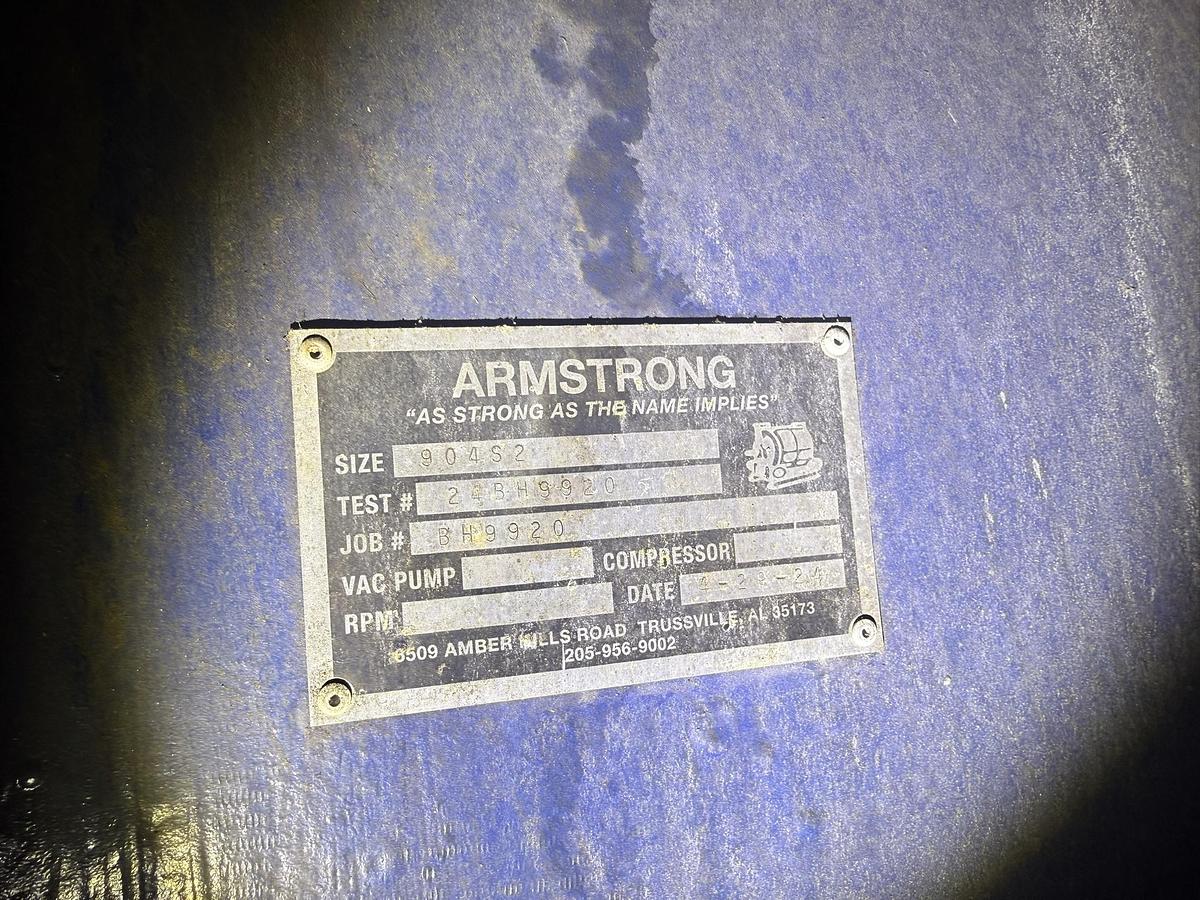

Nash 904S2 series pumps

Nash M2 series pumps

Included Spare Parts

Major rolls

Suction boxes & table elements

Main bearings

Drive shafts & drive motors

Gearboxes

Fan pump assembly

Additional spare rolls, felts, clothing, and parts

Additional Machine Available (For Parts)

A second, identical machine is on site, including:

Air-pad headbox

Fourdrinier table

Dual shoe presses

(40) Dryers: 72" (1.8M) diameter, 150 PSI at 450°F

Status: Plant closed May 2025 due to corporate consolidation

Documentation: Complete documentation available on site

Additional Asset: Identical second machine available for parts
