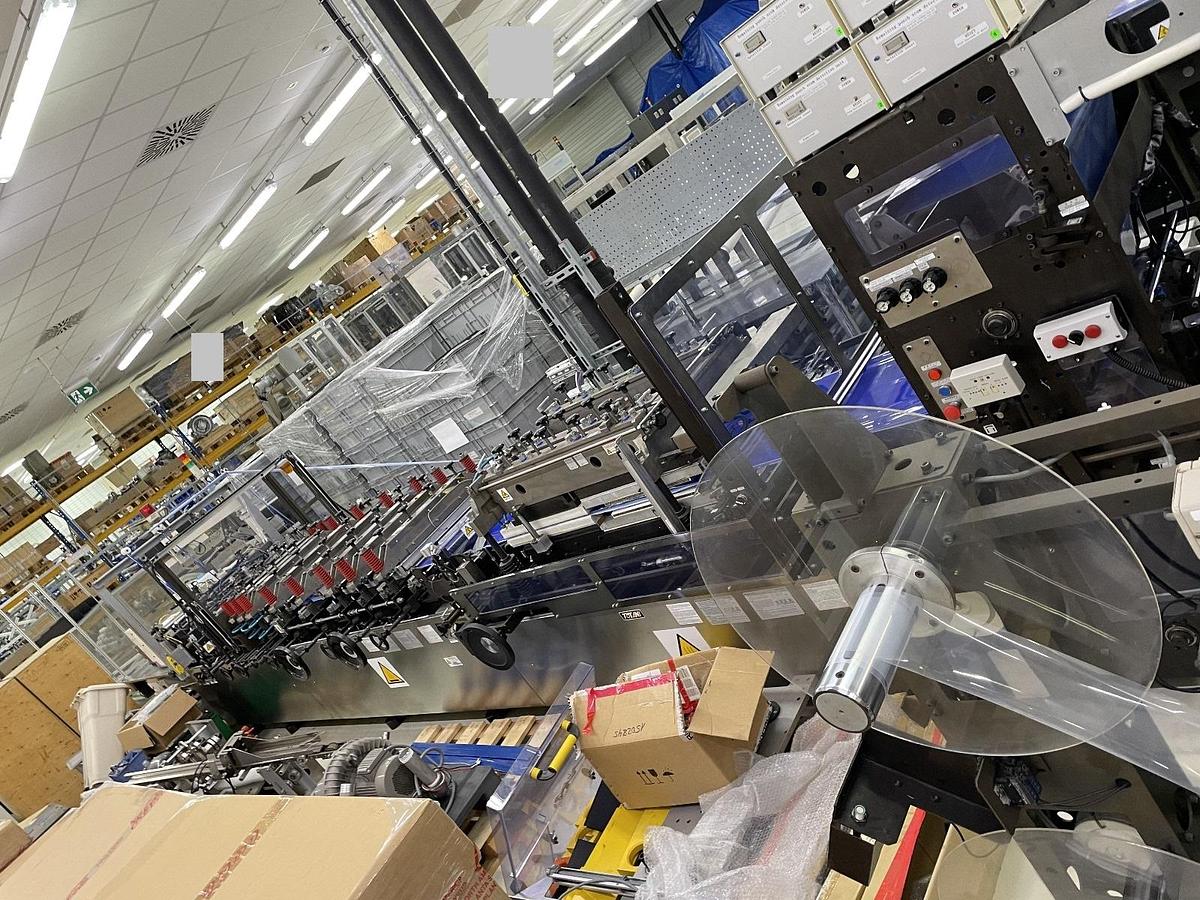

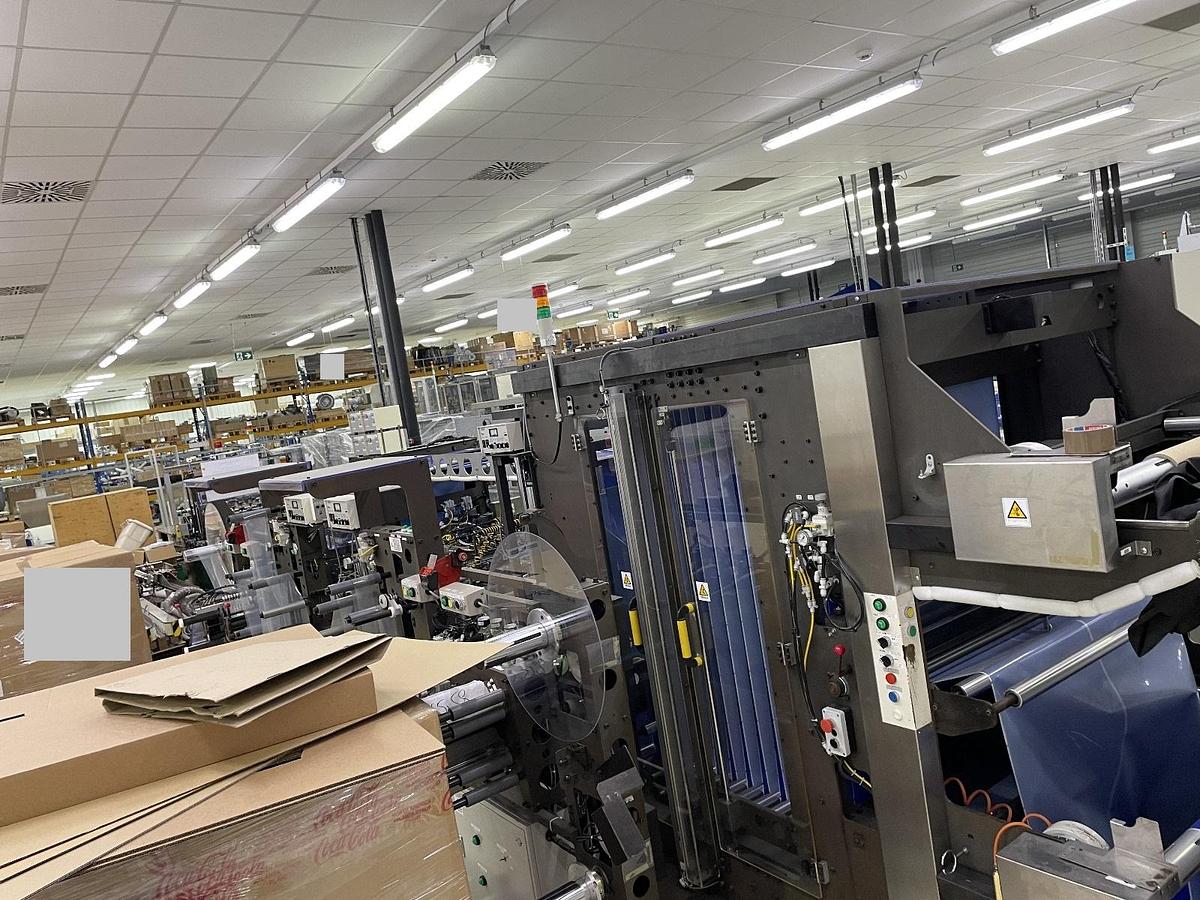

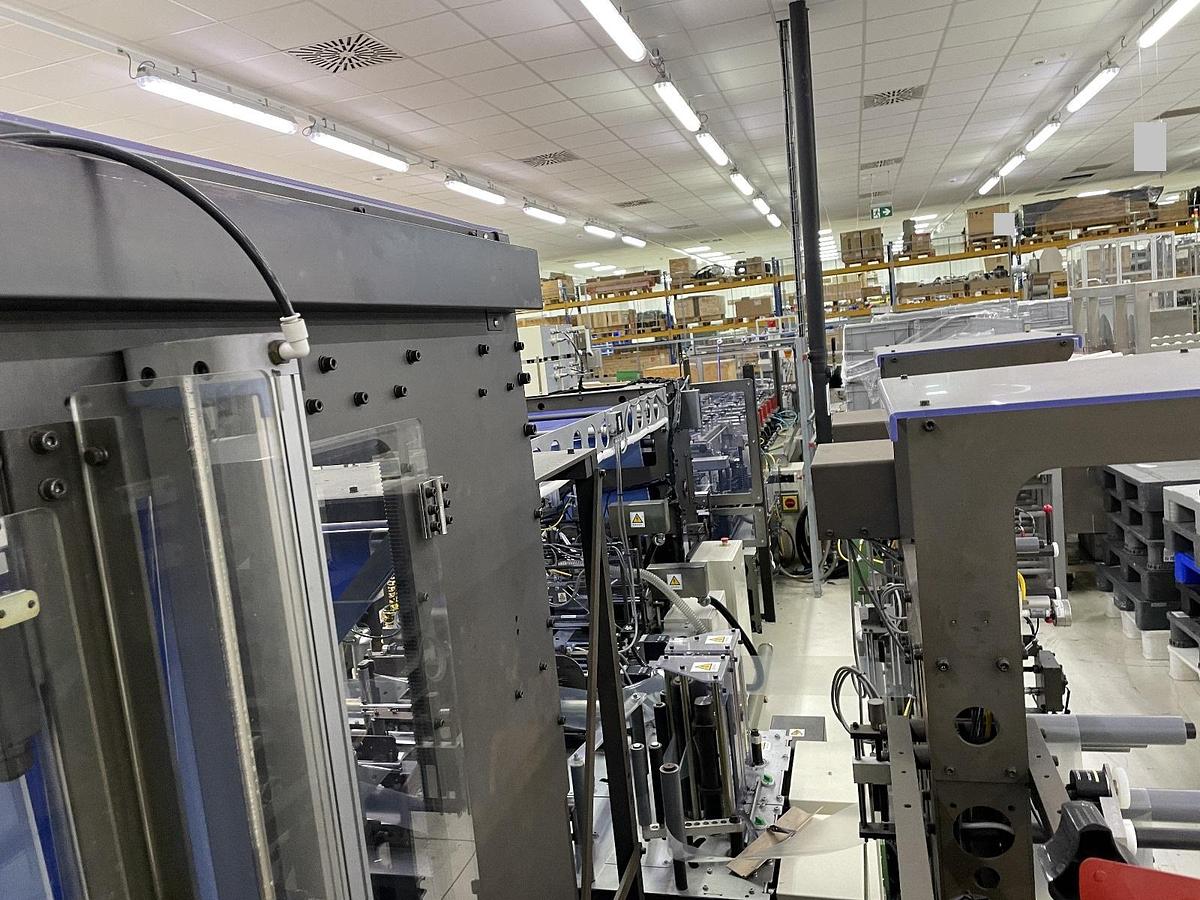

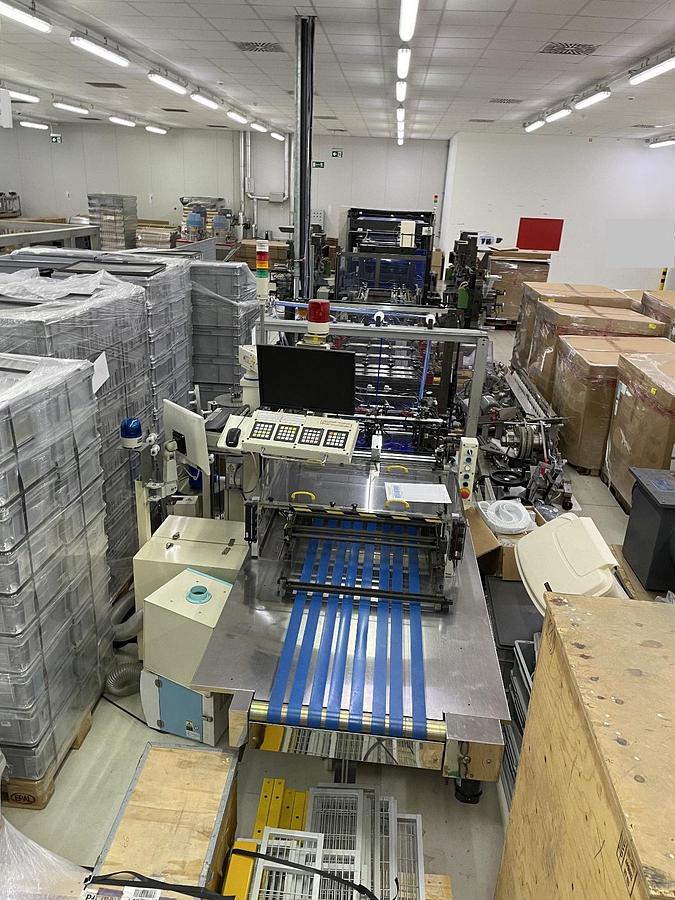

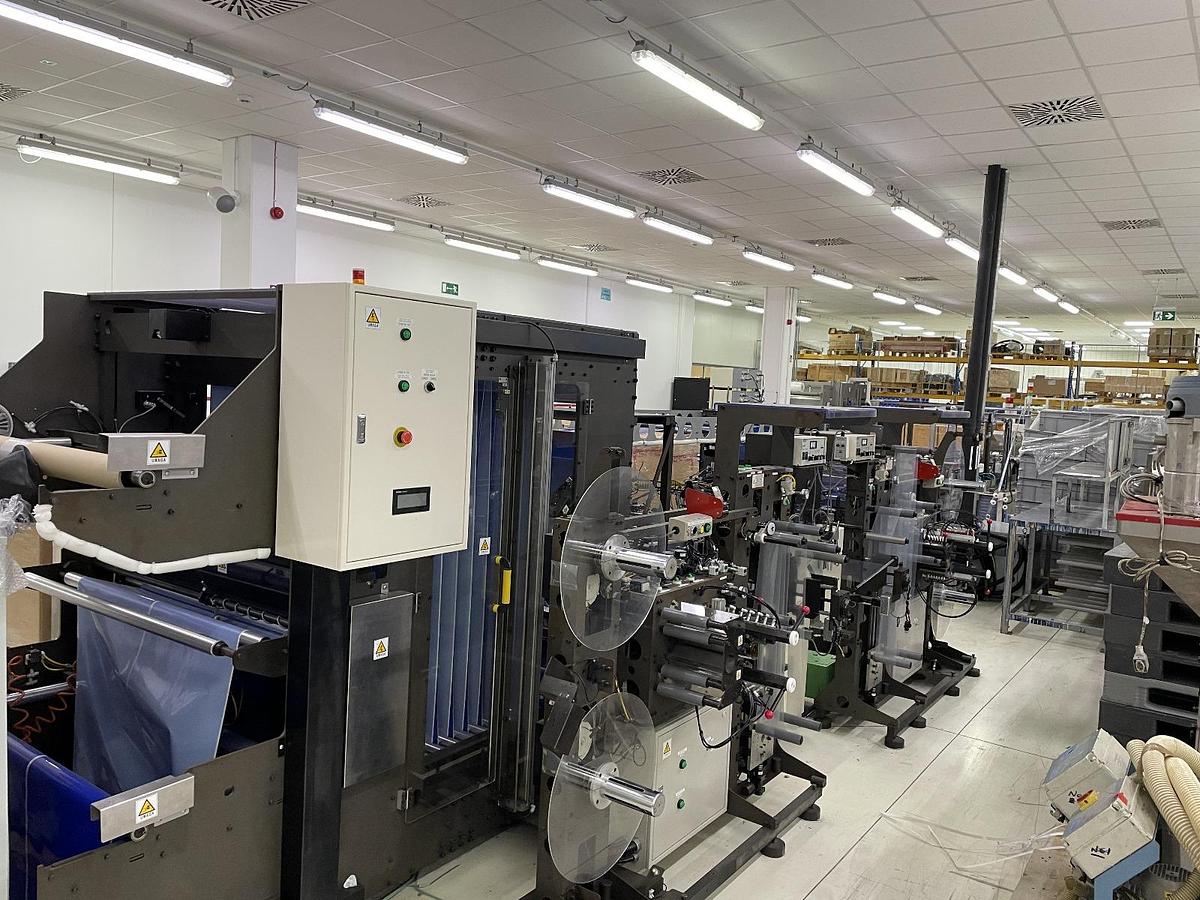

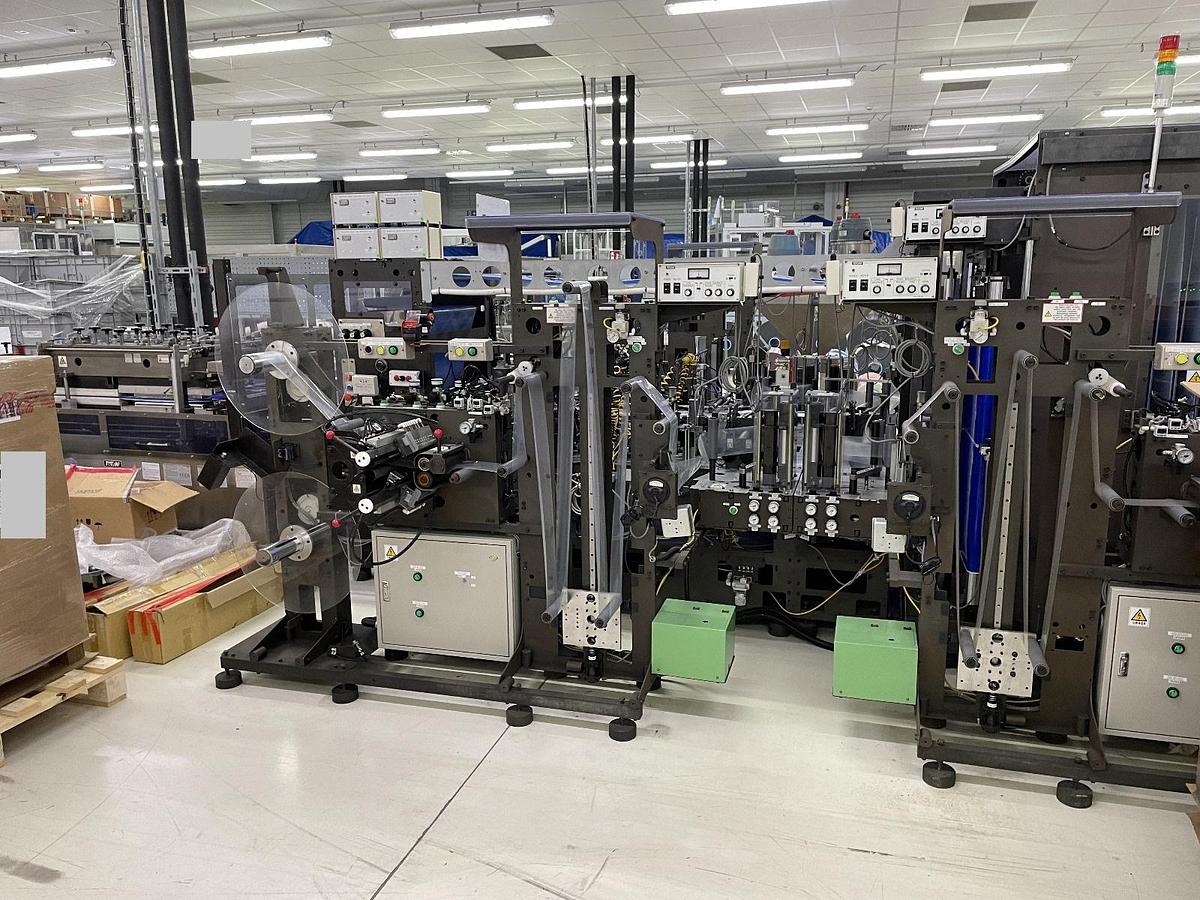

TOTANI BH60DLLLS POUCH MACHINE MACHINE WITH MODEL ST34 SPOUT INSERTER

Totani BH 60D LLLS

2008

Width: 200-600 mm

Maximum length: 500 mm

Unwinding dimensions:

Maximum diameter: 800 mm

Maximum width: 1200 mm

Maximum number of cycles: 180 cycles/minute

Smooth film

Maximum number of cycles:

240/minute - feed: 140 mm

220m/minute - feed: 170 mm

200/minute - feed: 205 mm

180/minute - feed: 255 mm

Printed film

Maximum number of cycles:

240/minute - feed: 125 mm

220m/minute - feed: 155 mm

200/minute - feed: 185 mm

180/minute - feed: 235 mm

Heater and cooler

Heater longitudinal(feed direction)

Effective welding length: 600 mm - 5 units

Longitudinal cooler(feed direction)

Effective cooling length: 500 mm -5 units

Transverse heater(wide direction)

Effective welding length: 600 mm-2 units

Longitudinal cooler(wide direction)

Effective cooling length: 600 mm - 1 unit

Transverse sealing bar - maximum welding width: 80 mm

Longitudinal sealing bar -  maximum welding width: 50 mm

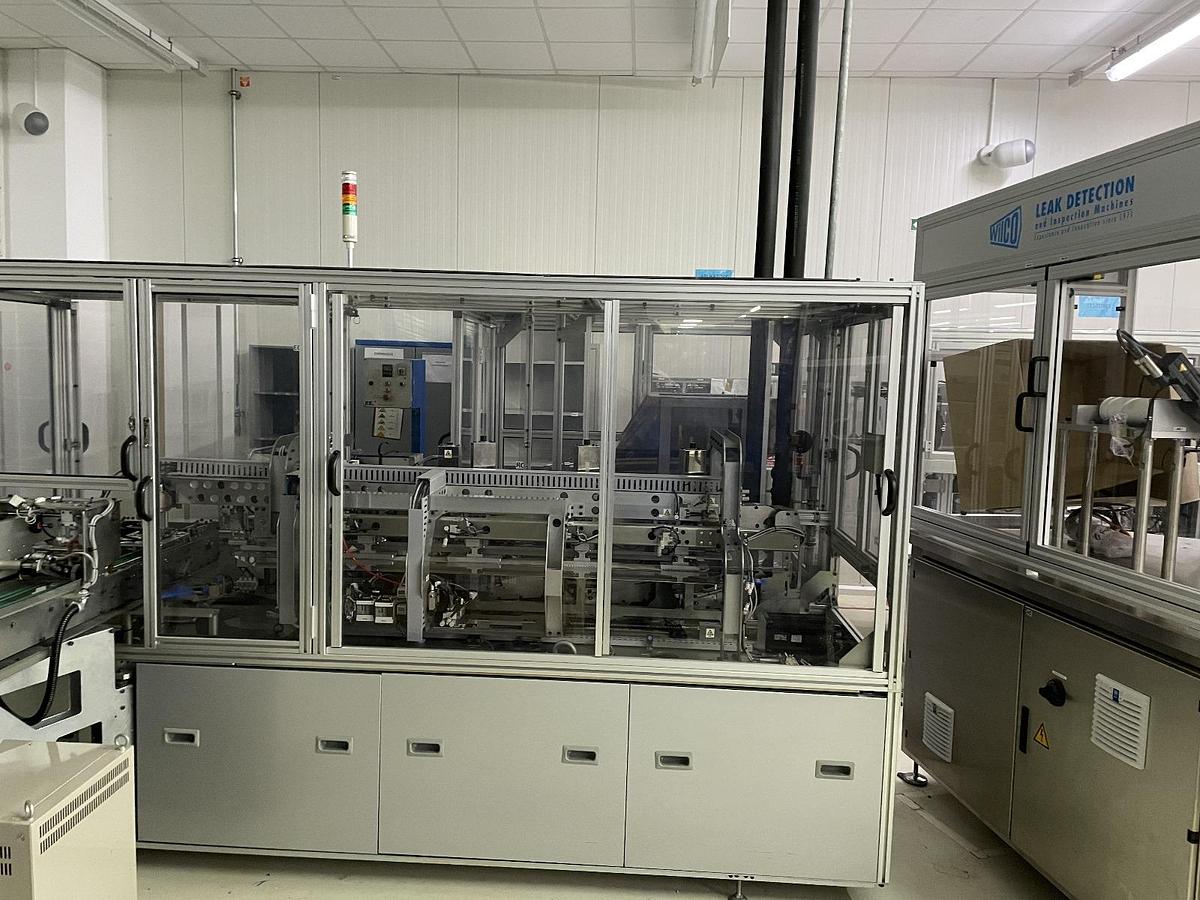

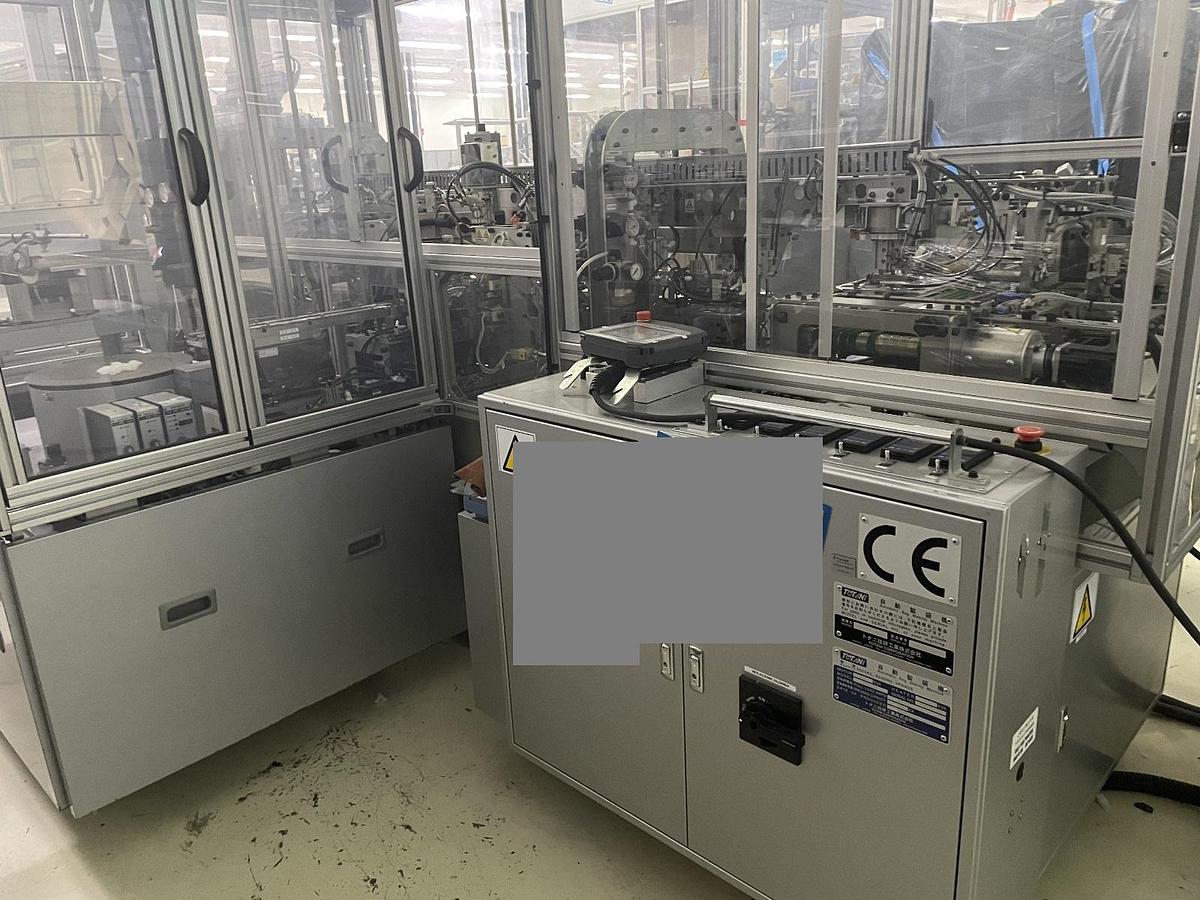

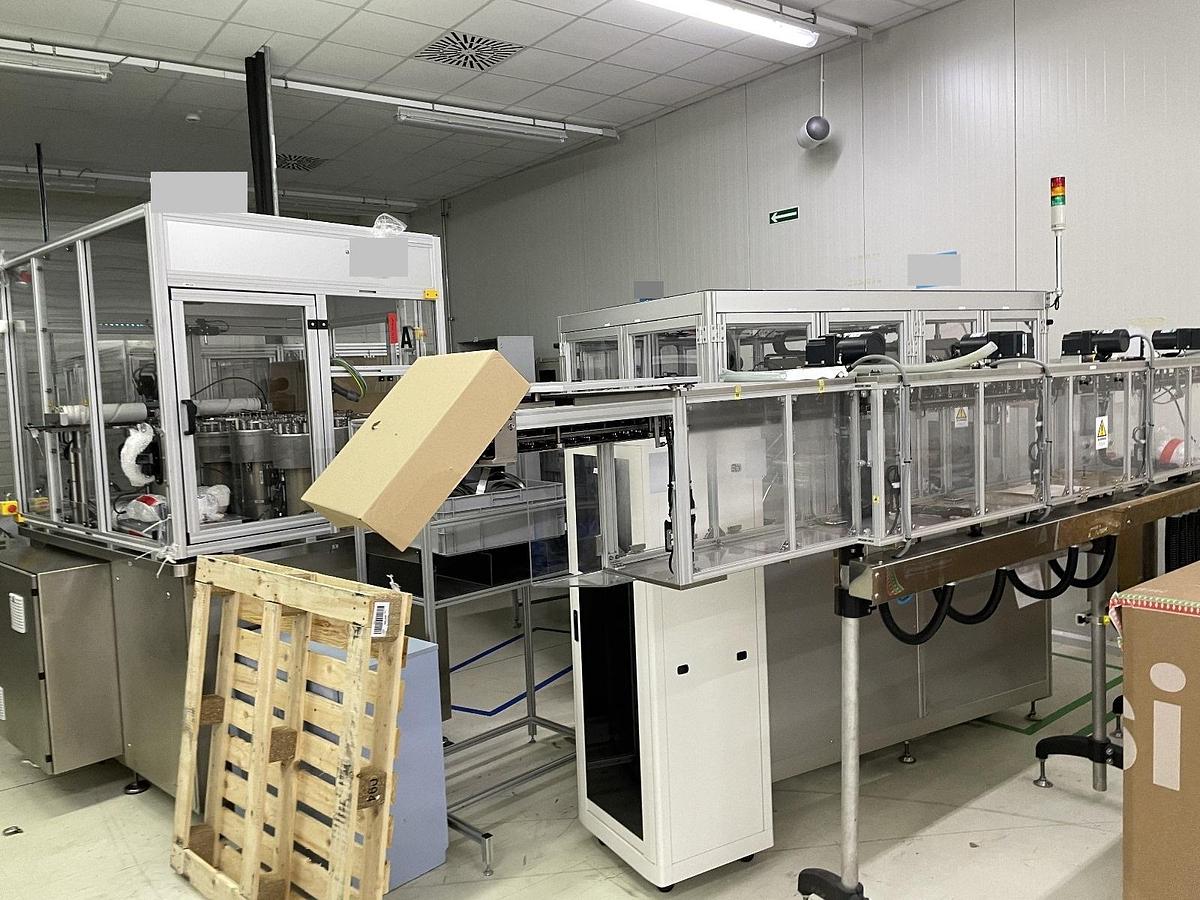

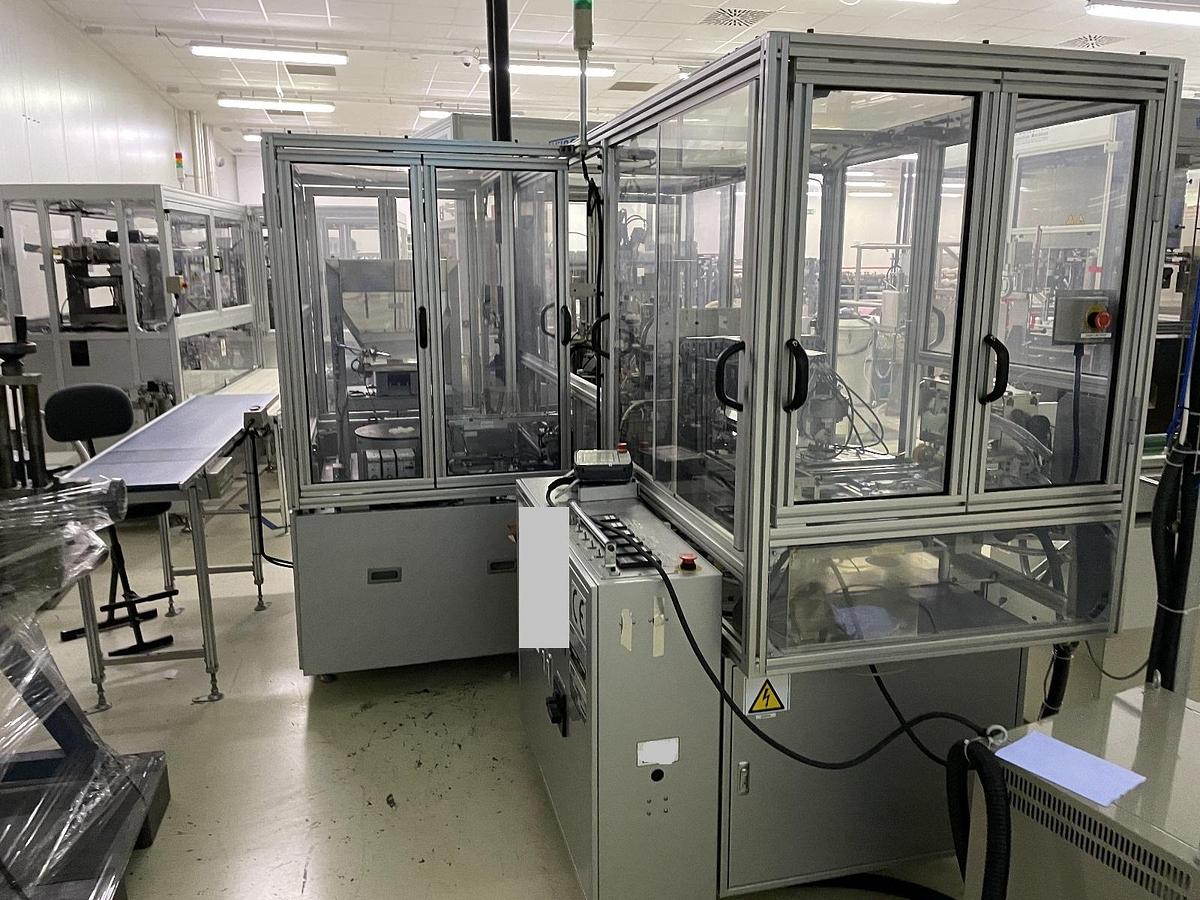

Totani ST 24

2012

Spout inserter

Configuration:

Supply Conveyor

Pouch Carrier

Pouch Supply and ejection unit

Corner Cutter

Opening Edge

Sealer and Cooler

Spout Supply Unit

The preheater
