60" WIDE ADVENT DESIGN CORP PRESSURE SENSITIVE ADHESIVE LAMINATOR PSA

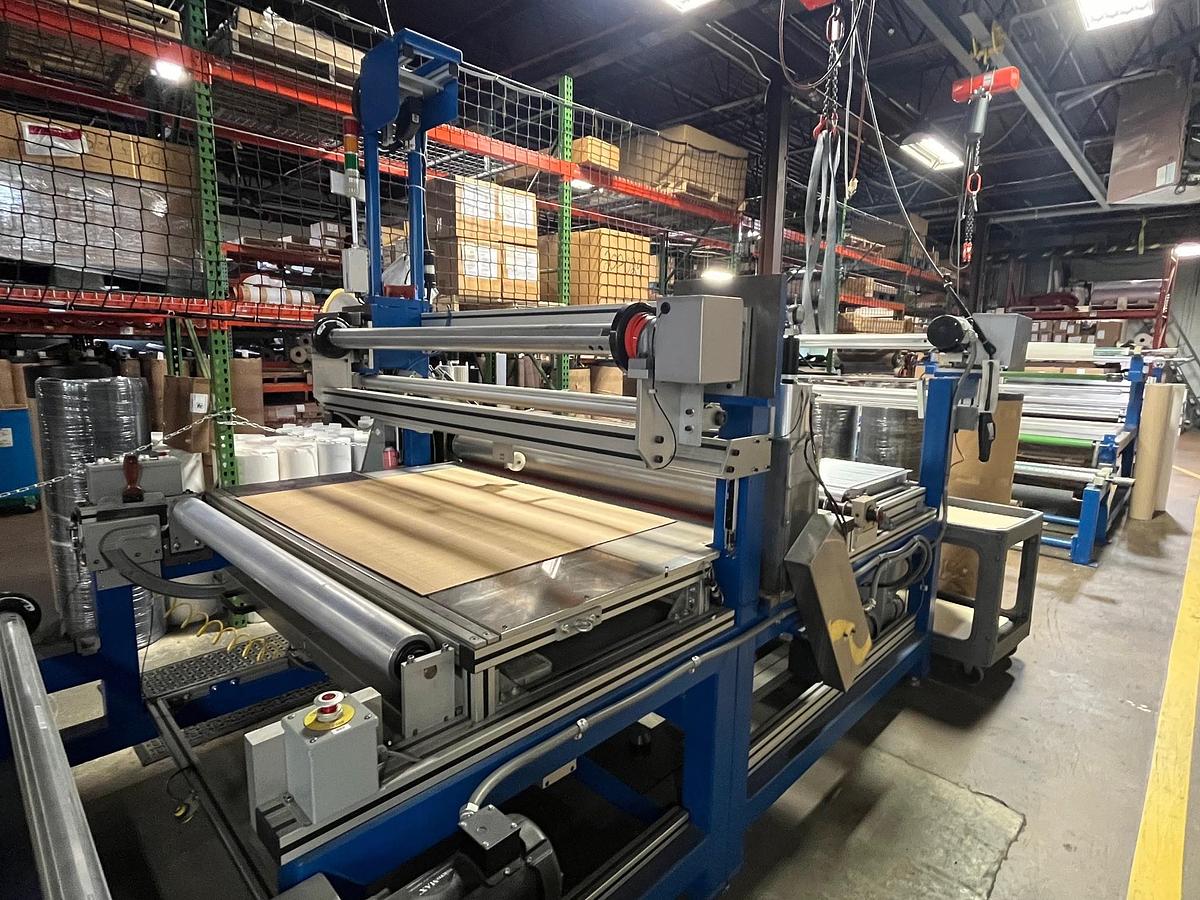

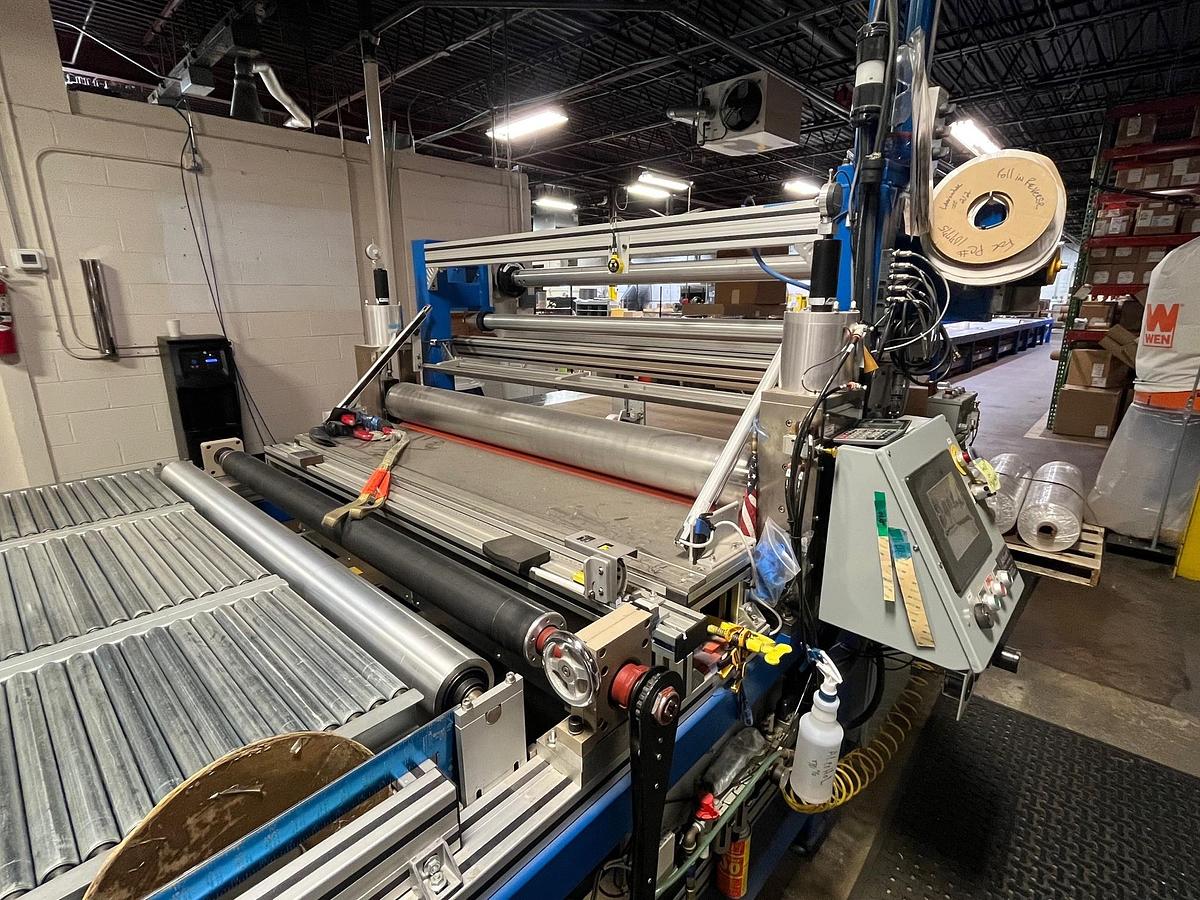

60" Wide Pressure Sensitive Adhesive Laminator

This system was designed for laminating a variety of pressure sensitive adhesives carried on release paper onto substrates of plastic film, rubber, and foam. Adhesive material and substrates are unwound from supply rolls, guided into a set of adjustable laminating rolls, and re-reeled on a take up roll. Material can also be discharged onto a flat surface for shorter cut to length products.

Key Features:

Dual unwinds with Adhesive & Substrate Air Shafts

Edge Guide Sensors for both adhesive and substrate for precise alignment

Integrated HMI & Gage Display for real-time process monitoring

Cut guides for both adhesive and substrate

Specifications:

Can laminate material up to 60” wide

Overall dimensions are 11’ L x 7’ W x 9’ H

Additional specs on nameplate attached

Applications:

Multi-layer lamination of elastomers, foams, and films

PSA application with accurate edge alignment

Electrical: 208/120v (4w), 3 phase, 30 amps, 60 hertz

Air: 80-120 PSI @ 5 SCFM

Largest Motor: 1 hp
