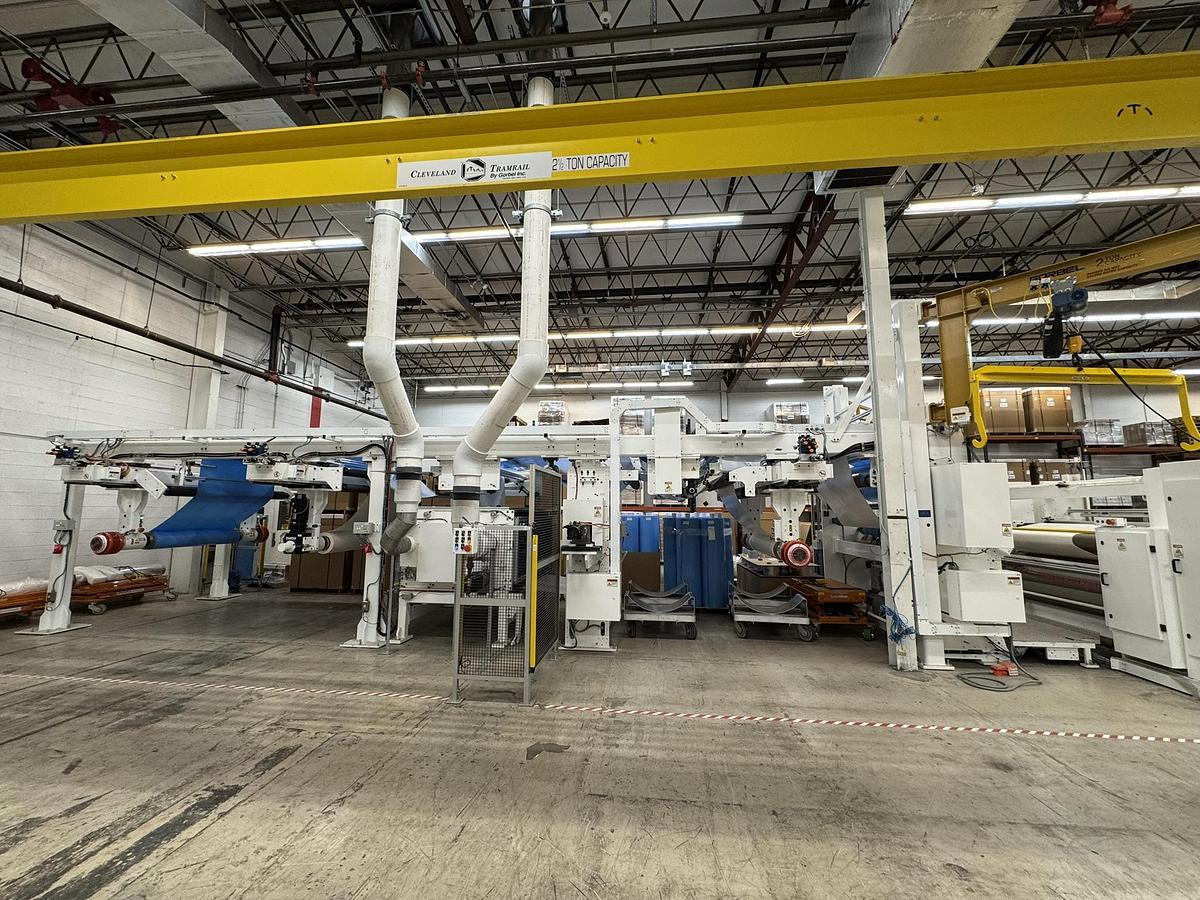

72" WIDE CATBRIDGE LAMINATION LINE & TURRET REWINDER - MFG 2023

72" WIDE CATBRIDGE LAMINATION LINE & TURRET REWINDER - MFG 2023

Description

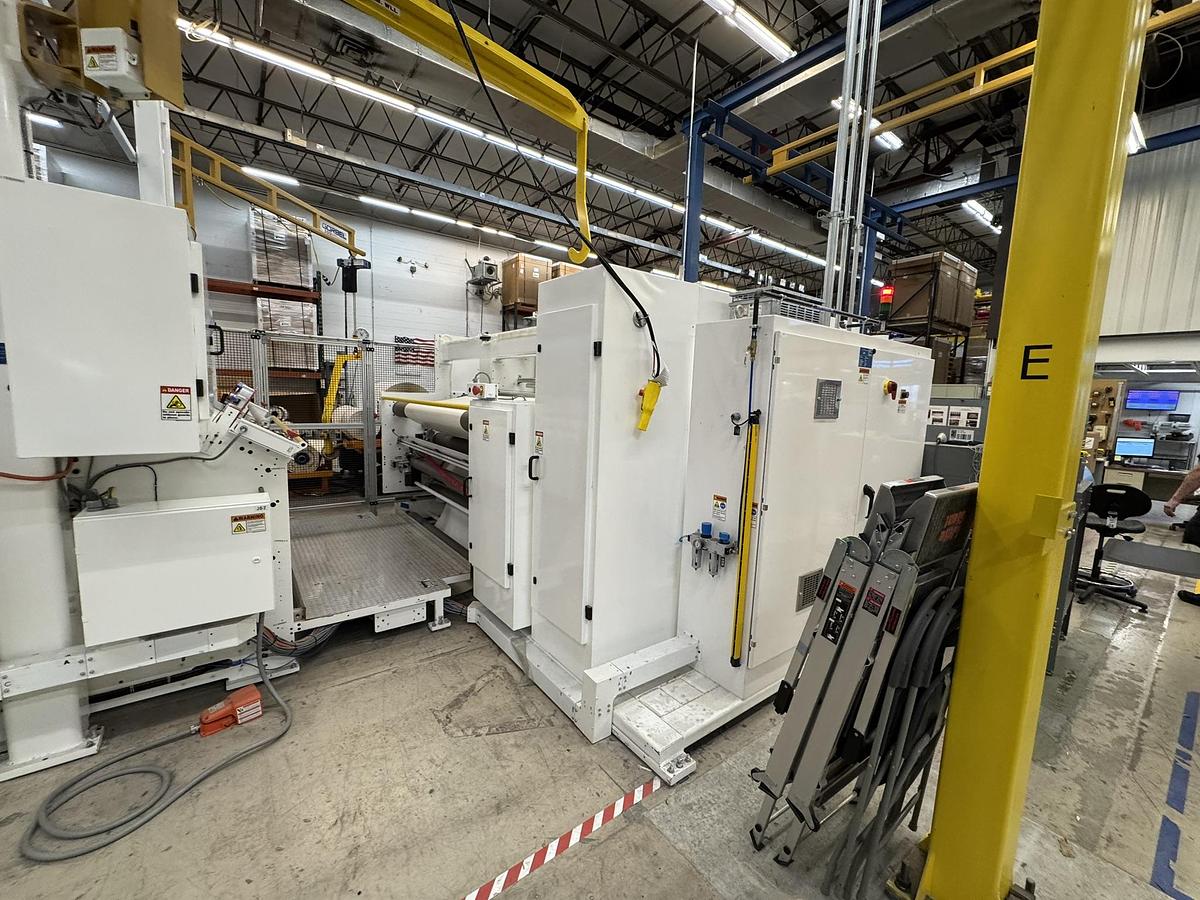

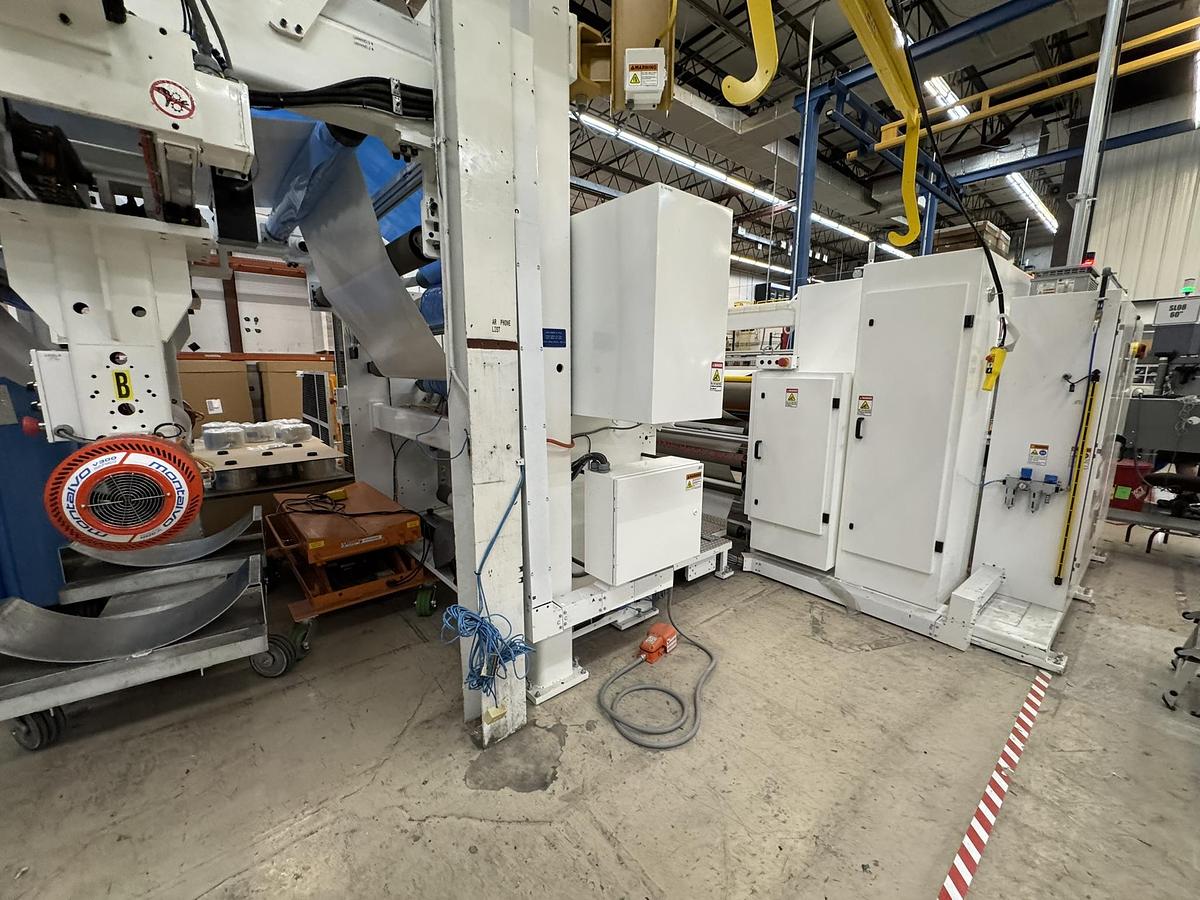

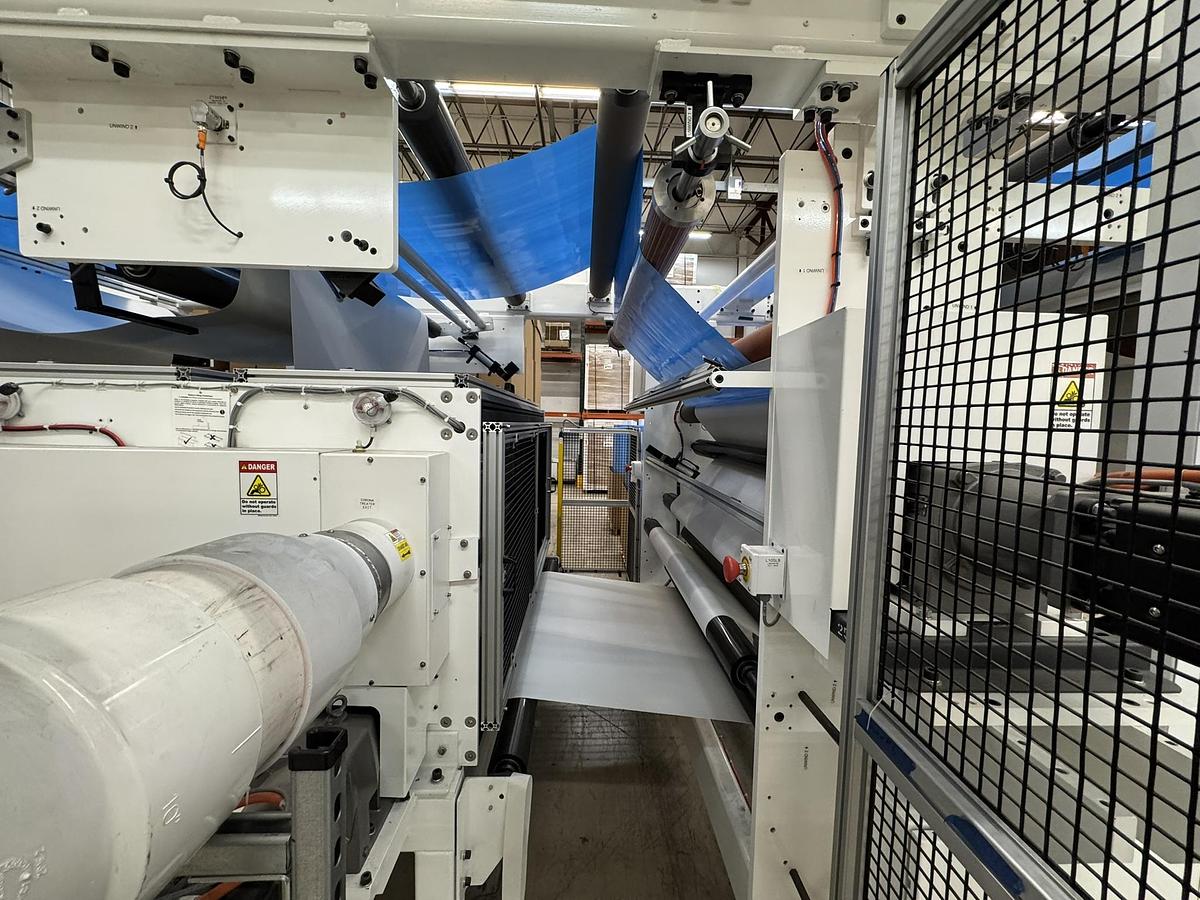

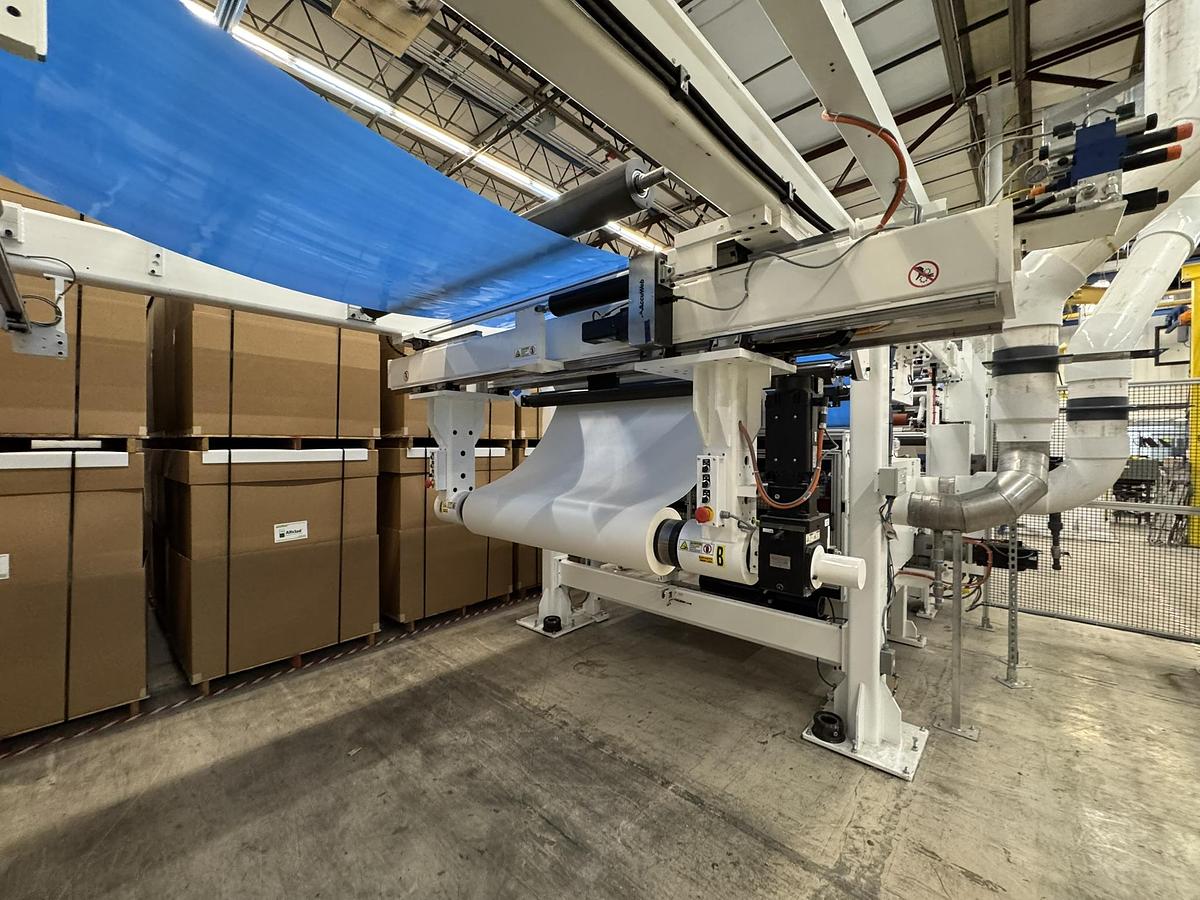

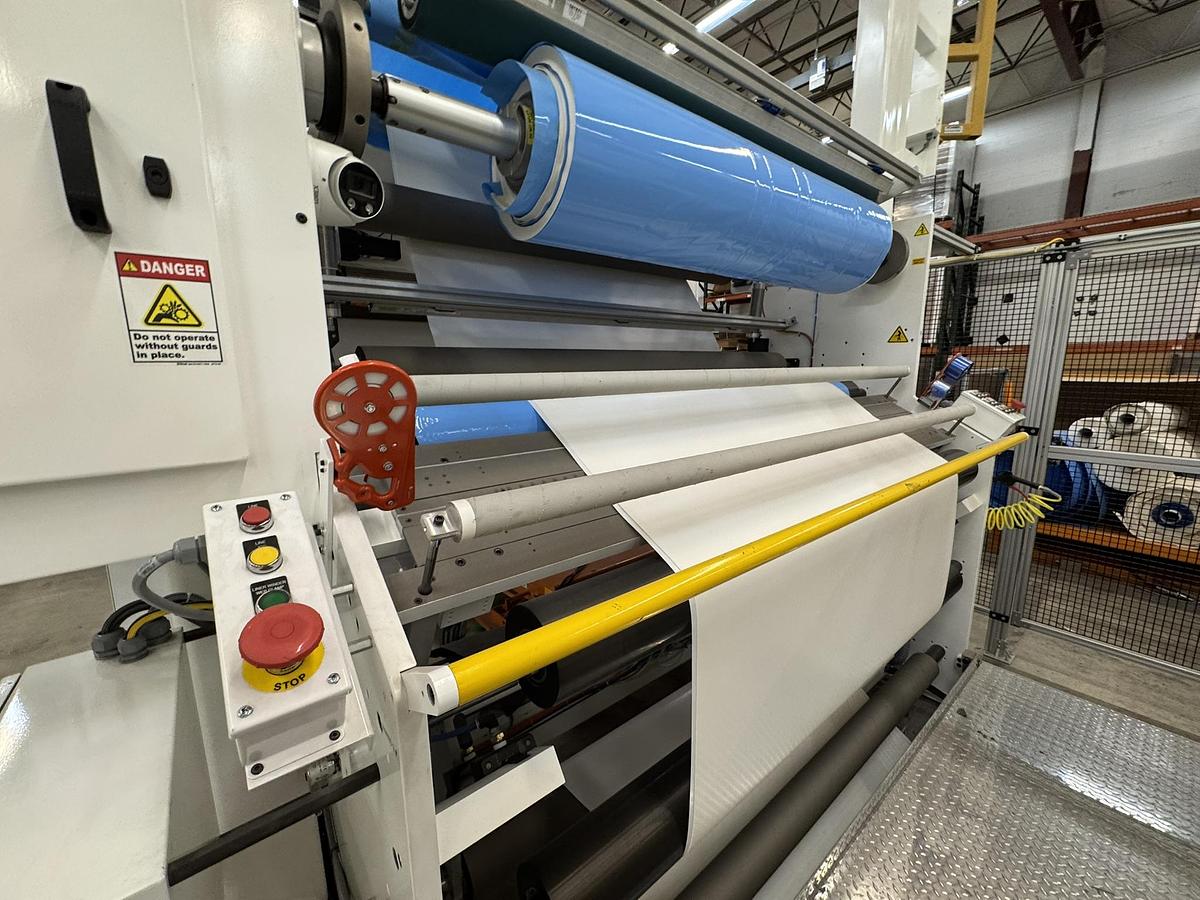

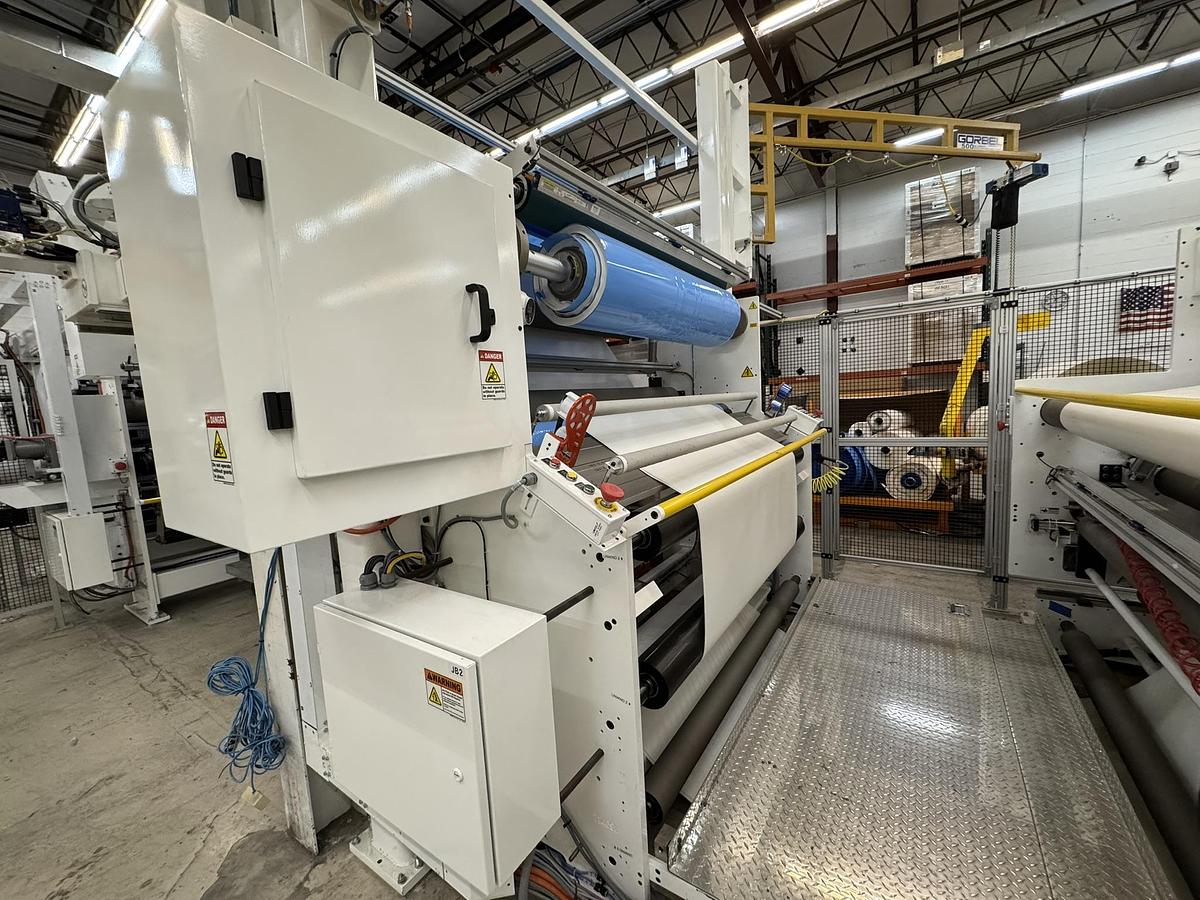

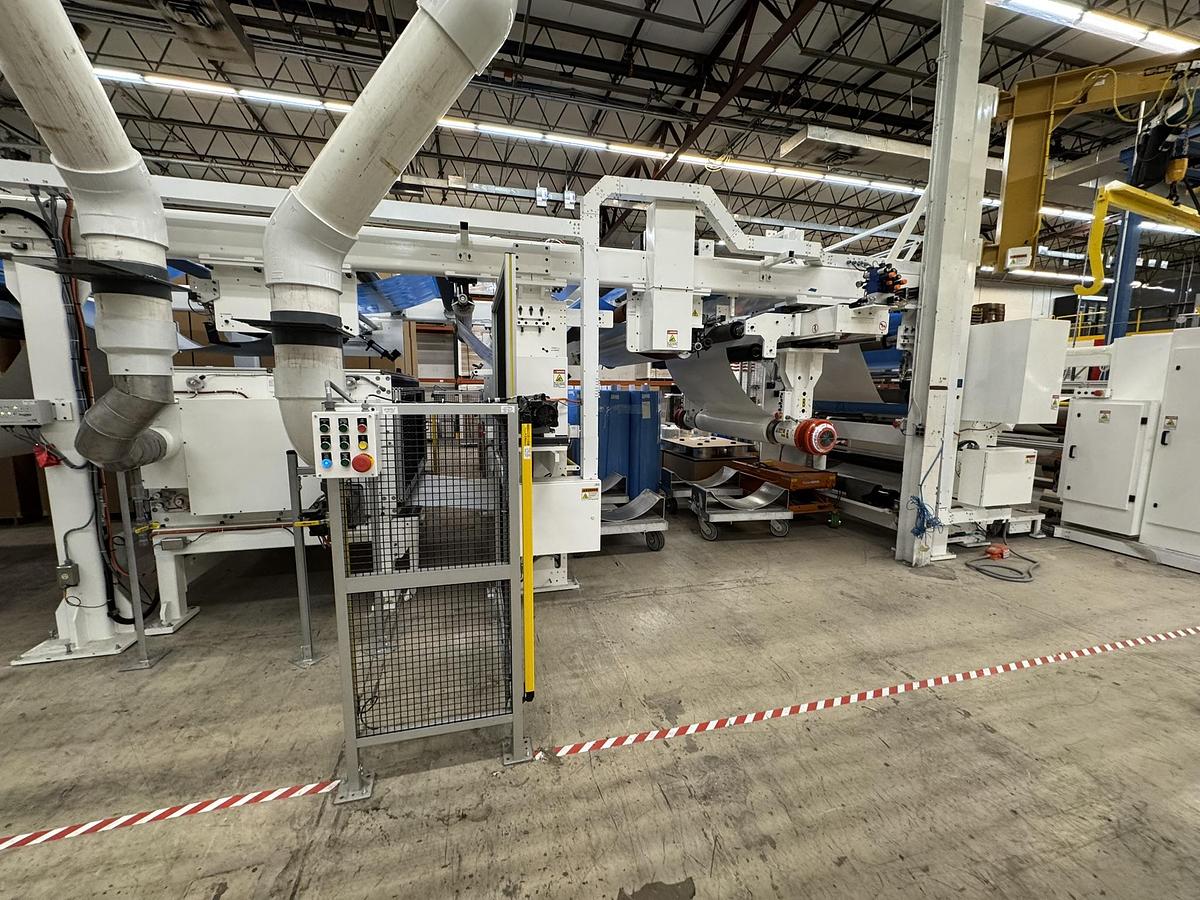

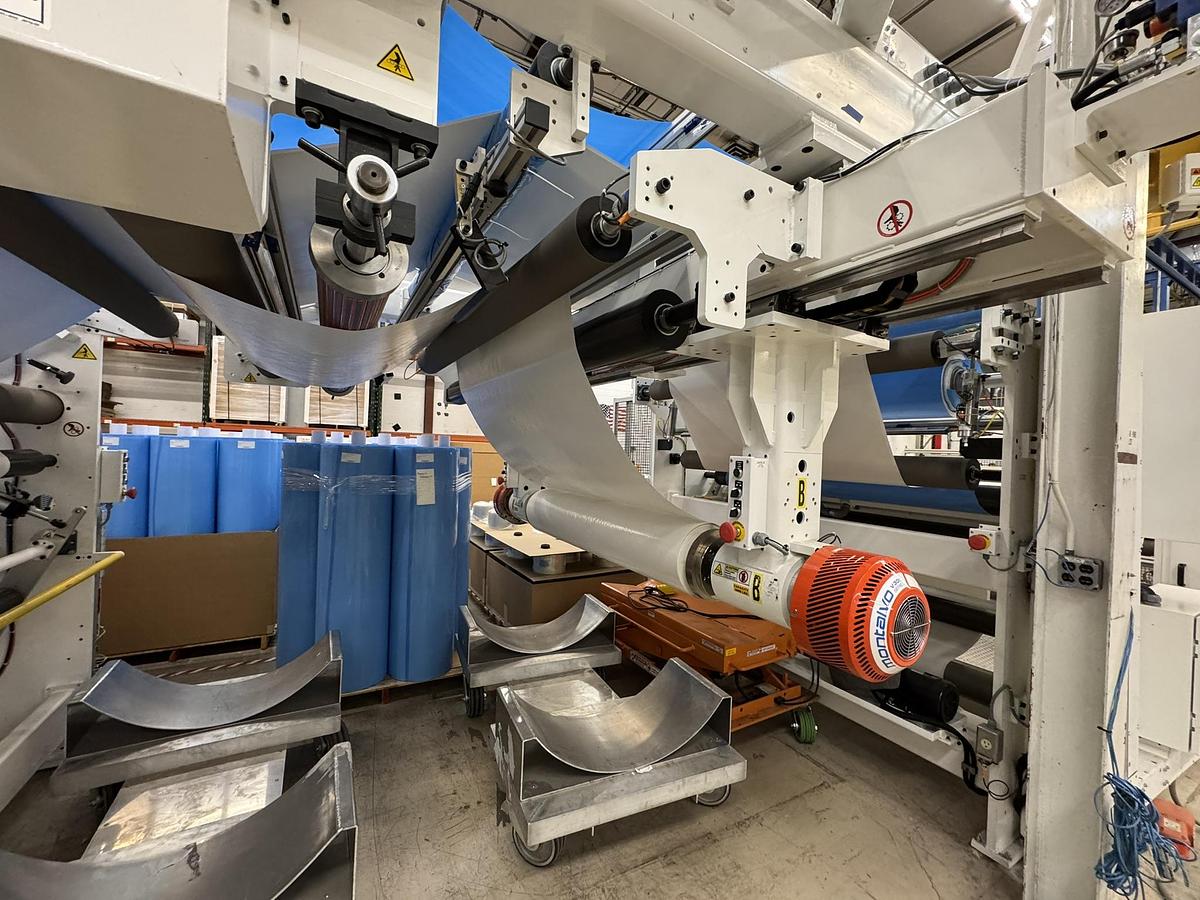

Catbridge 324 MC Turret Rewinder with Integrated Unwind and Laminator System

Manufacture Date: Apr 2023

Machine Hours: 24

Includes 3 Unwinds, 2 Laminators, 1 Scrap Rewind and 1 Finished Product Rewind

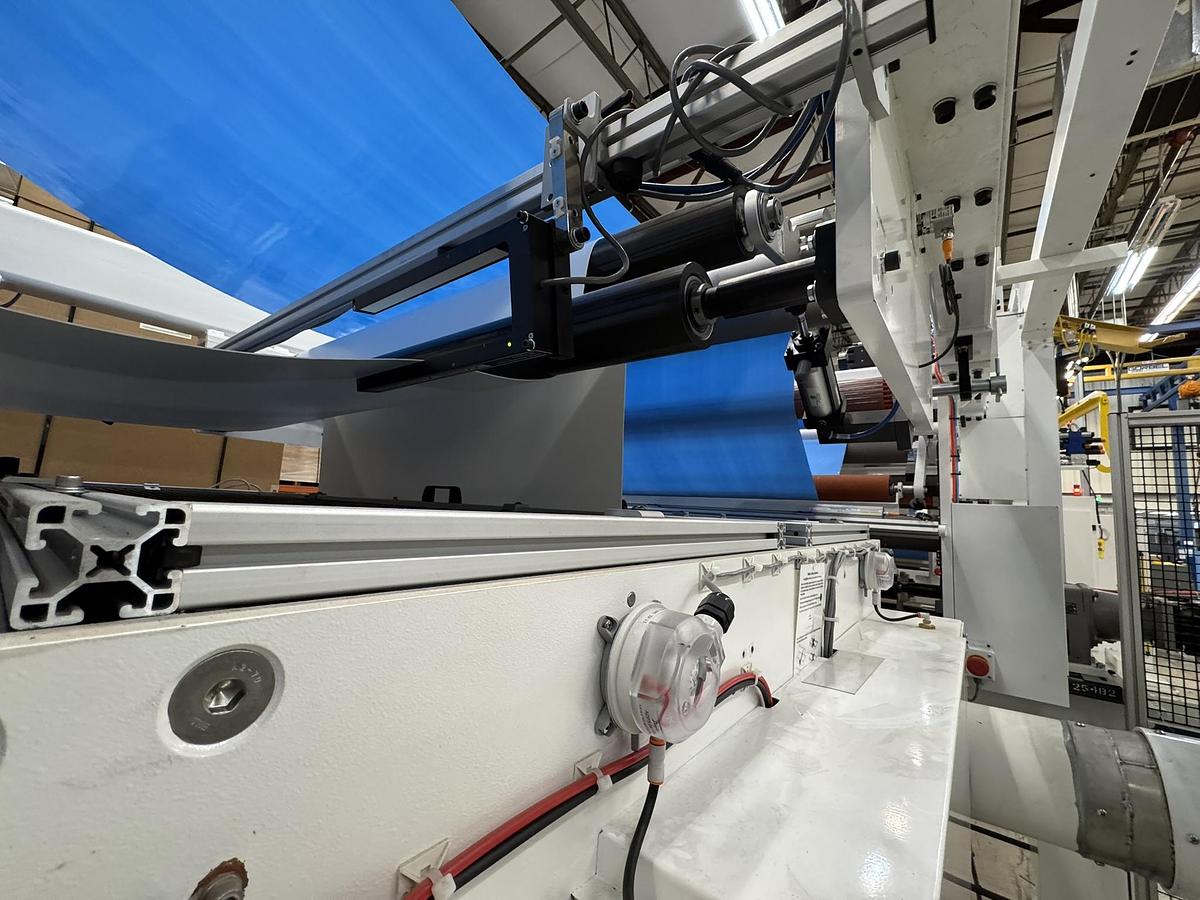

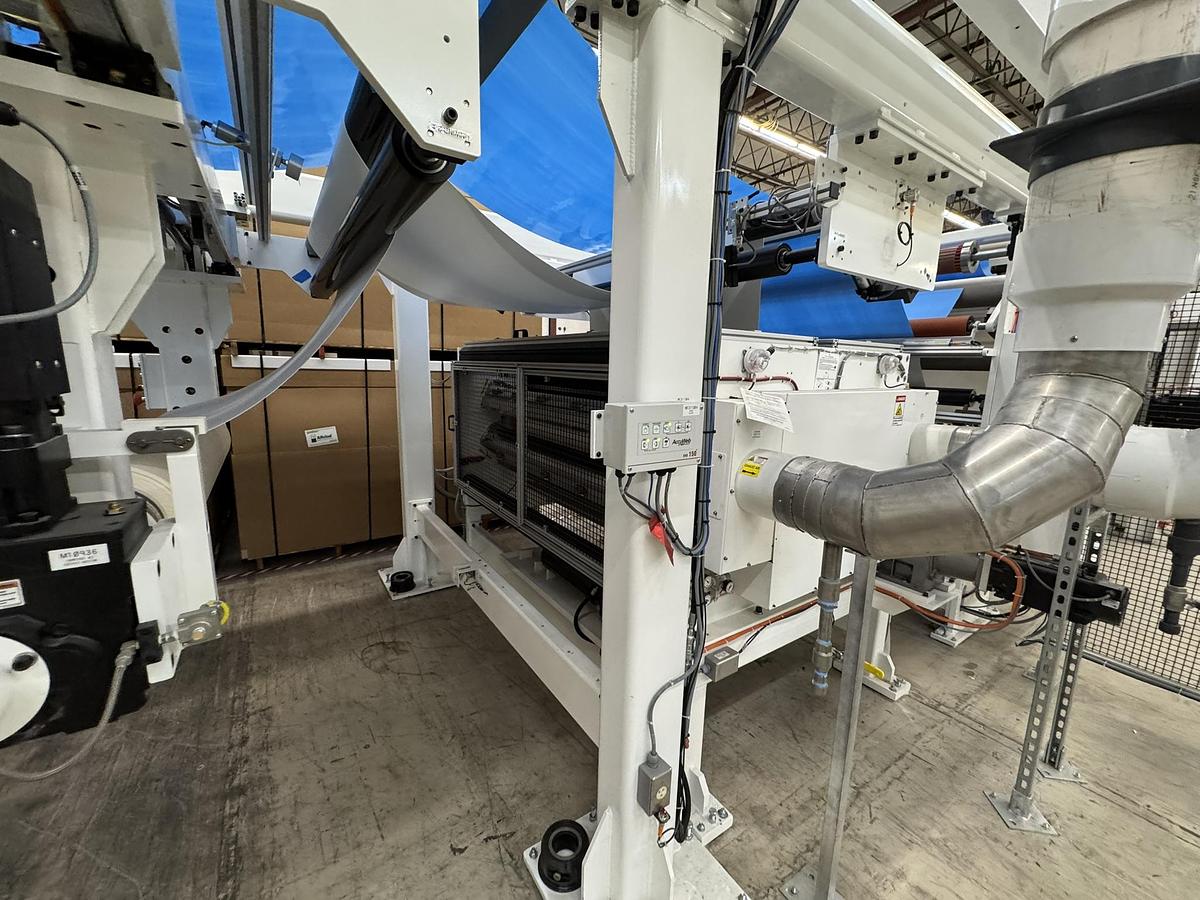

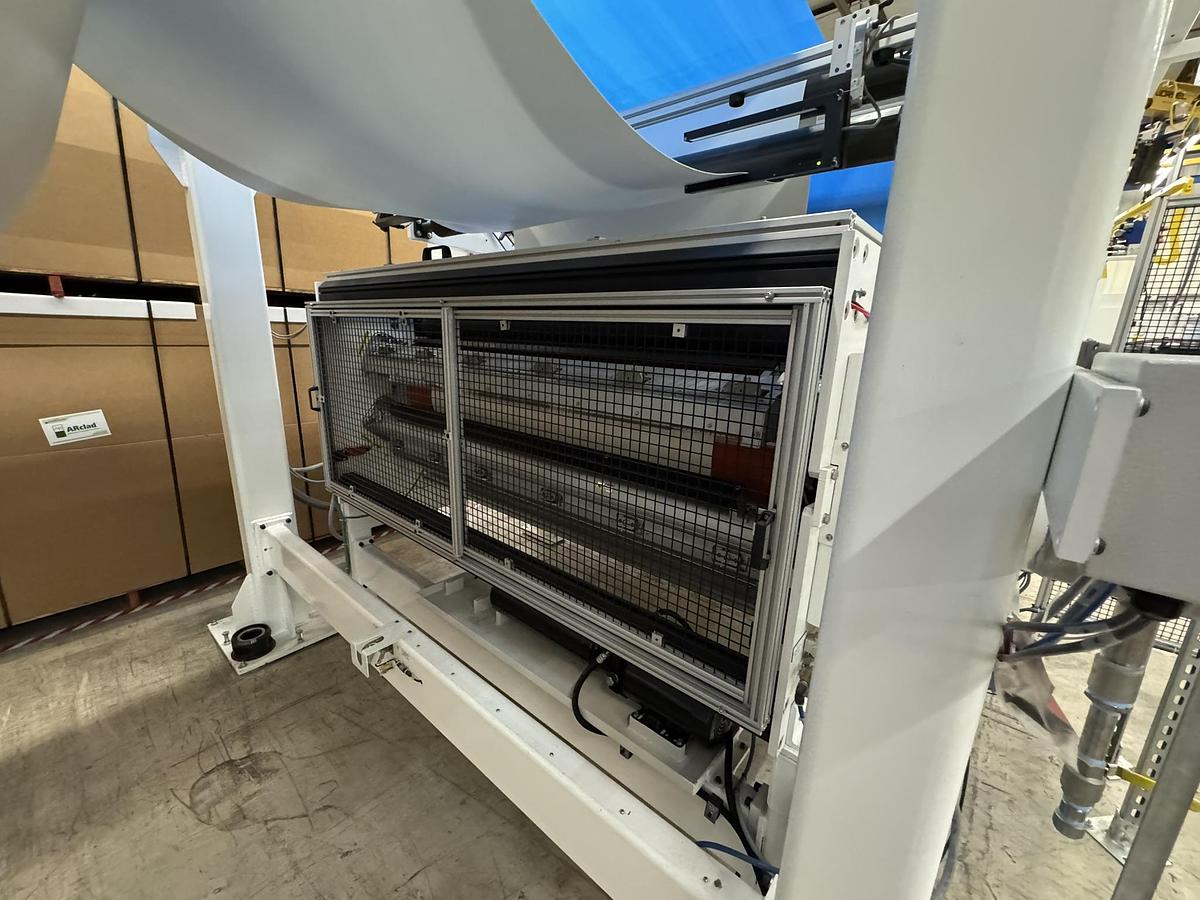

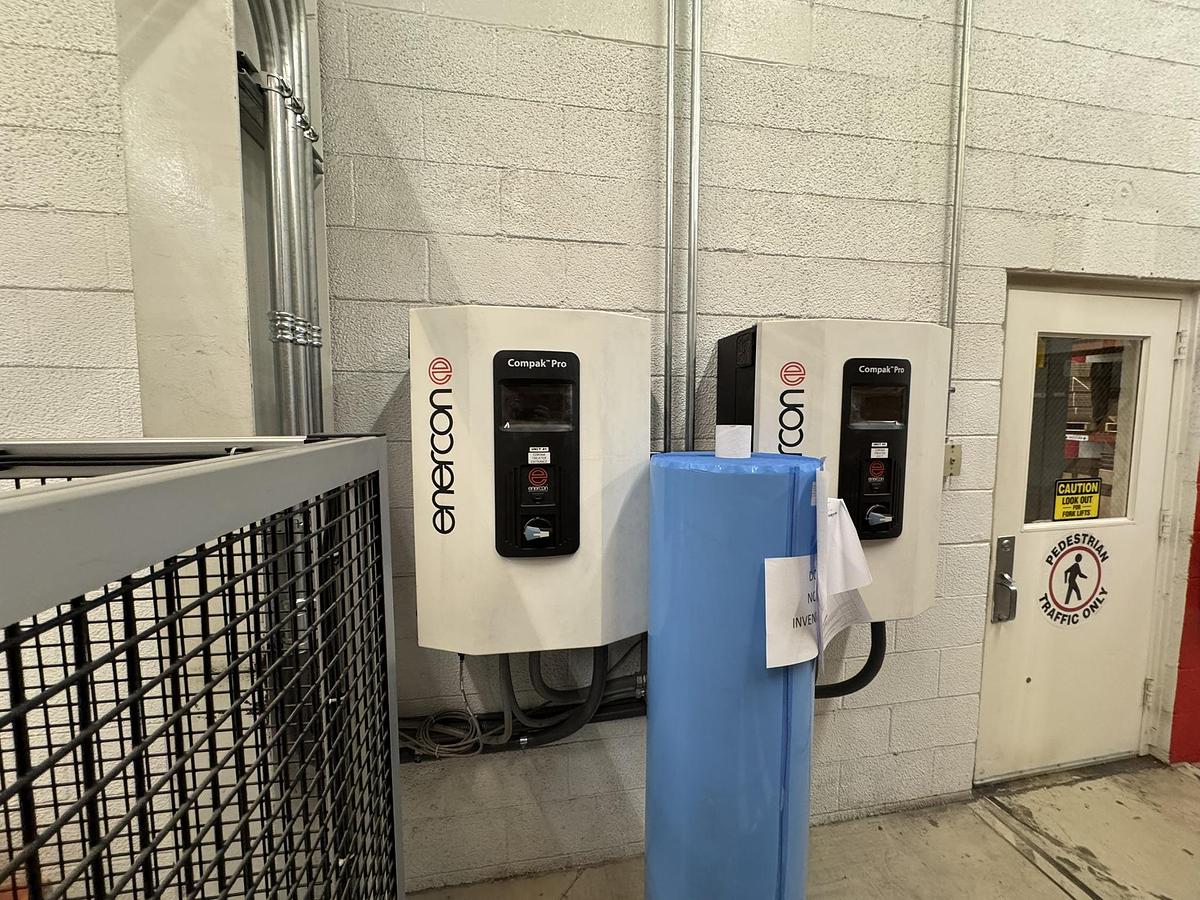

Unwind #2 is driven and includes Enercon Dual-Sided, Dual Emitter Corona Treater system (Adjustable treatment width (Max treat width = 66.5”)

Splice table for making final construction splices.

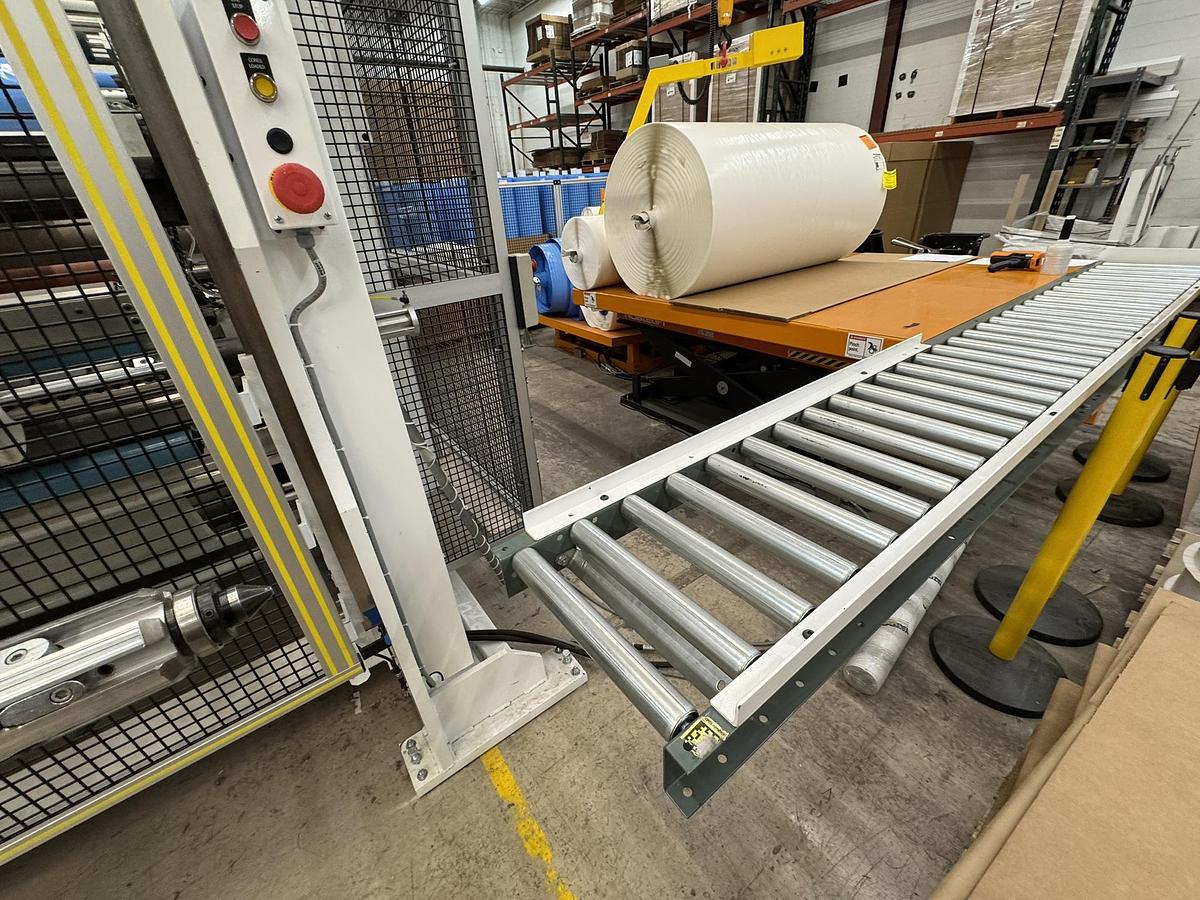

Pack-out cell includes Conveyor, roll-handling hoist and Upender

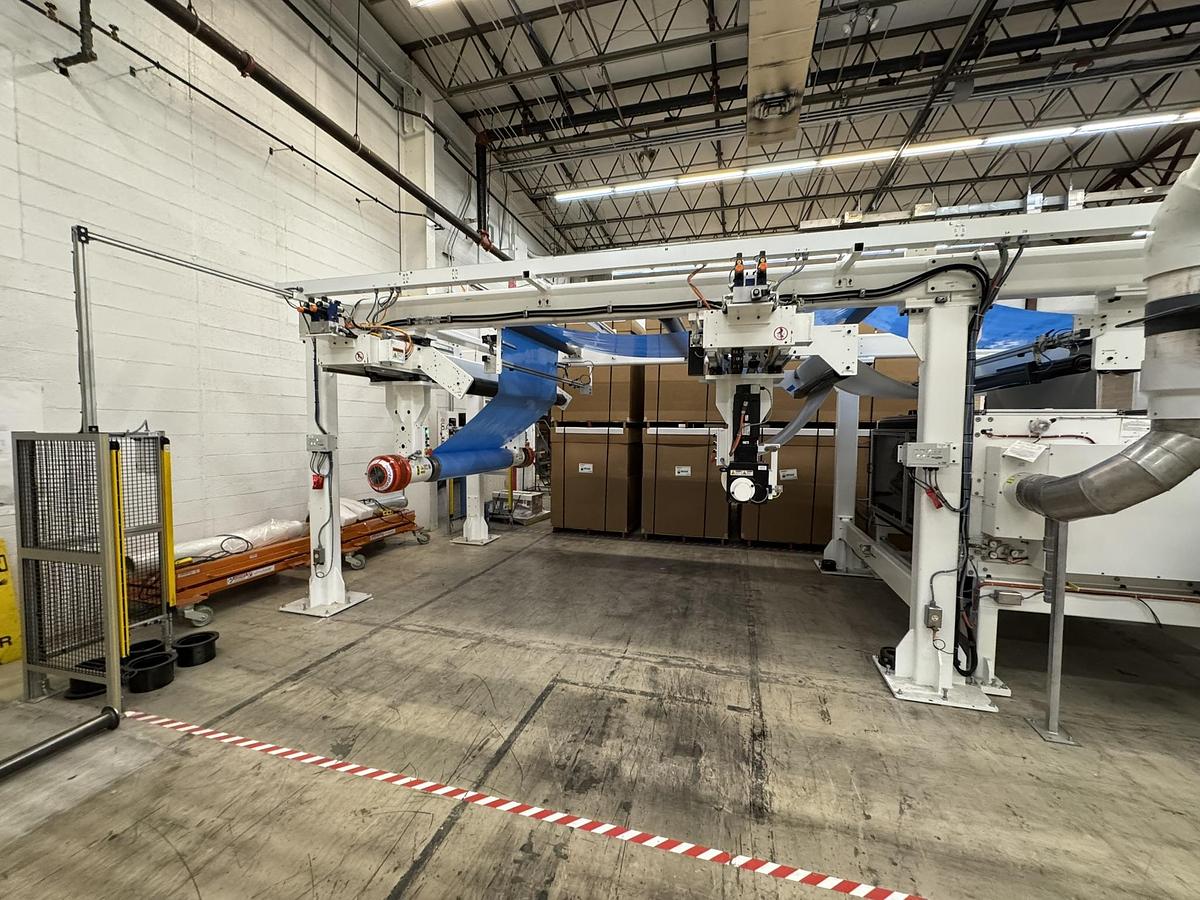

Includes 2-1/2 Ton Monorail Overhead Lift and Roll Cart System for transporting materials in and out of winders

Operating Speed: 15 – 300 FPM

Web Width: 22 – 72”

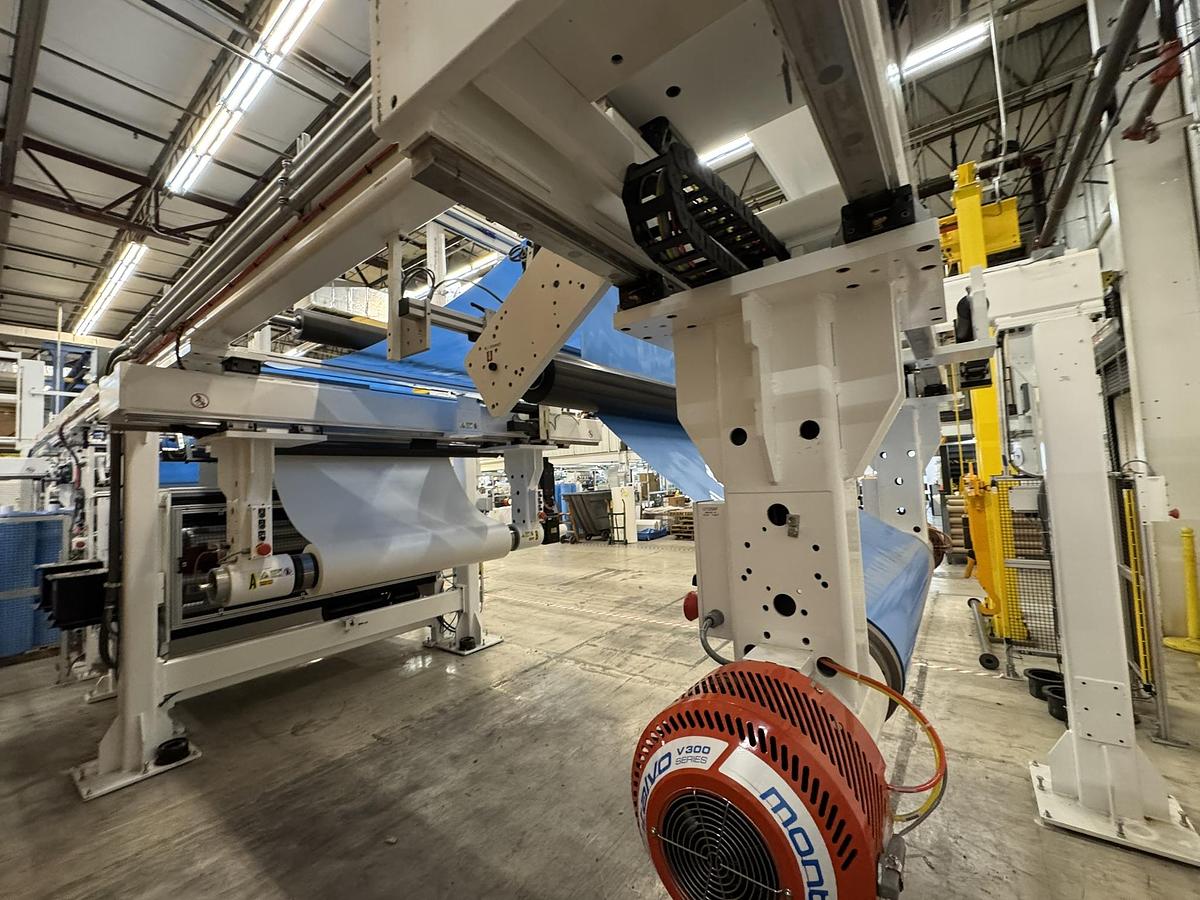

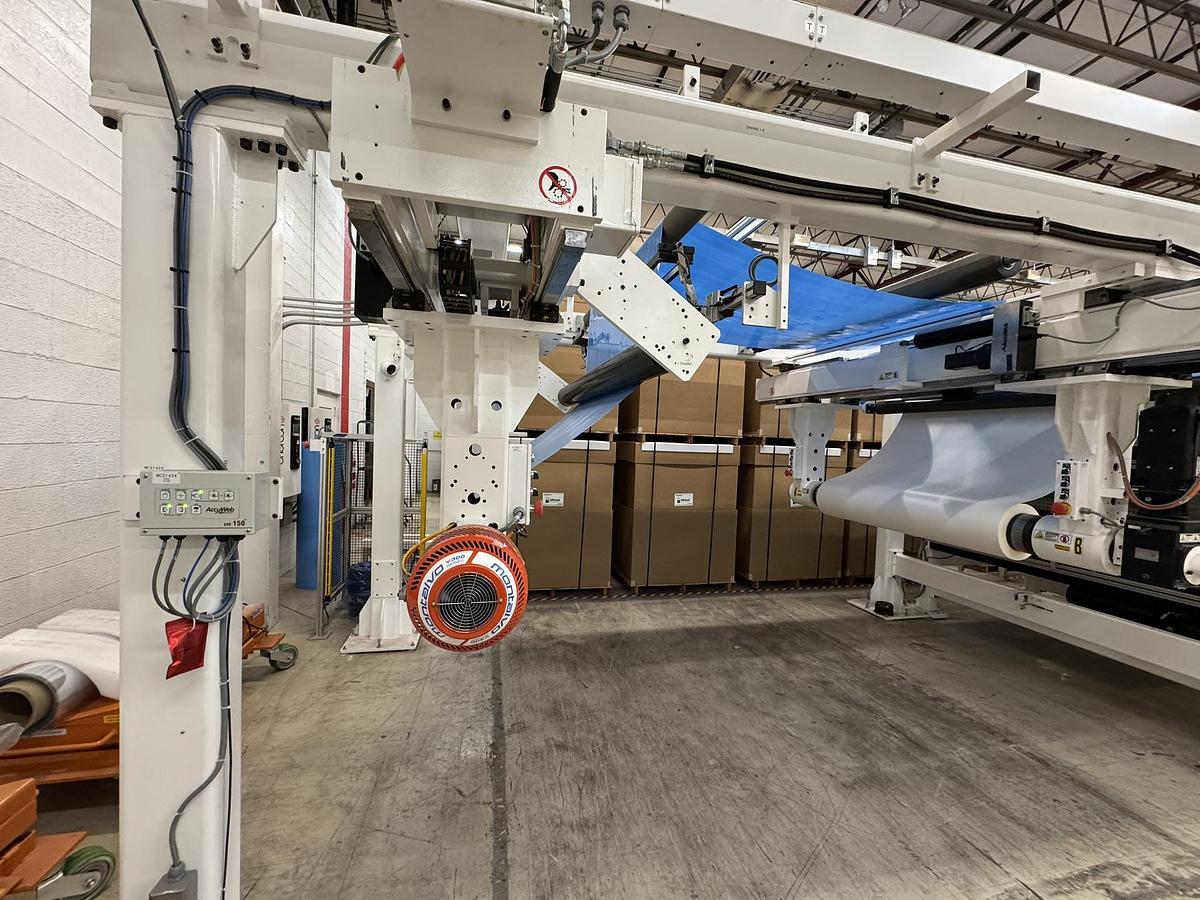

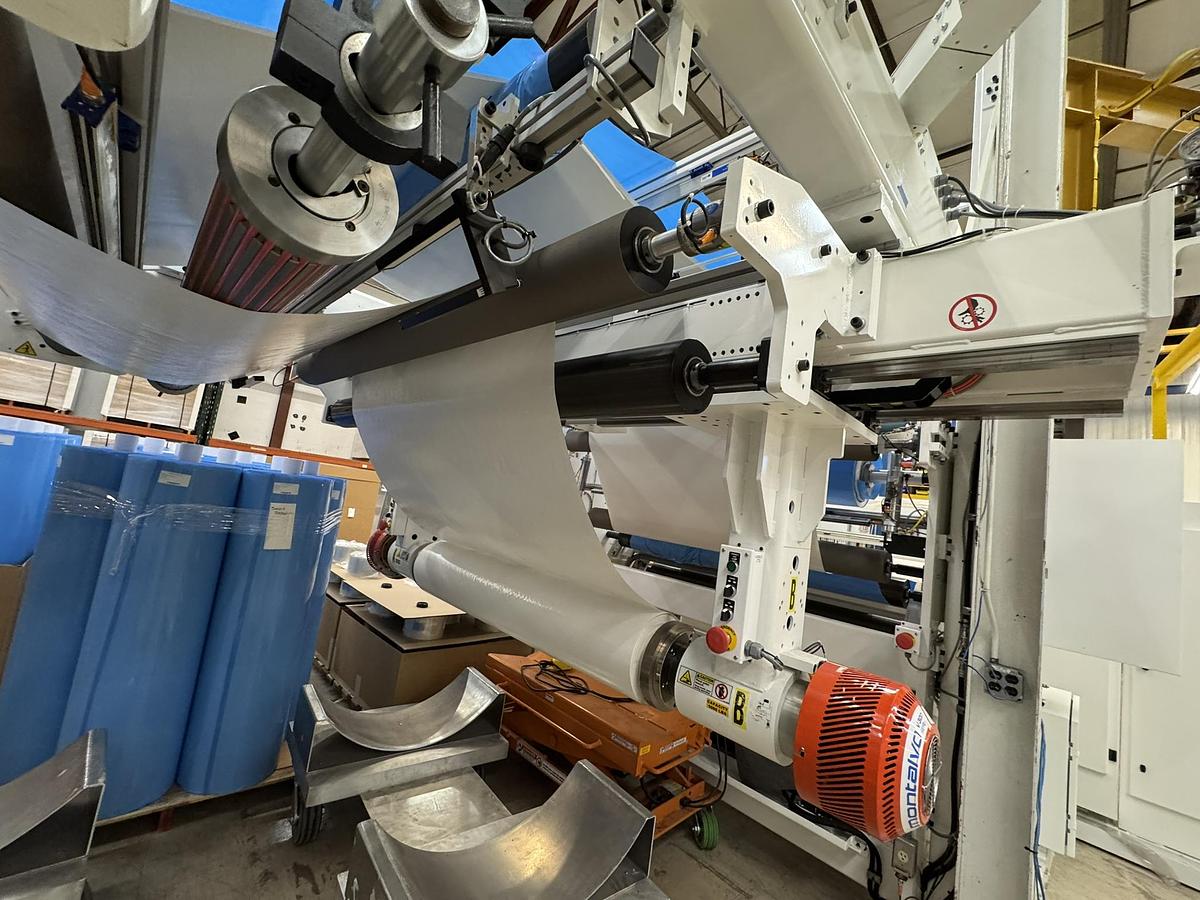

Unwind Specifications:

40” maximum roll diameter (2nd unwind is driven and capable of 50” maximum roll diameter)

5,000 lbs maximum roll weight

Shaftless design with 3” core chucks and 6” adaptors

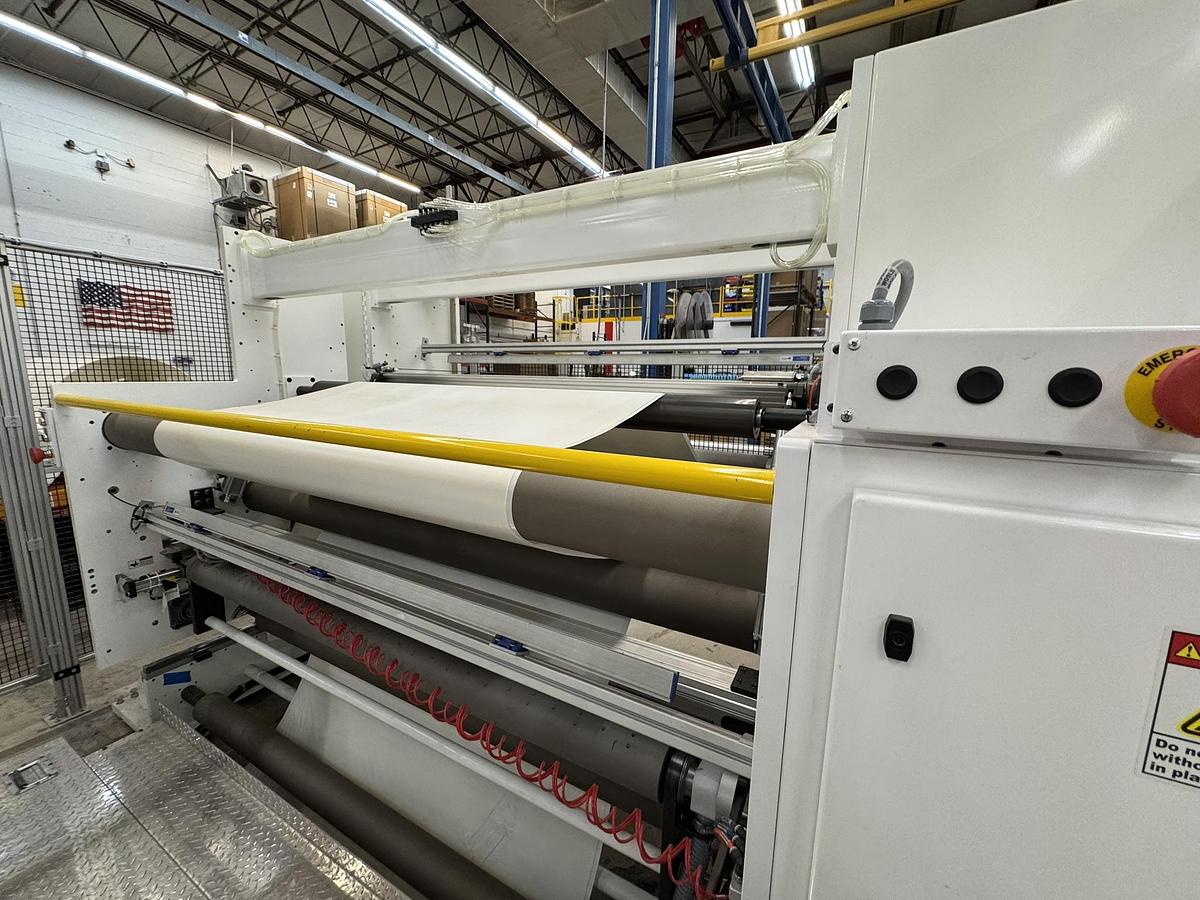

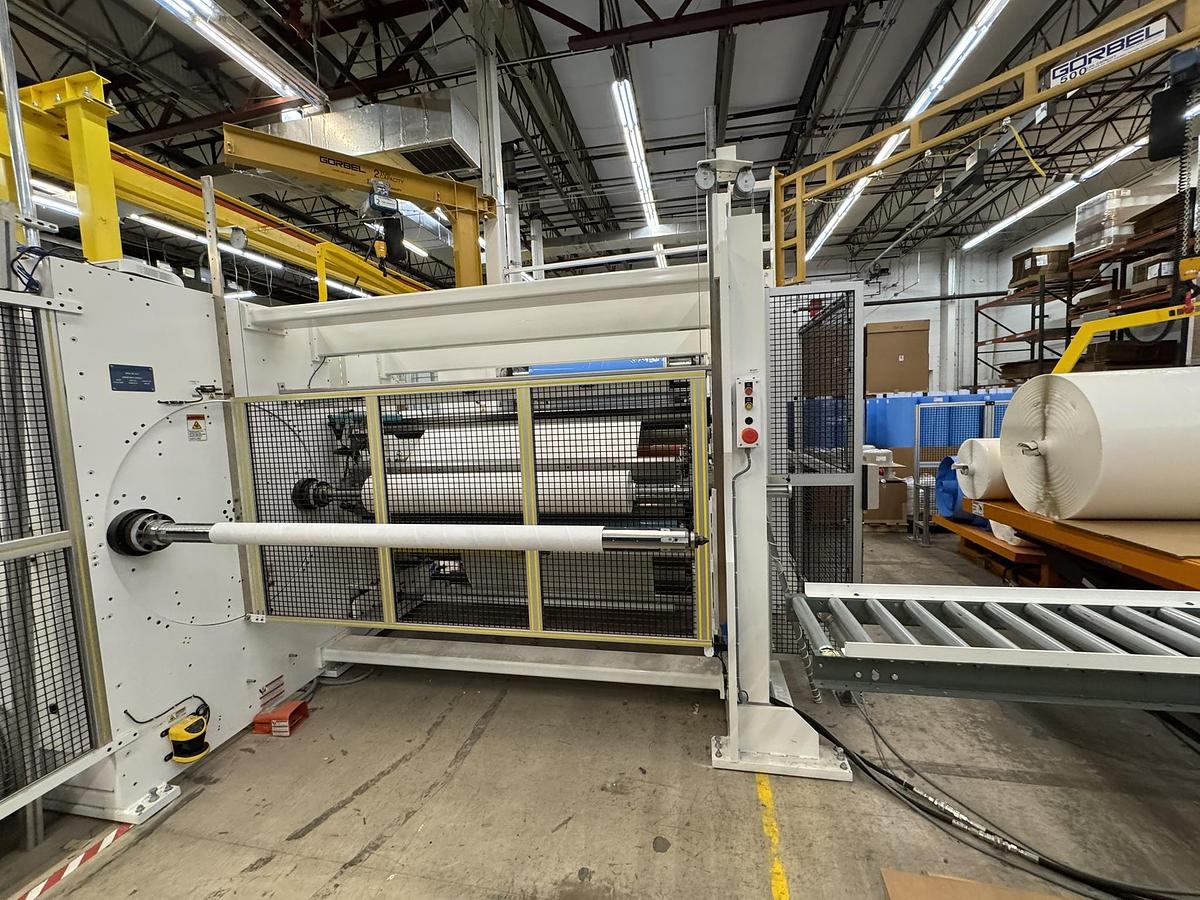

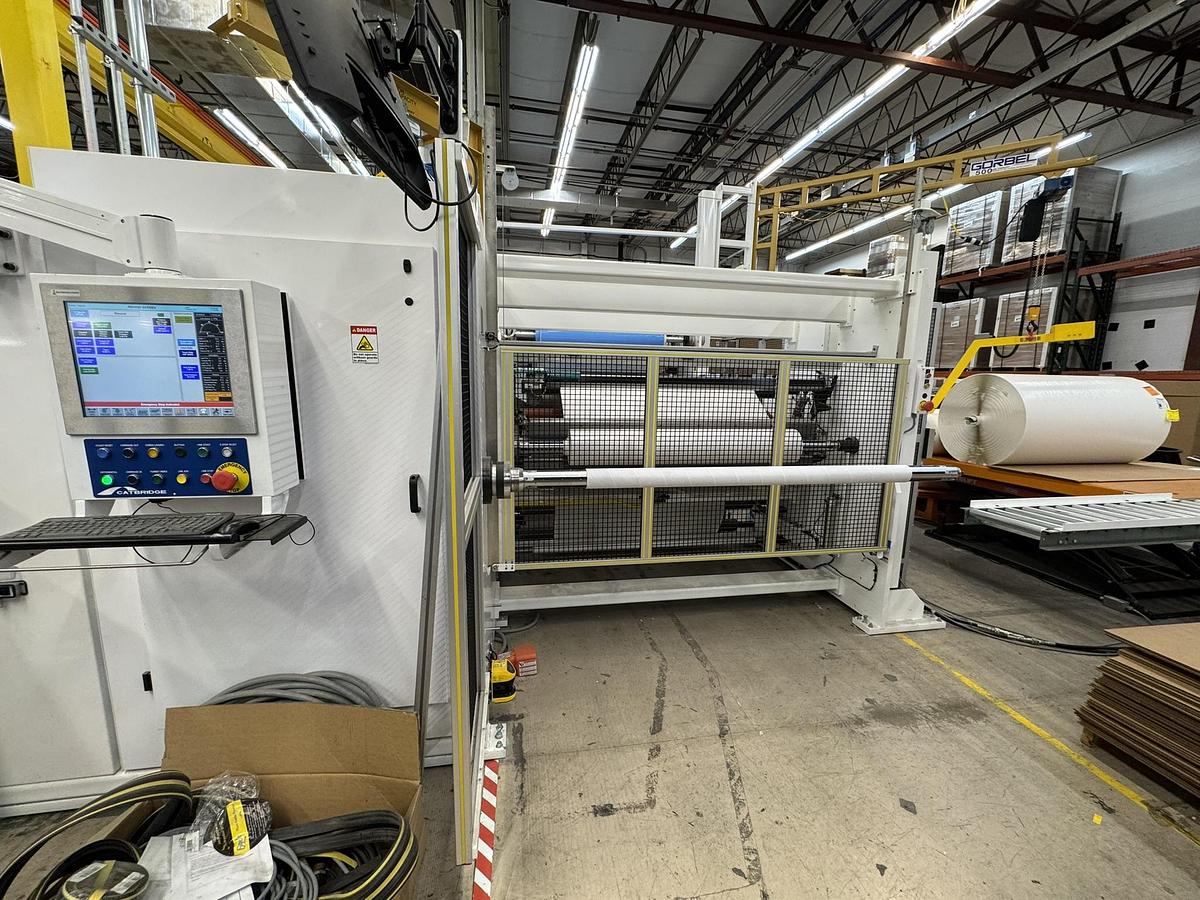

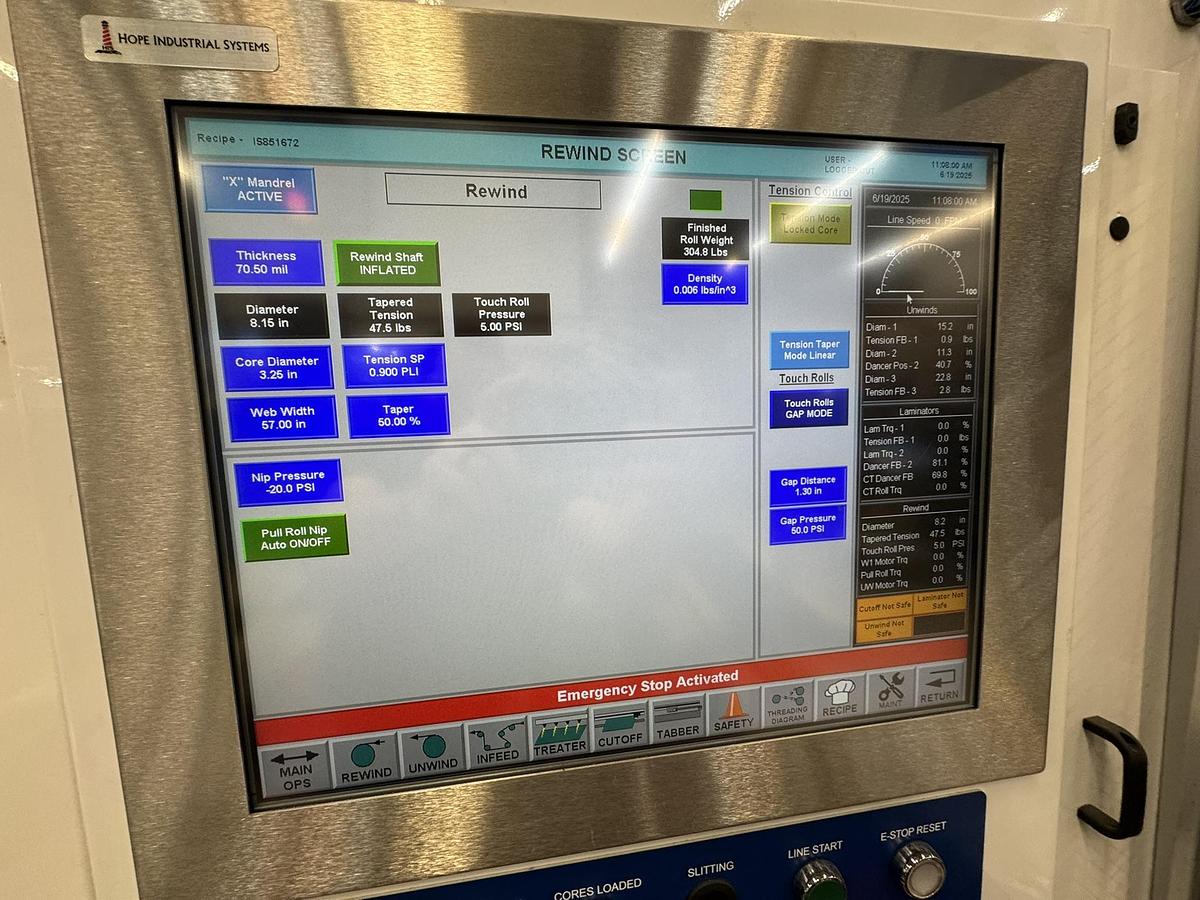

Rewind Specifications:

36” maximum roll diameter (24” max for continuous running)

350 lbs maximum roll weight

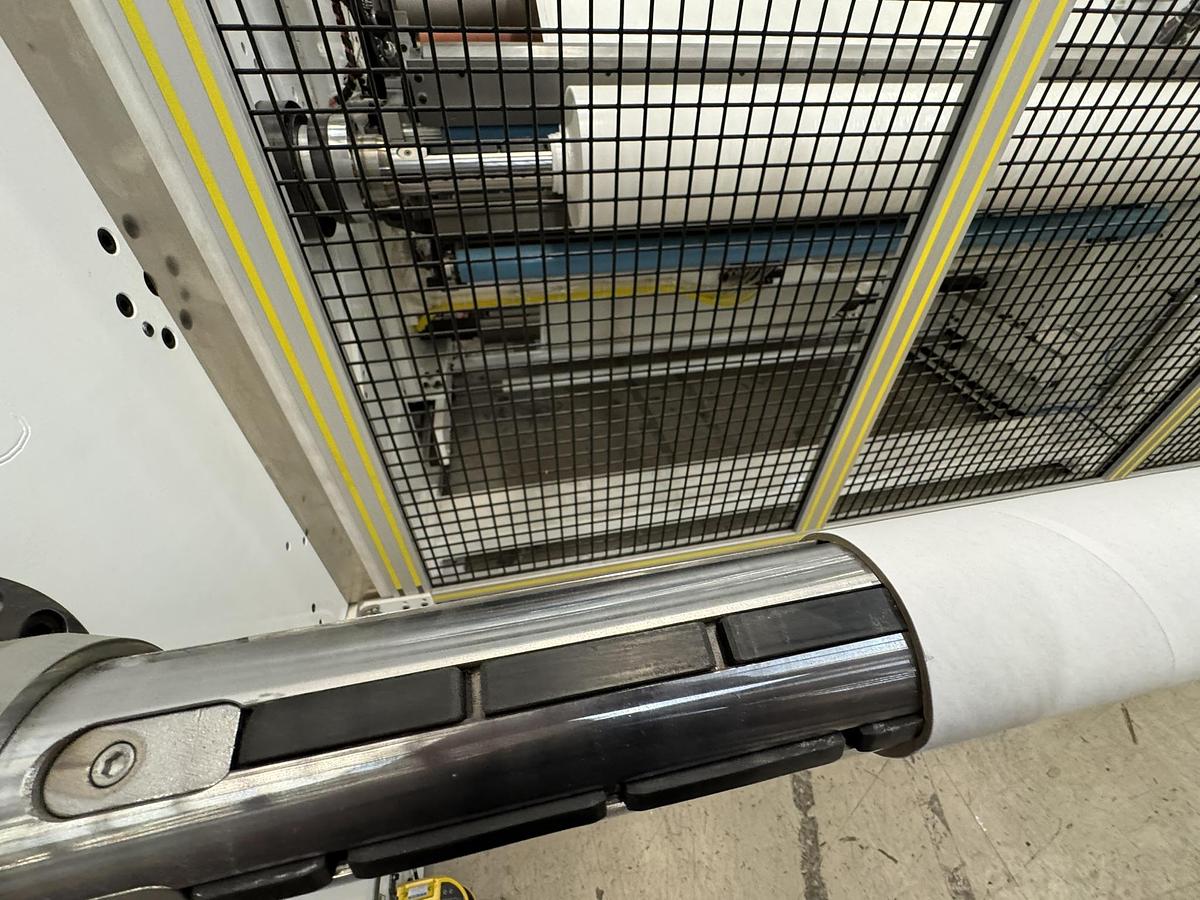

3” lock-core rewind shafts

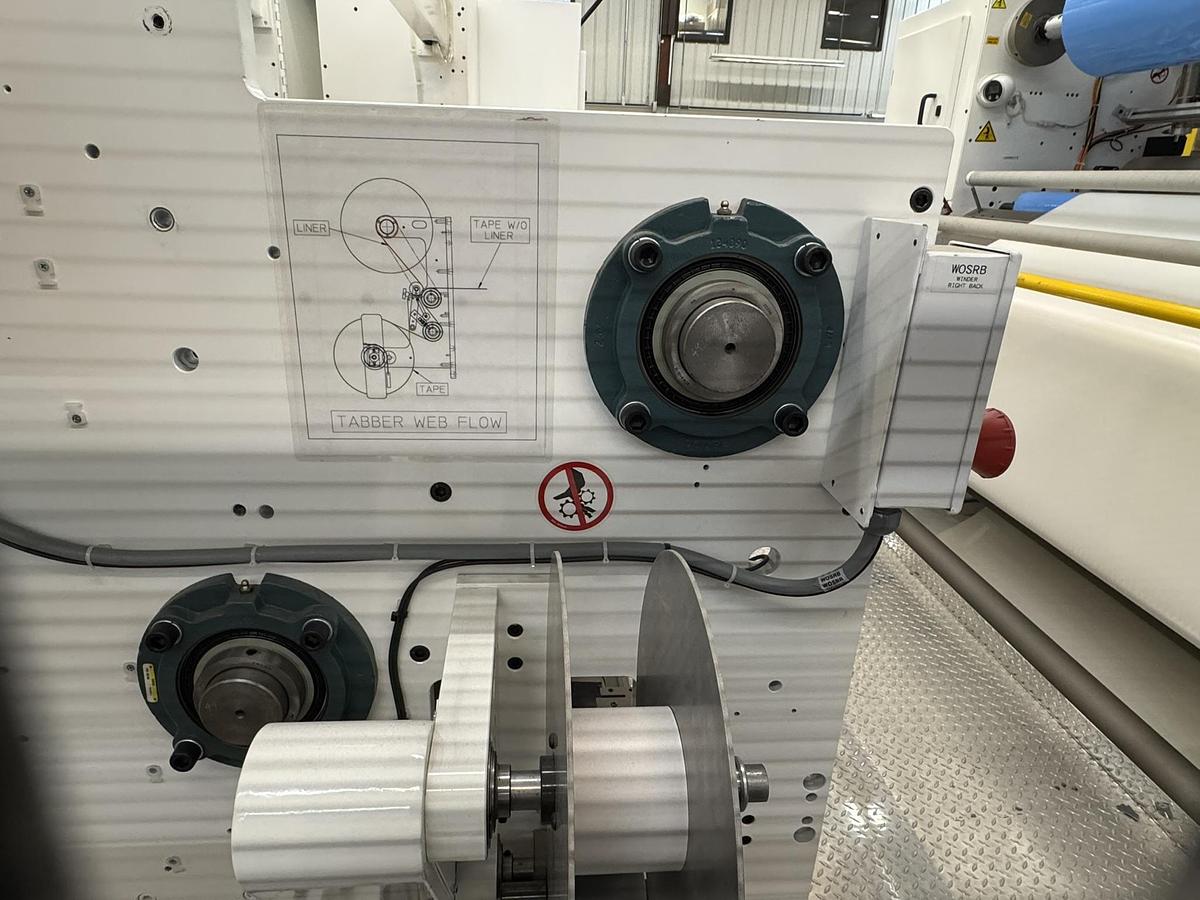

Turreted rewind built for continuous running of log rolls (Tabber system with cut/paste mechanism)

Specifications

ManufacturerCATBRIDGE
Model324
Year2023
ConditionUsed
Stock Number110364
