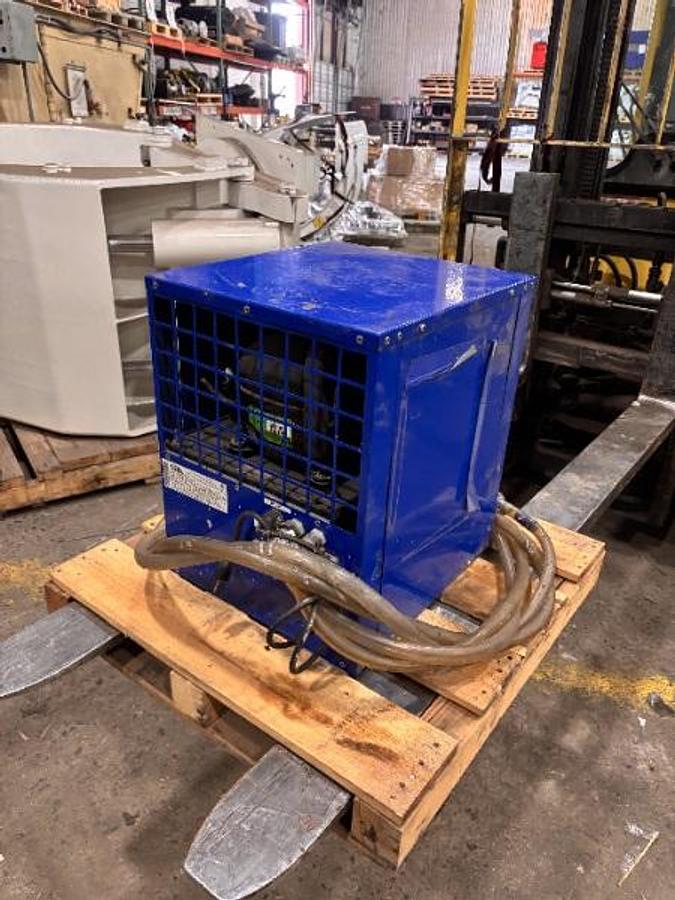

2021 NORTH SLOPE CHILLERS NSC0330-FROST PORTABLE 4,000 BTU INDOOR UNIT

NORTH SLOPE CHILLERS

MODEL NSC0330-FROST

INDOOR CHILLER

COOLING CAPACITY 4,000 BTU/HOUR

120VAC SINGLE PHASE 60HZ

CONDENSING UNIT 1/3HP

PREMIUM INDUSTRIAL 1/3TON (4,000BTU/HR 65f FLUID) PORTABLE CHILLER SYSTEM. FANTASTIC ENTERY-LEVEL UNIT FOR SMALLER TEMPERATURE CONTROL PORJECTS. THIS IS AN AIR-COOLED CLOSED LOOP CHILLING UNIT.

Weights & Dimensions

Length18 " Width16-1/4"

Height 22-1/2" Weight112 lbs

Product Details TypeAir-Cooled Portable Industrial Fluid Chiller Horsepower1 HP Color Blue Refrigerant R134aBTU Cooling 4000 Voltage120 V

Material Steel Phase1Ton1/3 Manufacturers Part NumberNSC0330-110/1Indoor North Slope Chillers

FEATURES FROM MANUFACTURER:

• Cooling Capacity @ 90°F - 90°F
• Ambient 25°F (-3.9°C) - 500 BTU/hr (150 Watts) 45°F (7.2°C) - 2,300 BTU/hr (670 Watts)
• Ambient Temperature (Standard) 35°F - 100°F
• Pump Performance: 0 GPM @ 17 PSI, 3.3 GPM @ 13 PSI, 6.6 GPM @ 5 PSI
• Additional Features: Access Ports, Service Valves, Filter Drier, Thermostatic Expansion Valve (TXV)
• Working Temperature Range: 25°F(-4°C) to 65°F(18°C)
• Cooling Capacity @ 90°F Ambient : 25°F (-3.9°C) - 500 BTU/hr (150 Watts) 45°F (7.2°C) - 2,300 BTU/hr (670 Watts)
• Controls: Electronic Programmed Temperature Controller with Constant (Setpoint & Process) Temperature Readout
• Additional Features: Fluid Level Indicator
• Compressor: Danfoss Reciprocating
• Heat Exchanger: Brazed Plate Heat Exchanger
• Refrigerant: R134a
• Max Heat Rejection: 5,100 btu/hr (1.5 kW)
• Pump: Continuous Duty, 60 Watt Centrifugal Pump
• Inlet/Outlet: 5/8" BARBED
• Reservoir: 2.5 Gallon Poly Tank
• Additional Features: Inline Strainer, Reservoir, Fluid Temperature Sensor
• Frame: Galvanized Steel
• Enclosure: Powder Coated Steel Enclosure with Easy Access Panels
• Warranty:1 Year Standard Warranty
• UL/CSA Certified (Full Assembly): ETL 3170655, UL STD 1994, CAN/CSA STD, C22.2 No. 236
