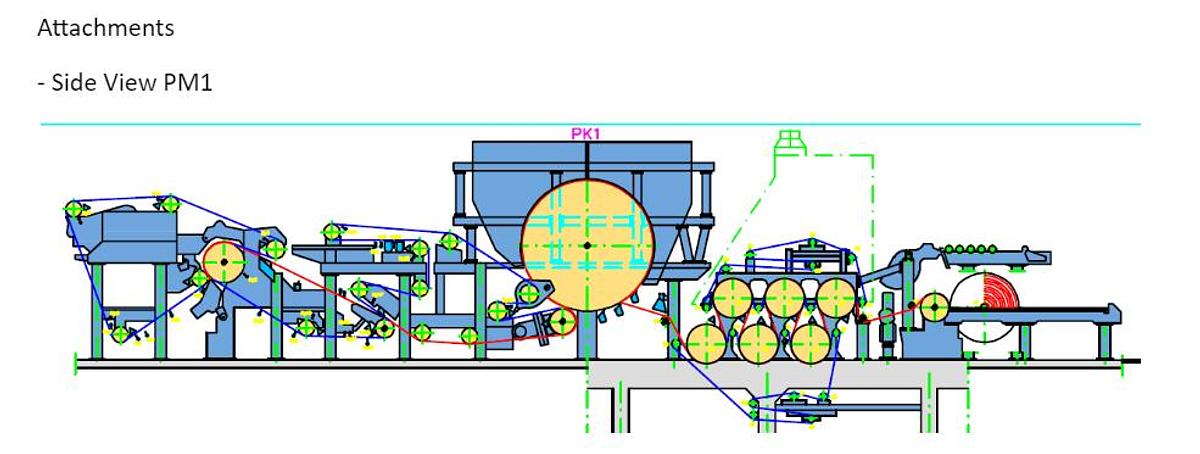

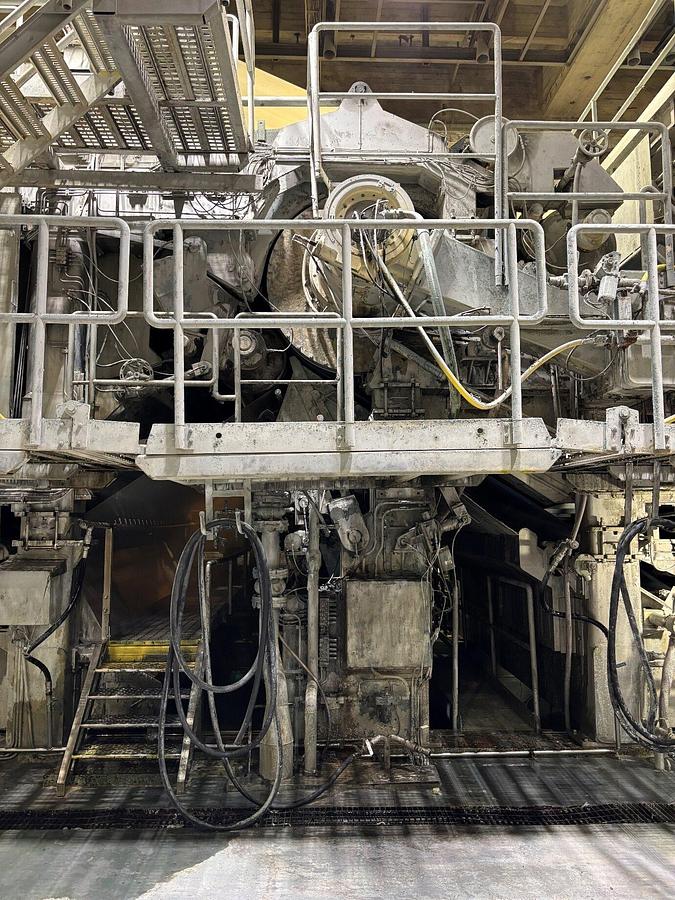

140" (3550mm) VALMET TISSUE MACHINE TWIN WIRE 100 TPD

TECHNICAL DATA

Manufacturer : Valmet

Type : Twin-wire, wet crep

Year of construction : 1988

Paper width on reel : 3460 mm

Production speed : up to 1300 m/min

Grammage : 17 to 50 GSM

Drying Capacity : 100 ton/day

Raw material : Virgin pulp / De-inked pulp

Drive voltage : 500 V 50 Hz

Machine Drive type : (DC-500 V)

Hood Drive type : ABB DC

DCS : Valmet DNA

Key products : hand towels, system towels and other tissue grades

SCOPE OF SUPPLY

HEADBOX:

Supplier :          Valmet

Pond side width: :   3550 mm

Layers: :            1

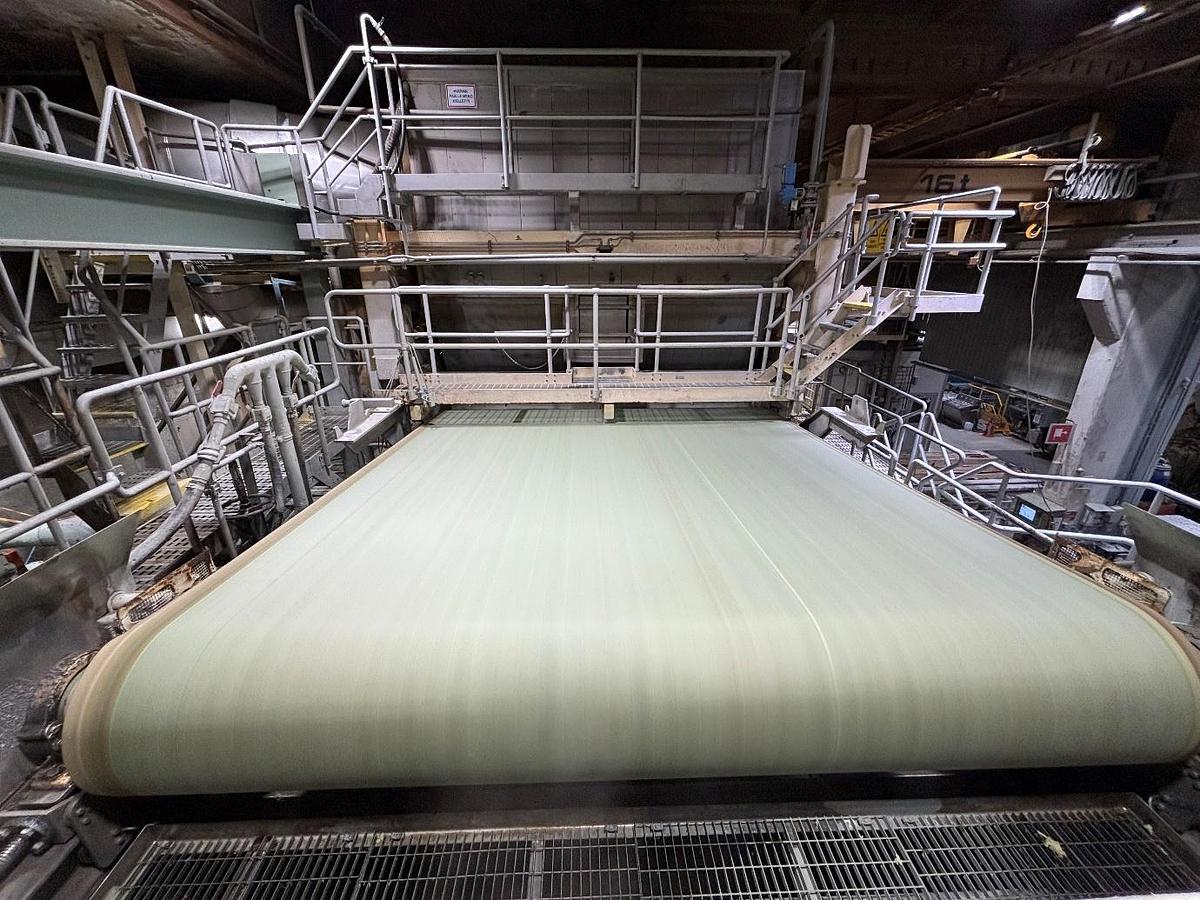

WET SECTION / PRESSING:

Suction press :      89 kN/m

Blind press :        89 kN/m

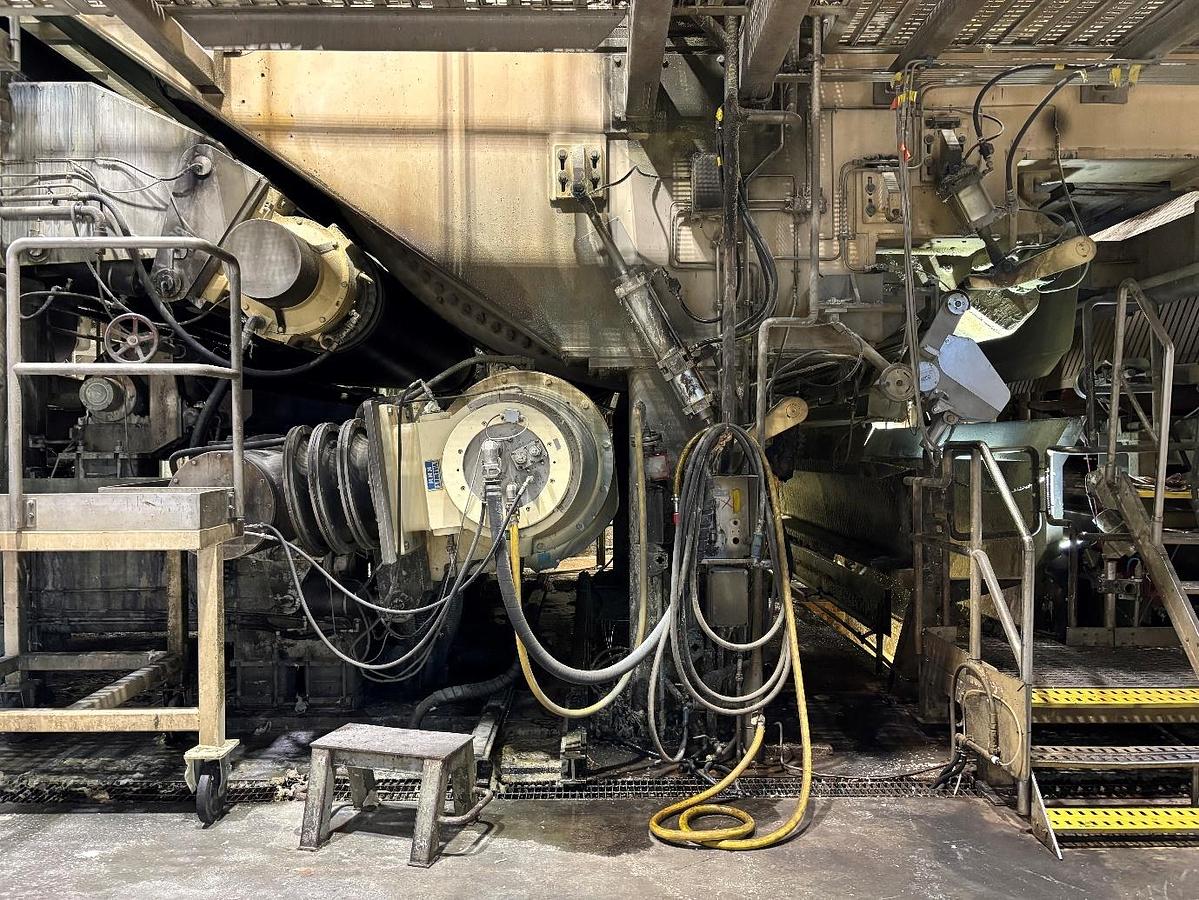

YANKEE CYLINDER:

Diameter :          4871,2 mm

Width :             4000 mm

Max Pressure :       6,2 Bar

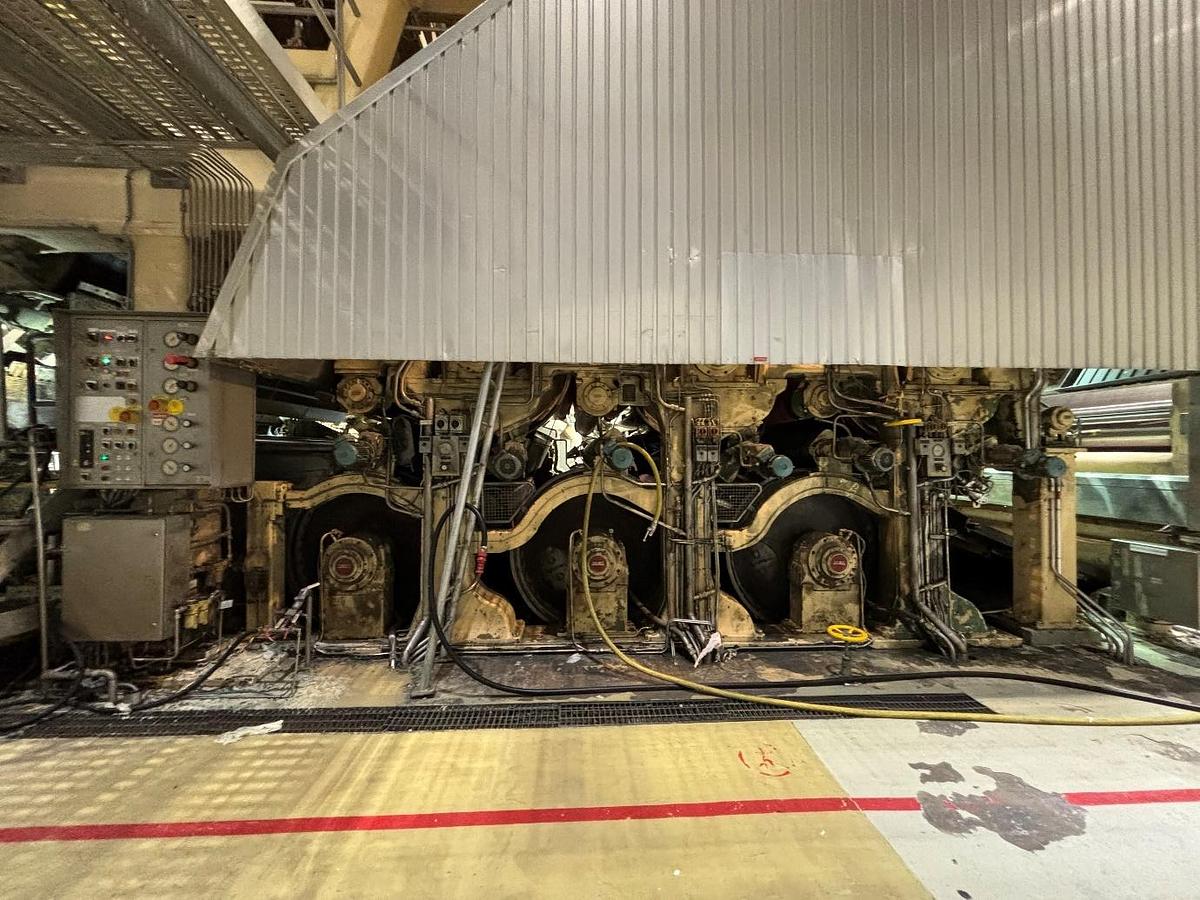

DRYING HOODS:

Brand :              Valmet

Energy :              Gas / max temp 500 °C

Profiling :             No

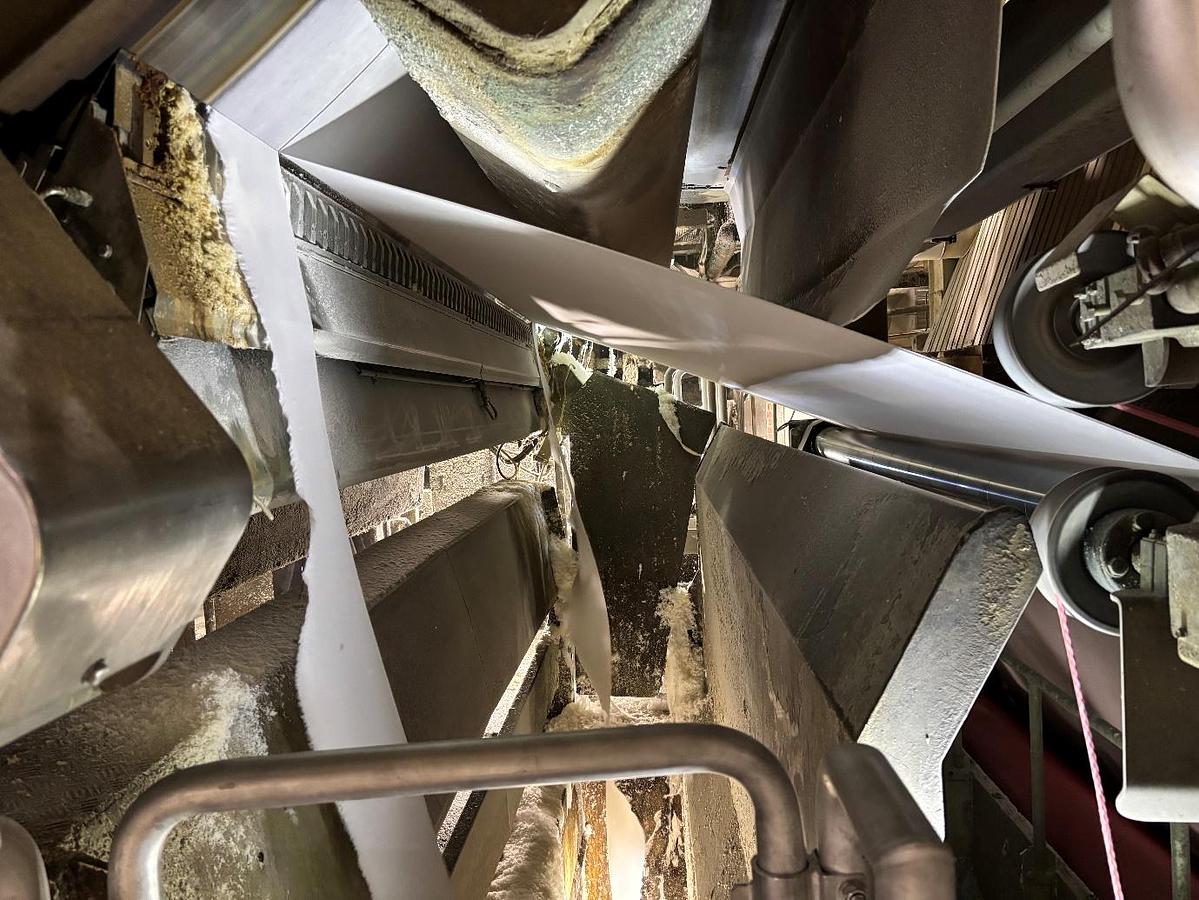

DOCTOR BLADE:

No 1. Cutting

No 2. Creping with oscillation

No 3. Cleaning

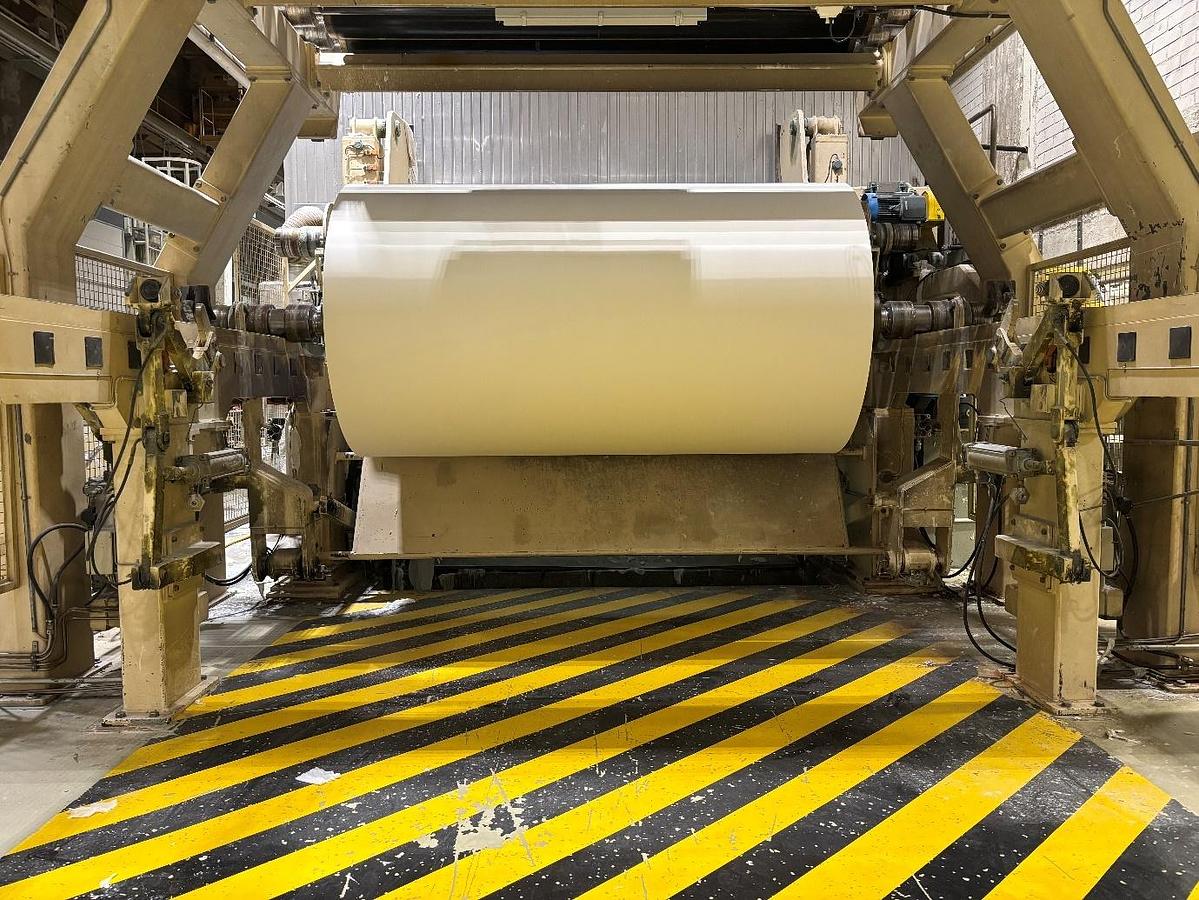

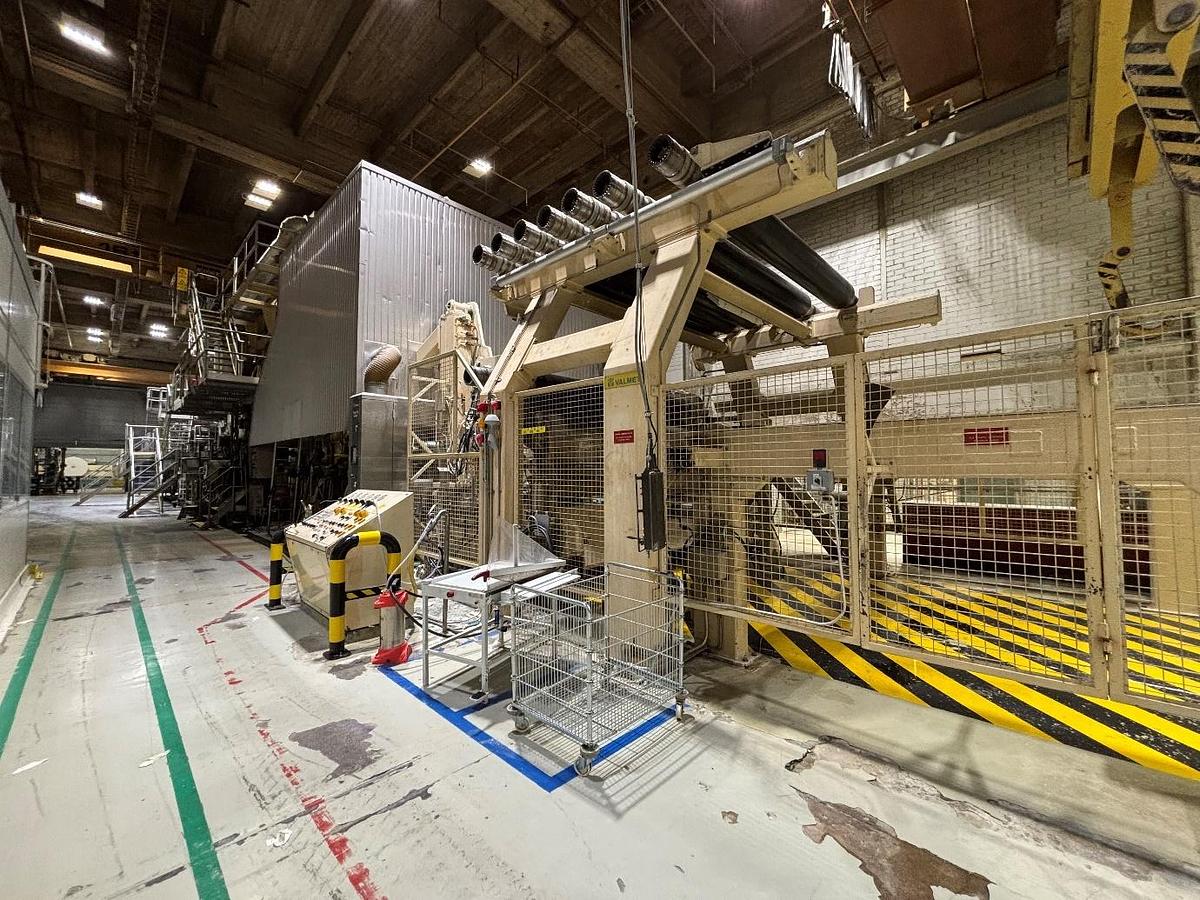

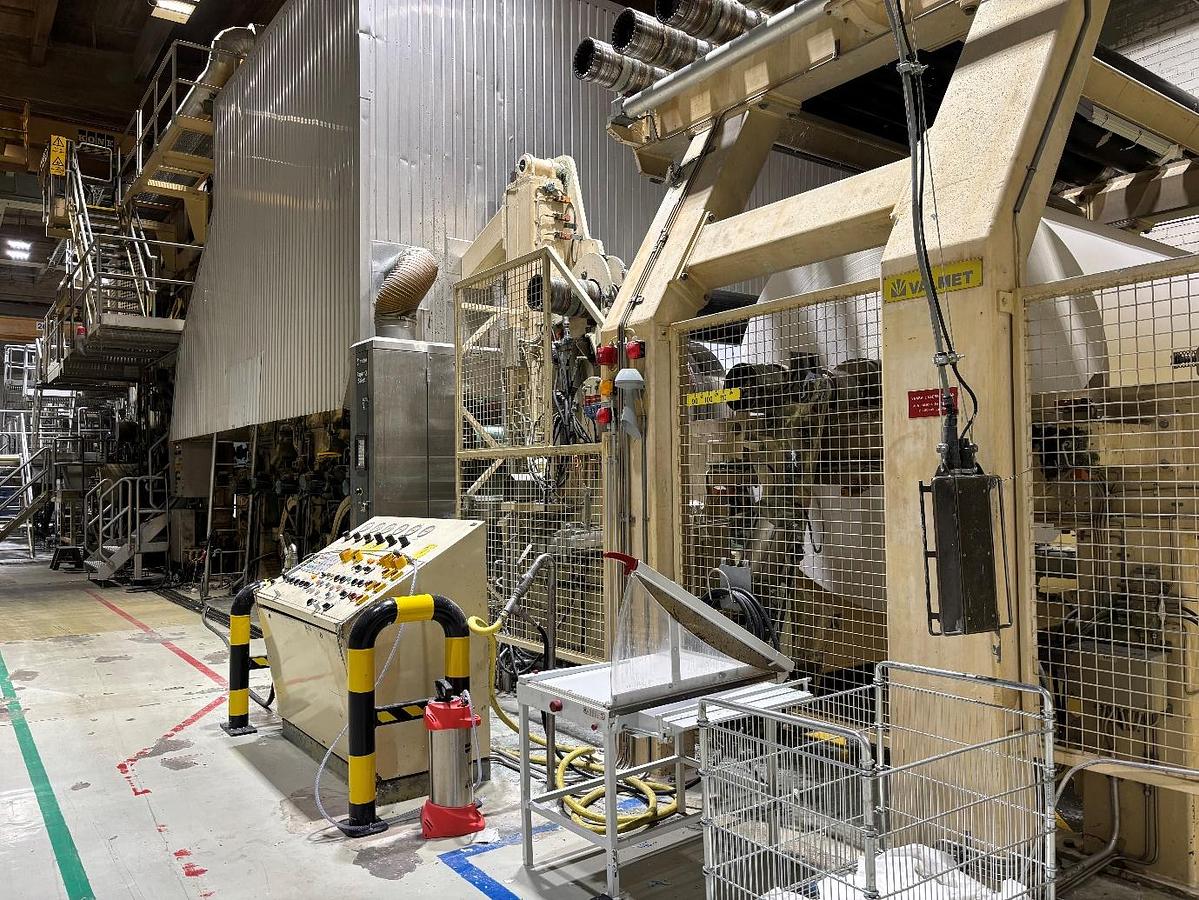

POPE REELER:

Max. roll diameter :      3000 mm

Max. Width : 3460 mm

ACCESSORIES:

Spare parts:

Forming Roll (1 Roll)

Wire Roll (1 Roll)

Felt Roll (2 Rolls)

Suction Press Roll (1 Roll)

Blind Drill Roll (1 Roll)

Spools :     10 pcs

APPROACH FLOW

Fan Pump (Scanpump JMW Z22-600/600/65)

Power : 634 Kw

Type : DC Motor

Vertical Screen (Valmet JS400)

Power : 90 kW

Type : AC Motor

Vacuum #1 (Nash 904)

Power : 250 kW

Type : AC Motor

Vacuum #2 (Runtech Turbo the Switch)

Power : 500 kW

Type : AC Motor

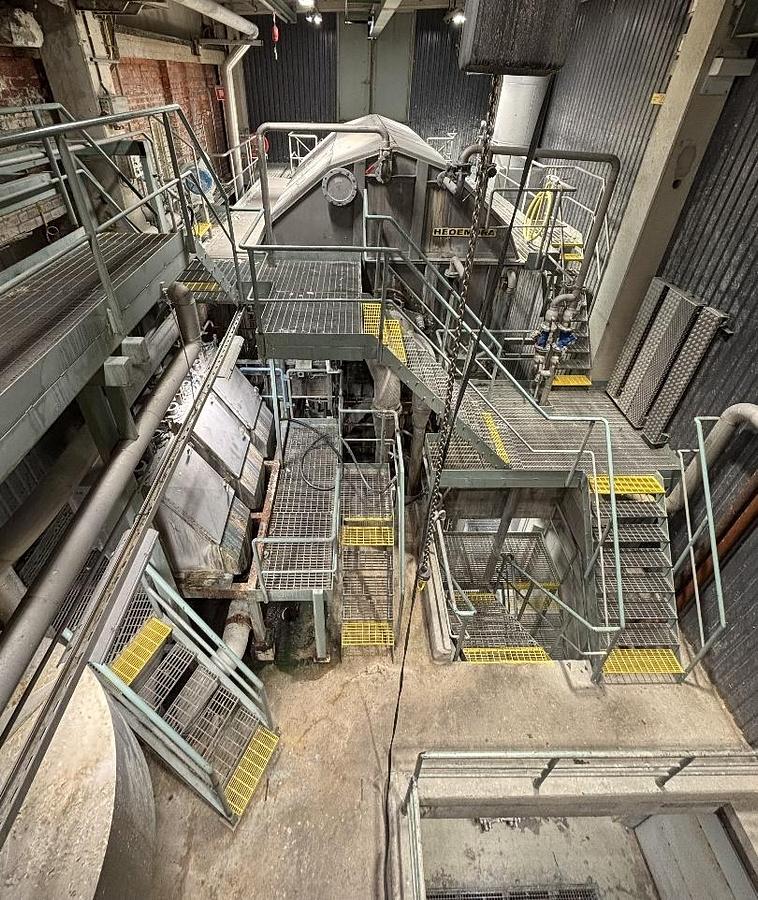

FIBER RECOVERY: Hedemora disc-filter (Capacity 8500 l/min), complete with accessories

Pulper #1 (Valmet (ex. Tampella) HD3650GK)

Capacity :     17 m3

Power :       200 kW

Note :  with Conveyor

Refiner #1 (Valmet Optifiner RF01)

Power : 315 kW

Refiner #2 (Valmet RF03)

Power: 400 kW

Deflaker #1 (Valmet JF110)

Power: 110 kW

Deflaker #2 (Valmet (ex. Jylhävaara) JF75)

Power: 75 kW

Deflaker #3 (Valmet (ex. Jylhävaara) JF75)

Power: 75 kW

ACCESORIES

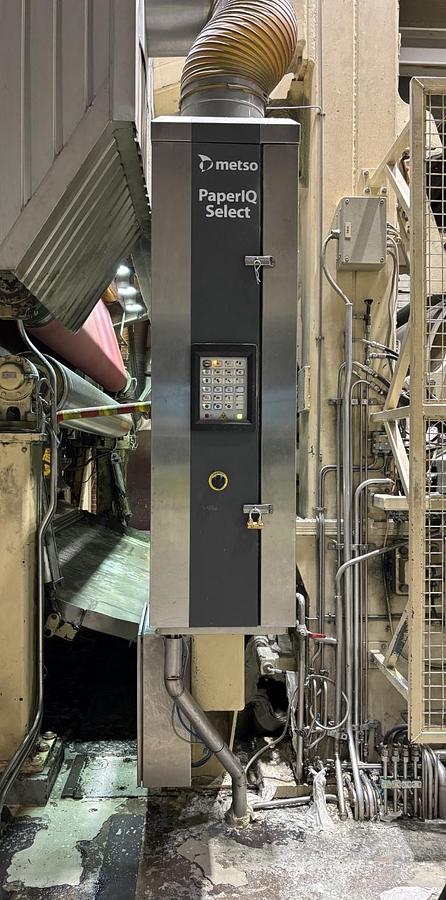

Include: Scanner (Valmet PaperIQ Select), pumps, tanks, agitators, instruments, valves

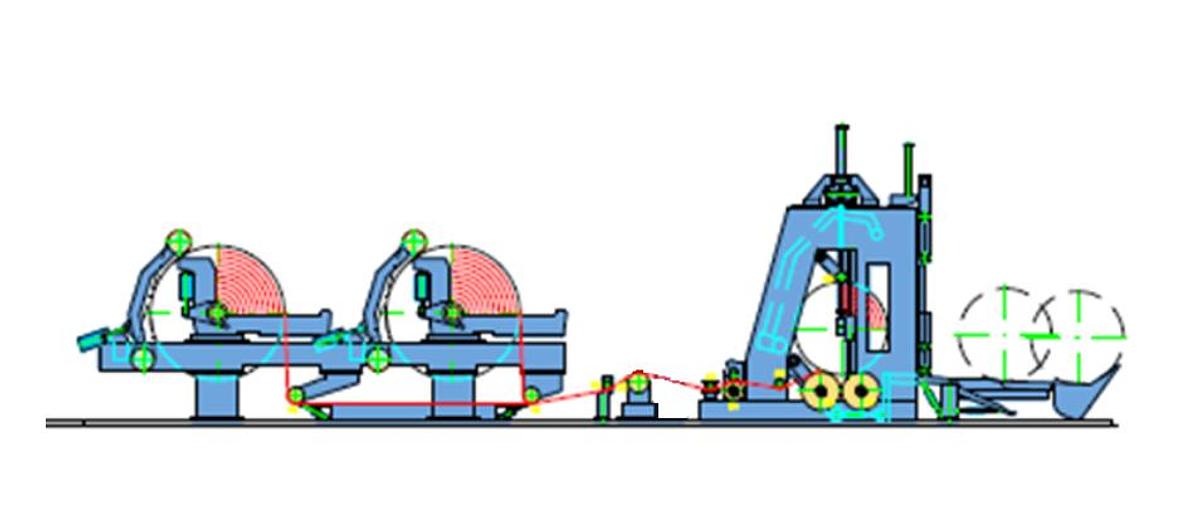

SLITTER REWINDER SW1

Manufacturer : Jagenberg

Year of construction : 1988

Max. width : 3460 mm

Max. reel diameter : 1750 mm

Production speed : 1200 m/min

Basic weight range : 17 – 50 gsm

Max plies : 2

Drive type : Siemens AC Drive

Unwind Stand : 2 stands

Max parent reel dia.: 2800 mm

Eight knife holders for slitting
