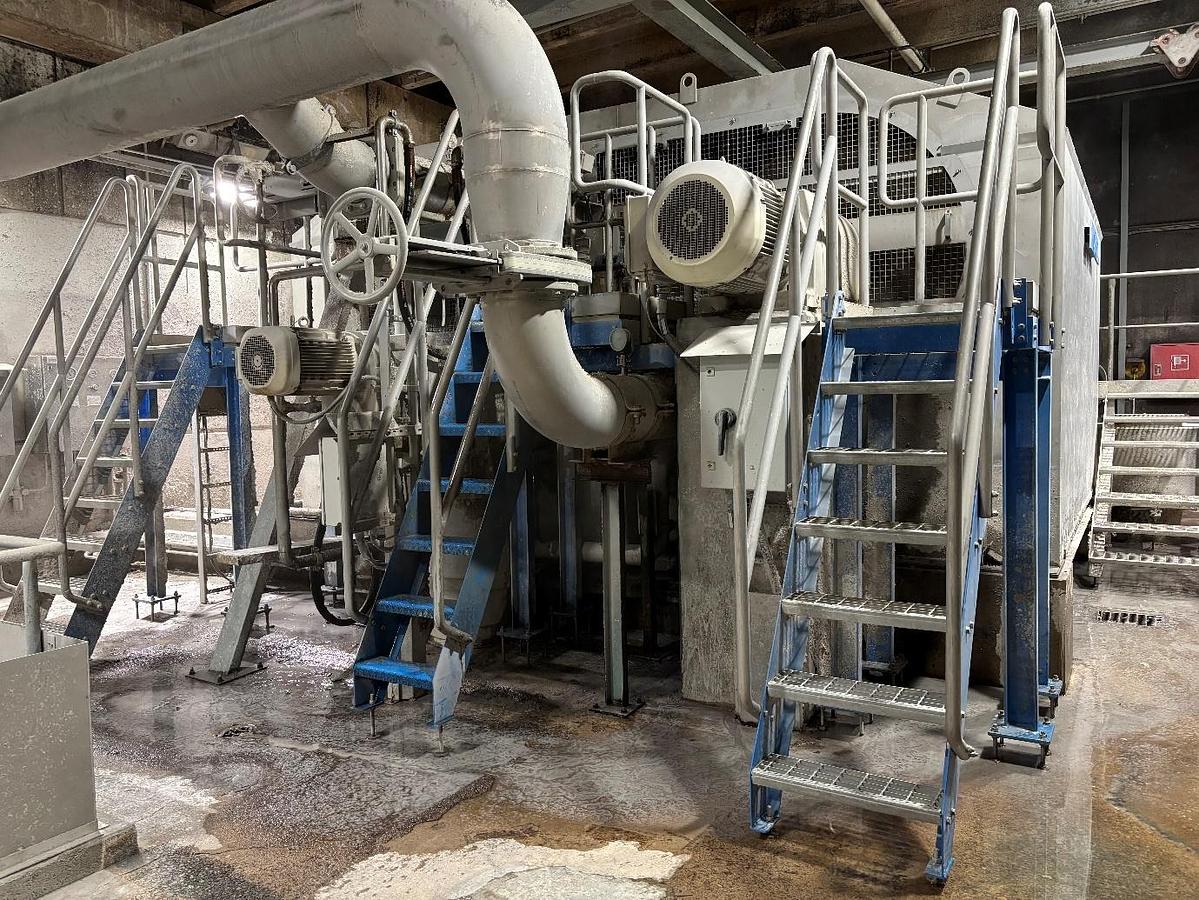

DE-INKING PLANT 100 TPD - REBUILT 2018

DE-INKING PLANT 100 TPD - REBUILT 2018

Description

TECHNICAL DATA

Year of construction :   1986, renewed in 2018

Production Capacity :  100 ton/day

Raw material :       recycled paper and broke

Drive voltage :  500 V 50 Hz

DCS :        Valmet DNA

Key products :  De-inked pulp


MAIN EQUIPMENT


SECONDARY PULPER:

Type : Andritz FibreGuard FG02HR

Power : 90 kW

Year of manufacture : 2018

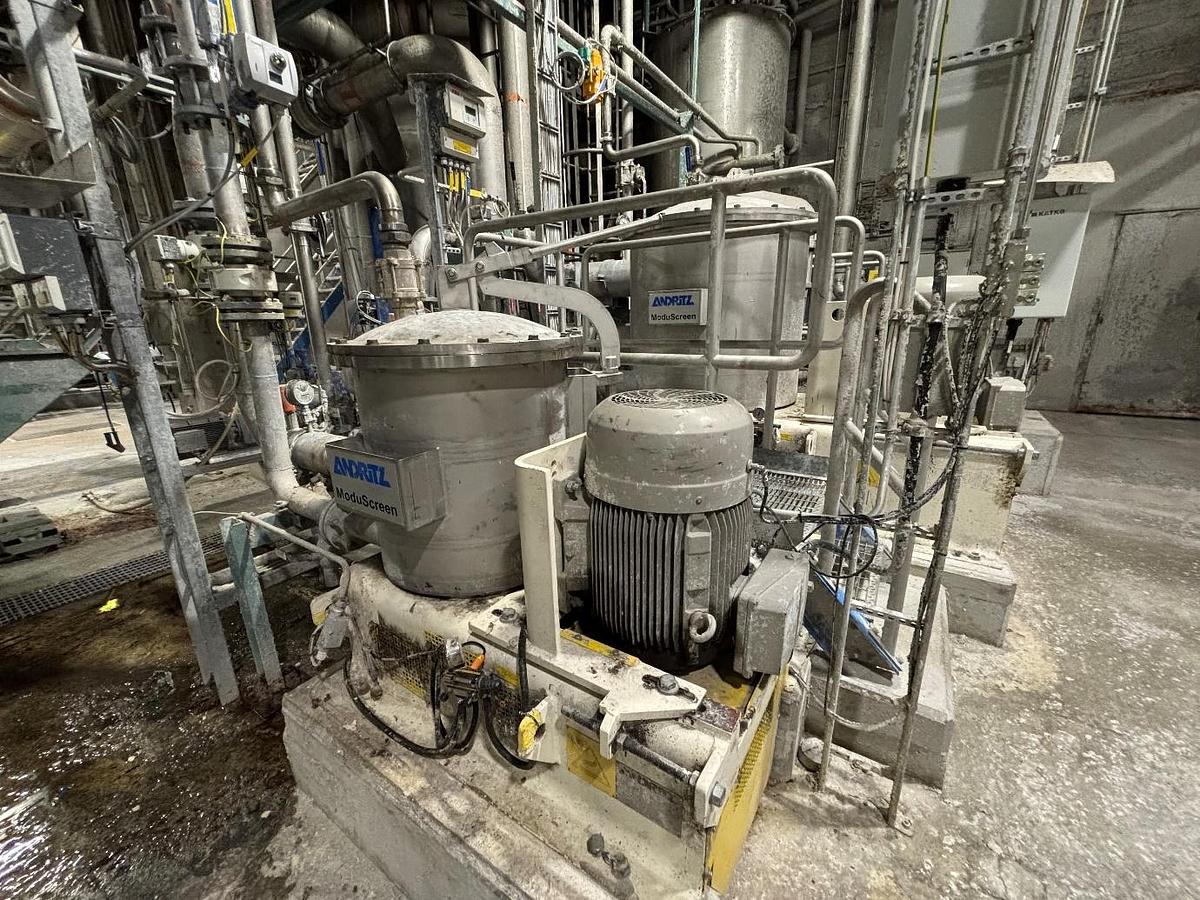

PRESSURE SCREENS FOR ROUGH SCREENING:

Type : Andritz ModuScreen F30 (1 pcs), Andritz ModuScreen F10 (1 pcs) and Andritz ModuScreen T2C (1 pcs),

Power : 75 kW, 30 kW and 55 kW

Year of manufacture : 2018

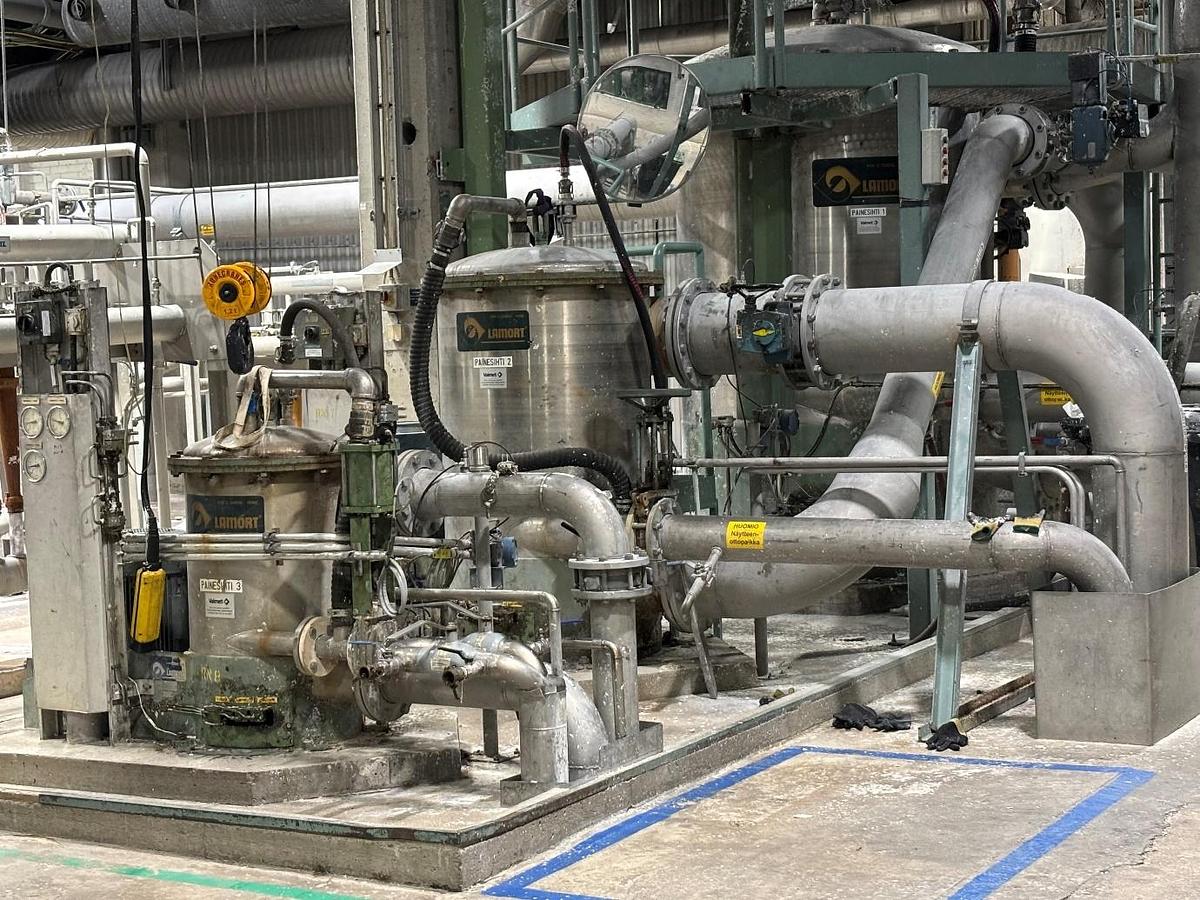

PRESSURE SCREENS FOR FINE SCREENING:

Type : Lamort SPN12 (1 pcs), Lamort SPN7 (1 pcs) and Lamort SPN4 (1 pcs)

Power : 55 kW, 18,5 kW and 11 kW

Year of manufacture : 1985


MASS FLOTATION:

Type : Andritz SelectaFlot SFL1DL

Year of manufacture : 2018

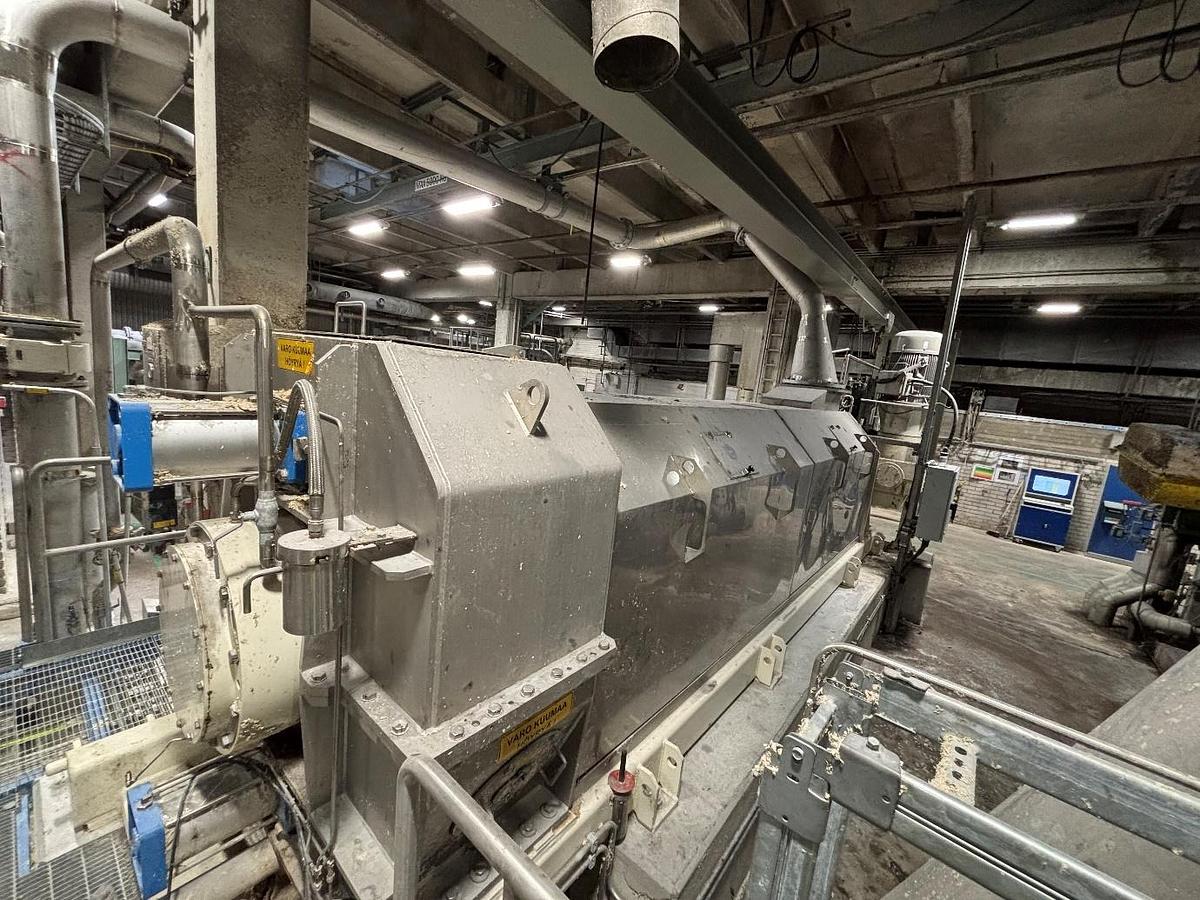

WASHER 1:

Type : Andritz Speed Washer SWd30

Wire width : 3200 mm

Wire length : 11060 mm

Power : 75 kW

Year of manufacture : 2018

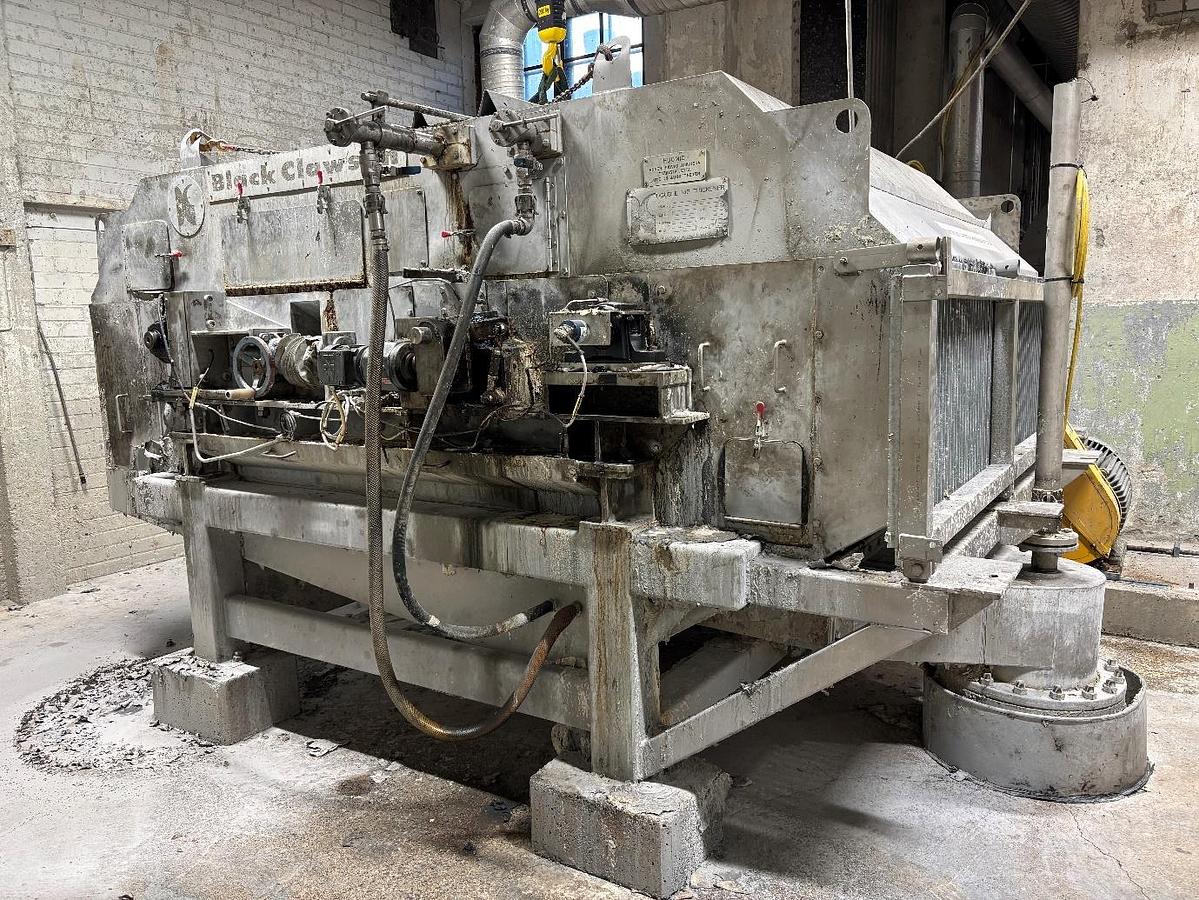

WASHER 2:

Type : Black & Clawson Double Nip Thickener, size 200

Wire width : 1910 mm

Wire lenght : 6452 mm

Power : 55 kW


SLUDGE TREATMENT:

Type : Bellmer Kufferath Akupress BX 1100LL-H (1 pcs), Bellmer Kufferath Sludge Reactor FR-3 (1 pcs), Bellmer Kufferath Sludge Precipitator AKSE 175/10 (1 pcs) and Sludge Press Dosing Screw (1 pcs)

Sludge dry-content : ~35-50 %

Year of manufacture : 2017


SCREW PRESS:

Type : Andritz Pulp Screw Press SCP1005

Power : 110 kW

Year of manufacture : 2018

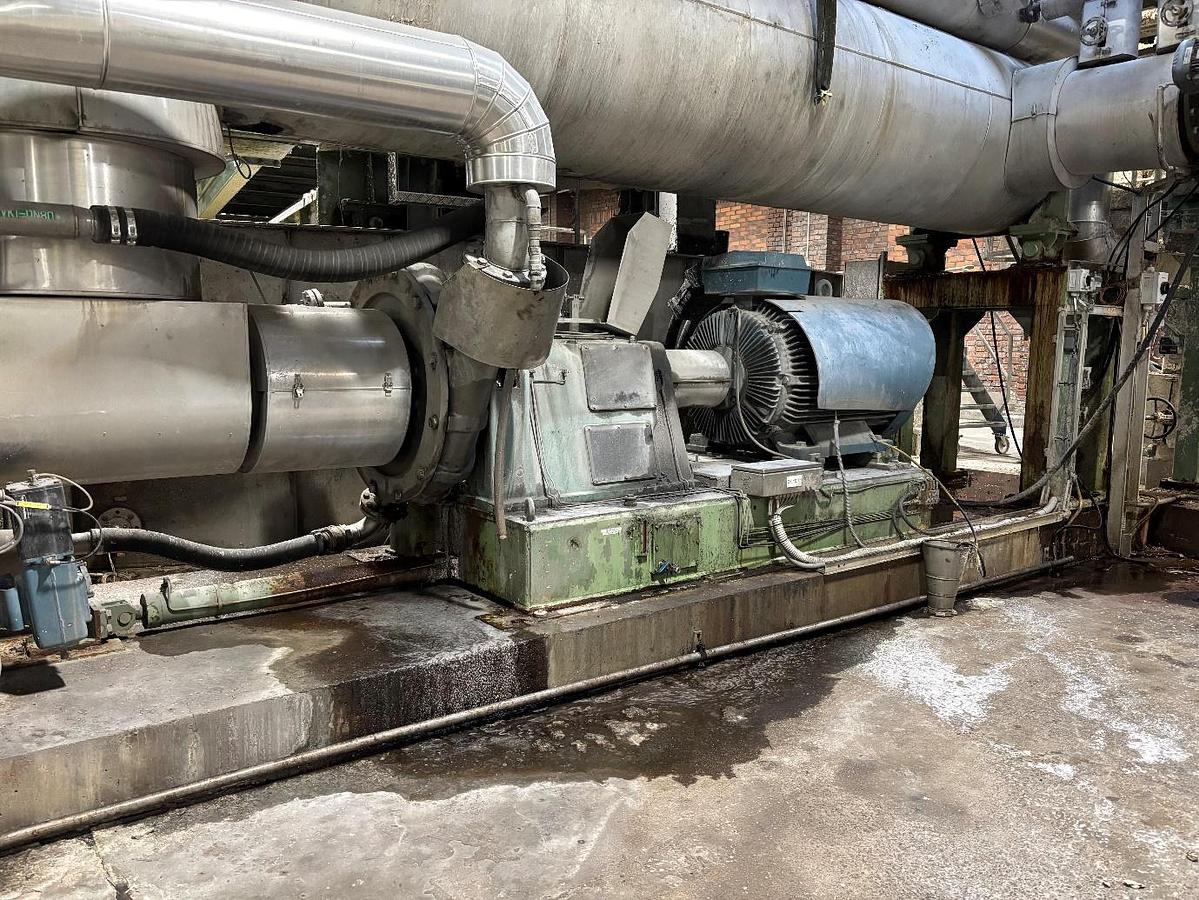

DISPERGER:

Type : Cellwood Krima 710

Power : 400 kW

Year of manufacture : 1992


SPARE PARTS

Washer wires

Andritz Tecnowash M 50/36 for washer 1 (2 pcs)

Andritz Tecnowash M 60/54 for washer 2 (2 pcs)



ACCESSORIES

Include: pumps, tanks, agitators, instruments, valves

Specifications

ManufacturerANDRITZ
ModelDE-INKING PLANT
ConditionUsed
Stock Number110338
