125" TRIM WIDTH (3200mm) NAOS SHOE PRESS MFG 2017

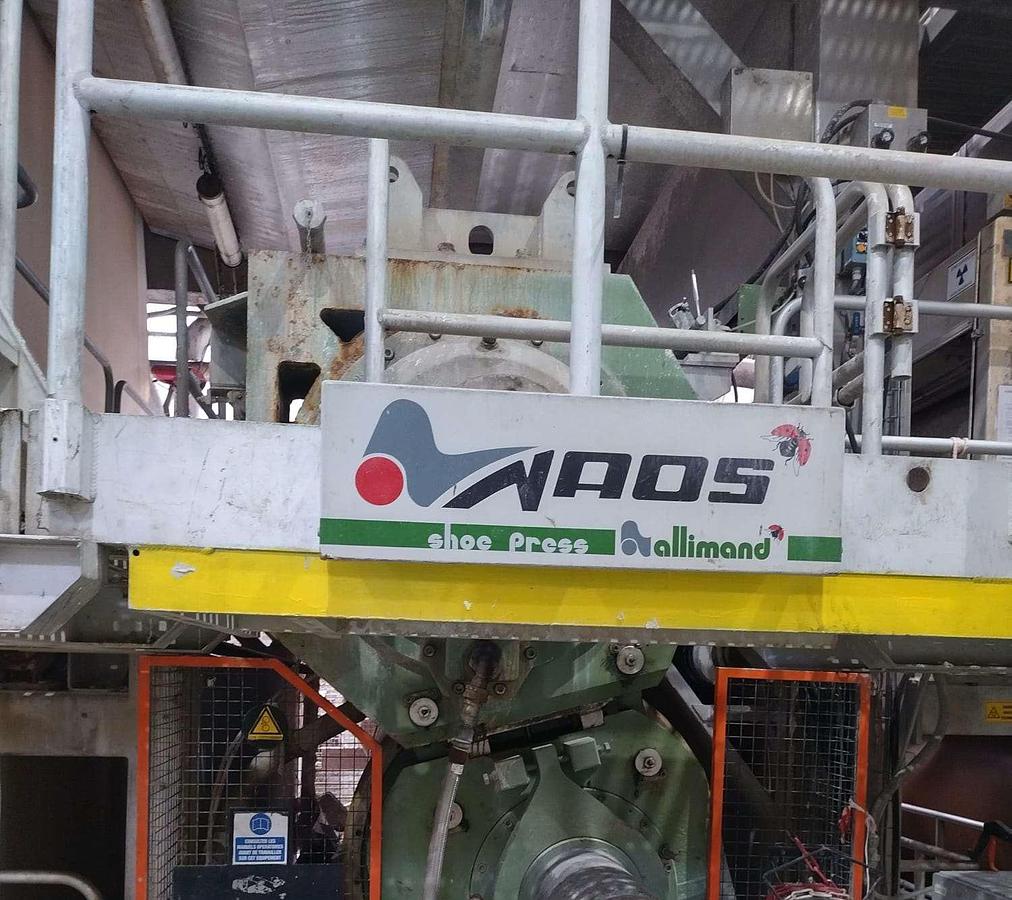

125" Trim Width (3200mm) NAOS Shoe Press

Type: NAOS shoe press

Manufacturer: Allimand, France

Year of manufacture: 2017

Roll face width: to be checked

Wire width: 3500 mm

Linear nip load: 80 N/m - 1000 Kn/cm2

Design Speed: 150 - 400 m/ min

Operating Speed: 320 m/ min

Drive side: left hand

Stainless steel frame of press part (2017)

Scope of supply:

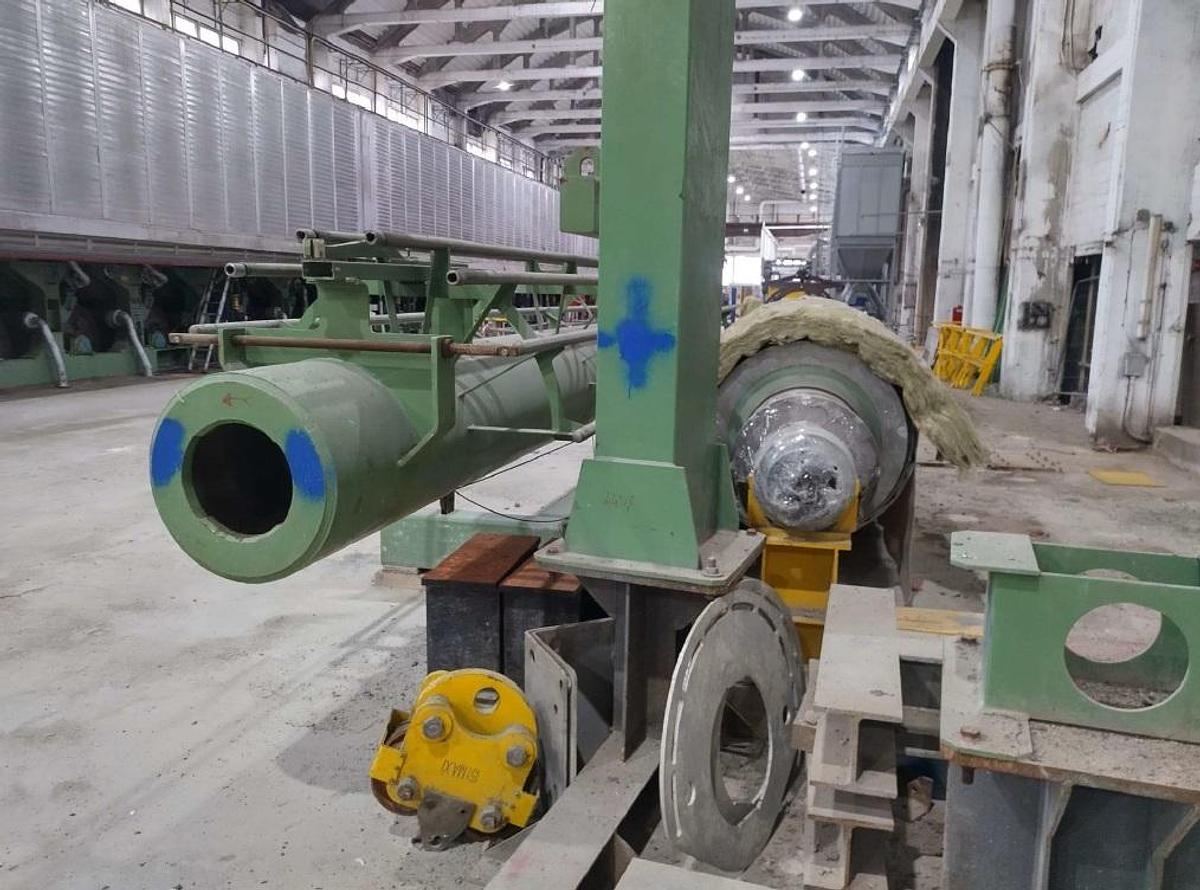

Shoe press bottom roll with its frame

Shoe press top roll with bearing housing

Top roll holder with hydraulic pistons

Hydraulic power pack for shoe press

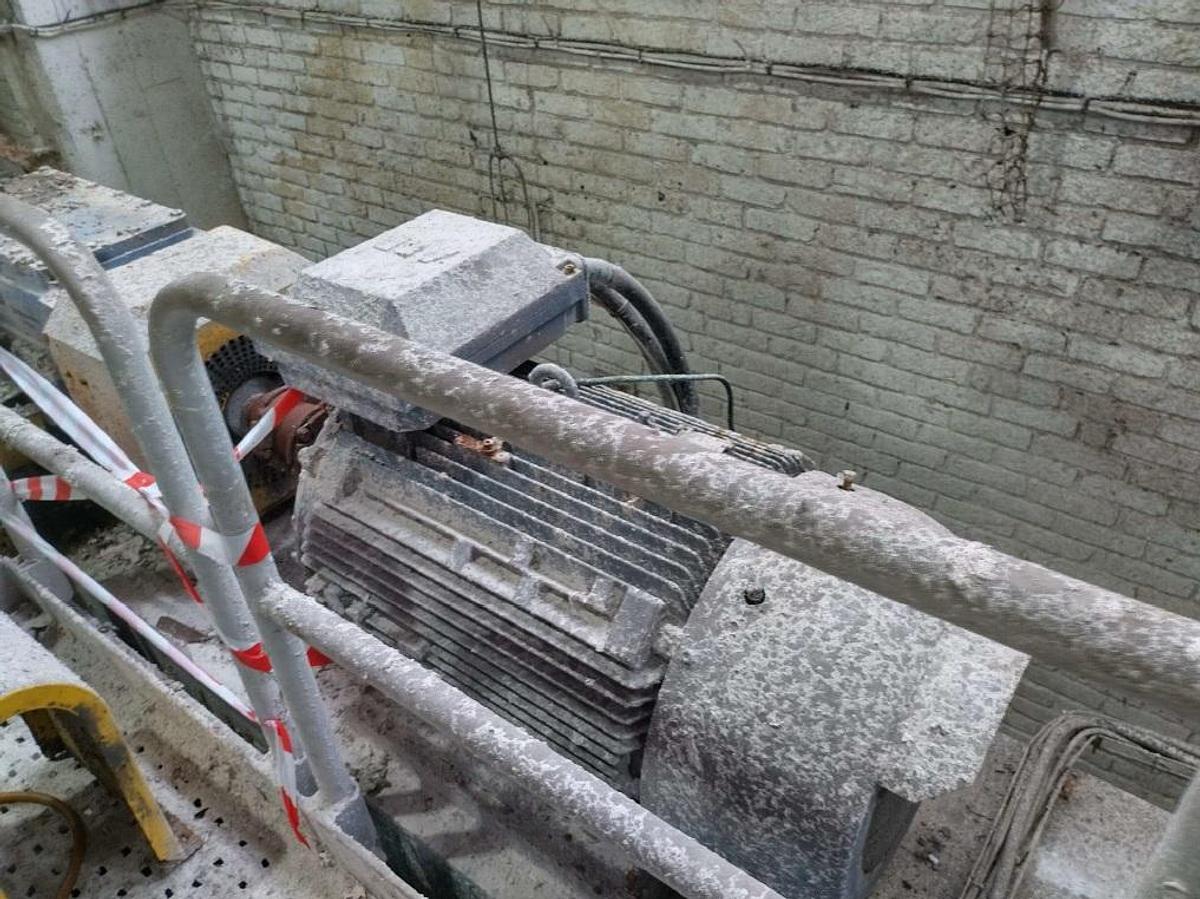

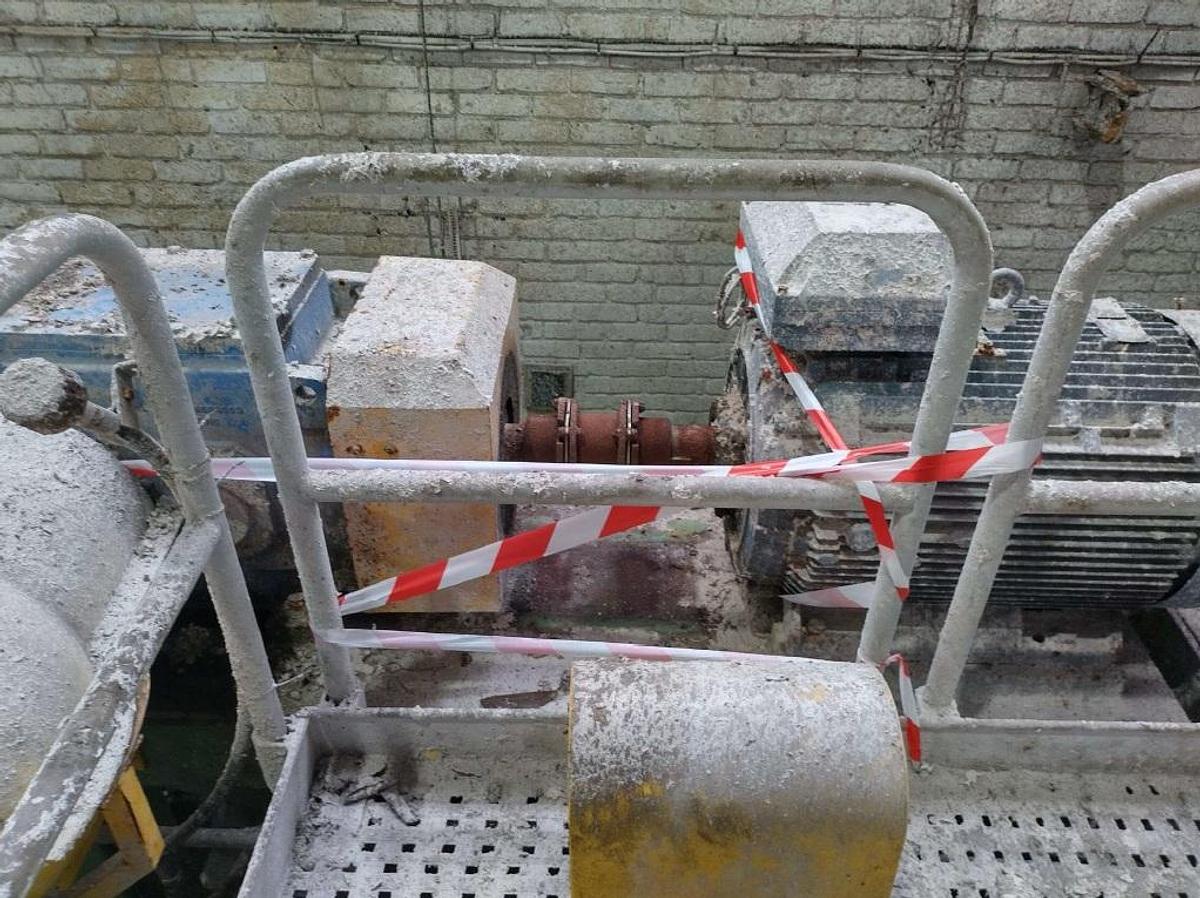

Mechanical drive for shoe press with electric cabinet

Tool for exchange of shoe belt

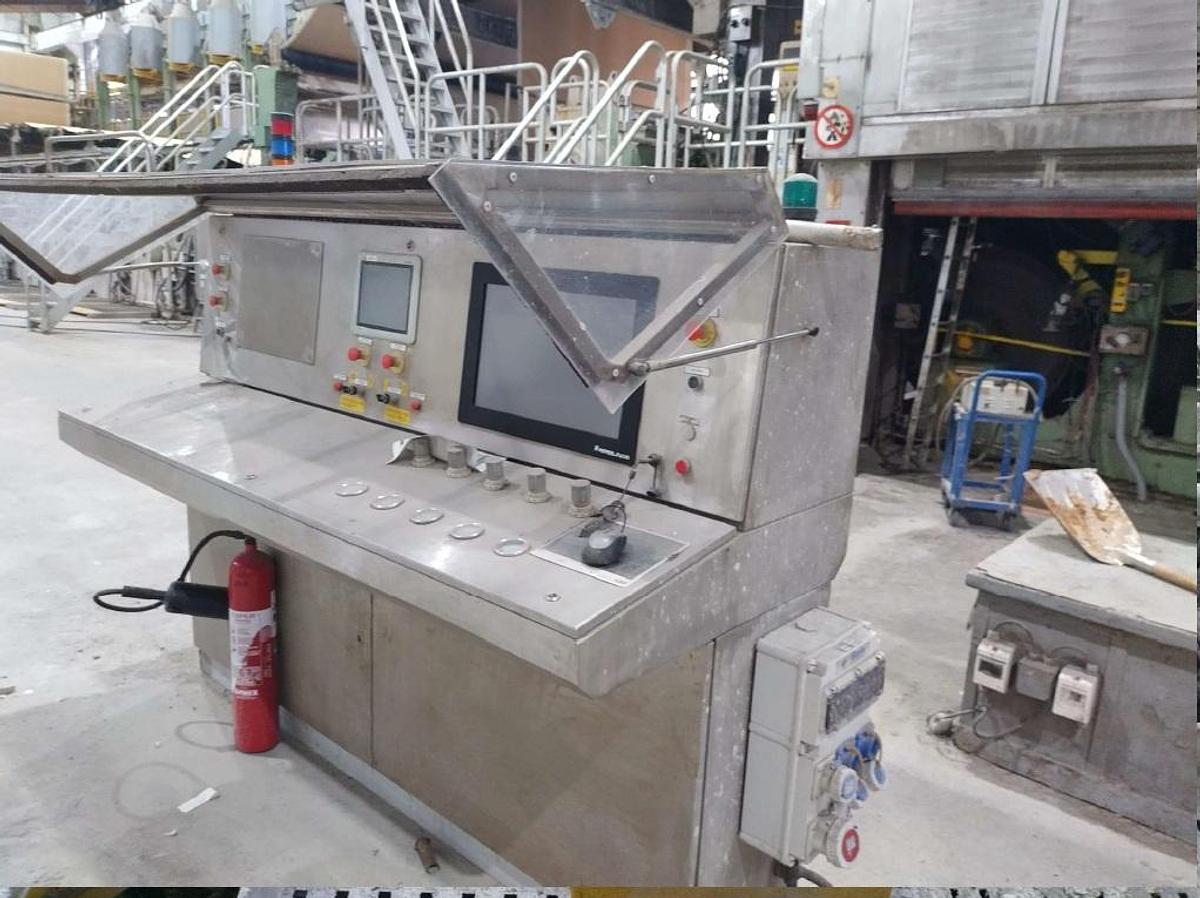

Control panel

Parameters of machine, where it was last installed:

Working width: 3180 mm

Average production output: 17,7 t/h

Design Speed: max 400 m/ min

Operating Speed: 320 m/ min

Paper grades: GD - GT Coated board made from recycled materials.

PM grammage: 250 - 460 gsm

49-50% dryness achieved after shoe press.

Also available: other parts of above paper machine such as pope reel, size press vacuum formers
