511" WIDE (1300M) HERKULES ROLL GRINDER MODEL P100 WSB 450 X 15000 / 13000 CNC - MFG 2007

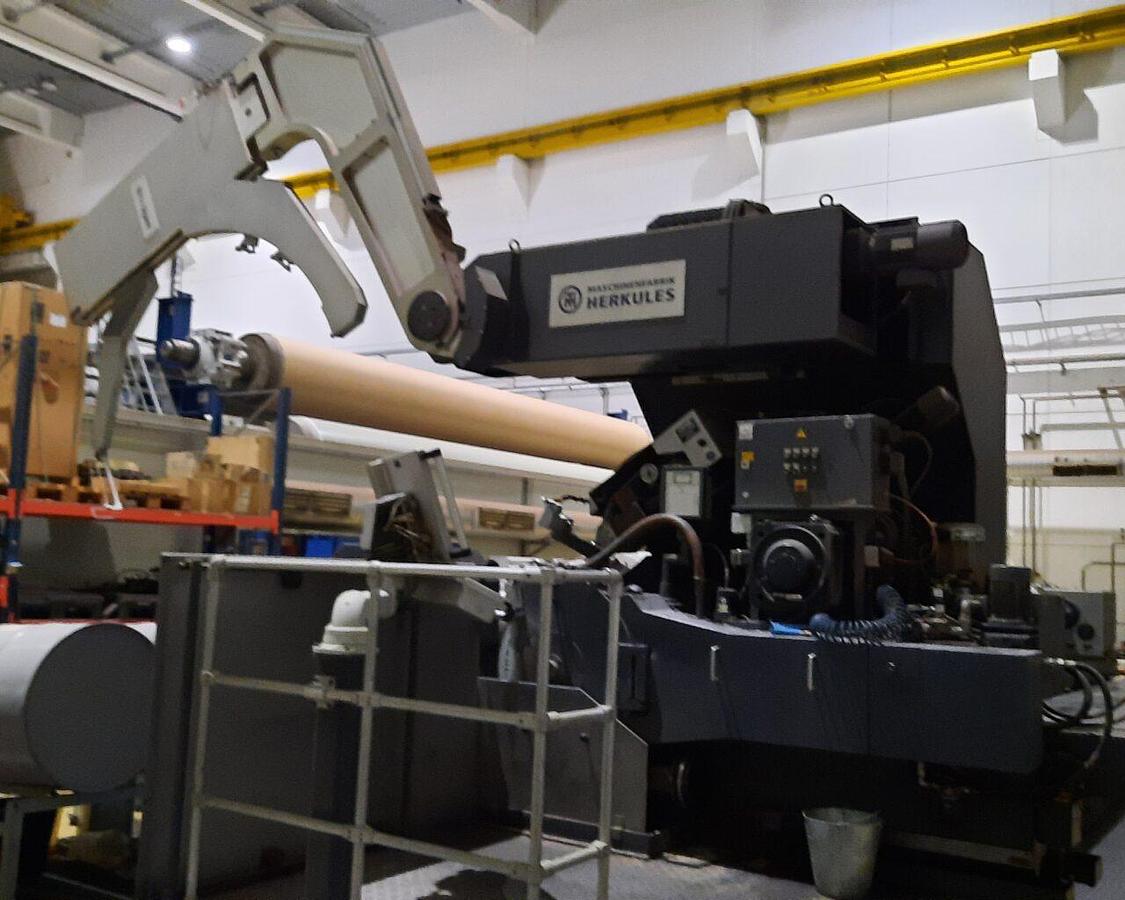

511" Wide (1300M) Herkules Roll Grinder

Year : 2007

Distance between centers : 15,000 mm

Max. grinding lenght : 13,000 mm

Max. diameter : 2000 mm

Drive motor power : 100 KW

Faceplate speed : 1-27, 3-82,3, 9,2-250 KW 1/min

Nominal torque : 30,000 Nm

Longitudinal adjustment

Travel : 3000 mm

Transverse adjustment

Travel : 3000 mm

Lateral adjustment

Adjustment range : 480 mm

Grinding wheel motor power : 63 kW

Grinding spindle speed : 400-1200 1/min

Cutting speed : 45 m/sec. max.

Z-axis

Continuosly adjustable speed 6-8000 mm/min

X-axis

Continous feed : 3-3000 mm/min

Continuous feed : 0.01-0.2

Grinding wheel

Bore : 304.8 mm

Diam. : 750 mm max.

Width (with spacers) : 75/100 mm

Measuring device

Diameter measuring range : 400-2000 mm

Hydrodynamic : 100-600 mm

Electrical

Total connected load : approx. 250 kVA

Current : 420 A

Voltage : 400 V

Frequency : 50 Hz

Compressed air

Pressure . 6 bar

Belt grinding device

Belt length : 3500 mm

Belt width : 100 mm

Contact wheel diameter : 600 mm

Superfinishing device

Band width : 200 mm

Oscillation stroke : 5 mm

Oscillation speed (strokes) : 100-700 min

Rotating device

Cutting force : max. 2000 N

Groove milling device

Drive power : 3 kW

Cutter speed . max. rpm 1650

Angle adjustment : max. degrees +/- 3

Cardan shaft drive

Torque : max. 47000 Nm

Length extension : max. 0 mm

Overall length : min. 910 mm

Speed : max. 250 rpm
