Solema Pluton Automatic Palletizer 2019
No longer available
Solema Pluton Automatic Palletizer 2019
Description
109109

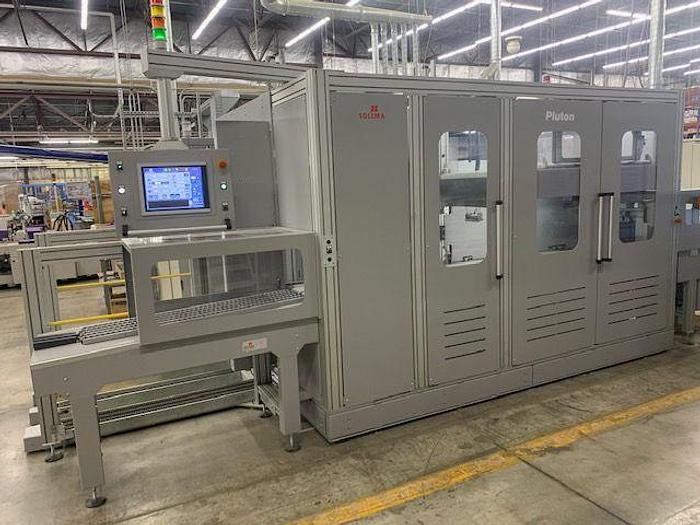

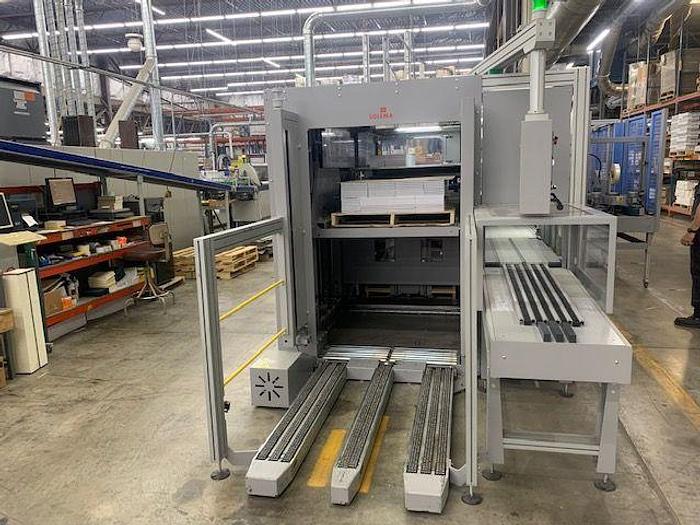

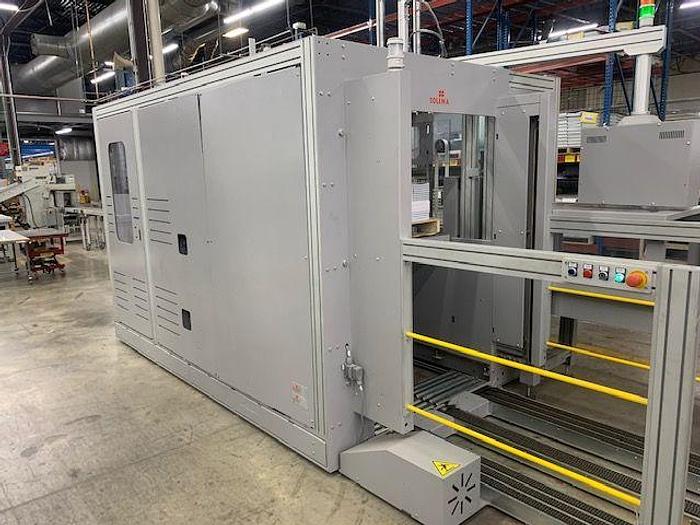

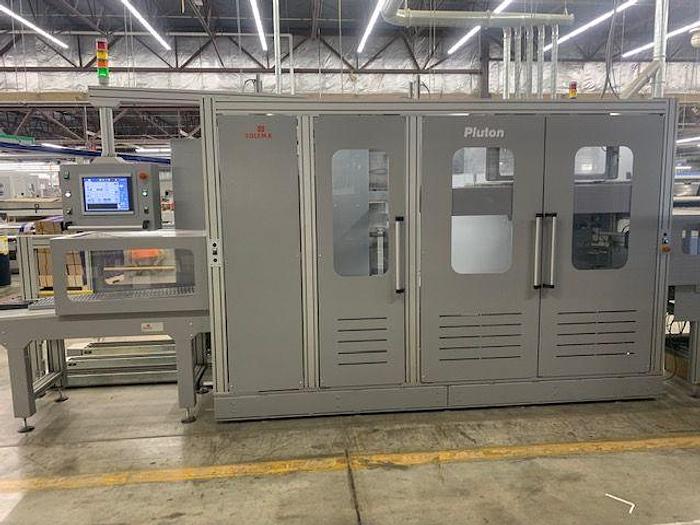

One (1) Unused Solema Pluton Automatic palletizer, New in 2019.
Rated speed
Max. 25 products/minute.
Product Size (length × width × height)
min. 150 × 110 × 60 mm (5 15⁄16 × 4 5⁄16 × 2 3⁄8”)
max. 530 × 350 × 300 mm (20 7⁄8 × 13 3⁄4 × 11 13⁄16”)
Maximum size in case of products to be turned is related to the
diagonal of the product: maximum possible 560 mm (22 1⁄16”)
Pallet Sizes (length × width × height)
min. 800 × 750 × 130 mm (31 1⁄2 × 29 1⁄2 × 5 1⁄8”)
max. 1270 × 1060 × 170 mm (50 × 41 3⁄4 × 6 11⁄16”)
Loaded Pallet's Height
max. 1700 mm (66 15⁄16”)
Loaded Pallet's Weight
max. 1500 kg (3306 lb)
Pallet's Storage Capacity
6 pallets (depending on pallets' thickness)
Standard Pallet's Delivery Conveyor
motorized chain conveyor with 1 waiting position
Exit chain height approx. 130 mm (5 1⁄8”) + pallet entry hole
Slip Sheet Feeder (length × width)
min. 680 × 530 mm (26 3⁄4 × 20 7⁄8”)
max. 1240 × 955 mm (48 13⁄16 × 37 5⁄8”)
The slip sheet must be cut straight and wrinkle free; the paper used
must be suitable to this suction feeding application
Size-Change
automatic through servo-motors
Pile turner and photocells for height control: optional
Operator Interface
touch screen for products size loading, memory available
for standard pallet's configuration saving
analogic modem and/or ethernet connectivity
Power Supply
approx. 10 kW — 3 × 400 V PNE 50 Hz
Air Supply
9 Nm3/h — 6 bar

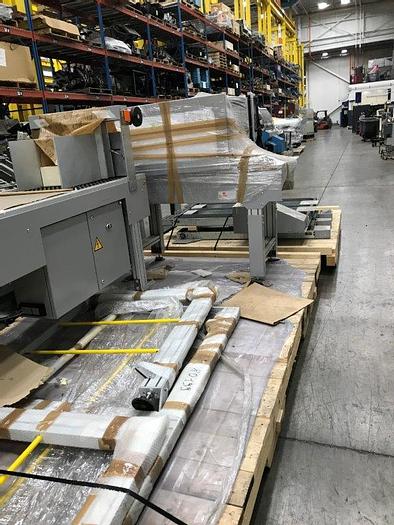

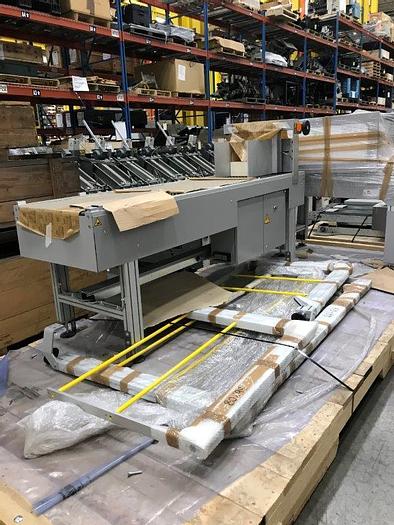

Machine is still crated,
Specifications
Manufacturer | Solema |
Model | Pluton |
Year | 2019 |
Condition | Used |
Stock Number | 109109 |
Width | 45 |
Rewind diameter | 70.0 in |
Diagonal of the product | maximum possible 560 mm (22 1⁄16”) |
Pile turner and photocells for height control | optional |
