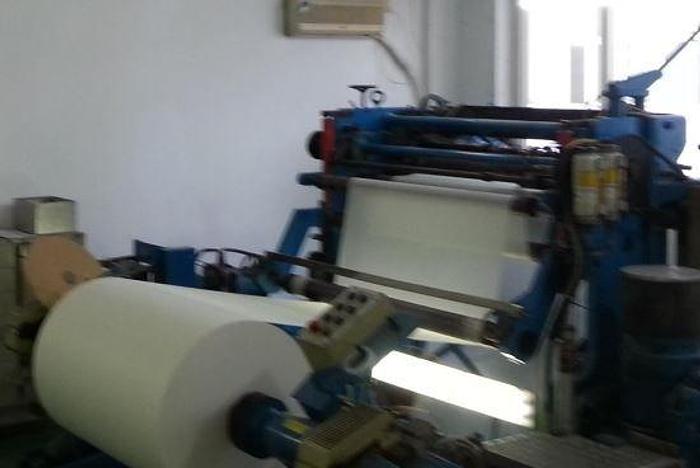

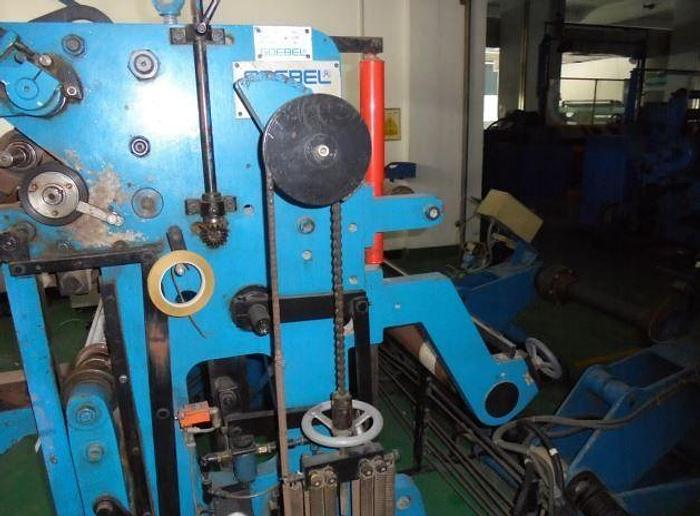

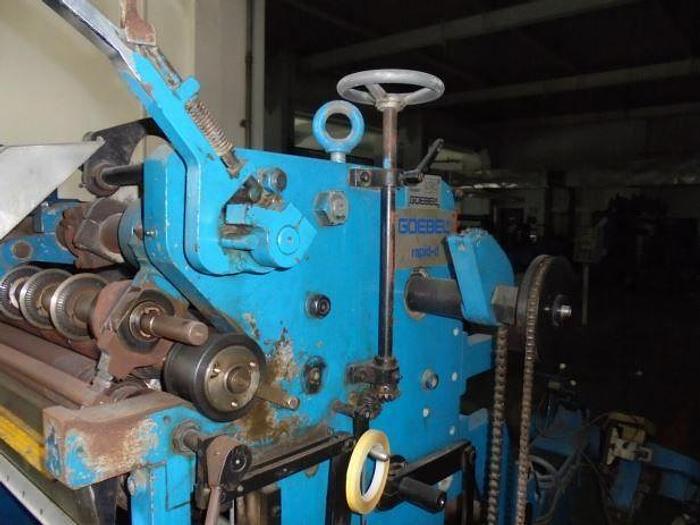

49" GOEBEL RAPID D SLITTER REWINDER
No longer available
49" GOEBEL RAPID D SLITTER REWINDER
Description
Maximum web width: 49" (1250mm)
Minimum web width: 20: (500mm)
Maximum diameter unwind: 40" (1000mm)
Maximum weight roll unwind: 3300lbs
Shaftless unwind
Minimum slit width: 27mm
Maximum diameter rewind: 23.6" (600mm)
Maximum weight roll rewind: 1300lbs
Specifications
| Manufacturer | GOEBEL |
| Model | RAPID-D |
| Year | 1992 |
| Condition | Used |
| Serial Number | 032/8800 |
| Stock Number | 107973 |
| Width | 49.0 in |
| Rewind diameter | 23.6 in |
| Maximum web width | 49" (1250mm) |
| Maximum diameter unwind | 40" (1000mm) |
| Maximum weight roll unwind | 3300lbs |
| Minimum slit width | 27mm |
| Maximum diameter rewind | 23.6" (600mm) |
| Maximum weight roll rewind | 1300lbs |
