62" PCMC CI PRINTING PRESS 8 COLOR
No longer available
62" PCMC CI PRINTING PRESS 8 COLOR
Description
Manufacturer PCMC
Press Type Central Impression Cylinder
Number of Color 8
Gear Pitch ¼ CP
In machine sleeve change No
Repeat range 15” – 39”
Ink Metering System Chamber Doctor Blades Maximum Web Width 62”
Maximum Print Width 60”

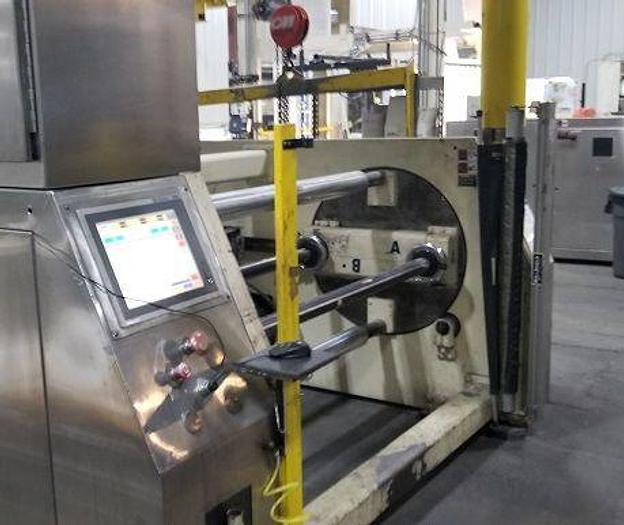

Unwind Type Turret, auto splice
Maximum Unwind Diameter 32”
Rewind Type Turret, auto transfer
Maximum Rewind Diameter 32”
Core Shafts 3” ID cores

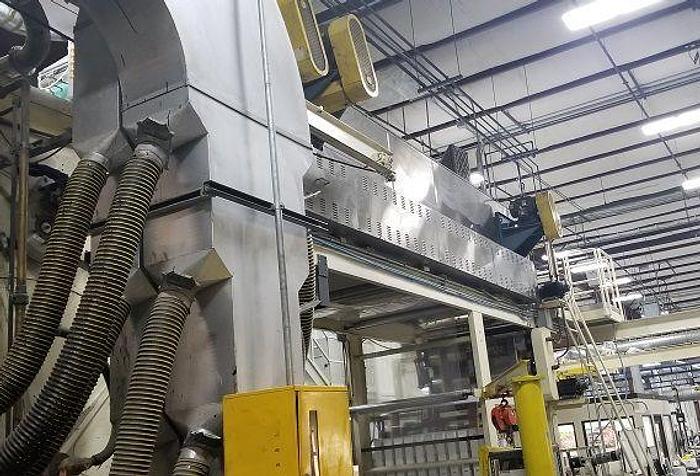

Dryer: Between Color and Tunnel
Heat Source: Natural Gas
Maximum Design Speed: 1200 FPM
Year Built 1999, rebuilt in 2001, drives updated in 2001
Electrical 460v, 3 phase, 60hz
Auxiliary Equipment Included with Machine:
Edge Guides In feed and rewind
Plate Cylinder Per separate list
Anilox rolls Per separate list
Web inspection system TBA
Ink Pumps Yes
Specifications
Manufacturer | PCMC |
Model | 8 COLOR CI PRESS |
Year | 1999 |
Condition | Used |
Stock Number | 107970 |
Dryer | Between Color and Tunnel |
Heat source | Natural Gas |
Maximum design speed | 1200 FPM |
