64" WIDE CROWN SHEET LINE WITH 4.5" EXTRUDER
![Used 64" WIDE CROWN SHEET LINE WITH 4.5" EXTRUDER](https://i.machineryhost.com/a6a324467918405a3403b95628d674d6/large-extruder6.jpg)
No longer available
64" WIDE CROWN SHEET LINE WITH 4.5" EXTRUDER
Description
107959
One (1) Used 64" Wide Crown Sheet Line with 4.5" Extruder
Previously Running PET

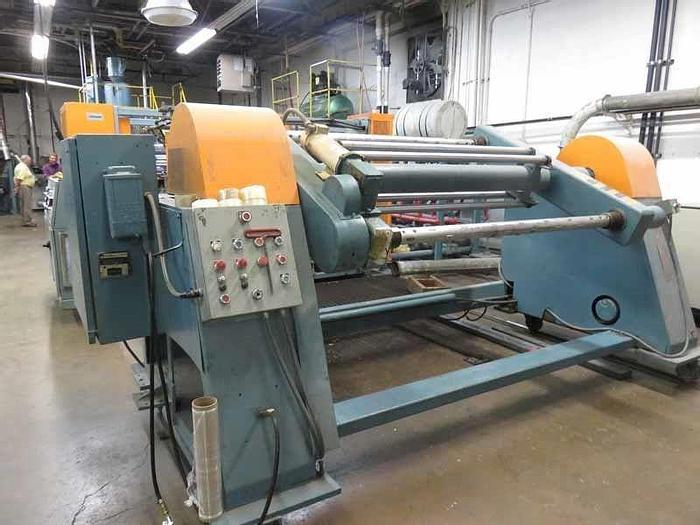

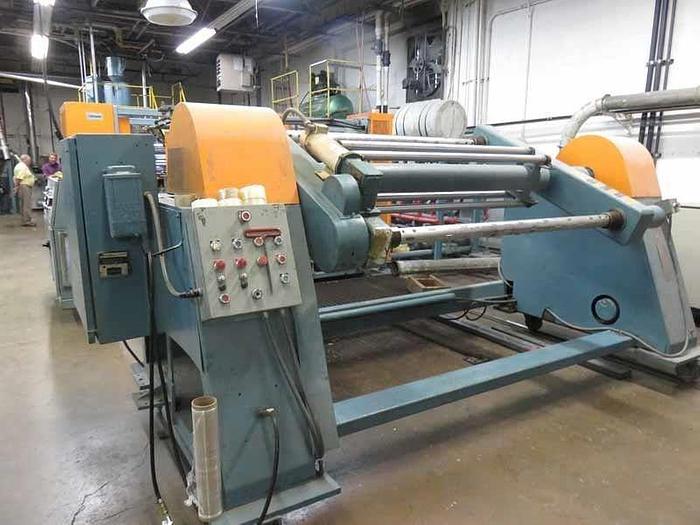

Hobbs 2-Position Winder, Approximately 36" Max Roll Diameter, 3" Cores.
4.5" Crown Single Screw Extruder, 32:1 L/D Ratio, 18:1 Gearbox Ratio, 250 HP
Baldor AC Inverter Duty Motor, ABB ACS800 AC Inverter Drive, 7 Barrel Zones,
Vented Barrel, Air Cooled, S/N 1811, 64" Centerline, New In 2014
Temperature Control Panel With 7 Barrel Zones, 11 Downstream Zones, Melt Temp
Readout, Eurotherm 3216 Temperature Controllers, Tachometer, Amp Gauge,
Pressure Readout, 250 Amp ABB Disconnect.
4.5" Beringer SC45 Hydraulic Slide Plate Screen Changer With 3 HP Hydraulic Power
Pack/Accumulator.
MAAG Extrex 70 Melt Pump, 1,800 LBS/HR, 15 HP AC Motor, Parker Drive
Integrated Into Extruder Panel, S/N 50138190-10.
48" Wide Flex Lip Die Made By Production Components, Masterflex HD-75, Job
#4388-97
64" Wide Down Stack, 16" Diameter Top Roll, 24" Diameter Middle and Bottom Roll.
Pneumatically Actuated Rolls, Chain Driven By 5 HP DC Motor, Dip Tank,
64" Wide Pull Rolls X 8" Diameter Driven By 5 HP DC Motor.
Roll Heating Cooling System With Three Heaters, Three Heat Exchangesrs, and
Three Goulds 3656 Water Pumps Driven By 7.5 HP Baldor Motors.
Specifications
Manufacturer | CROWN |
Model | SHEET LINE |
Condition | Used |
Stock Number | 107959 |
