14.6" - 24" (370-610MM) ROTOMAC AUTOMATIC REWINDING MACHINE
No longer available
14.6" - 24" (370-610MM) ROTOMAC AUTOMATIC REWINDING MACHINE
Description
107957 - PRICE IN EURO

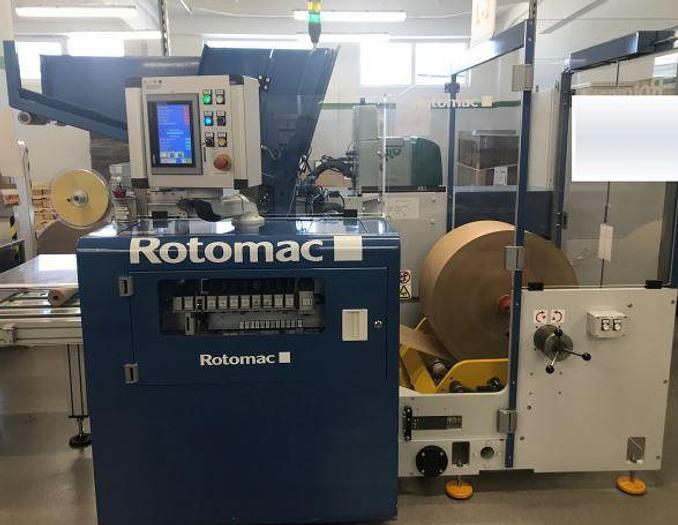

One (1) Used Rotomac Automatic Rewinder
For: Baking, siliconized or parchment paper, 30-60 gr/meter squared
Max material width: 370-610mm
Max parent roll OD: 1000mm
Parent roll core ID: 150mm
Range of roll lengths: 30 to 300 meters
Max OD of finished rolls: 150mm
Core ID of finished rolls: 50mm
Core OD of finished rolls: 55mm
Speed: 500 meter per minutre max
The following operations are carried out automatically by the machine:
Unwinding of the mother-roll
Feeding of the cardboard cores into the rewinding unit
Fixing the inside edge of the material on the cardboard core
Rewinding of the material on cardboard cores
Cutting of the rewound material at the desired length
Discharging of the finished rolls.
Specifications
Manufacturer | ROTOMAC |
Model | AUTOMATIC REWINDER |
Condition | Used |
Stock Number | 107957 |
Width | 14.0 in |
Rewind diameter | 6.0 in |
For | Baking, siliconized or parchment paper, 30-60 gr/meter squared |
Max material width | 370-610mm |
Max parent roll od | 1000mm |
Parent roll core id | 150mm |
Range of roll lengths | 30 to 300 meters |
Max od of finished rolls | 150mm |
Core id of finished rolls | 50mm |
Core od of finished rolls | 55mm |
Speed | 500 meter per minutre max |
