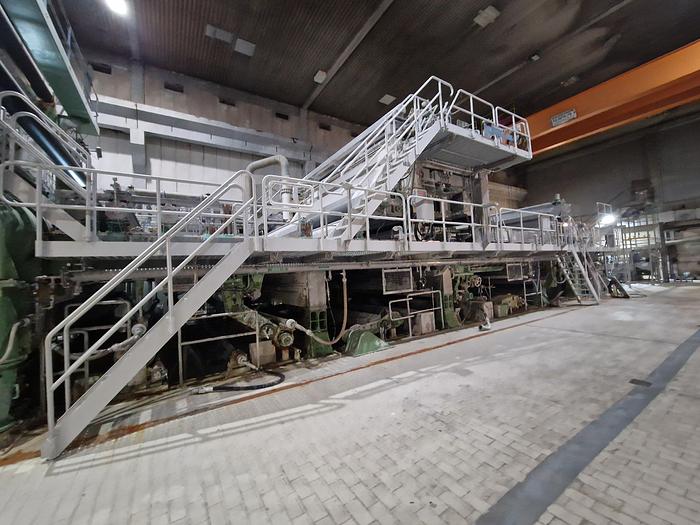

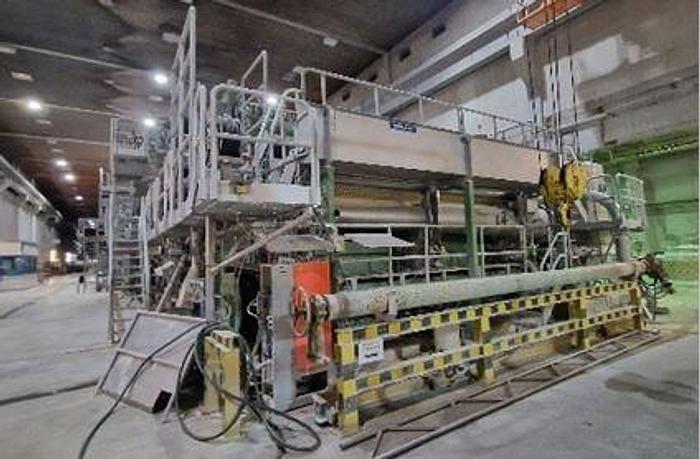

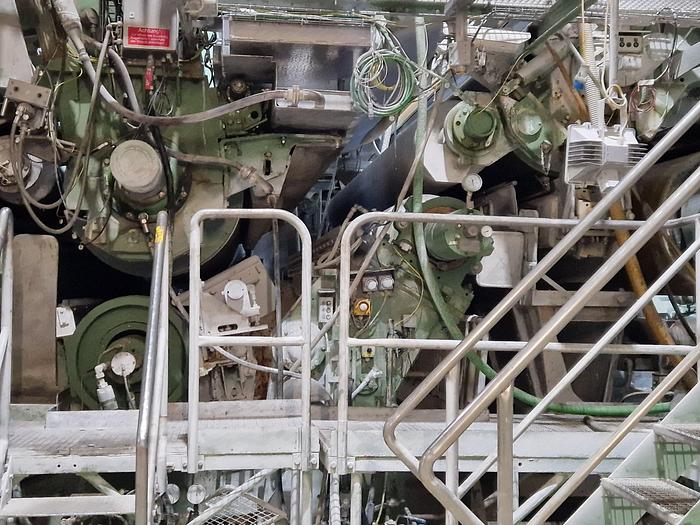

220" (5.6M) VOITH PAPER MACHINE WITH SPEED SIZER 170,000 TPY

One (1) Used 220" (5.6M) Voith Paper Machine

Paper width: 220" (5.6m)

Manufacturer: VOITH

Paper produced: Printing & Writing, Coated

Capacity: 170.000 Tpy

Grammages produced: 40 – 145 gsm

Working speed: 950 mpm

Construction year: 1.970

Rebuilds in: 1995, 2008, 2013

Right side drive

Headbox:

Manufacturer: VOITH

Model: Module-Jet

Year: 1999

Dilution controlled headbox

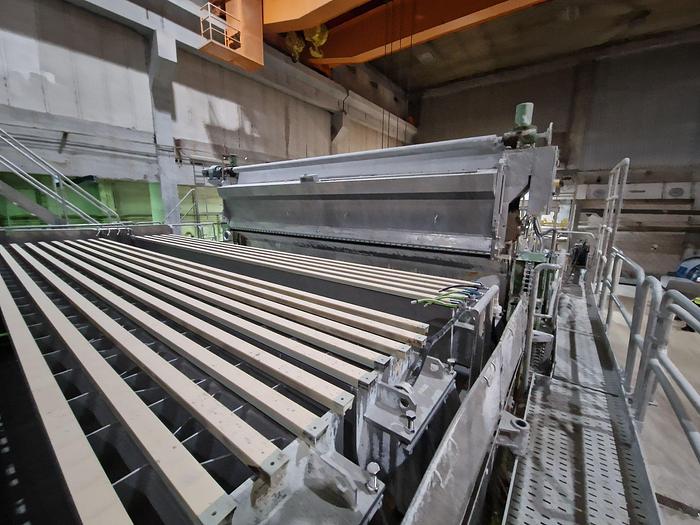

Wire section:

Manufacturer: VOITH

Cantilevered flat fourdrinier

Length of wire: 17.800 mm (distance from breast roll to couch roll)

IBS dewatering elements

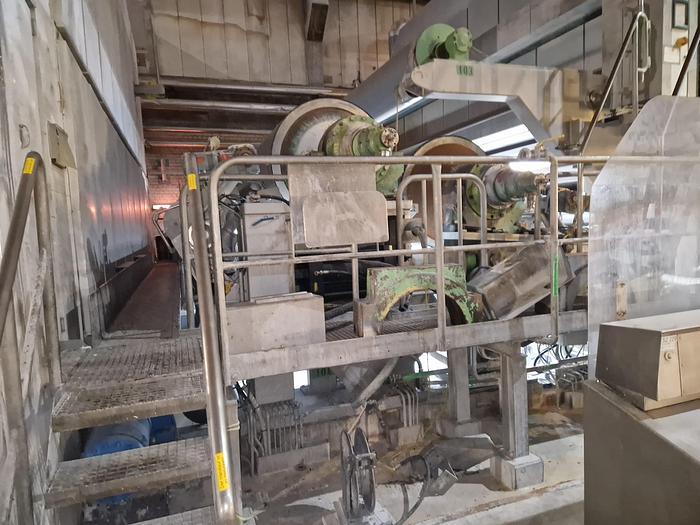

Press section:

VOITH Duo Zentri II

3rd press (VOITH Venta-Nip)

Steam box in 1st. nip press

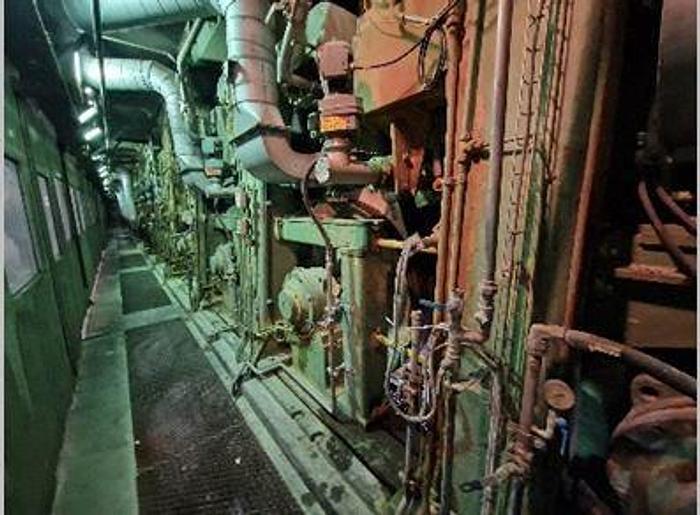

Drying section:

VOITH

52 dryers (45 pre + 12 post)

Slalom in 7 first dryers

Diam.:1.500 mm

Working pressure: 4 bar (max)

Tail threading by rope

Speed sizer

Manufacturer: VOITH

Year:1995

Diameter of top roll: 1.240 mm

Diameter of bottom roll: 1.240 mm

Jet application with flow distribution

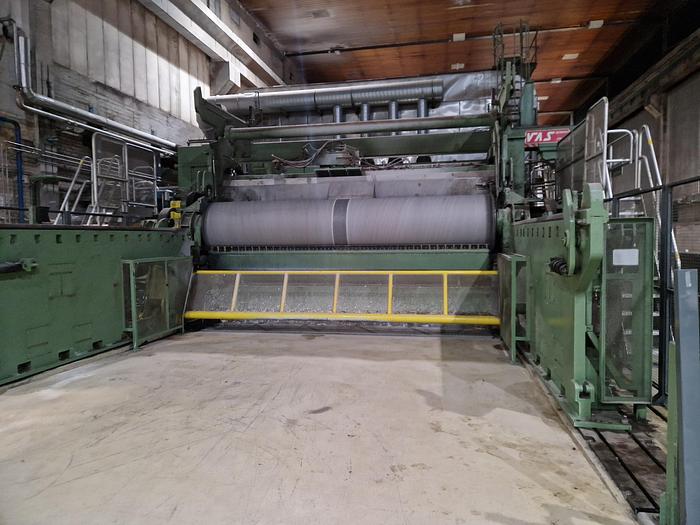

Pope reel:

Manufacturer: VAS

Year: 2008

Spool storage

Reel change by water jet (VOITH)

Diam. of mother roll: 114" (2.9m)

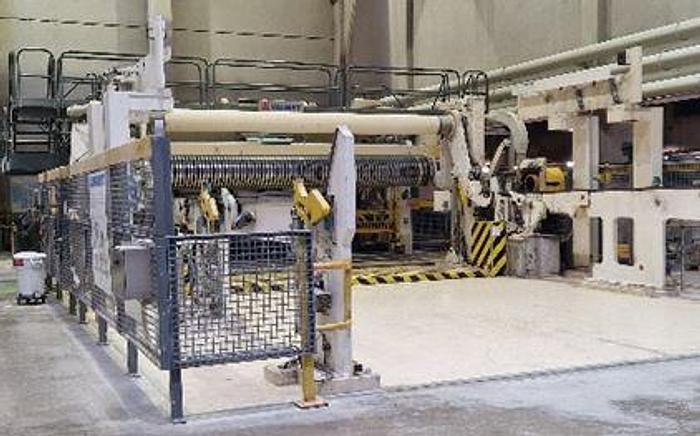

Winder:

Manufacturer: VALMET

Type: JR-1000

Year:1992

Working speed: 1600 - 2200 m/min
