60" (1500MM) NORDMECCANICA SUPER DUPLEX COMPACT SL 1500

60" (1500MM) NORDMECCANICA SUPER DUPLEX COMPACT SL 1500

Contact us for price

orCall +1 215-664-6016

Description

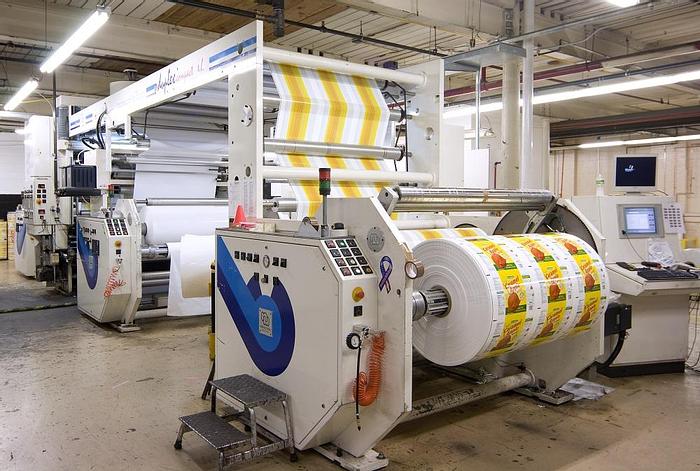

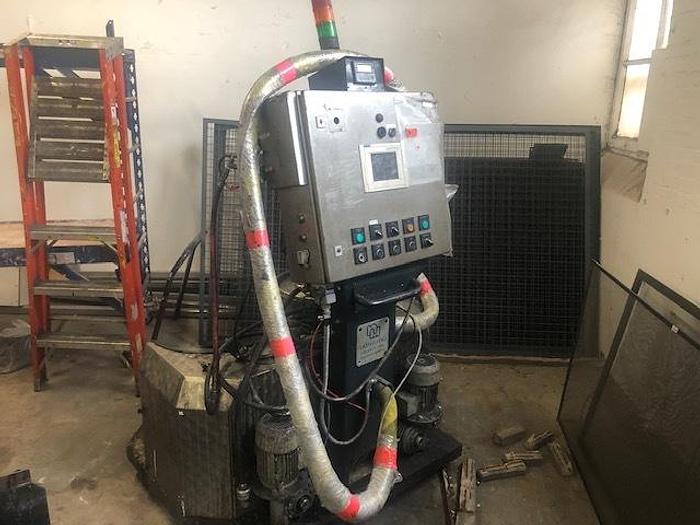

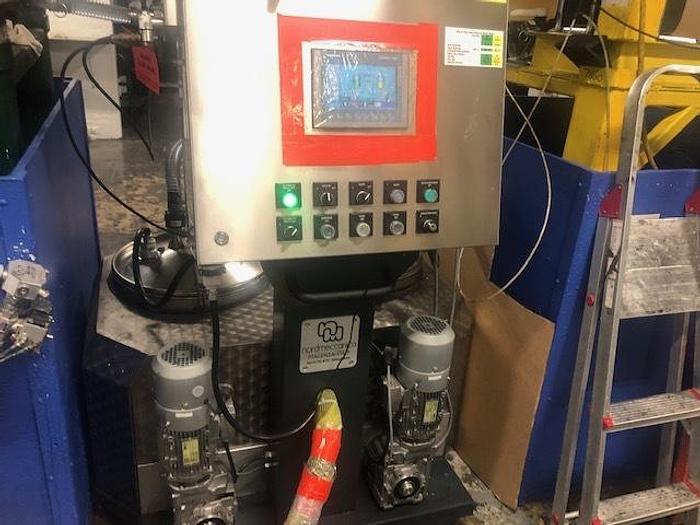

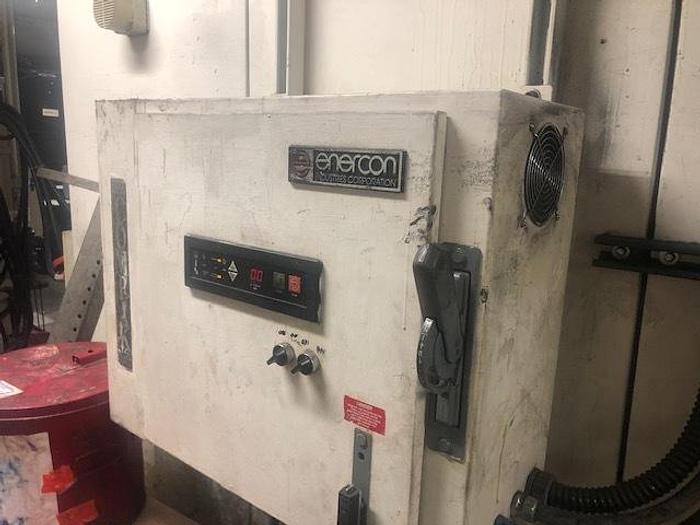

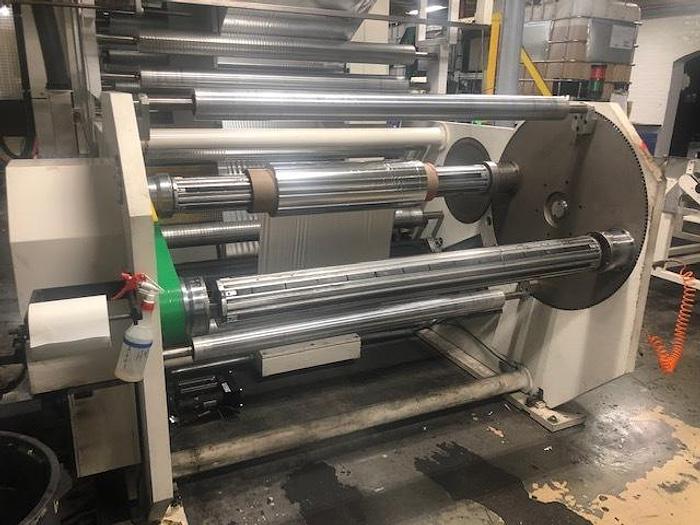

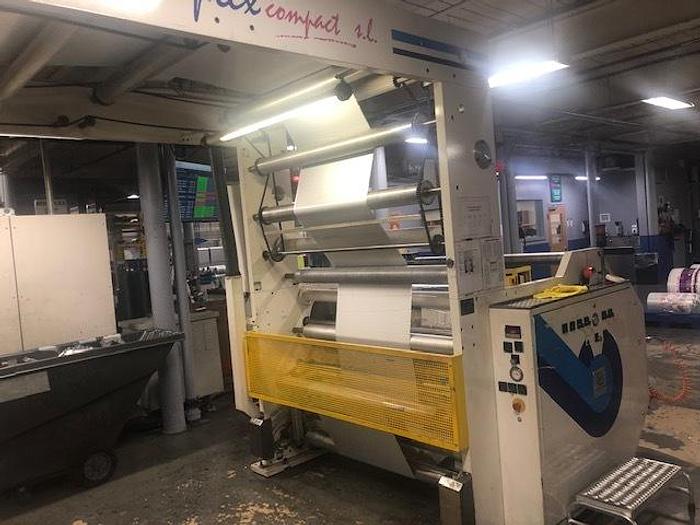

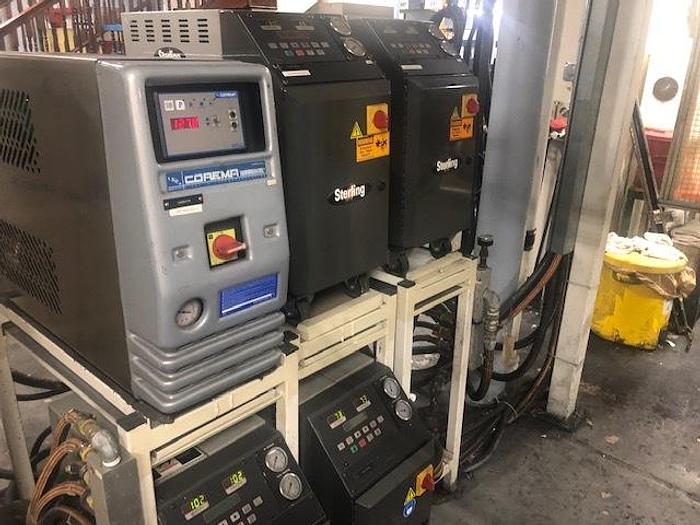

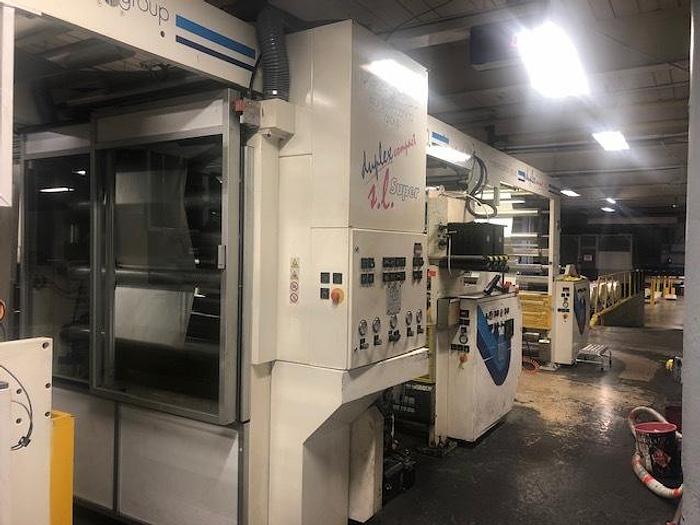

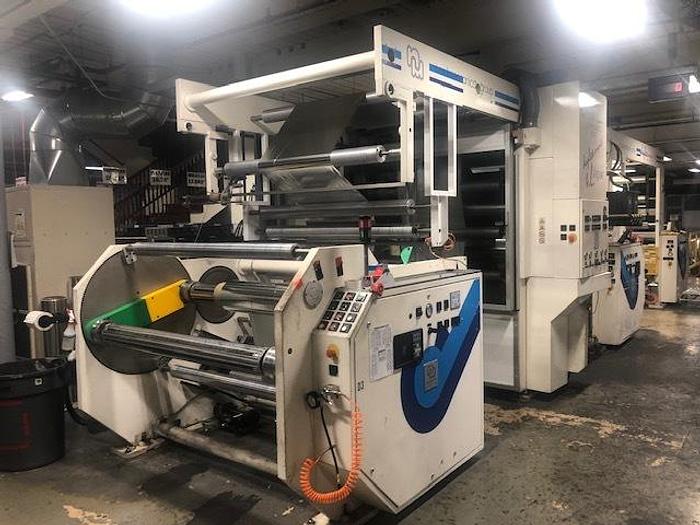

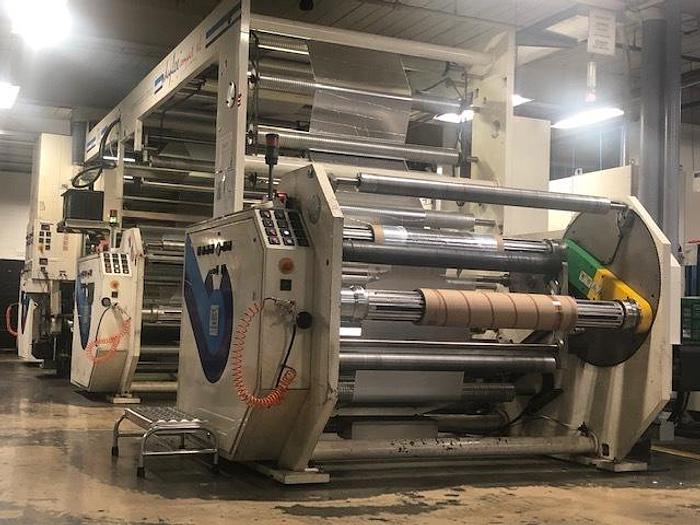

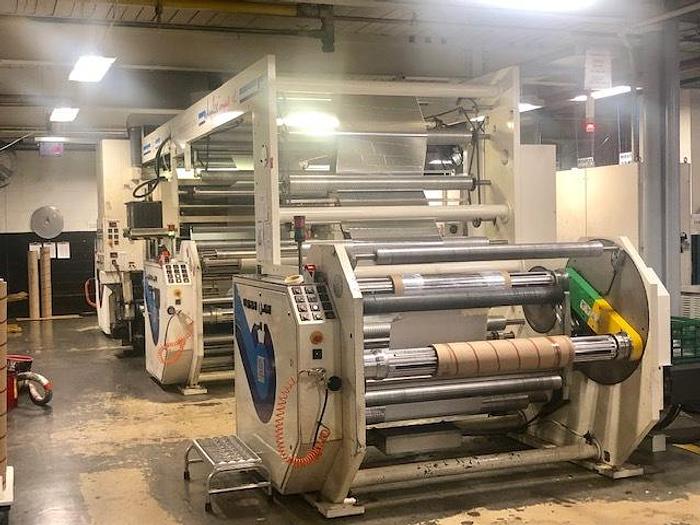

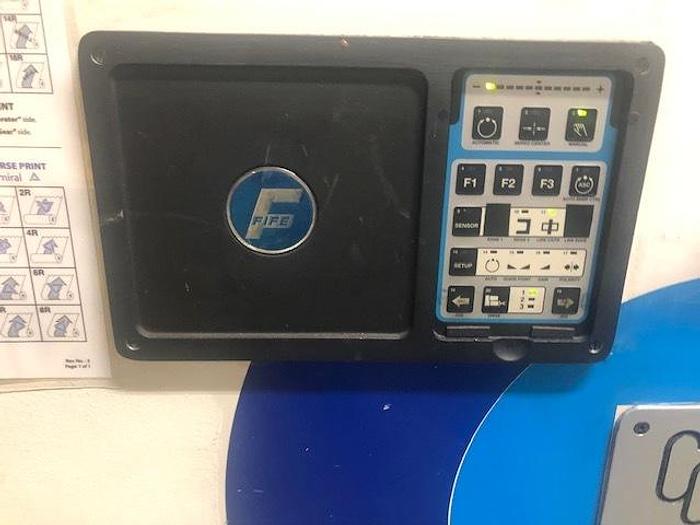

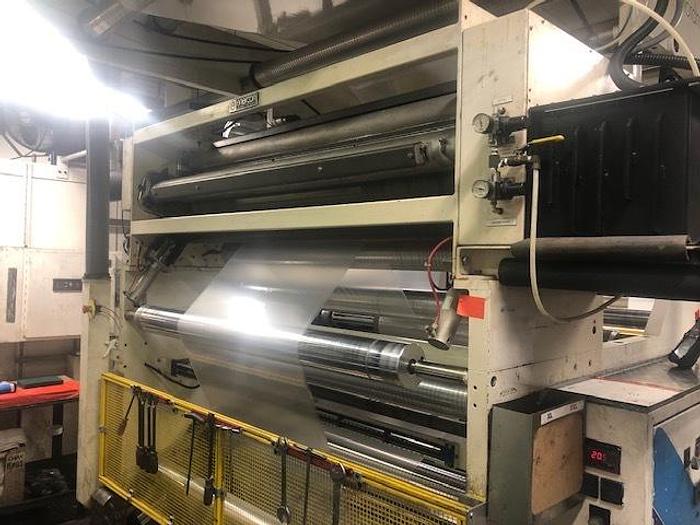

107910 One (1) Used 60" (1500mm) Nordmeccanica Super Duplex Compact SL 1500 w/ Enercon Corona Treater Mfg year: 2004 Max web width 60" Unwinds and rewinds are all turreted for continuous operation. Max unwind diameter/rewind dameter: 40" Unwind core diameter 3" and 6" Rewind core diameter 6" only Max running speed: 1968 ft/minute (600 meters/minute) Max speed for automatic reel change: 1312 ft/minure (400 meters/minute) Unwind tension range: 3kg - 55kg Rewind tension range: 6kg - 55kg Included with sale: Enercon Treater (for secondary web) (Corona treater) Six (6) 6" Air shafts Two (2) 3" Air shafts World Mixer Fife edge guide Raised tote system for adhesive Transfer roll cart Chiller system Sterical units for rollers Extra rollers and roller storage rack Spares included: Back up drives for all drives except the main drive Extra glue hose Extra trouch screen panel Extra rollers LAMINATOR POWER AND AIR Electrical requirement: Voltage: 3 x 575 V - 60 Hz without neutral Installed power - indicative: 100 kW Max absorbed current - indicative: 135 A Main switch - indicative: 160 A Capacity: indicative: 40kA Air requirement: 6 - 10 bar (Appx 88 - 146 PSI) WORLD MIXER POWER Voltage: 575 V - 60 Hz - 3PE+N Max absorbed current: 10 A Machine can be seen running. Appointment availale only through Global Equipment Intl., LLC.

Specifications

ManufacturerNORDMECCANICA
ModelSL 1500
ConditionUsed
Stock Number107910
Width60
Mfg year2004
Max unwind diameter/rewind dameter40"
Max running speed1968 ft/minute (600 meters/minute)
Max speed for automatic reel change1312 ft/minure (400 meters/minute)
Unwind tension range3kg - 55kg
Rewind tension range6kg - 55kg
Voltage575 V - 60 Hz - 3PE+N
Installed power - indicative100 kW
Max absorbed current - indicative135 A
Main switch - indicative160 A
Air requirement6 - 10 bar (Appx 88 - 146 PSI)
Max absorbed current10 A
