ATISMIRUS 300 FINISHING ROLL MANIPULATOR MFG. 2017
No longer available
ATISMIRUS 300 FINISHING ROLL MANIPULATOR MFG. 2017
Description
903514.008

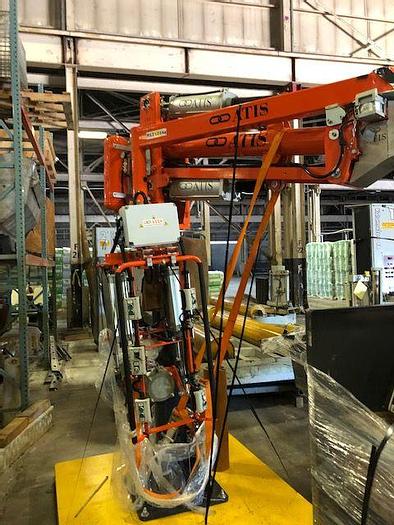

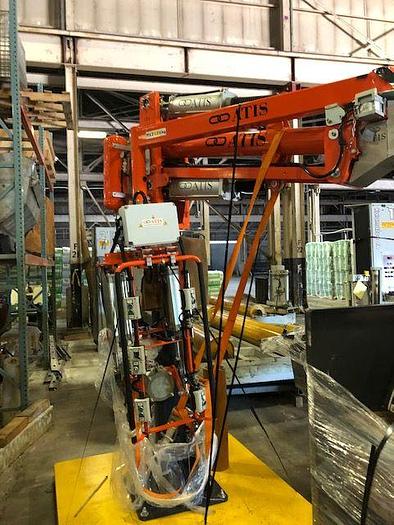

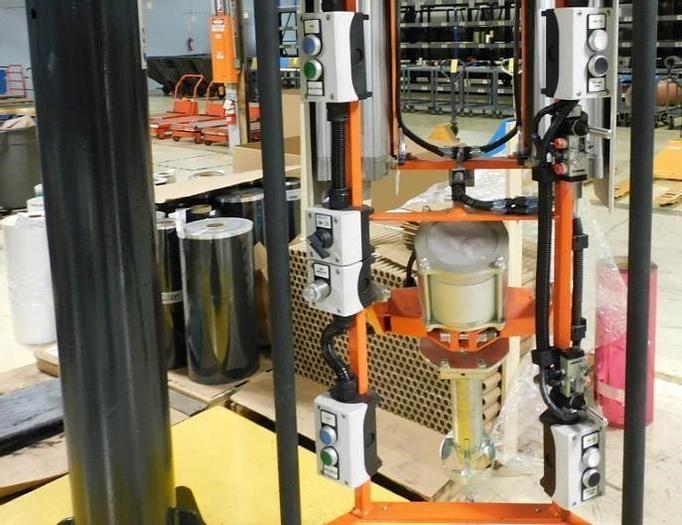

One (1) Used Finishing Roll Manipulator
Model: Atismirus 300
Made in Italy
Year of Manufacture: 2017 - Price new $28,000.00 plus $5500.00 crating and shipping

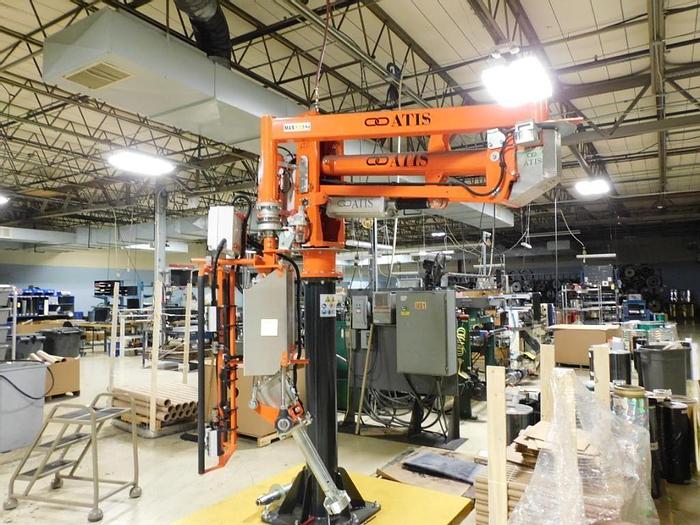

Mounted on a steel platform
ATISmirus 300

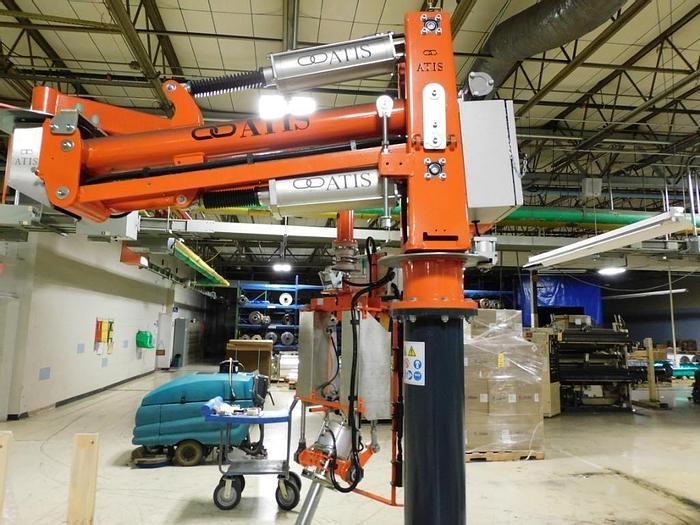

Pneumatic Manipulator with articulated rigid arms, is the solution for higher capacities. Designed for increased performance and capacity, always fulfils highest accuracy and ergonomics, even in the most critical conditions.
Reliability and safety with bulky and heavy loads makes this model the right choice for heavy industry, while our technical experience completes it with customized gripping tools to comply with customer's requirements.
TECHNICHAL CHARACTERISTICS
Operation : pneumatic only
Transmission: through a parallelogram and terminal arm
Configuration :
column mounted fixed to the floor
column mounted on self standing base plate
fixed overhead
overhead on rails
Net capacity: 440 Kg * (2450 mm radius)
Radius Max: 4400mm* (range 200 kg)
Radius Min: 400 mm
Vertical stroke: 1500 - 1750 - 2050 - 2300 mm
Supply: from 0.5 to 0.8 MPa of clean, dry and oil free compressed air
Column axle: 360° continuous rotation
Intermediate axle: max 300° rotation
Noise level: <70 dB
* Operating air pressure 0.7 MPa, gripping tool not included. The values are purely indicative and may be increased and decreased from our technical department to suit specific customer requirements.
Specifications

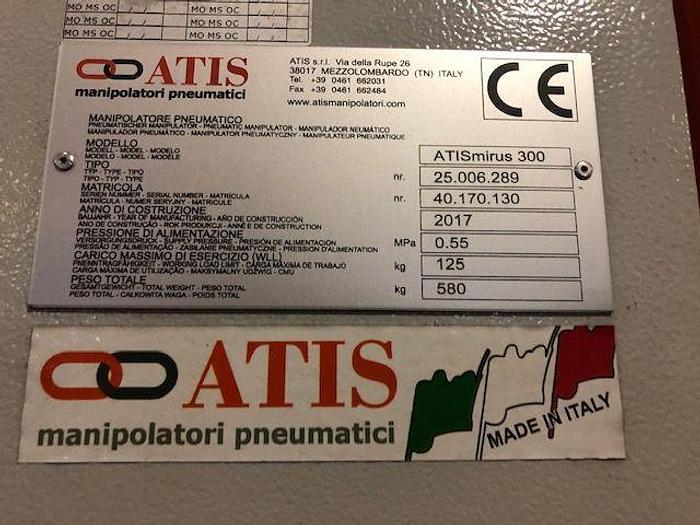

Manufacturer | ATIS SRL. |
Model | Atismirus 300 |
Year | 2017 |
Condition | Used |
Stock Number | 903514.008 |
Year of manufacture | 2017 - Price new $28,000.00 plus $5500.00 crating and shipping |
Operation | pneumatic only |
Transmission | through a parallelogram and terminal arm |
Net capacity | 440 Kg * (2450 mm radius) |
Radius max | 4400mm* (range 200 kg) |
Radius min | 400 mm |
Vertical stroke | 1500 - 1750 - 2050 - 2300 mm |
Supply | from 0.5 to 0.8 MPa of clean, dry and oil free compressed air |
Column axle | 360° continuous rotation |
Intermediate axle | max 300° rotation |
Noise level | <70 dB |
