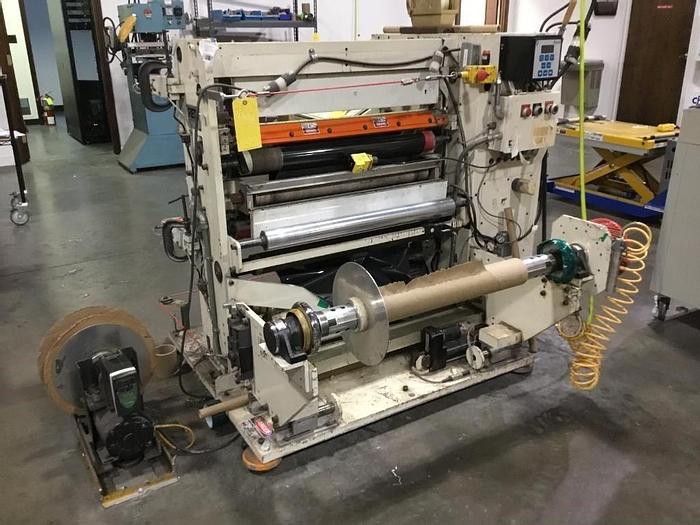

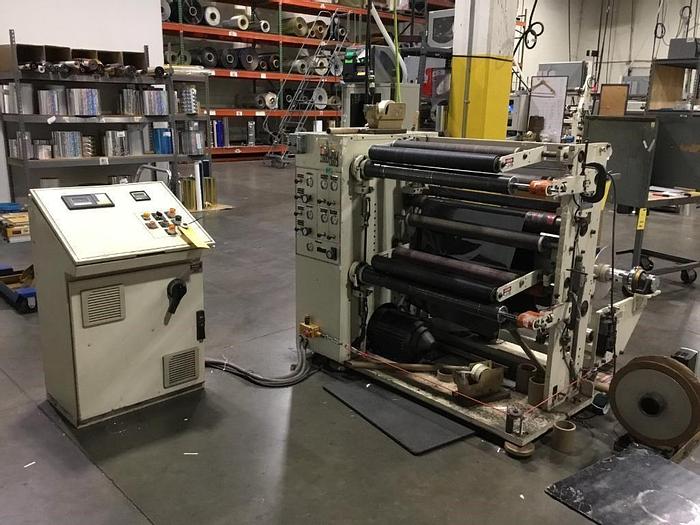

28" REM DUPLEX SLITTER REWINDER MODEL 3250-63F

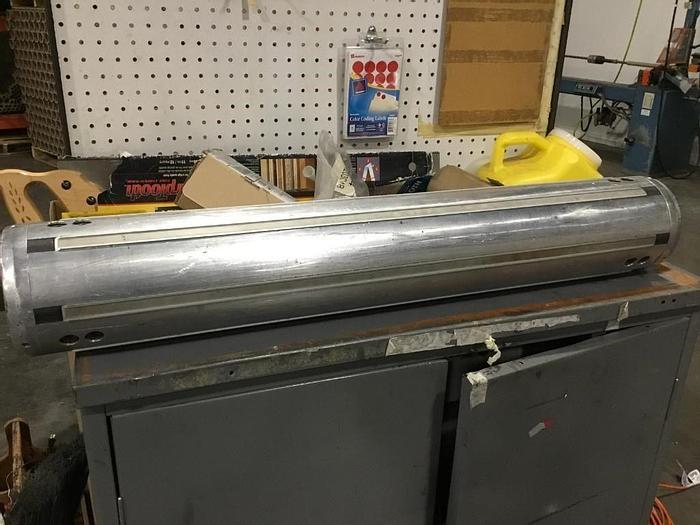

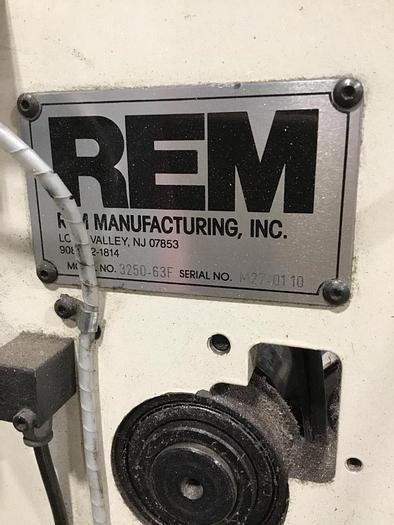

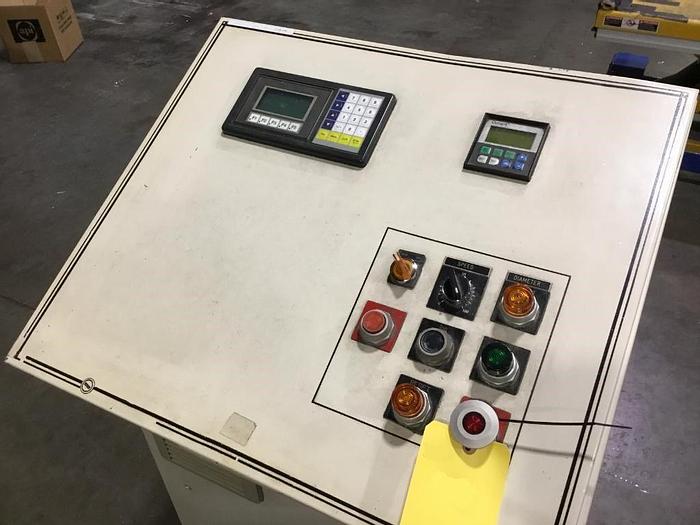

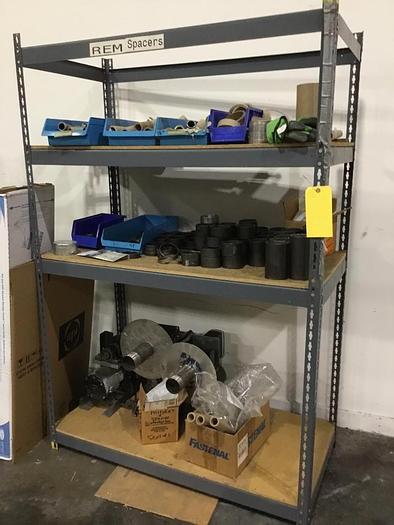

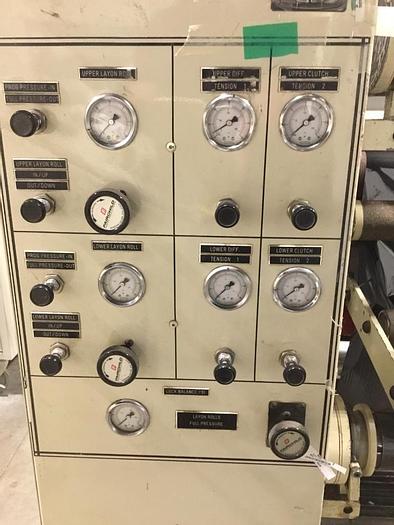

903514.001 One (1) Used 28" REM Duplex Slitter Rewinder *Razor comb seems to be the limiting factor on material width. Should be able get to 30" wide with larger trim or more wide razor comb. Model #: 3250-63F Serial #: M27-01-01 Working width: 28" Unwind diameter: 26" Max parent roll weights: 500 lbs Razor in comb slitting ; 1/16" increments 1" Minimum slit width Cantilevered rewind shafts w/ support arms Rewind diameter: 18" max on 3" cores Rewind shafts included: 1" and 3" differential shafts; spacer style. Can be upgraded. Speed: 500 ft/min Fife edge guide. Automatic unwind tension control with the diameter being sensed by an ultrasonic sensor and tension being controlled by PLC. Automatic rewind tension control and taper control by means of diameter calculation through the PLC. The operator sets starting pressure and amount of taper for each rewind station. 460/3/60 Plant Voltage 80 PSI, 5 CFM
