46" DAVIS STANDARD SHEET FULL LINE - 1800 LB/HR

46" DAVIS STANDARD SHEET FULL LINE - 1800 LB/HR

Contact us for price

orCall +1 215-664-6016

Description

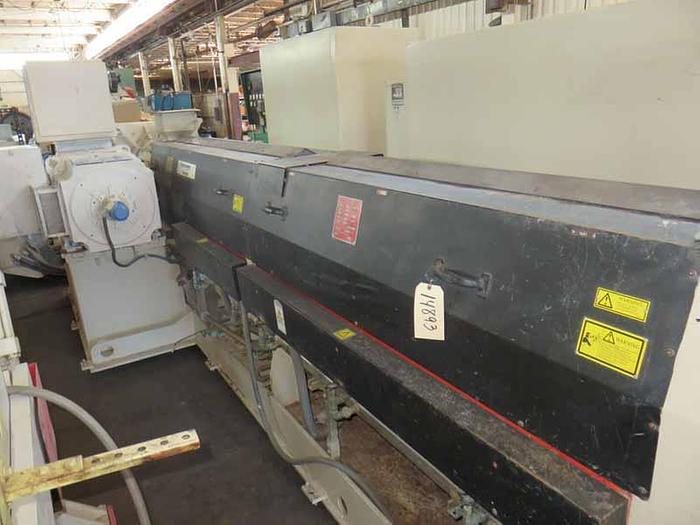

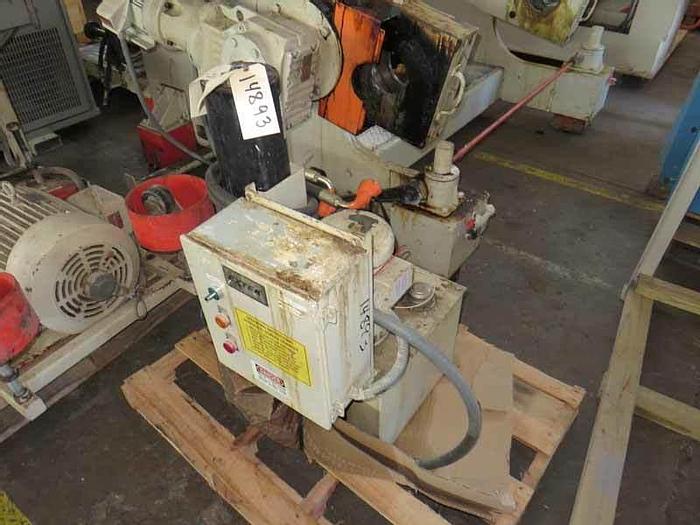

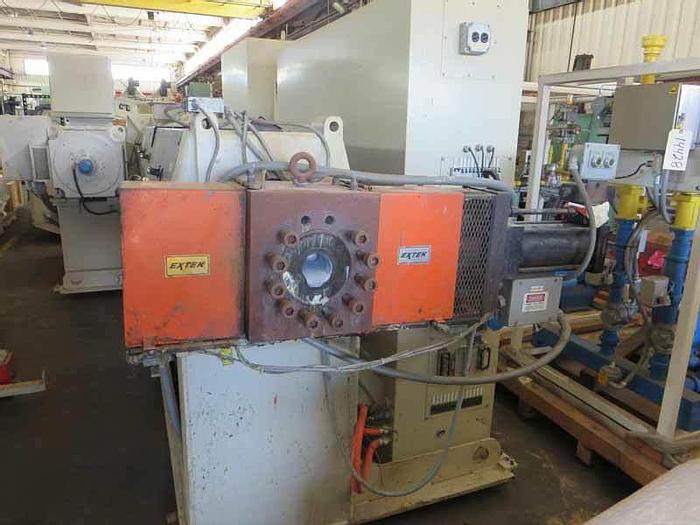

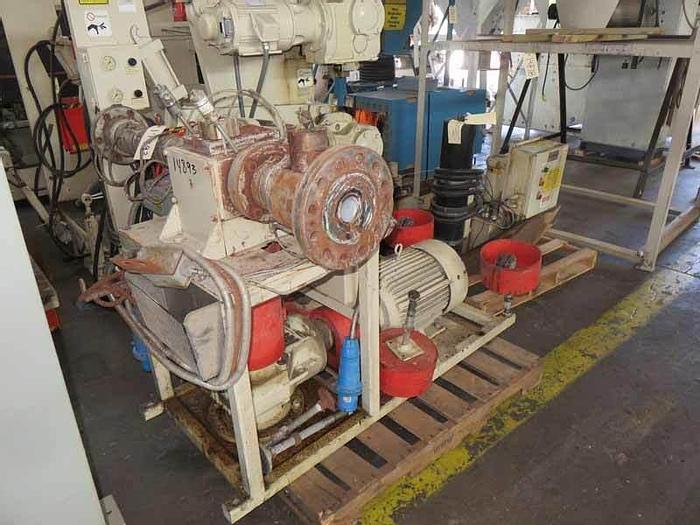

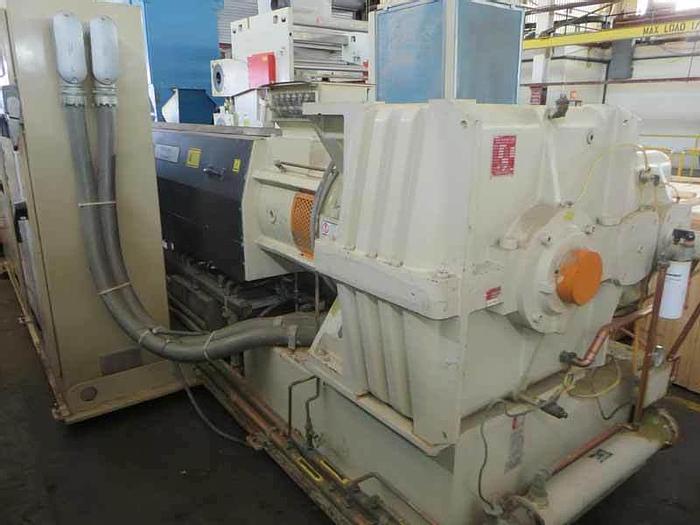

107359 One (1) Used 46" Davis Standard Sheet Line Equipped with: A - DAVIS STANDARD MODEL 6IN60TPIN 6" 30:1 L/D EXTRUDER HAVING A SIX ZONE ELECTRICALLY HEATED, WATER COOLED BARREL (CLOSED LOOP) VENTED BARREL AND PLUGGED, 47" CENTERLINE HEIGHT. GEARBOX HAS A 11.3:1 REDUCTION RATIO AND IS DIRECT DRIVEN BY A 500 HP RELIANCE DC MOTOR WITH 550 KVA ISOLATION TRANSFORMER ALLOWING FOR A MAXIMUM SCREW SPEED OF 154 RPM. GEARBOX HAS A RATING OF 700 HP AT A SERVICE FACTOR OF 1.5. FEED THROAT HAS A 12" X 8" ENTRANCE. EXTRUDER SCREW IS A BARRIER TYPE. CONTROL PANEL WITH SIX EUROTHERM 2208 TEMPERATURE CONTROLLERS FOR THE EXTRUDER BARREL ZONES PLUS 9 MORE DISCRETE CONTROLLERS FOR THE DIE AND DOWNSTREAM ZONES. S/N X7505. MFD 1998 B - EXTEK MODEL HSC60 SCREEN CHANGER HAVING TWO NOMINAL 6" DIAMETER BREAKER PLATES. INCLUDES 2 HP HYDRAULIC POWER PACK. C - XALOY MODEL SPD-300 MELT PUMP WITH 25 HP DRIVE SYSTEM AND CONTROLS. D - EDI 44" MODEL ULTRAFLEX UHRC-100 FLEXIBLE LIP SHEET DIE HAVING A 45 DEGREE RESTRICTOR BAR. SET UP FOR FIVE ZONES OF TEMPERATURE CONTROL. WITH DECKELING PROVISION. INCLUDES DIE SUPPORT CART WITH CASTERS. 230 VOLT. S/N 98-20339. MFD 1998. E - DAVIS STANDARD MODEL UPSTACK46 COOLKING AND POLISHING STAND HAVING THREE NOMINAL 24" DIAMETER CHROME PLATED ROLLS MOUNTED IN A VERTICAL ARRANGEMENT FOR UPSTACK OPERATION. HYDRAULICALLY ACTUATED CHROME ROLLS ARE EACH DRIVEN BY A 3 HP INVERTER DUTY MOTOR WITH ENCODER THRU SEW EURODRIVE 86.34:1 GEARBOXES WITH A 0-1750 RPM SPEED RANGE. INCLUDES PULL ROLL STAND WITH 46" X 8" DIAMETER ROLLS WITH 5 HP DRIVE SYSTEM AND 20' IDLER CONVEYOR AND THREE ZONE WATER TEMPERATURE CONTROL SYSTEM WITH HEATERS, HEAT EXCHANGERS, AND 7.5 HP PUMPS.

Specifications

ManufacturerDAVIS STANDARD
Model6IN60TPIN
ConditionUsed
Stock Number107359
Width46

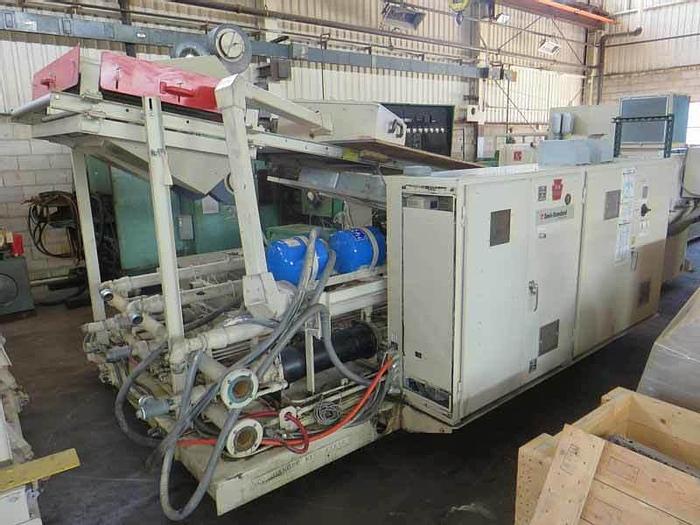

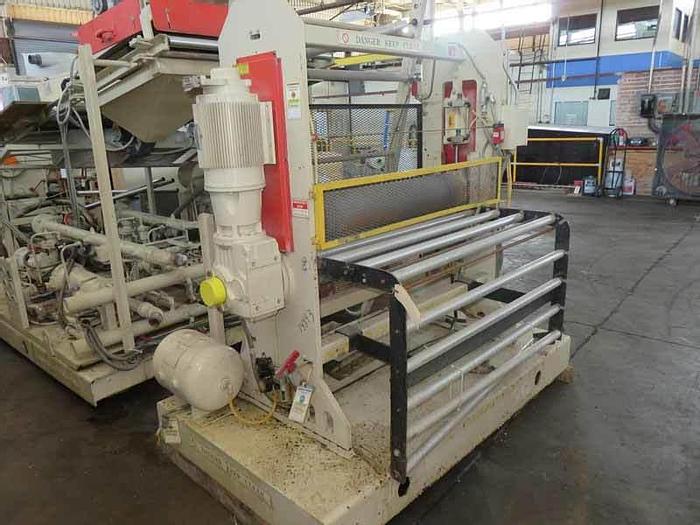

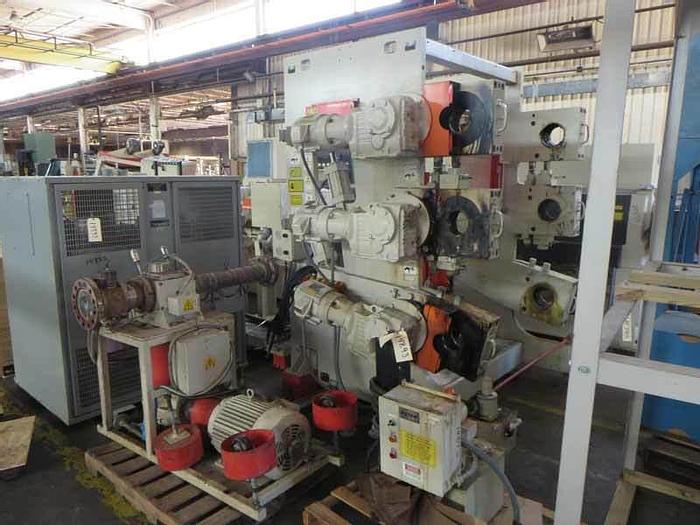

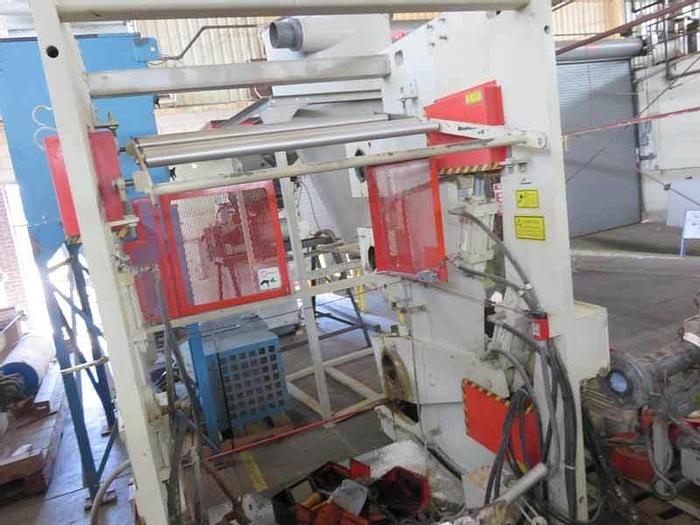

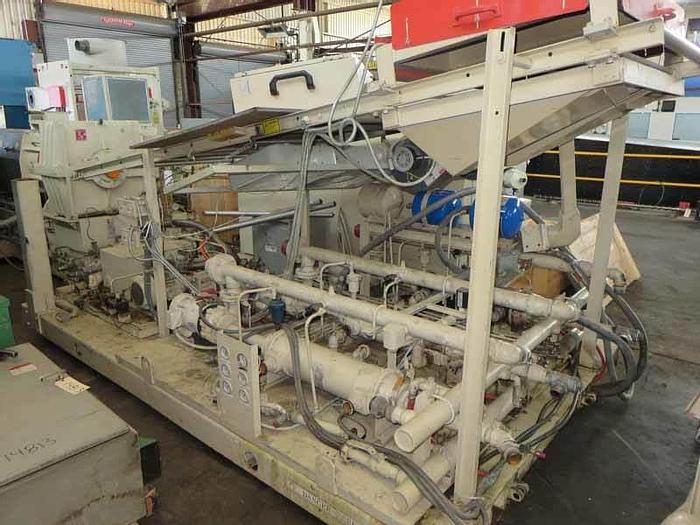

E - davis standard model upstack46 coolking and polishing stand having three nominal 24" diameter chrome plated rolls mounted in a vertical arrangement for upstack operation. hydraulically actuated chrome rolls are each driven by a 3 hp inverter duty motor with encoder thru sew eurodrive 86.341 GEARBOXES WITH A 0-1750 RPM SPEED RANGE. INCLUDES PULL ROLL STAND WITH 46" X 8" DIAMETER ROLLS WITH 5 HP DRIVE SYSTEM AND 20' IDLER CONVEYOR AND THREE ZONE WATER TEMPERATURE CONTROL SYSTEM WITH HEATERS, HEAT EXCHANGERS, AND 7.5 HP PUMPS.
