DEINKING LINE 310 - 400 TPD VOITH 2-STAGE BLEACHING
No longer available
DEINKING LINE 310 - 400 TPD VOITH 2-STAGE BLEACHING
Description
1U7952
One (1) used approximate 310 TPD Voith deinking plant with 2-stage medium consistency bleaching, with (2) scale weighing conveyors and chemical handling, all pumps, tanks, mixers, bleach chemical kitchen, etc.. The capacity can be increased to 400 TPD by replacing the (2) existing batch pulpers with a modern drum pulper. Major components as follows:
Process Equipment:
Pulpers: Two (2) Voith
Trash System: Voith Turboseparator, Voith HD Cleaner, Voith Coarse screens.
Reject System: Voith Reject Thickening, Escher Wyss Rejectsorter; Coarse screening
Flotation: Voith Micro flotation system
Thickening: (2) Hedemora screw presses ( 500 tpd)
Chemical Mixers: (2) Blekthorn MC Bleach Towers

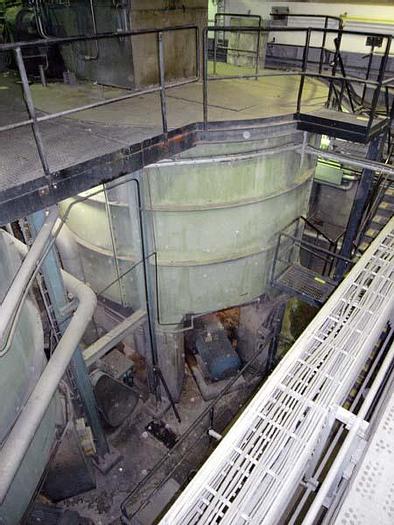

Bleaching: (2) Medium Consistency towers
Refiners: Low-Consistency, Sunds Defibrator Model JC05, 2.6MW motor
Cleaners: Voith 3-Stage
Fine Screens: 2 Voith -Stage
Machine list:
Feeding Conveyor, 1 pc., PBF 1900, B+G Fördertechnik, 1976, 4 kW
Weighing Conveyor, 2 pcs., PBF 1500, B+G Fördertechnik, 1976, 7,5 kW
Transport Conveyor, 2 pcs., PBF 1500, B+G Fördertechnik, 1976, 4 kW
Pulper, 2 pcs., VSG-50 Voith, 1976, 72-170 T/D, 280 kW
Contaminex, 1 pc., CM 21 Voith, 1993, 1500 cbm/h, 75 kW
Screening Drum, 1 pc., F-Size 5 Voith, 1993, 5,5 kW

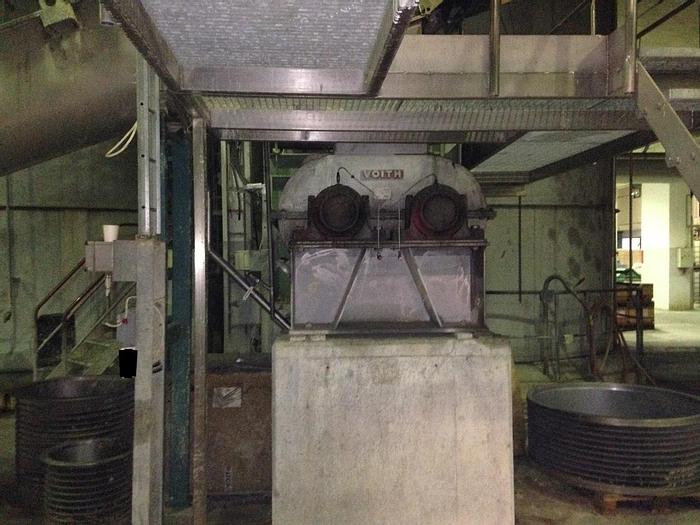

Screw Press, 1 pc., Compax Trumag, 1993, 30 kW
Turbo-Separator, 3 pcs., ATS 20 Voith, 1977, 135 T/D 4 %, 120 kW
Reject Sorter, 1 pc., RS2B Escher Wyss, 1987, 30T/D, 55 kW
Spectro Screen 1, 1 pc., Gr 33D Voith, 1993, slotted 0,35, 160 kW
Spectro Screen 2, 1 pc., Gr 23 Voith, 1987, slotted 0,35, 90 kW
Spectro Screen 3, 1 pc., Gr 13W Voith, 1987, Slotted 0,35, 37 kW

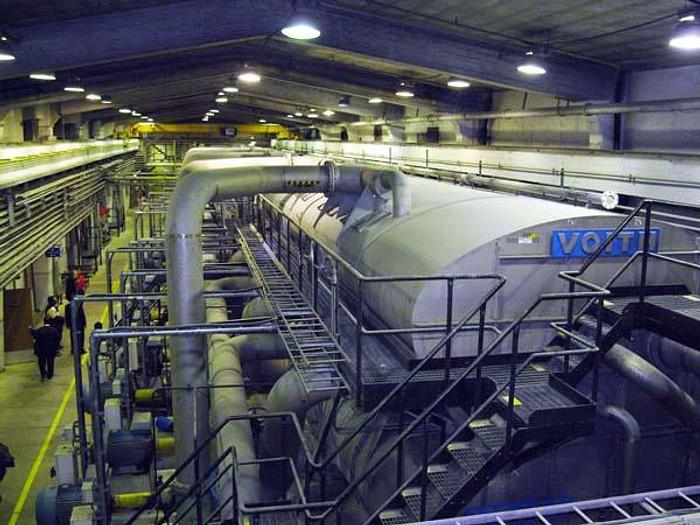

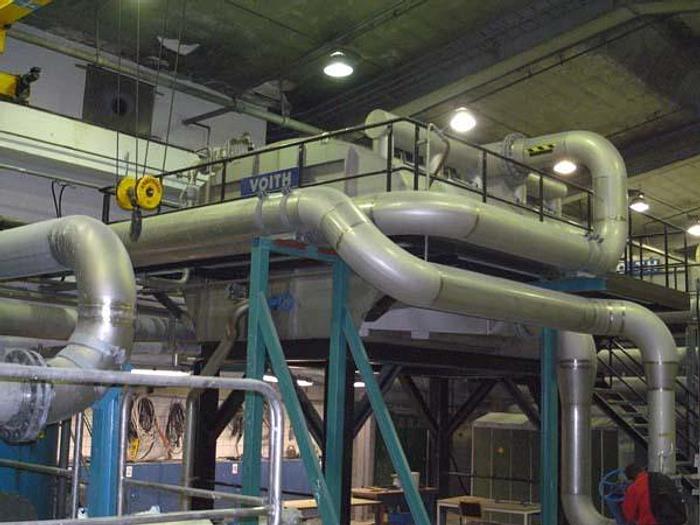

Primary Flotation, 5 pcs., ECC 5/41 Voith, 1993, 17000 l/min
Secondary Flotation, 2 pcs., ECC 5/41 Voith, 1993
Cleaner 1 step, 2x18 KS 200E Voith, 1976, 950 l/min
Cleaner 2 step, 2x4 KS 200E Voith, 1976
Cleaner 3 step, 2x1 KS 200E Voith, 1976
Screen 1 step, 4 pcs., Gr 23 Voith, 1982, slotted 0,15
Screen 2 step, 2 pcs., Gr 1 Voith, 1976
Screen 3 step, 1 pc., Gr 1 Voith, 1976
Diskfilter, 1 pc., Hedemora 1978, 4 kW
Microflotation, 1 pc., Flootec, 1987, 8000 l/min
Mixer 1 pc., Gr 30 Voith, 1982, 55 kW
LC-Refiner 1 pc., JC-05 Metso, 1999, 510 cbm/h, 2600 kW
Primary Flotation 2, 3 pcs., ECC 5/41 Voith, 1993
Secondary Flotation 2, 1 pc., ECC 5/41 Voith, 2001
Diskfilter 2, 1 pc., Hedemora ( MAY BE DIFFICULT TO REMOVE, TIGHT SPACE)
Specifications
Manufacturer | VOITH |
Model | DEINK PLANT |
Condition | Used |
Stock Number | 1U7952 |
Pulpers | Two (2) Voith |
Trash system | Voith Turboseparator, Voith HD Cleaner, Voith Coarse screens. |
Reject system | Voith Reject Thickening, Escher Wyss Rejectsorter; Coarse screening |
Flotation | Voith Micro flotation system |
Thickening | (2) Hedemora screw presses ( 500 tpd) |
Chemical mixers | (2) Blekthorn MC Bleach Towers |
Bleaching | (2) Medium Consistency towers |
Refiners | Low-Consistency, Sunds Defibrator Model JC05, 2.6MW motor |
Cleaners | Voith 3-Stage |
Fine screens | 2 Voith -Stage |
