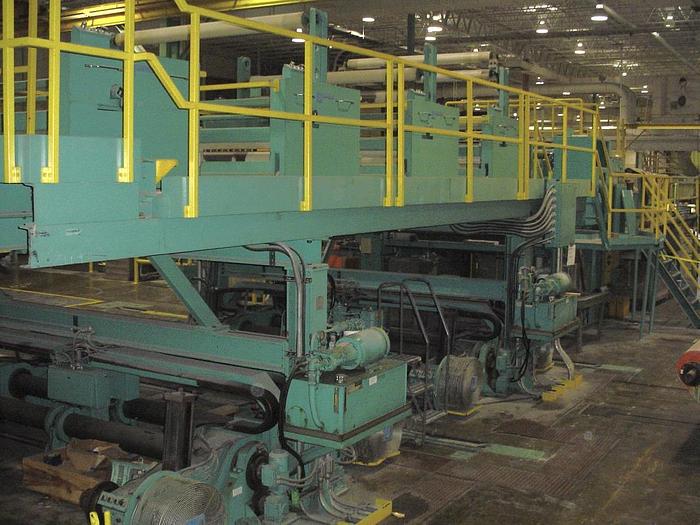

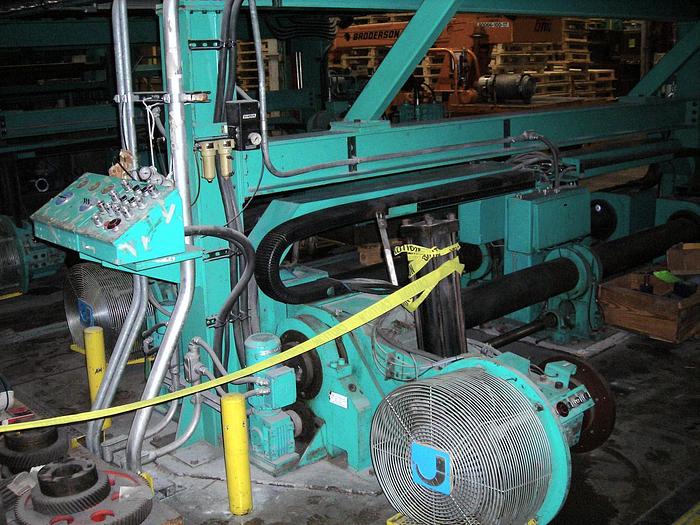

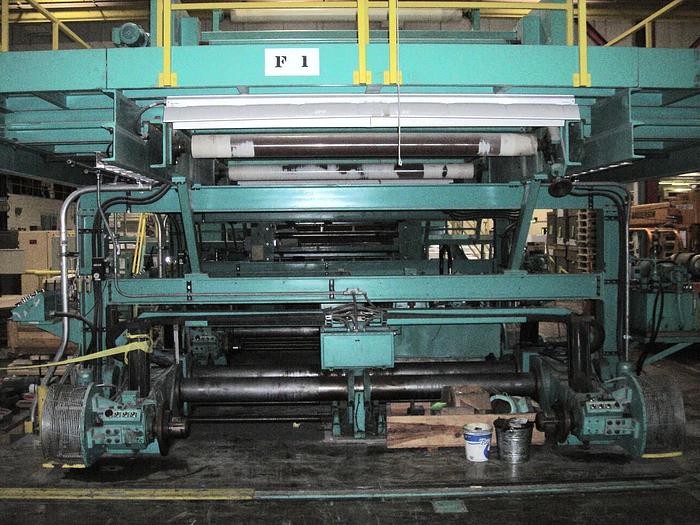

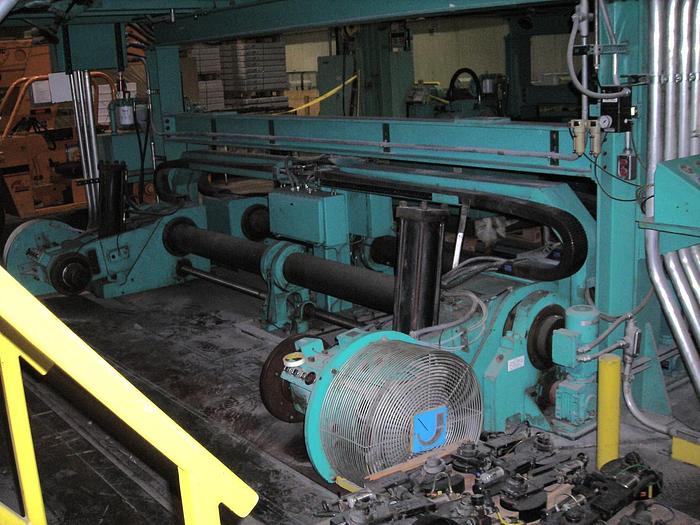

98" (2.48M) JAGENBERG FE SHAFTLESS UNWIND STAND 60" OD-2 POSITION (2001)

98" (2.48M) JAGENBERG FE SHAFTLESS UNWIND STAND 60" OD-2 POSITION (2001)

Contact us for price

orCall +1 215-664-6016

Description

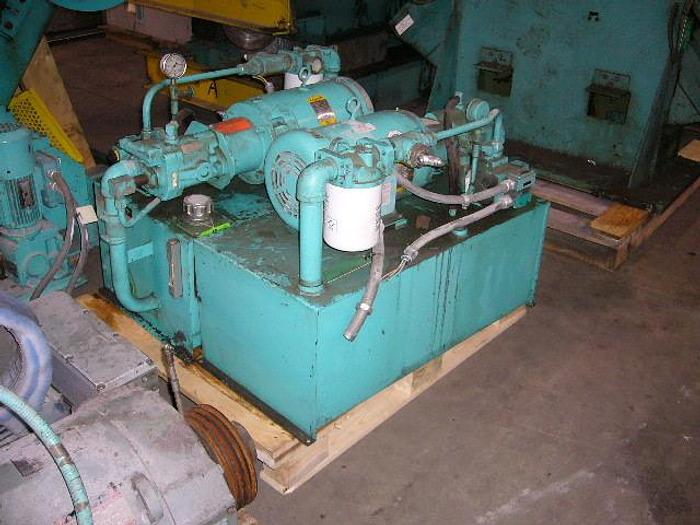

901756.001A One (1) used 98" Jagenberg dual position shaftless, floor pick-up unwind stand Type: FE15 Manufactured: 2000 60" OD Roll Capacity. Consisting of one left hand and one right hand. Unit will go down to a 14" wide roll. Serial number E910301. ·(4) Montalvo pneumatic 12" disk brakes ·(4) Double E 6" mechanical expanding core chucks ·Hydraulic operated arms for lifting the roll ·7 1/2 HP hydraulic pump ·Electrical motor for side shifting the stand via a jack screw ·Arm mounted push button control .Jagenberg web guide roll and support structure above the unwind stand ·Horton load cell type tension control unit with controller, transducer and pad selection panel. ·Jagenberg splice detectors ·Decurler unit 4 bidirectional electrically operated

Specifications

ManufacturerJAGENBERG
ModelTYPE FE15 DUAL POSITION UNWIND
Year2000
ConditionUsed
Stock Number901756.001A
Width98
TypeFE15
Manufactured2000
