64" (1.60M) ARROW MDL 2000T SLITTER REWINDER 96" OD REWIND SHEAR CUT

64" (1.60M) ARROW MDL 2000T SLITTER REWINDER 96" OD REWIND SHEAR CUT

Contact us for price

orCall +1 215-664-6016

Description

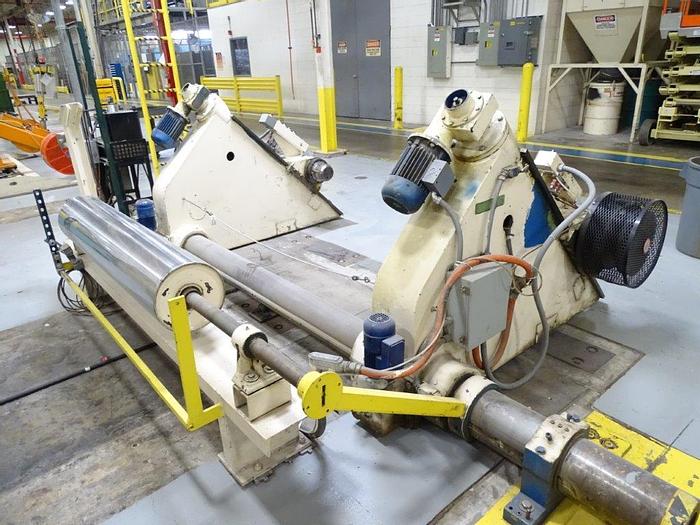

903131.006 One (1) used 64" wide Arrow Mdl 2000T-9 Center Surface slitter rewinder. Separate Jagenberg shaftless unwind floor pick up via screw and electric motors. Montalvo pneumatic brakes. Edge guide system. Dover Flexo P3 Auto tension control. Two (2) Tidland Class II shear knife assemblies. 3" Min. slit width. Dual Bowed roll for positive separation after slitting. 3" and 6" rewind shafts. 96" OD rewind capacity. Max. roll weight 8,000#. Can be used paper, nonwoven up to heavy board. Single motor Reliance 60 HP VS drive system. Rated 2000 FPM. Good operating condition. Being removed from service due to plant closure. Last ran cup stock. Includes engineering, maintenance and parts documentation. The design of the Mdl 2000 enables winding at a constant surface pressure regardless of roll weight. Pneumatic cylinders load the driven 8.625" diam. winding drum against the rewinding roll. As the roll diameter increases, the winding drum is deflected about its pivot point and this motion is detected by a hydraulic 4 way valve with a feeler roll. This valve controls the movement of the hydraulic cylinders on the rewind arms as they are positioned to neutralize the effect of the roll diam and weight build up. The rewind clutch is used to control winding torque. Any or all of the independent friction elements can be actuated thus having an effect on torque output. Also clutch pressure can be regulated on the pneumatic control panel. This provides an adjustment to compensate for variations in products being run.

Specifications

ManufacturerARROW
Model2000T
ConditionUsed
Stock Number903131.006
Width64.0 in
Rewind diameter96.0 in
