84" WIDE SRC SYSTEMS LTD MODEL 750CS LABEL STOCK SLITTER

84" WIDE SRC SYSTEMS LTD MODEL 750CS LABEL STOCK SLITTER
Contact us for price
orCall +1 215-664-6016
Description
200223

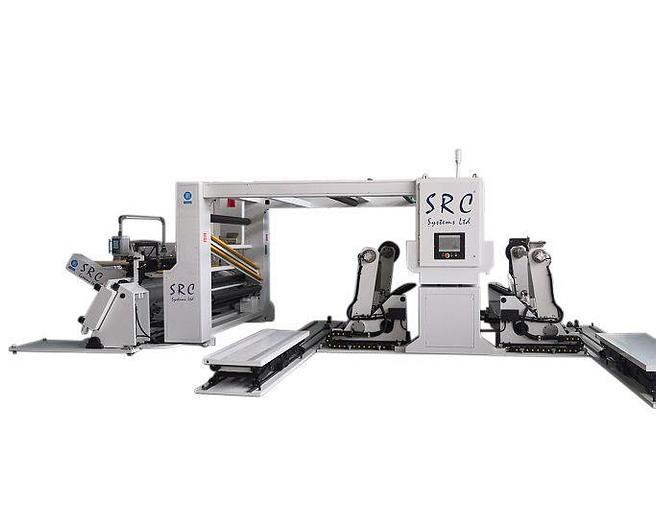

One (1) New 84" Wide SRC Systems Model 750CS Label Stock Slitter Rewinder
Center surface driven
Max working width: 84"
Max unwind diameter: 70"
Max parent roll weight: 10,000 lbs
BST Edge guide
Rotary shear slitting: shaft-driven male and female knives. Positioning systems for both male and female included.
Max rewind diameter: 60"
Laser core positioning included.
Unloading is comprised of a push off system which transfers the rolls onto a table. The table is mounted to two sliding carriages which move the rolls away from the machine and to a safe off-loading position. One system for each rewind shaft is included.
Omron PLC
Yaskawa drives
Schneider control gear
Mindman pneumatics
Available options:
Dual oscillating trim winders
Kongskilde trim blower
SRC has over 25 years experience.
Est. 1994 in Ipswich, U.K.
SRC Systems, Ltd. machines come with remote support & a 12-month parts warranty.
Pricing includes shipping charges to most destinations.
Specifications
Manufacturer | SRC SYSTEMS LTD. |
Model | 750CS |
Condition | Used |
Stock Number | 200223 |
Width | 84.0 in |
Rewind diameter | 60.0 in |
Equipped with | Lead time: 24-26 weeks. Delivery dependent on production commitment at time of order. |
Max working width | 84" |
Clamp diameter | 51.0 in |
Max unwind diameter | 70" |
Max parent roll weight | 10,000 lbs |
Rotary shear slitting | shaft-driven male and female knives. Positioning systems for both male and female included. |
Max rewind diameter | 60" |
