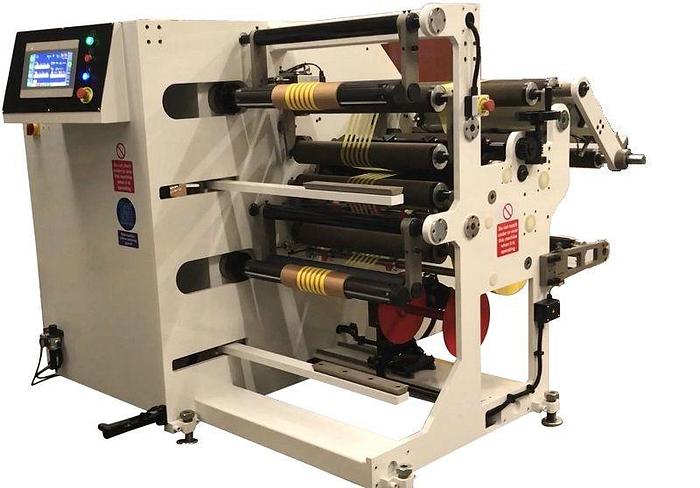

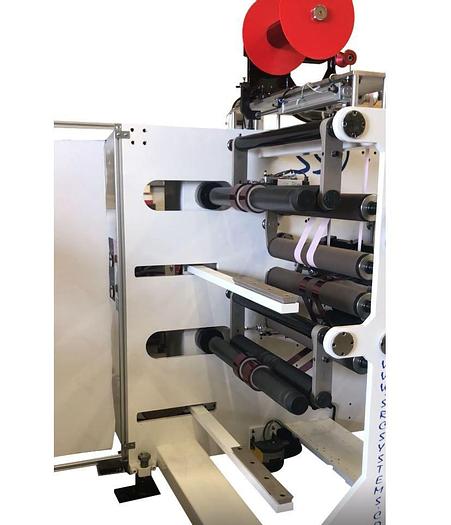

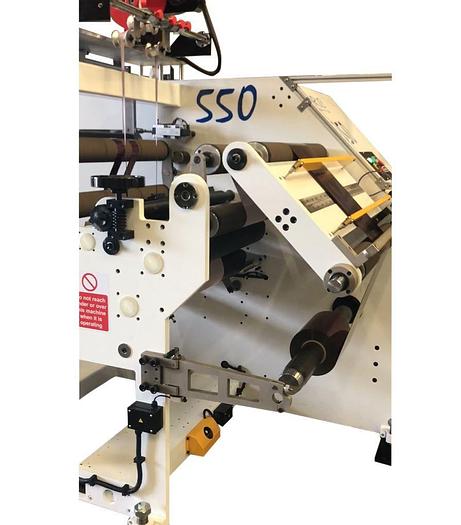

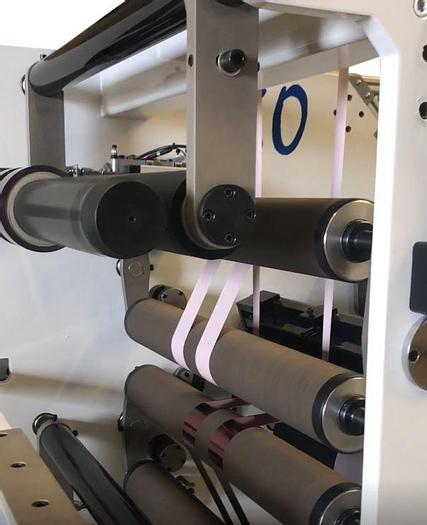

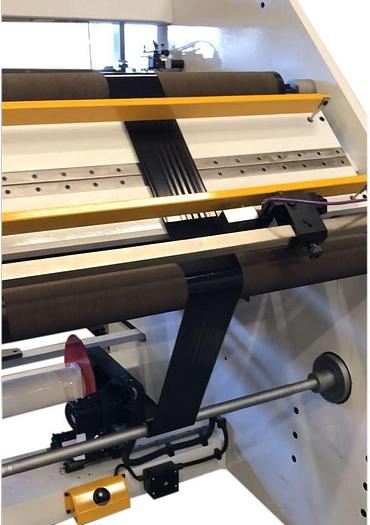

24" (810MM) NEW SRC SYSTEMS MODEL 550 DUPLEX SLITTER REWINDER

24" (810MM) NEW SRC SYSTEMS MODEL 550 DUPLEX SLITTER REWINDER

Contact us for price

orCall +1 215-664-6016

Description

200217 One (1) New SRC Systems Model 550 Duplex Slitter Rewinder Max working width: 24" Unwind diameter: 24" Unwind core size: 3" ( 1" option available on request) Razor slitting Minimum slit width: 12mm (slightly under half inch) Trim removal option: Single servo controlled oscillating trim winder (not included in base price) Rewind core size: 3" ( 1" option available on request) Rewind diameter: 24" Top speed: 1500 ft/min Machine can preform under and overwind style winding Pneumatic dancer roll tension control Tension range: 1-55 lbs SRC has over 25 years experience. Est. 1994 in Ipswich, U.K. SRC Systems, Ltd. machines come with remote support & a 12-month parts warranty. Pricing includes shipping charges to most destinations.

Specifications

ManufacturerSRC SYSTEMS LTD.
Model550 DUPLEX
ConditionUsed
Stock Number200217
Width24.0 in
Rewind diameter24.0 in
Power50.0 hp
Clamp diameter60.0 in
Equipped withLead time: Appx. 18-20 weeks. Delivery dependent on production commitments at the time of order.
Max working width24"
Unwind diameter24"
Unwind core size3" ( 1" option available on request)
Minimum slit width12mm (slightly under half inch)
Trim removal optionSingle servo controlled oscillating trim winder (not included in base price)
Rewind core size3" ( 1" option available on request)
Top speed1500 ft/min
Tension range1-55 lbs
