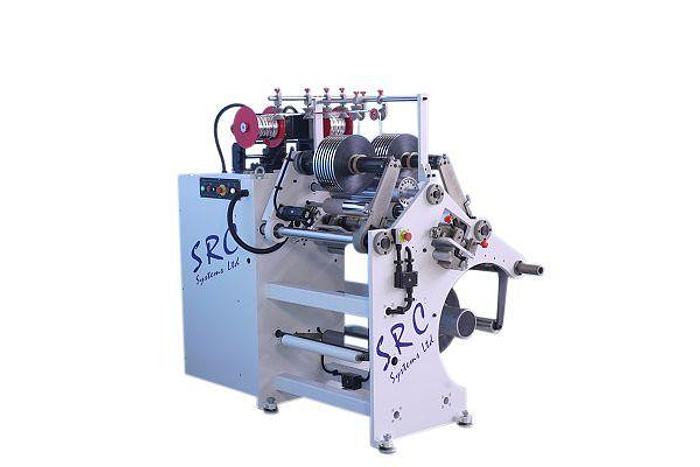

20" (500MM) NEW SRC SYSTEMS 645CS NARROW WEB SLITTER REWINDER

20" (500MM) NEW SRC SYSTEMS 645CS NARROW WEB SLITTER REWINDER

Contact us for price

orCall +1 215-664-6016

Description

200212 One (1) New SRC Systems Ltd. Model 645CS Narrow Web Slitter Rewinder Maximum roll width: 20" (500mm) Unwind type: Shafted Maximum roll diameter: 24" (600mm) Unwind shaft: 3" (76mm) diameter steel lug type air shaft Core size ability: 3" (76mm); 6" (152mm) with adaptor Tension control: Driven with pneumatic dancer arm Tension range: 10- 100 Newton's Guiding system: BST Ekr500 ultrasonic sensor for edge control Guider traverse: +/- 2.5" (65mm) Slitting Section: Slitting type: Pre-ground rotary shear with removable razor comb attachment Minimum slit width: .2" (5mm) Main dive: Drum roller: 150mm dia Hard Chromed drive roller with pneumatic nip drive Rewind section: Rewind type: Centre surface Rewind shafts: Cantilevered interchngable air shafts Core size: 3" (76mm) Maximum rewind diameter: 20" (500mm) Gap/ contact winding: SRC electronic/ pneumatic positioning system Tension control: Lock core winding Operator interface: 10" colour touch screen SRC has over 25 years experience. Est. 1994 in Ipswich, U.K. SRC Systems, Ltd. machines come with remote support & a 12-month parts warranty. Pricing includes shipping charges to most destinations.

Specifications

ManufacturerSRC SYSTEMS LTD.
Model645CS
ConditionUsed
Stock Number200212
Width20
Rewind diameter20.0 in
Equipped withLead time: Appx. 22-24 weeks. Delivery dependent on productions commitments at the time of order.
Maximum roll width20" (500mm)
Unwind typeShafted
Maximum roll diameter24" (600mm)
Unwind shaft3" (76mm) diameter steel lug type air shaft
Core size ability3" (76mm); 6" (152mm) with adaptor
Tension controlLock core winding
Tension range10- 100 Newton's
Guiding systemBST Ekr500 ultrasonic sensor for edge control
Guider traverse+/- 2.5" (65mm)

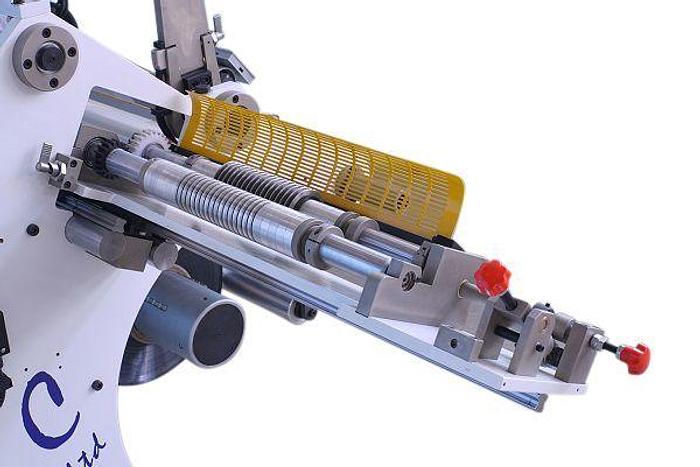

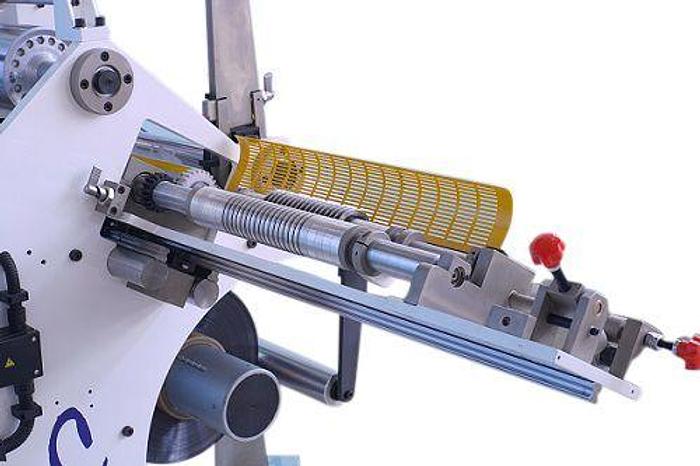

Slitting typePre-ground rotary shear with removable razor comb attachment
Minimum slit width.2" (5mm)
Drum roller150mm dia Hard Chromed drive roller with pneumatic nip drive

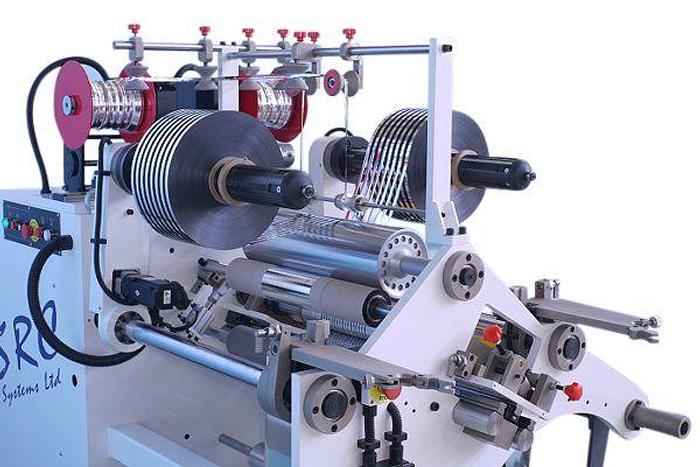

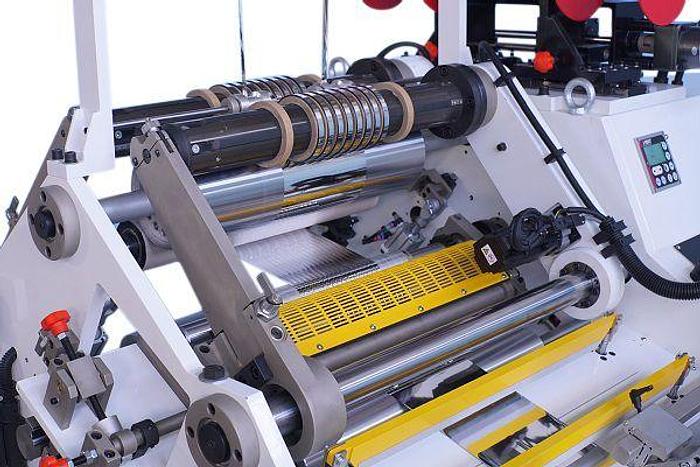

Rewind typeCentre surface
Rewind shaftsCantilevered interchngable air shafts
Core size3" (76mm)
Maximum rewind diameter20" (500mm)
Gap/ contact windingSRC electronic/ pneumatic positioning system
Operator interface10" colour touch screen
