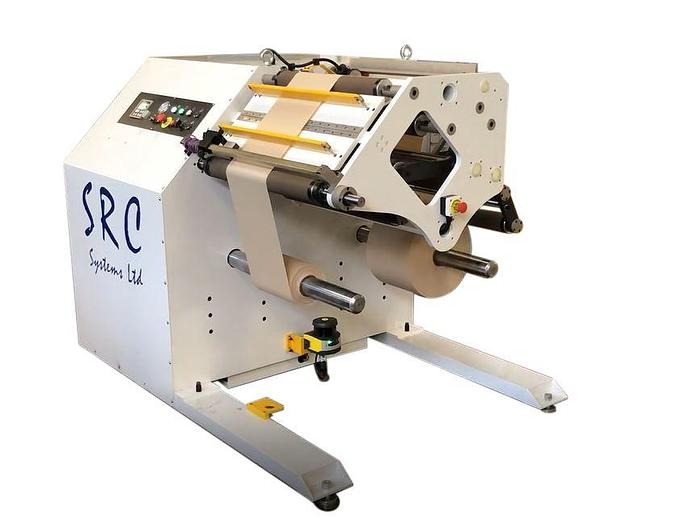

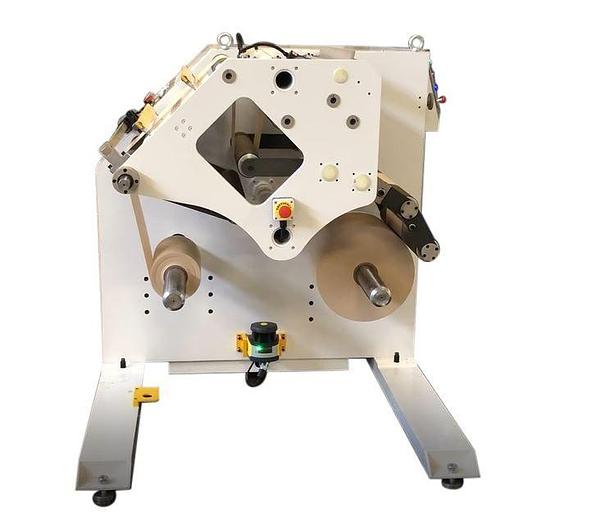

24" (600MM) NEW SRC SYSTEMS 606 DOCTOR REVERSABLE SLITTER REWINDER

24" (600MM) NEW SRC SYSTEMS 606 DOCTOR REVERSABLE SLITTER REWINDER

Contact us for price

orCall +1 215-664-6016

Description

200104 One (1) New SRC Systems Ltd. Model 606 Cantilevered Doctor Machine Reversible direction winding. Max Web width; 24" (600mm) Parent roll max. diameter; 24" (600mm) Parent roll max weight; 330Lb (150Kg) Winding shafts: 3" (76mm) pneumatic shafts Tension control: Pneumatic dancer arm Tension range; 4.4 - 44Lb (2 - 20Kg) Unwind lay-on arm: Pneumatic Splice table: Full width aluminum table wtih pneumatic clamps Guiding system: BST Ekr500 edge guide Web guide; +/- 2.55" (65mm) Slitting; Razor in air Machine speed; 1350fpm (400mpm) Rewind diameter: 24" (600mm) Rewind lay-on arm: Pneumatically controlled 10" color touch screen Optional: Trim winder/ vacuum blower Spreader Roll SRC has over 25 years experience. Est. 1994 in Ipswich, U.K. SRC Systems, Ltd. machines come with remote support & a 12-month parts warranty. Pricing includes shipping charges to most destinations.

Specifications

ManufacturerSRC SYSTEMS LIMITED
Model606 DOCTOR
ConditionUsed
Stock Number200104
Width24
Rewind diameter24" (600mm)
Equipped withLead time: Appx. 18-20 weeks. Delivery dependent on productions commitments at the time of order.
Winding shafts3" (76mm) pneumatic shafts
Tension controlPneumatic dancer arm
Unwind lay-on armPneumatic
Splice tableFull width aluminum table wtih pneumatic clamps
Guiding systemBST Ekr500 edge guide
Rewind lay-on armPneumatically controlled
