150 TPD RCM HOT DISPERSION PLANT MFG. 2001

150 TPD RCM HOT DISPERSION PLANT MFG. 2001

Contact us for price

orCall +1 215-664-6016

Description

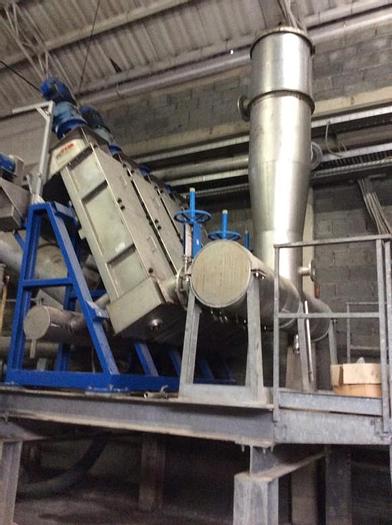

107457 Manufacturer: RCM, good Italian constructor Year of manufacture: 2001 Raw material: corrugator trims 4 x vertical thickening presses type PV-230 To thicken pulp out of cleaning phase With following characteristics: material: waste paper pulp density in: 3-4% pulp density out: 10-12% absorbed power: 4,5 KW each installed power: 5,5 KW each screw speed: 63 rpm motor speed: 1450 rpm basket holes Ø: 2 mm body in AISI 304; screw in AISI 304; baskets AISI 304 with conic holes, complete with reinforcing rings in AISI 304; shaft in AISI 304; oil lubricated bearings Complete with: speed reductor elastic joint to connect speed reductor and screw stainless steel support for the 4 presses Stainless steel screw (left-right) With open box, complete with pulleys, belts, belts protection and 2,2 KW motor reductor, 50 Hz Horizontal press type PO-500 To thicken pulp out of vertical presses With following characteristics: material: waste paper pulp density in: 10-12% pulp density out: 30% absorbed power: 50 KW installed power: 75 KW screw speed: 35 rpm motor speed: 1450 rpm basket holes Ø: 2 mm body in AISI 304, screw in AISI 304 high thickness, basket with external holes in AISI 304 high thickness, changeable basket with internal holes in AISI 304 with conical holes, basket on the screw in AISI 304 with conical holes for internal drainage pneumatic group on the final part of the screw, to regulate thickness of pulp density outcome Complete with: elastic joint to connect press and reductor speed reductor elastic joint to connect speed reductor and electric motor stainless stell joints protections stainless steel basement for the press, complete of AISI 304 vat water recovery stainless steel basement to connect speed reductor and electric motor Electric motor must be driven by an inverter Heating horizontal tunnel type TL-800 To heat pulp coming out of horizontal press With following characteristics: material to heat: waste paper pulp density: 30% working temperature: 90 C° max absorbed power: 14 KW installed power: 18,5 KW screw speed: 16 rpm motor speed: 1450 rpm width in: 550 x 550 mm width out: 450 x 350 mm steam connections Ø: 50 mm number of steam connections: 8 dimensions: 800 x 7000 mm body in 2 halves in AISI 304; shaft in AISI 304; with oil lubricated bearings, stainless steel bearings holders, inspection covers in AISI 304, transmission between motor and screw through motor reductor, toothed wheels and chain Dispersor type DS-950 For the pulp coming from the heating tunnel With following characteristics: material: waste paper pulp density: 30% absorbed power: 400 KW installed power: 500 KW dispersor speed: 960 rpm motor speed: 960 rpm width in: 350 x 350 mm width out: 240 x 1250 mm dispersion rings Ø: 850 mm feeding screw speed: 247 rpm screw motor speed: 1450 rpm screw absorbed power: 4 KW screw installed power: 5,5 KW dilution water flow: 1800 lt dilution water pressure: 5 bars stailess steel bearings holders; stainless steel dispersor body covered in AISI 304, all parts in direct contact with pulp are high thickness covered; rotor in AISI 304; dispersion rings in chrome-nichel stainless steel, wear resistent; shaft in hardened AISI 240; with oil lubricated bearings, stainless steel openable front door covered in AISI 304, complete with manual regulation of the dispersion rings; feeding screw in AISI 304; complete with motor reductor group Plant installed, stopped 2012, in excellent conditions

Specifications

ManufacturerRCM, good Italian constructor
ModelHOT DISPERSION SYSTEM
Year2001
ConditionUsed
Stock Number107457
Dimensions800 x 7000 mm
Year of manufacture2001
Raw materialcorrugator trims
Materialwaste paper
Pulp density in10-12%
Pulp density out30%
Absorbed power400 KW
Installed power500 KW
Screw speed16 rpm
Motor speed960 rpm
Basket holes ø2 mm
Material to heatwaste paper
Pulp density30%
Working temperature90 C° max
Width in350 x 350 mm
Width out240 x 1250 mm
Steam connections ø50 mm
Number of steam connections8
Dispersor speed960 rpm
Dispersion rings ø850 mm
Feeding screw speed247 rpm
Screw motor speed1450 rpm
Screw absorbed power4 KW
Screw installed power5,5 KW
Dilution water flow1800 lt
Dilution water pressure5 bars
