90" (2.30M) REINHARD WET CREPE TISSUE MACHINE W/YANKEE
No longer available
90" (2.30M) REINHARD WET CREPE TISSUE MACHINE W/YANKEE
Description
107720
One (1) used 90" (2.30M) Rinehard wet crepe tissue machine, Max. Speed 650m/min. Grammage : 22-55gsm, Crepe: 5-15%,
With the following:
Voith air cusion headbox, slice width: 93" (2350mm),
Flow: 5900-14,000l/min, Rebuilt bu Voith (1983)

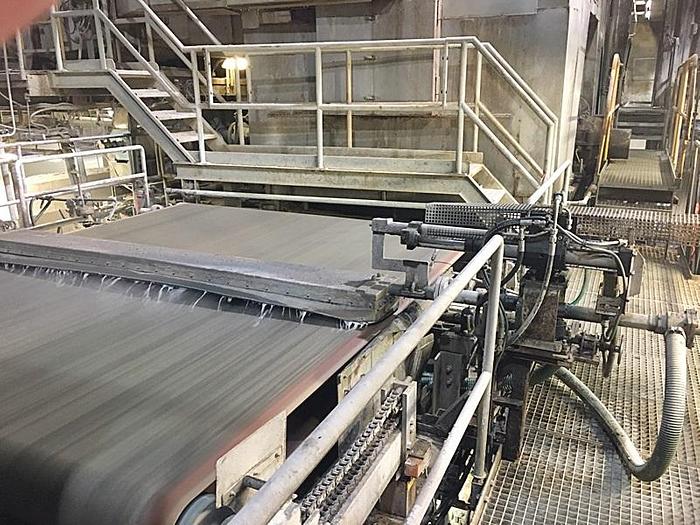

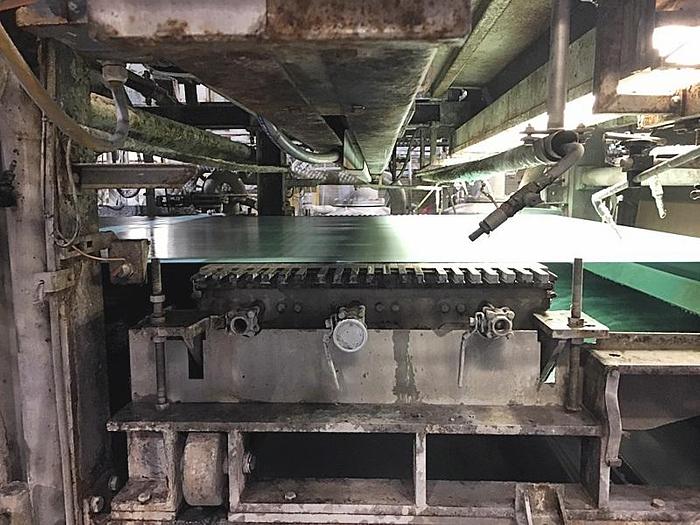

Fourdrinier : Wire width /Length: 2465mm x15,850mm
wire drive roll w/drive & gearbox, hydrayulic controlled guide roll.
Vacuum system with seperator tanks & extraction pump( vacuum pump not included)
Two (2) press sections:

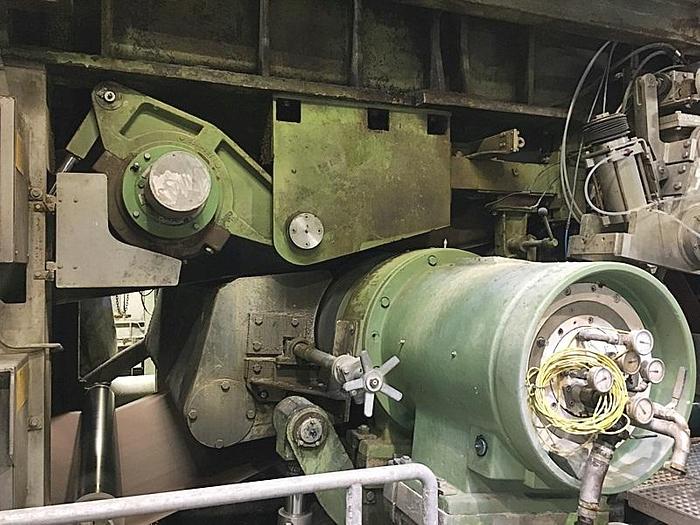

Voith (1981) suction , 790mm (31") dia. , two vacuum zones, Nipload 70kn/m hydraulic controlled, (1) spare shell.
Blind press section , 509mm (20") dia. Nip load 65 kn/m hydraulic controlled, (1) spare shell
Felt cleaning station, HP-LP showers oscillation hydraulically controlled,
Voith Yankee dryer
Dia: 3100mm (122") Face: 3500mm (138")
Operating steam pressure:5.0 Bar, drive & gearbox, Steam plant, ( Metallization: Valmet Inficote 2016)

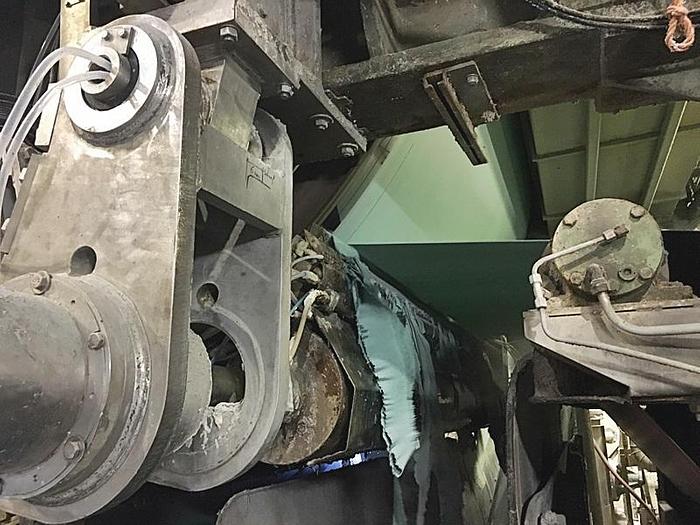

Creping station with ceramic blades.
Gas Hood : Spooner (1971) 2- burners Flameco /Eclipse natural gas w/ WE & DE circulation fans.
Heat recovery gas hood and dryer group, Langbein & Engelbracht (1986) heat exchangers air/air by glass tubes

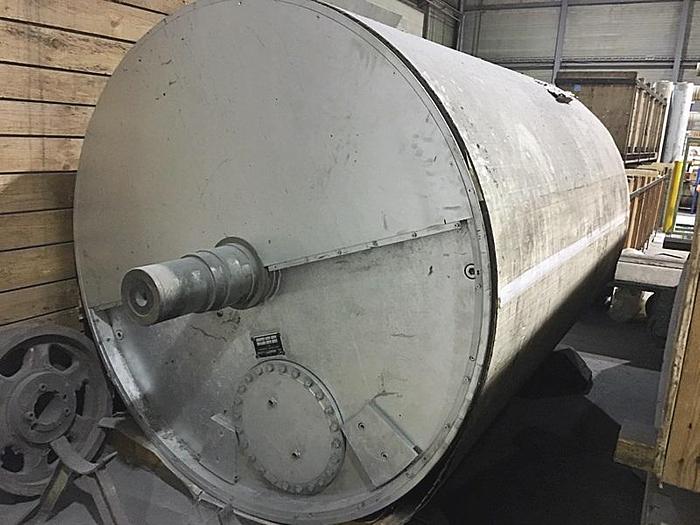

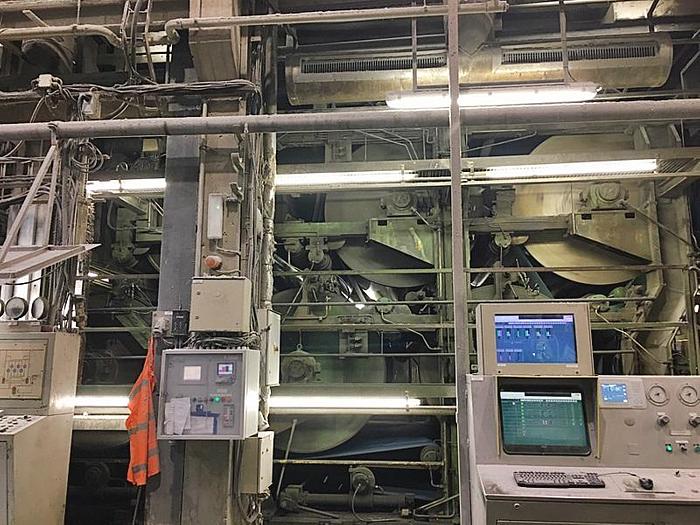

After dryer group with (6) dryers , 1800mm (71") dia x 2500mm (98') face width, (1) upper, (1) lower, (2) upper , (2) lower. Steam plant with seperator & controls. (1 spare dryer , new 2004)

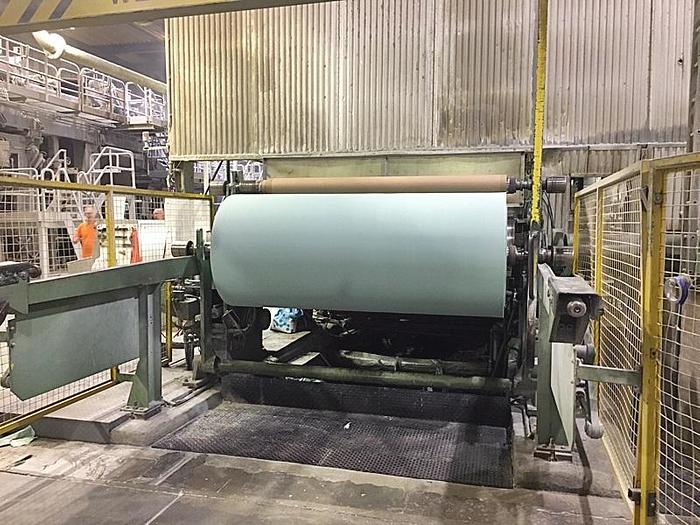

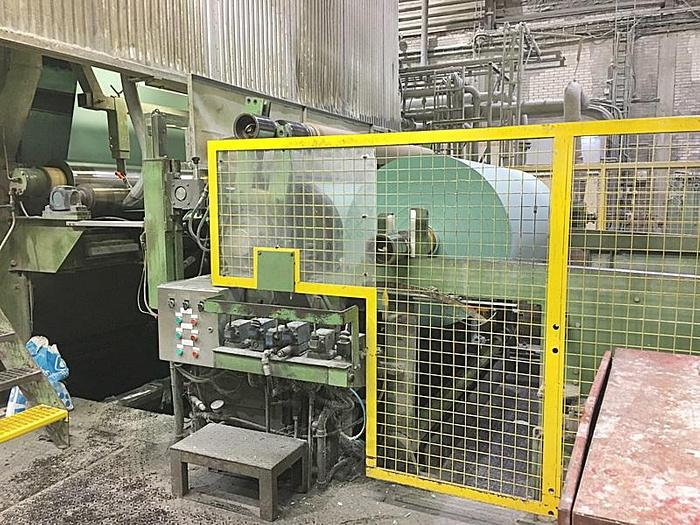

Hydraulic controlled pope reel

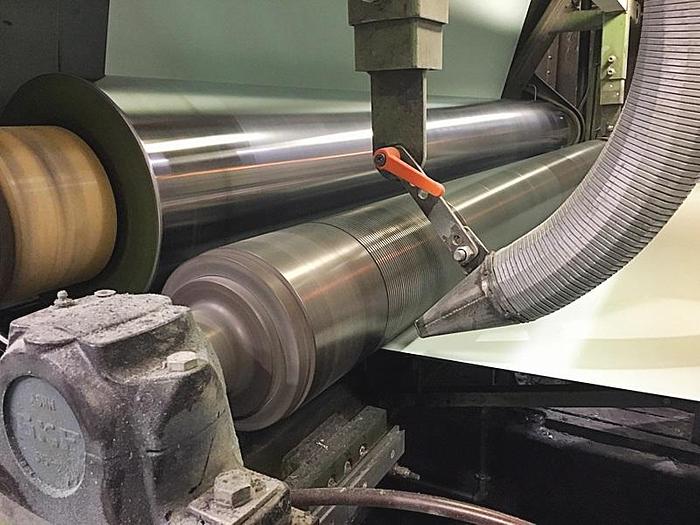

Slitting system with trim removal

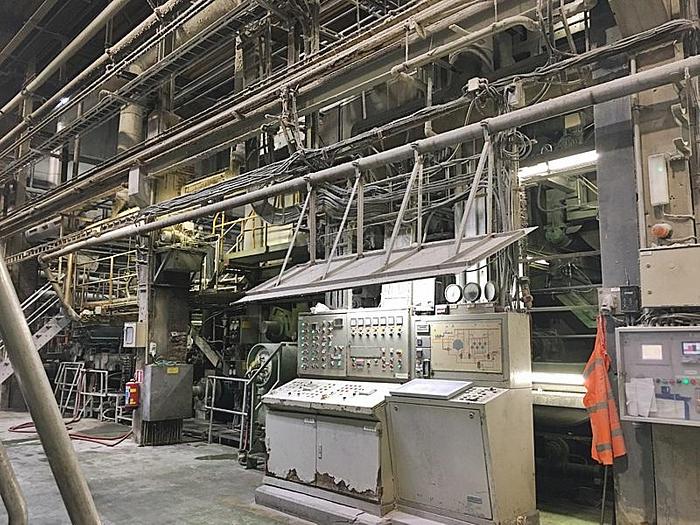

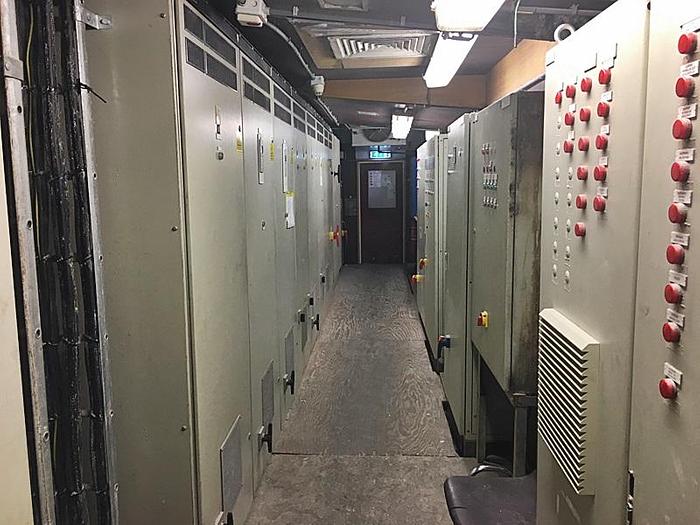

Machine Drives: Type: DC , Brand: BBC/ABB
Cooling drive fans & heat exchangers
Some Stock prep .
Major rebuild info and specs upon request.
Specifications
Manufacturer | REINHARD |
Model | TISSUE MACHINE |
Condition | Used |
Stock Number | 107720 |
Voith air cusion headbox, slice width | 93" (2350mm), |
Flow | 5900-14,000l/min, Rebuilt bu Voith (1983) |
Gas hood | Spooner (1971) 2- burners Flameco /Eclipse natural gas w/ WE & DE circulation fans. |
Width | 90 |
