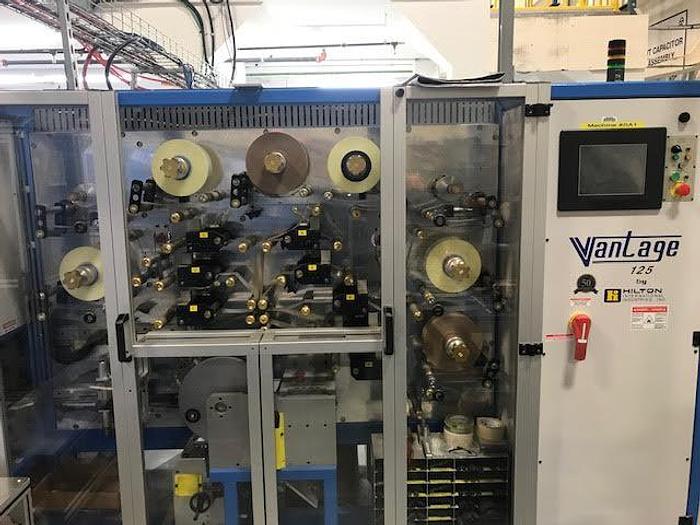

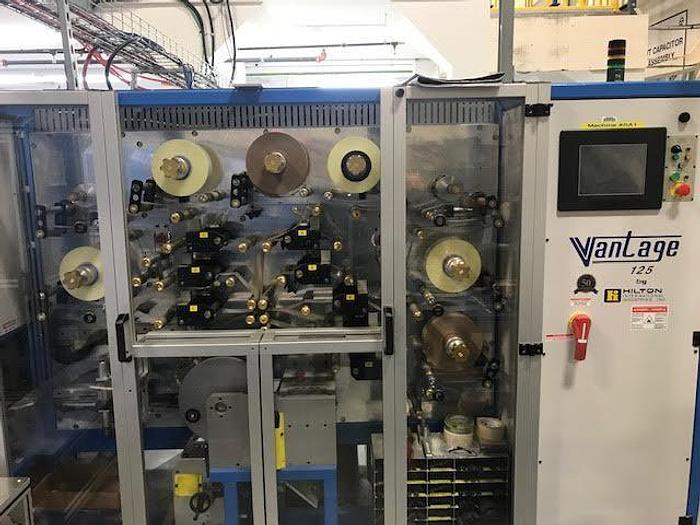

CAPACITOR WINDING MACHINE VANTAGE MODEL 125 MFG. 2013
No longer available
CAPACITOR WINDING MACHINE VANTAGE MODEL 125 MFG. 2013
Description
107933
One (1) Used Capacitor Winding Machine
Model: Vantage 125 complete with Tester.
* Serial Number 552 LH
* Date of manufacture: March 2013
* Type: 125mm, (5") Automatic, dual arbor center wind, Capacitor Winding Machine.
* Faceplate: Single layer, rib reinforced aluminum tool & jig plate.
* Frame: Welded rectangular steel tube.
* Finish: Hilton Blue enamel (Sherwin Williams TPA-502).
* Six (6) Dielectric material spindles, 125mm Max wide. O.D. 76mm 0-Ring style. Capacity
18kg (40lbs) max. Roll dia 228mm (9") Max.
* Two (2) Foil spindles, 125mm Max. wide. O.D. 33.3mm O-Ring style. Capacity 18 kg. max.
Roll dia 203mm Max.
* Edge alignment adjustment of plus or minus 6.4mm
* Closed loop, Servomotor driven, tension control system.
* Electronic Web speed matching.
* Dual, retracting turret mounted, compound collapsible arbor assembly.
* Max. winding width; 125mm including extended foil allowance. Min. web width 63mm.
* Foil and dielectric length measuring.
* Wind to turns or wind to length control.
* Break detection system.
* Arbor drive: 1 H.P. D.C. servomotor with resolver feedback and integral arbor position
encoding.
* Secondary drive: 1/21 H.P. D.C. servomotor with resolver feedback.
* Programmable acceleration and deceleration control.
* Inching and jogging control.
* Perforator assemblies on each web. Pneumatically actuated.
* Robotic element removal and transfer system.
* Element double taping system with pressure roller.
* Giddins and Lewis PLC programmable controller. Digital and analog outputs for controls of

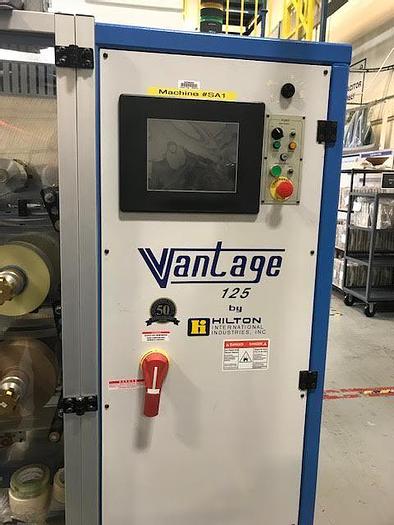

servomotor and machine controls. Touch screen operator interface.
* Automatic testing station with narrow belt loading, positioning and unloading.
* Programmable press force to 1117 Newtons Max.
* High voltage, dry capacitance testing (5KV)
* Automatic rejection of failed elements.
* Guards and controls to meet Canadian Standards Association Z432-04.
* Electrical requirements: 220/240 VAC; 50/60 Hz; 1 PH; 25 amps max. service.
* Pneumatic requirements: 80 PSI min. (550 KPa) 1/2" dia. (12.5mm) air line. Dry, filtered air.
* Machine Dimensions: (All components installed).
Width: 118" (2.99 m).
Height: 76" - 78" (1.93 m - 1.98 m) Adjustable.
Depth: 63" (1.6 m)
Arbor Height: 32" - 34" (0.81m - 0.86m).
Weight: (Approx.) 5500 lbs. (2500 kg)
Specifications
Manufacturer | HILTON INDUSTRIES |
Model | Vantage 125 complete with Tester. |
Year | 2013 |
Condition | Used |
Stock Number | 108933 |
Weight | (Approx.) 5500 lbs. (2500 kg) |
* date of manufacture | March 2013 |
* type | 125mm, (5") Automatic, dual arbor center wind, Capacitor Winding Machine. |
* faceplate | Single layer, rib reinforced aluminum tool & jig plate. |
* frame | Welded rectangular steel tube. |
* finish | Hilton Blue enamel (Sherwin Williams TPA-502). |
* arbor drive | 1 H.P. D.C. servomotor with resolver feedback and integral arbor position |
* secondary drive | 1/21 H.P. D.C. servomotor with resolver feedback. |
* electrical requirements | 220/240 VAC; 50/60 Hz; 1 PH; 25 amps max. service. |
* pneumatic requirements | 80 PSI min. (550 KPa) 1/2" dia. (12.5mm) air line. Dry, filtered air. |
* machine dimensions | (All components installed). |
Width | 118" (2.99 m). |
Height | 76" - 78" (1.93 m - 1.98 m) Adjustable. |
Depth | 63" (1.6 m) |
Arbor height | 32" - 34" (0.81m - 0.86m). |
