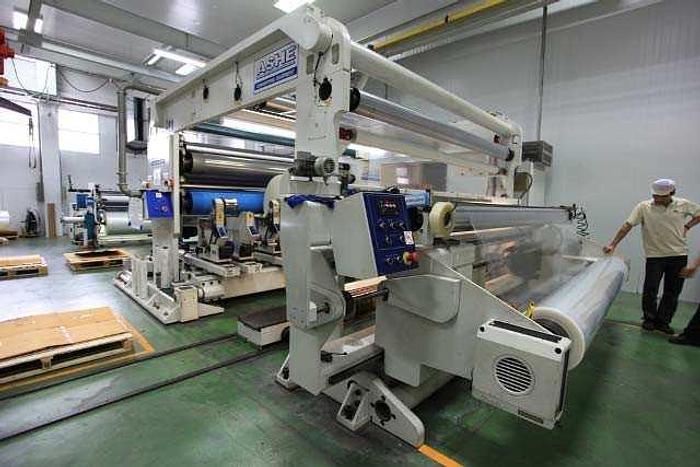

110" ASHE JADE SERIES SLITTER REWINDER CENTER SURFACE YEAR 2003

110" ASHE JADE SERIES SLITTER REWINDER CENTER SURFACE YEAR 2003

Contact us for price

orCall +1 215-664-6016

Description

107512 One (1) Used 110" Ashe Jade Series Slitter Rewinder Center Surface Individual Arm Rewind 500 Meter/minute Working width: 110" (2800mm) Unwind diameter: 40" (1000mm) Rewind diameter: 40" (1000mm) Roll weight: 1200KG appx 2600lbs 8" (200mm) minimum slit width Unwind tension range 10 to 100 Kg Rewind tension range 2 to 20 K Recently uninstalled Core Specifications (preferred) 3" Core Inside dia.: 76.10 - 76.30mm Core Outside dia.: min 105mm Core Quality: Good quality Core with high resin content. Core cutting to be burr free on inside diameter, with parallel ends. 6" Core Inside dia.: 152.40 - 152.60 mm Core Outside dia.: Not important but minimum wall thickness of 10mm recommended Core Quality: Good quality Core with high resin content. Core cutting to be burr free on inside diameter, with parallel ends.

Specifications

ManufacturerASHE
ModelJADE SERIES
ConditionUsed
Stock Number107512
Width110
Rewind diameter40" (1000mm)
Working width110" (2800mm)
Unwind diameter40" (1000mm)
Roll weight1200KG appx 2600lbs
Core inside dia.152.40 - 152.60 mm
Core outside dia.Not important but minimum wall thickness of 10mm recommended
Core qualityGood quality Core with high resin content.
