18 "(450MM) LABORATORY FOURDRINIER PAPER MACHINE

18 "(450MM) LABORATORY FOURDRINIER PAPER MACHINE

Contact us for price

orCall +1 215-664-6016

Description

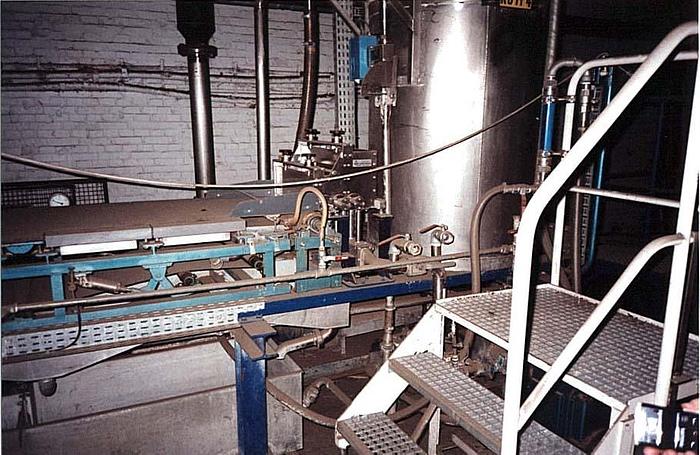

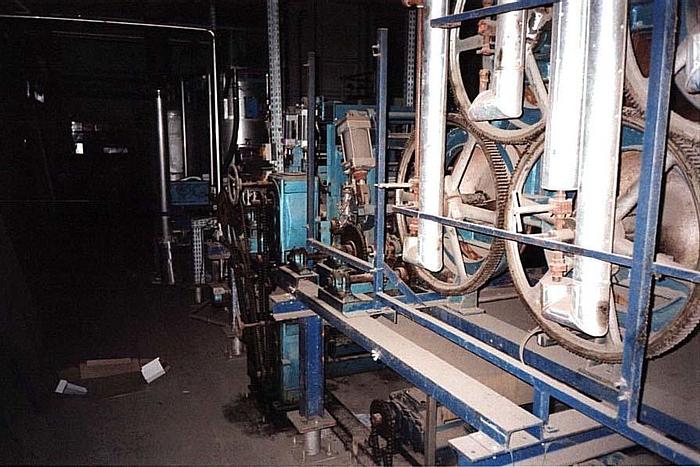

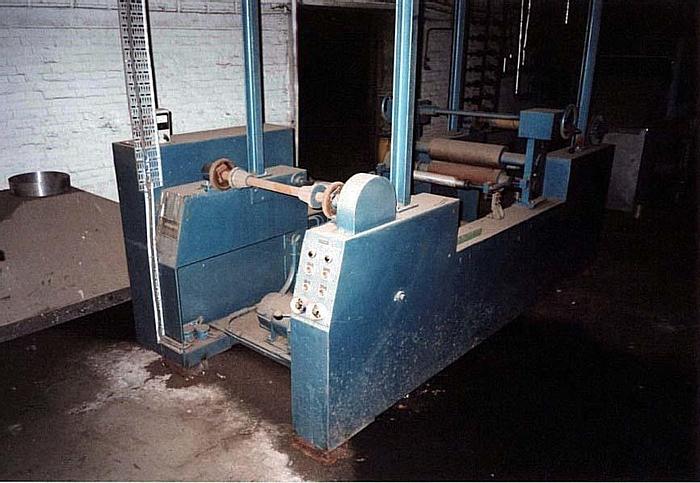

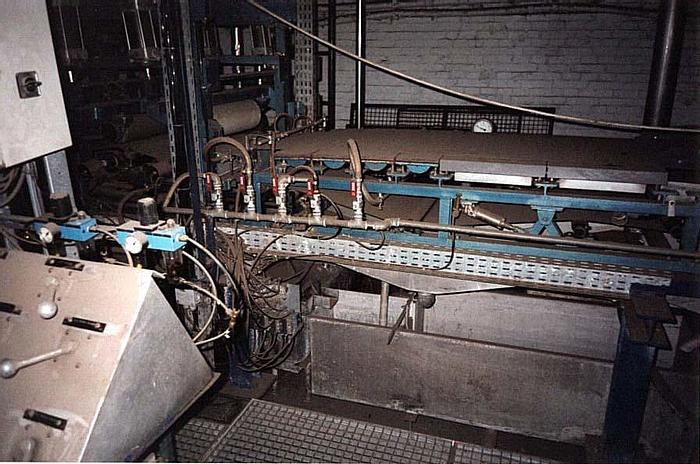

107042 One used 18 " (450mm) Laboratory Fourdrinier paper machine last used for testing internal sizing in paper. Cap. TPD 0,3 Min gsm 50 Max gsm 300 Speed m/min 60 Max allowed speed is 23 m/min due to open bearings on the dryers. Open head box with two evener rolls. Wire width: 21 " ( 530 mm.) Deckle strips Dewatering is done with two low vacuum boxes and secondly five normal dry vacuum boxes. Distance centre to centre breast roll coach roll:85" ( 2170 mm) Plain coach Press section with two presses, single felted. with suction box for felt washing, with vacuum pump Drying section with 6 dryers dia. 22" (550mm) x 24 " (600 mm) good for steam pressure of 2.5 bar and two felt dryers Drying length is 272" ( 6900 mm ) approximately Steam and condensate system is new. Winding station Total length of the machine is about 13 meters Main drive 18 Hp motor and Flender variator Stock prep: 1 Solvo pulper, net capacity 500 Kg 1 Refiner, Escher Wyss type R1 3 Pulp tanks, 2500 l, 7500 l, 7500 l with agitators and stock pumps Approach flow system including: 1 stock chest 750 l 1 constant level box 1 Flow metering pump Other related pumps

Specifications

ManufacturerLAB
ModelPAPER MACHINE
ConditionUsed
Stock Number107042
Width18
Wire width21 " ( 530 mm.)
Distance centre to centre breast roll coach roll85" ( 2170 mm)
