13.75" KLEINEWEFERS LAB SOFT CALENDER STACK

13.75" KLEINEWEFERS LAB SOFT CALENDER STACK

Contact us for price

orCall +1 215-664-6016

Description

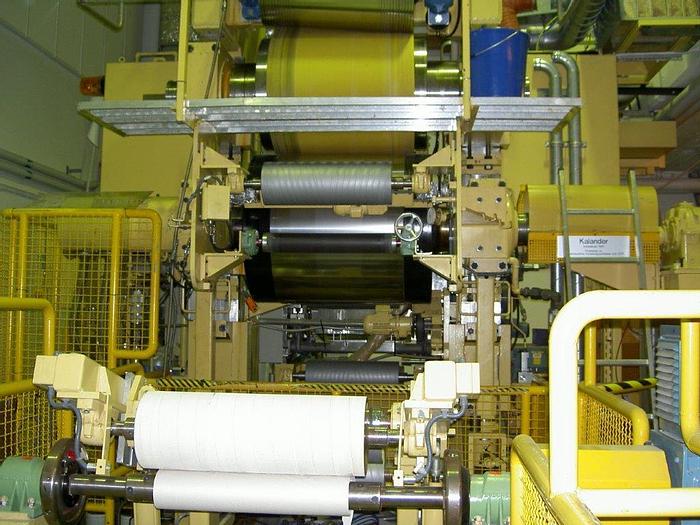

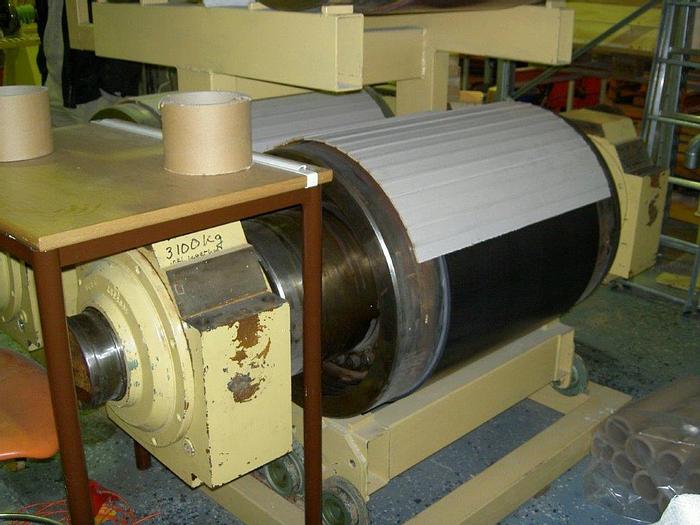

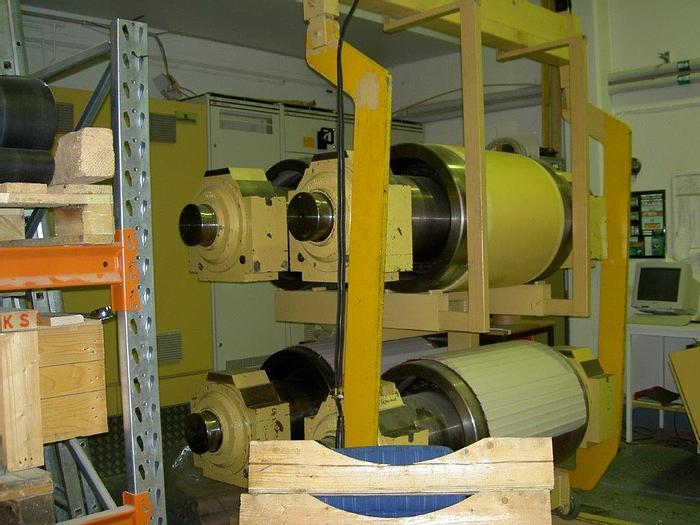

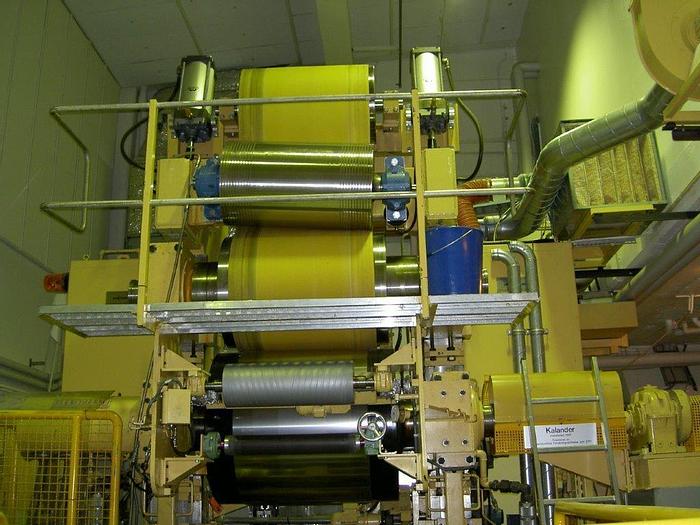

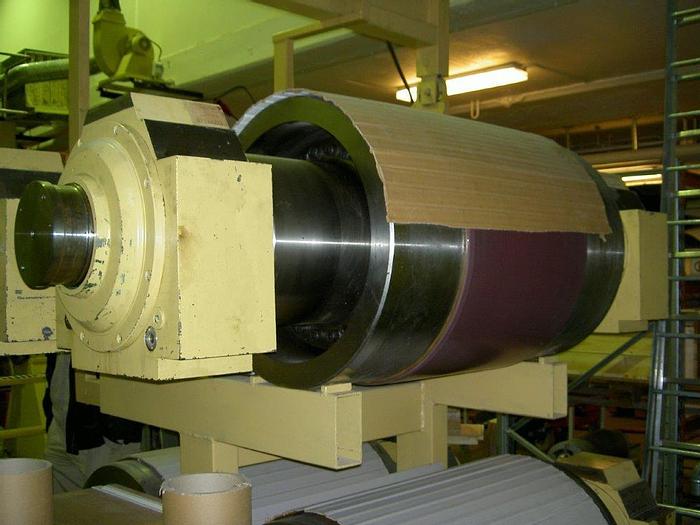

107488 One (1) Used 13.75" Kleinewefers Lab Soft Compact Calender Stack FOR THE CALENDERING OF BOARDS, COATED AND UNCOATED PAPER WITH BASIS WEIGHT OF 40 – 300 GSM DEPOSITION OF ROLLS TOP 3. PAPER ROLL 375 MM DIA. DRIVE 2. FLEXITHERM ROLL 500 MM DIA. BOTTOM 1. PAPER ROLL 375 MM DIA. TECHNICAL DATA Width on face a) Flexitherm roll 550 mm b) Paper rolls 450 mm Working width 350 mm Linear Pressure 3 – 499 daN/cm Working Speed 1000 m/min Roll dia unwind/rewind 1000 mm Core diameter a) Inside 76 mm b) Outside 100 mm Drive power required 38 KW Voltage for auxiliary drive 380 V 50 Hz 3 ph. For control 220 V, 50 Hz

Specifications

ManufacturerKLEINWEFERS
ModelLAB CALENDER
ConditionUsed
Stock Number107488
Width135
